[shortdesc] Firewall, 5G WAN, 5x GE RJ45, IPsec VPN 4.5 Gbps, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Model / SKU	FortiGate 50G-5G / FG-50G-5G-BDL-950-60
Form Factor	Desktop
Firewall Throughput	5 / 5 / 4 Gbps (1518 / 512 / 64 byte UDP)
Cellular Connectivity	Embedded 3G/4G/LTE/5G wireless WAN module

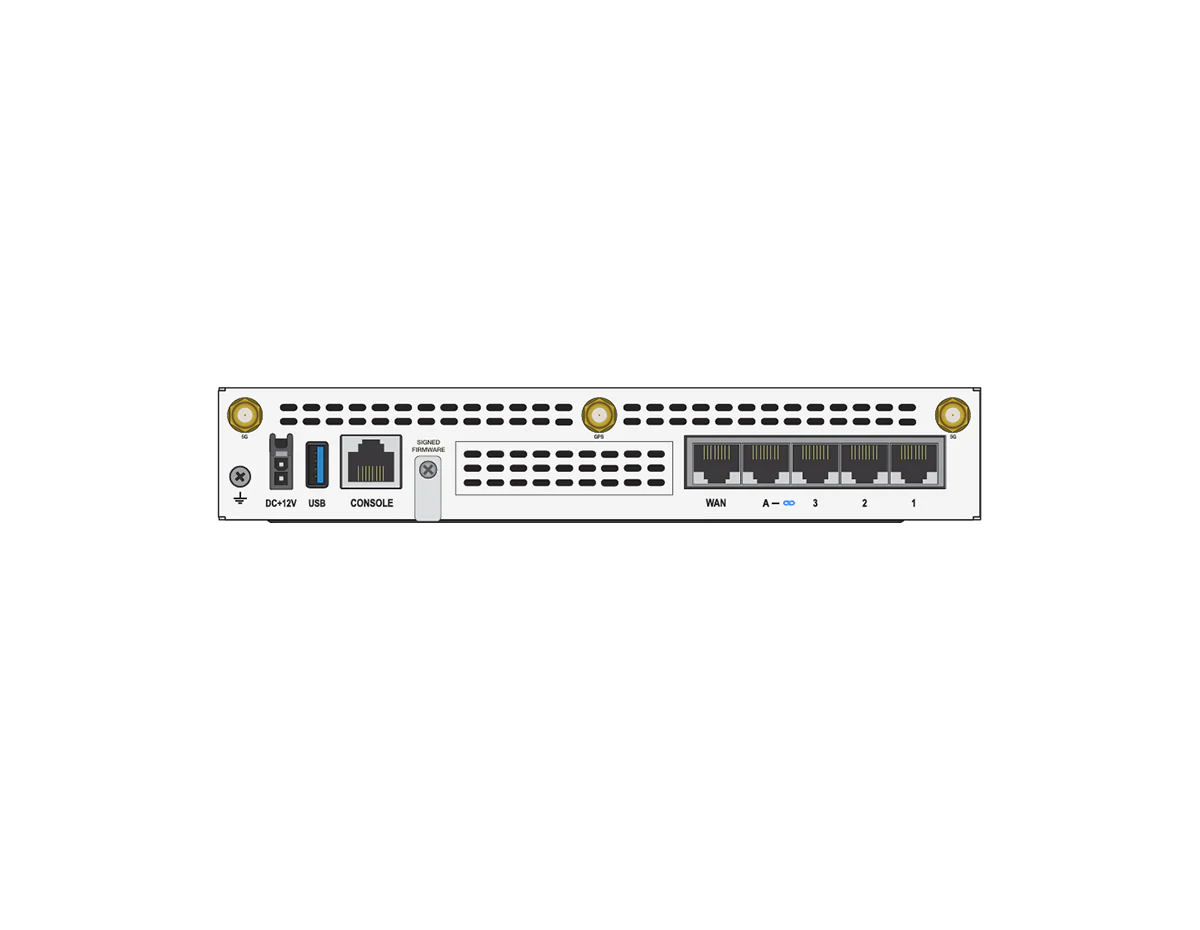

Interfaces	5x GE RJ45 ports (1x WAN, 1x FortiLink, 3x Ethernet), 1x USB port, 1x RJ45 console port, 5x SMA WWAN antenna ports
Dimensions	1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm)
Weight	2.2 lbs (1.0 kg)
Operating Temp	32°F to 104°F (0°C to 40°C)
Storage	— (no internal storage)

[/properties]

[specifications]

System Performance
Firewall Latency (64 byte UDP packets)	2.42 μs
Firewall Throughput (Packets Per Second)	6 Mpps
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput (512 byte)	4.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL Inspection Throughput (IPS, avg. HTTPS)	1.3 Gbps
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Threat Protection Throughput	1.1 Gbps
Application Control Throughput (HTTP 64K)	2.8 Gbps
5G Modem Specifications
Modem Model	Telit Cinterion FN990A28-HP
SIM Slots	2x Nano SIM (Active/Passive)
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79 bands)
Hardware & Networking
GE RJ45 WAN Ports	1
GE RJ45 FortiLink Port	1
GE RJ45 Ethernet Ports	3
USB Port	1
Console Port	1 (RJ45)
Trusted Platform Module (TPM)	Yes
Environment & Power
Power Consumption (Average / Maximum)	8.3 W / 8.9 W
Heat Dissipation	30.35 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA

[/specifications]

[accesories]

Included	5x External SMA WWAN Antennas, External DC Power Adapter (required)
Optional	Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), Mounting Ear Bracket (SP-EAR-FG90G-10)

[/accesories]

The FortiGate 50G-5G series is a high-performance Firewall designed to bring enterprise-grade protection and high-speed connectivity to distributed branch offices. Powered by Fortinet's patented SP5 ASIC, this Next-Generation Firewall (NGFW) accelerates networking and security convergence, delivering superior speed and efficiency compared to traditional CPU-based systems. With an integrated 5G modem, the 50G-5G provides reliable, high-bandwidth cellular WAN access as either a primary or failover connection to help maintain connectivity if wired infrastructure fails.

This 5-year Unified Threat Protection (UTP) bundle helps defend your network against modern cyber threats for the long term. The FortiGuard Unified Threat Protection bundle includes security services such as Intrusion Prevention (IPS), Anti-Malware Protection, URL and DNS filtering, and Anti-Spam. Paired with FortiCare Premium support, you gain ongoing access to technical expertise to help keep your security foundation strong for small and medium-sized enterprise sites.

Advanced Secure Networking with Seamless 5G Connectivity

• Converged Security and Networking: Integrates NGFW and SD-WAN with high-speed 5G in a single desktop Firewall for simplified branch onboarding and reduced hardware sprawl.
• High-Speed 5G Integration: Features an embedded 5G module with dual SIM slots and five external SMA WWAN antenna ports for reliable cellular WAN connectivity.
• Patented ASIC Acceleration: Built on the purpose-built SP5 SPU to accelerate performance for IPsec VPN, application identification, and SSL inspection.
• Unified Threat Protection: Includes a 5-year UTP bundle providing IPS, Anti-Malware Protection, and web/DNS filtering capabilities to help block malicious content.
• Simplified Operations: Centralized management through FortiOS delivers a unified framework for security policies and holistic visibility across the attack surface.
• Hardware-Based Trust: Features a dedicated Trusted Platform Module (TPM) that hardens the appliance by securely generating and storing cryptographic keys.
• Fanless Design: Designed for small environments, the fanless desktop design operates silently (0 dBA) while maintaining high reliability and efficient power usage.

Ideal Use Cases

• Distributed Enterprise Branches: Secure small to medium-sized sites that require integrated 5G for primary internet access or critical WAN backup.
• Retail and POS Systems: Help support continuous transaction uptime with cellular failover and integrated protection against web-based attacks.
• Secure SD-WAN Deployments: Transform WAN architecture at any scale with faster application identification and accelerated overlay performance.
• Remote/Temporary Offices: Quickly deploy enterprise-grade Firewall protection and high-speed internet in locations without traditional wired infrastructure.

Technical Specifications Summary

• Firewall Throughput (1518 / 512 / 64 byte UDP): 5 / 5 / 4 Gbps
• IPS Throughput: 2.25 Gbps
• NGFW Throughput: 1.25 Gbps
• Threat Protection Throughput: 1.1 Gbps
• IPsec VPN Throughput (512 byte): 4.5 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 1.3 Gbps
• Concurrent Sessions / New Sessions per Second (TCP): 720,000 / 85,000
• Interfaces: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x RJ45 console, 5x SMA WWAN antenna ports, 2x Nano SIM
• Power / Acoustics: 12VDC, 3A; 8.3 W / 8.9 W (avg./max.); fanless 0 dBA
• Dimensions / Weight: 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm); 2.2 lbs (1.0 kg)

Upgrade Your Network Security

Deploy the FortiGate 50G-5G today to secure your branch with high-speed 5G and 5 years of Unified Threat Protection.
