[shortdesc] Firewall, embedded 5G WWAN, 5x GE RJ45, IPsec VPN 4.5 Gbps, IPS 2.25 Gbps, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Model / SKU	FortiGate 50G-5G / FG-50G-5G-BDL-950-12
Form Factor	Desktop
Firewall Throughput	5 / 5 / 4 Gbps (1518 / 512 / 64 byte UDP packets)
NGFW Throughput	1.25 Gbps
Wireless WAN	Embedded 3G/4G/LTE/5G Module
Interfaces	1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB Port, 1x Console Port (RJ45), 5x SMA WWAN antenna ports
Dimensions	1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm)
Weight	2.2 lbs (1.0 kg)
Internal Storage	—

[/properties]

[specifications]

System Performance
Firewall Latency (64 byte UDP packets)	2.42 μs
Firewall Throughput (Packets Per Second)	6 Mpps
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput (512 byte)	4.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL Inspection Throughput (IPS, avg. HTTPS)	1.3 Gbps
IPS Throughput	2.25 Gbps
Threat Protection Throughput	1.1 Gbps
Application Control Throughput (HTTP 64K)	2.8 Gbps
CAPWAP Throughput (HTTP 64K)	3.8 Gbps
5G Modem Specifications
Modem Model	Telit Cinterion FN990A28-HP
SIM Slots	2x Nano SIM (Active/Passive)
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
Hardware & Networking
GE RJ45 WAN Ports	1
GE RJ45 FortiLink Port (Default)	1
GE RJ45 Ethernet Ports	3
USB Port	1
Console Port (RJ45)	1
Trusted Platform Module (TPM)	Included
Environment & Power
Power Rating	12VDC, 3A
Power Consumption (Average / Maximum)	20.43 W / 23.59 W
Heat Dissipation	80.44 BTU/hr
Operating Temperature	32°F to 104°F (0°C to 40°C)
Noise Level	21.73 dBA

[/specifications]

[accesories]

Included	5x External SMA WWAN Antennas, External DC Power Adapter
Optional	Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), Mounting Ear Bracket (SP-EAR-FG90G-10)

[/accesories]

The FortiGate 50G-5G series is a compact, high-performance security appliance designed to bring enterprise-grade protection and high-speed connectivity to distributed branch offices. Powered by Fortinet's patented SP5 ASIC, this Next-Generation Firewall (NGFW) accelerates networking and security convergence, delivering superior speed and efficiency compared to traditional CPU-based systems. With an integrated 5G modem, the 50G-5G provides reliable, high-bandwidth wireless WAN access as either a primary or failover connection, ensuring your business stays online even if wired infrastructure fails.

This 1-year Unified Threat Protection (UTP) bundle ensures your network is defended against a wide spectrum of modern cyber threats. The UTP license includes essential security services such as Intrusion Prevention (IPS), Anti-Malware, URL and DNS Filtering, and Anti-Spam. Paired with FortiCare Premium support, you gain access to technical expertise and response coverage for critical issues, providing a robust security foundation for small and medium-sized enterprise sites.

Secure Branch Connectivity with Integrated 5G WAN and Unified Protection

• Converged Security and Networking: Integrates NGFW, SD-WAN, and high-speed 5G connectivity in a single desktop appliance for simplified branch onboarding and management.
• High-Speed 5G Integration: Features an embedded 5G module with dual SIM slots and five external SMA antenna ports for reliable, high-bandwidth cellular WAN connectivity.
• Patented ASIC Acceleration: Built on the purpose-built SP5 SPU to increase performance for IPsec VPN, application identification, and SSL inspection.
• Unified Threat Protection: Includes a 1-year UTP bundle providing IPS, anti-malware protection, and web/DNS filtering to help block malicious content in real time.
• Simplified Operations: Centralized management through FortiOS delivers a unified framework for security policies and holistic visibility across the attack surface.
• Hardware-Based Security: Features a dedicated Trusted Platform Module (TPM) that hardens the appliance by securely generating and storing cryptographic keys.
• Efficient Form Factor: Compact desktop design supports small environments and flexible placement for branch deployments.

Ideal Use Cases

• Distributed Enterprise Branches: Secure small to medium-sized sites that require integrated 5G for primary internet access or critical WAN backup.
• Retail and POS Systems: Ensure continuous transaction processing with reliable cellular failover and integrated protection against web-based attacks.
• Secure SD-WAN Deployments: Transform WAN architecture at any scale with faster application identification and automated overlay performance.
• IoT Device Protection: Automatically discover and secure IoT devices at the branch edge to prevent unauthorized access and data exfiltration.

Technical Specifications Summary

• Firewall Throughput (1518/512/64 byte UDP): 5 / 5 / 4 Gbps
• Firewall Latency (64 byte UDP): 2.42 μs
• IPS Throughput (Enterprise Mix): 2.25 Gbps
• NGFW Throughput: 1.25 Gbps
• Threat Protection Throughput: 1.1 Gbps
• IPsec VPN Throughput (512 byte): 4.5 Gbps
• Session Capacity: 720,000 concurrent sessions, 85,000 new sessions/second

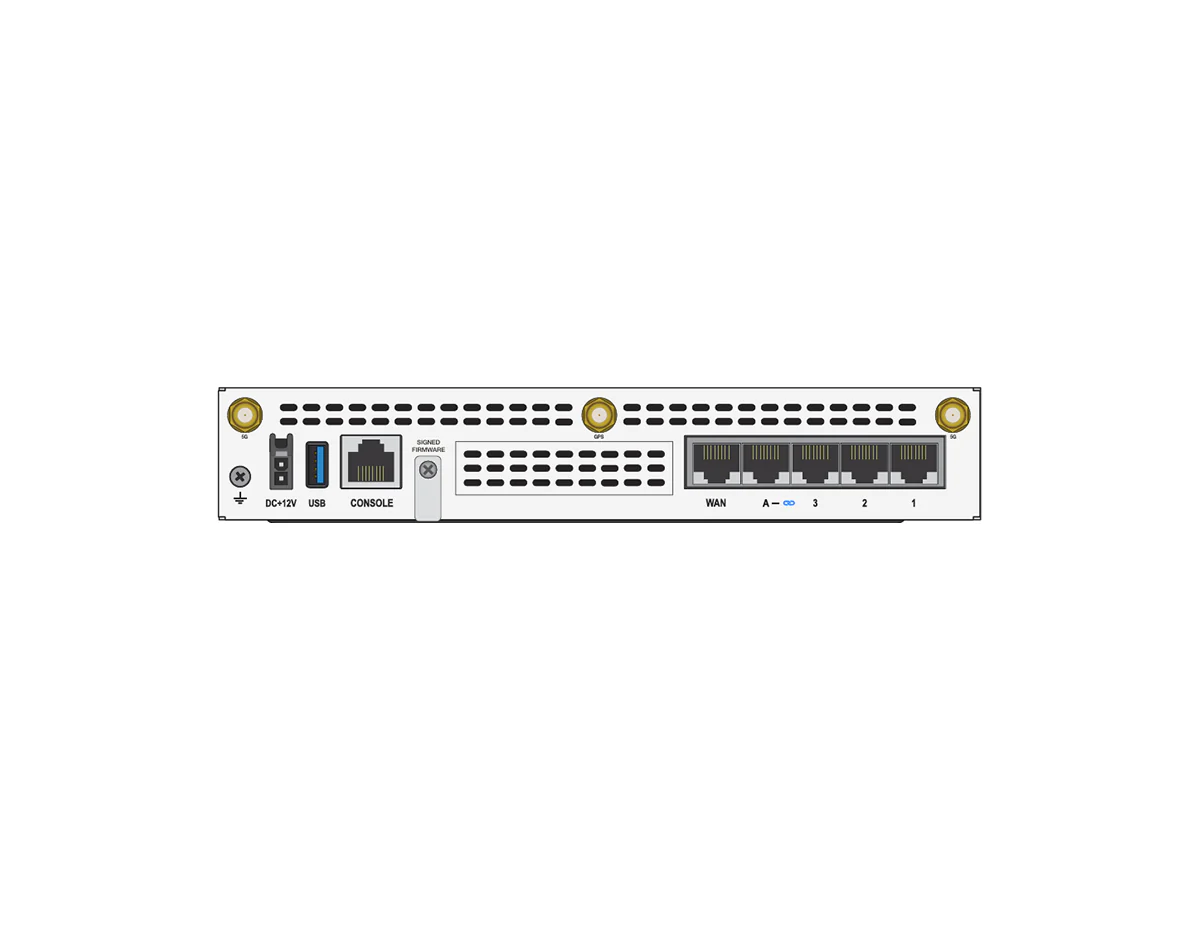

• Ports: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x RJ45 console
• 5G Connectivity: Telit Cinterion FN990A28-HP modem, 2x Nano SIM (Active/Passive), 5x SMA WWAN antenna ports
• Power and Acoustics: 12VDC 3A, 20.43 W / 23.59 W, 21.73 dBA
• Physical: 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm), 2.2 lbs (1.0 kg)

Upgrade Your Network Security

Deploy the FortiGate 50G-5G today to secure your branch with high-speed 5G and 1 year of Unified Threat Protection.
