[shortdesc] FortiGate 50G-5G Firewall, desktop, 5x GE RJ45, integrated 5G WWAN, 5/5/4 Gbps IPv4, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Model / SKU	FortiGate 50G-5G / FG-50G-5G-BDL-809-60
Form Factor	Desktop
Firewall Throughput	5 / 5 / 4 Gbps (1518 / 512 / 64 byte UDP packets)
NGFW Throughput	1.25 Gbps
Wireless WAN	Embedded 3G/4G/LTE/5G wireless WAN module

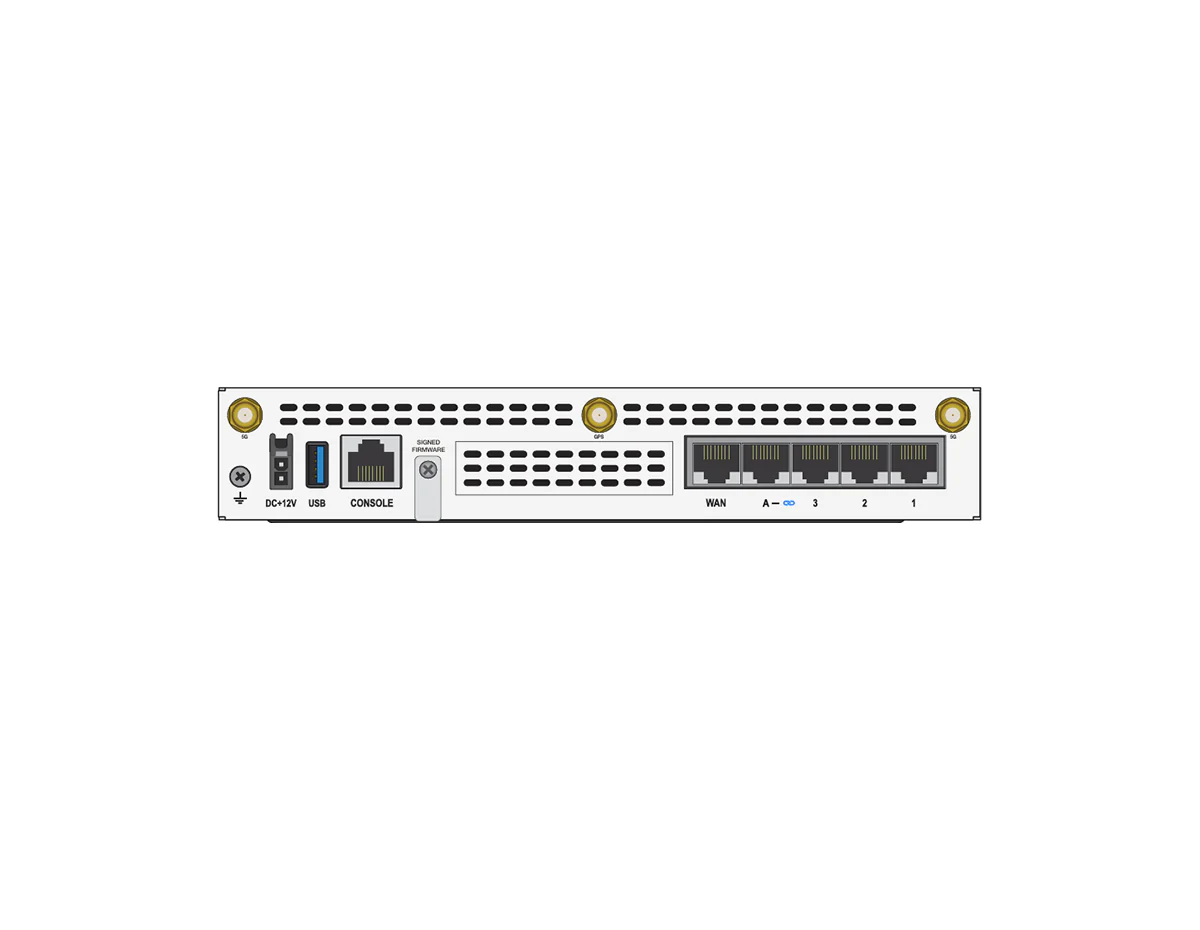

Interfaces	1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x Console (RJ45), 5x SMA WWAN antenna ports
Dimensions	1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm)
Weight	2.2 lbs (1.0 kg)
Operating Temp	32°F to 104°F (0°C to 40°C)

[/properties]

[specifications]

System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	5 / 5 / 4 Gbps
Firewall Latency (64 byte UDP packets)	2.42 μs
Firewall Throughput (Packets Per Second)	6 Mpps
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput (512 byte)	4.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL Inspection Throughput (IPS, avg. HTTPS)	1.3 Gbps
IPS Throughput	2.25 Gbps
Threat Protection Throughput	1.1 Gbps
Application Control Throughput (HTTP 64K)	2.8 Gbps
CAPWAP Throughput (HTTP 64K)	3.8 Gbps
5G Modem Specifications
Modem Model	Telit Cinterion FN990A28-HP
SIM Slots	2x Nano SIM (Active/Passive)
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Hardware & Networking
GE RJ45 WAN Ports	1
GE RJ45 FortiLink Port (Default)	1
GE RJ45 Ethernet Ports	3
USB Port	1
Console Port (RJ45)	1
Trusted Platform Module (TPM)	Included
Environment & Power
Power Consumption (Average / Maximum)	8.3 W / 8.9 W
Heat Dissipation	30.35 BTU/h
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA

[/specifications]

[accesories]

Included	5x External SMA WWAN Antennas, External DC Power Adapter
Optional	Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), Mounting Ear Bracket (SP-EAR-FG90G-10)

[/accesories]

The FortiGate 50G-5G series provides an integrated networking and security solution designed for distributed enterprise sites and branch offices. Powered by Fortinet's patented SP5 ASIC technology, it delivers high performance for Next-Generation Firewalling (NGFW) and SD-WAN while maintaining high energy efficiency. This model features an integrated 5G modem, allowing businesses to leverage cellular connectivity as either a primary or failover WAN link to help maintain uptime for critical applications.

This SKU (FG-50G-5G-BDL-809-60) includes the hardware appliance plus a 5-year contract for FortiGuard Enterprise Protection and FortiCare Premium. The Enterprise Protection bundle offers a comprehensive selection of AI-powered security services, including IPS, Anti-Malware, and Web/DNS filtering, to defend against known, unknown, and zero-day threats. With 5 years of FortiCare Premium, you receive 24x7x365 technical support and issue resolution to help maintain your security fabric over its entire lifecycle.

Advanced Security Performance with Seamless 5G Connectivity

• Converged Security and Networking: Integrates NGFW, SD-WAN, and 5G into a single desktop appliance to reduce complexity.
• Integrated 5G Modem: Built-in Telit Cinterion modem with dual SIM slots supports wireless WAN connectivity.
• Patented ASIC Acceleration: Built on the SP5 secure SD-WAN ASIC (SPU) to increase speed and efficiency for IPsec VPN and application identification.
• AI-Powered Protection: FortiGuard services provide coordinated real-time threat protection against modern threats.
• Centralized Management: Simplified operations with FortiOS, providing unified visibility and automated workflows for security and networking.
• Hardware-Based Trust: Features a dedicated Trusted Platform Module (TPM) that hardens the appliance by securely generating and storing cryptographic keys.
• Secure SD-WAN: Delivers faster application identification and steering to optimize user experience at branch locations.

Ideal Use Cases

• Distributed Enterprise Branches: Secure remote sites requiring 5G as a primary or secondary internet connection.
• Retail and POS Infrastructure: Help maintain transaction uptime with cellular backup and integrated threat prevention.
• Secure Remote Work: Provide reliable and protected connectivity for small or temporary office environments.
• OT Aligned Environments: Utilize OT-focused application control and virtual patching capabilities to help safeguard critical infrastructure.

Technical Specifications Summary

• Firewall Throughput: 5 / 5 / 4 Gbps (1518 / 512 / 64 byte UDP packets)
• IPS Throughput: 2.25 Gbps
• NGFW Throughput: 1.25 Gbps
• Threat Protection Throughput: 1.1 Gbps
• IPsec VPN Throughput: 4.5 Gbps (512 byte)
• Concurrent Sessions: 720,000 (TCP)
• New Sessions/Second: 85,000 (TCP)
• Ports: 1x GE RJ45 WAN, 1x GE RJ45 FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x Console (RJ45)
• 5G Connectivity: Telit Cinterion FN990A28-HP modem, 2x Nano SIM (Active/Passive), 5x SMA WWAN antenna ports
• Power and Acoustics: 8.3 W / 8.9 W (avg./max), fanless 0 dBA
• Physical: 1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm), 2.2 lbs (1.0 kg)
