[shortdesc] Firewall, 5x GE RJ45, desktop, integrated 5G WWAN, up to 5/5/4 Gbps, including 3 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Model / SKU	FortiGate 50G-5G / FG-50G-5G-BDL-809-36
Form Factor	Desktop
Firewall Throughput	5 / 5 / 4 Gbps (1518 / 512 / 64 byte UDP packets)
NGFW Throughput	1.25 Gbps
Wireless WAN	Embedded 3G/4G/LTE/5G wireless WAN module

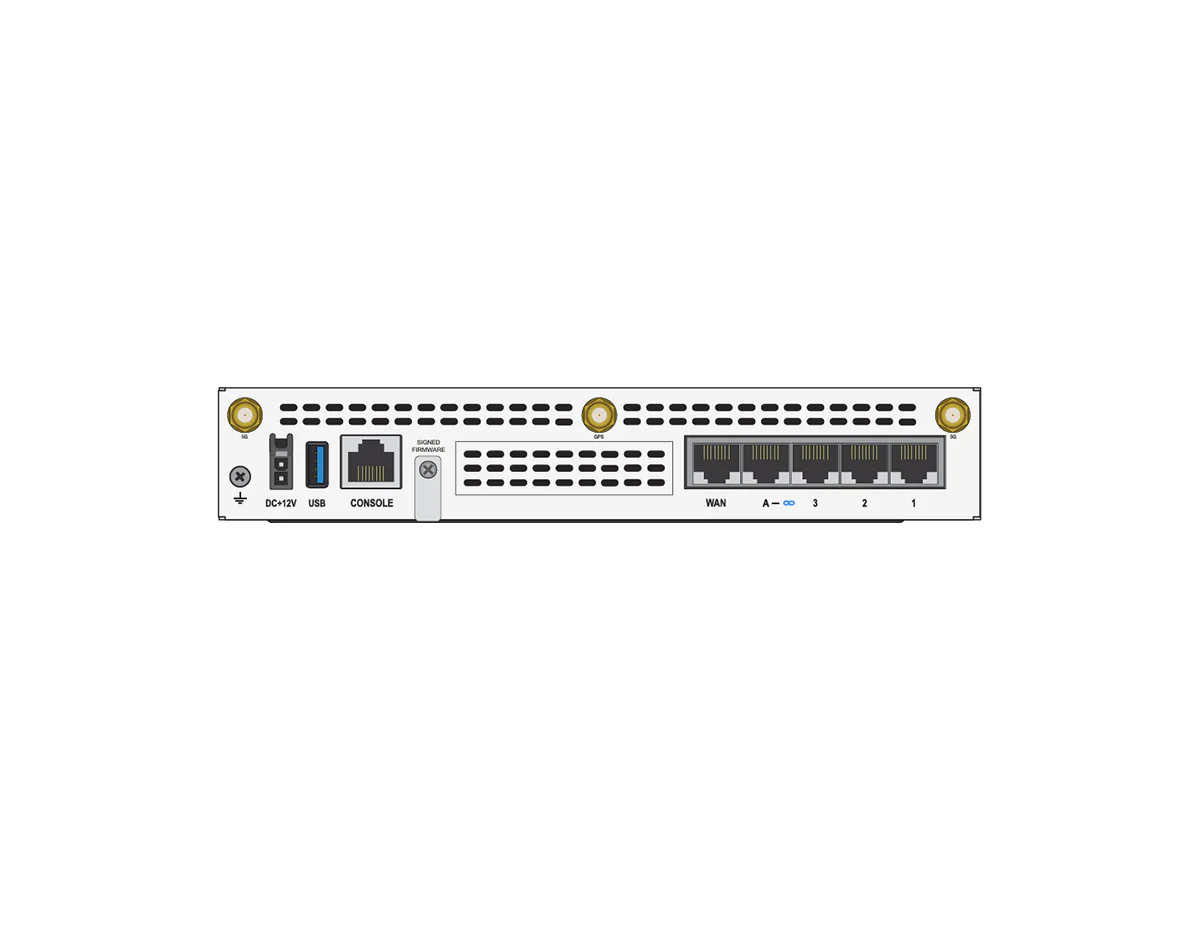

Interfaces	5x GE RJ45 (1x WAN, 1x FortiLink, 3x Ethernet), 1x USB, 1x Console (RJ45), 5x WWAN antenna ports (SMA)
Dimensions	1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm)
Weight	2.2 lbs (1.0 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Certifications	FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6

[/properties]

[specifications]

System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	5 / 5 / 4 Gbps
Firewall Latency (64 byte UDP packets)	2.42 μs
Firewall Throughput (Packets Per Second)	6 Mpps
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
IPsec VPN Throughput (512 byte)	4.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL Inspection Throughput (IPS, avg. HTTPS)	1.3 Gbps
IPS Throughput	2.25 Gbps
Threat Protection Throughput	1.1 Gbps
Application Control Throughput (HTTP 64K)	2.8 Gbps
CAPWAP Throughput (HTTP 64K)	3.8 Gbps
5G Modem Specifications
Modem Model	Telit Cinterion FN990A28-HP
SIM Slots	2x Nano SIM (Active/Passive)
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79 bands)
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Hardware & Networking
GE RJ45 WAN Ports	1
GE RJ45 FortiLink Ports (Default)	1
GE RJ45 Ethernet Ports	3
USB Port	1
Console Port (RJ45)	1
Trusted Platform Module (TPM)	Included
Environment & Power
Power Consumption (Average / Maximum)	20.43 W / 23.59 W
Heat Dissipation	80.44 BTU/hr
Noise Level	Fanless 0 dBA
Humidity	10% to 90% non-condensing

[/specifications]

[accesories]

Included	5x External SMA WWAN Antennas, External DC Power Adapter
Optional	Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), Mounting Ear Bracket (SP-EAR-FG90G-10)

[/accesories]

The FortiGate 50G Series provides an integrated networking and security solution designed for distributed enterprise sites. Built on a patented SD-WAN ASIC (SP5), it delivers strong performance for Next-Generation Firewalling (NGFW) and SD-WAN with reduced power consumption. This model features an integrated 5G modem, allowing businesses to leverage high-speed cellular connectivity as a primary or failover WAN link, helping maintain uptime for critical branch operations.

This SKU (FG-50G-5G-BDL-809-36) includes the appliance plus a 3-year contract for FortiGuard Enterprise Protection and FortiCare Premium. The Enterprise Protection bundle provides a curated selection of AI-powered security services, including IPS, anti-malware protection, and URL/DNS filtering, to help protect against modern attack vectors and zero-day threats. With FortiCare Premium, you receive 24x7x365 availability to support ongoing operations over a multi-year deployment.

Secure Branch Networking with Integrated 5G Wireless WAN

• Converged Connectivity: Integrates NGFW, SD-WAN, and 5G wireless WAN into a single desktop appliance for simplified operations.
• High-Speed 5G Integration: Built-in Telit Cinterion modem with dual SIM slots and five external SMA antennas supports robust cellular connectivity.
• Patented ASIC Performance: Built on a patented SD-WAN ASIC (SP5) to increase speed and efficiency while reducing power requirements.
• AI-Powered Security: FortiGuard AI-Powered Security Services deliver coordinated protection against modern attack vectors and zero-day threats.
• Operational Efficiency: Centralized management through FortiOS supports automation, deep analytics, and unified networking and security operations.
• Hardware-Based Trust: Includes a dedicated TPM that securely generates, stores, and authenticates cryptographic keys.
• Secure SD-WAN: Accelerates overlay performance and improves application identification for a robust user experience.

Ideal Use Cases

• Distributed Enterprise Branches: Secure remote offices with high-speed 5G connectivity and enterprise-grade firewall protection.
• Retail Point-of-Sale: Help maintain transaction processing with cellular backup and integrated threat protection.
• Secure SD-WAN Deployments: Optimize WAN architecture at any scale with faster steering and integrated security.
• Secure Remote Work: Provide reliable and protected connectivity for critical remote or temporary office environments.

Technical Specifications Summary

• Firewall throughput: 5 / 5 / 4 Gbps (1518 / 512 / 64 byte UDP)
• IPS throughput: 2.25 Gbps
• NGFW throughput: 1.25 Gbps
• Threat protection throughput: 1.1 Gbps
• IPsec VPN throughput: 4.5 Gbps (512 byte)
• Concurrent sessions / new sessions: 720,000 TCP / 85,000 TCP per second
• SSL inspection throughput: 1.3 Gbps (IPS, avg. HTTPS)
• Interfaces: 1x GE WAN, 1x GE FortiLink, 3x GE RJ45 Ethernet, 1x USB, 1x Console (RJ45)
• 5G modem and antennas: Telit Cinterion FN990A28-HP, 2x Nano SIM, 5x WWAN antenna ports (SMA)
• Power and environment: 20.43 W avg / 23.59 W max, 32°F to 104°F (0°C to 40°C), 10% to 90% non-condensing
• Physical: 1.6 x 8.5 x 6.3 in (40.5 x 216 x 160 mm), 2.2 lbs (1.0 kg), fanless 0 dBA

Upgrade Your Network Security

Deploy the FortiGate 50G-5G today to secure your branch with high-speed 5G and 3 years of AI-driven protection.
