[shortdesc] FortiGate 50G-5G Firewall, fanless desktop, 5x GE RJ45, embedded 3G/4G/LTE/5G modem, 5 / 5 / 4 Gbps firewall throughput [/shortdesc]

[properties]

Feature	Details
Product SKU	FG-50G-5G
Form Factor	Desktop (Fanless)
Integrated Modem	Embedded 3G/4G/LTE/5G wireless WAN module
Firewall Throughput (1518/512/64 byte UDP packets)	5 / 5 / 4 Gbps
Interfaces	5x GE RJ45 Ports (1x WAN, 4x Internal), 5x SMA WWAN Ports
Threat Protection Throughput	1.1 Gbps
Power Input	12VDC, 3A
Dimensions (H x W x L)	1.6 x 8.5 x 6.3 inches (40.5 x 216 x 160 mm)
Weight	2.2 lbs (1.0 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)

[/properties]

[specifications]

System Performance & Capacity
IPS Throughput	2.25 Gbps
NGFW Throughput	1.25 Gbps
Firewall Latency	2.42 μs
Concurrent Sessions (TCP)	720,000
New Sessions/Second (TCP)	85,000
Firewall Policies	2,000
Wireless WAN (5G/LTE) Specifications
Modem Model	Telit Cinterion FN990A28-HP
5G Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29 (SDL), n30, n38, n40, n41, n48, n66, n71, n75 (SDL), n76 (SDL), n77, n78, n79 (PC1.5 support on n41, n77, n78, n79 bands)
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29 (SDL), B30, B32 (SDL), B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
SIM Slots	2x Nano SIM (Active/Passive)
Carrier Certifications	PTCRB: Yes; AT&T: Yes; T-Mobile: Target Q4; Verizon: Target Q4; Public Safety Network: Yes (FirstNet Capable)
VPN Performance
IPsec VPN Throughput (512 byte)	4.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL Inspection Throughput	1.3 Gbps
Hardware & Environment
Network Interfaces	1x GE RJ45 WAN Port, 1x GE RJ45 FortiLink Port, 3x GE RJ45 Ethernet Ports
Antenna Ports	5x SMA WWAN Ports
USB Port	1x USB
Console Port	1x RJ45
Power Consumption (Average / Max)	8.3 W / 8.9 W
Heat Dissipation	30.35 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	Fanless 0 dBA
Compliance & Certifications	FCC, ISED, CE, UL/cUL, CB; USGv6/IPv6

[/specifications]

[accesories]

Accessory Type	Description
Included	5x External SMA WWAN Antennas
Optional	Rack Mount Tray (SP-RACKTRAY-02), Wall Mount Kit (SP-FG60F-MOUNT-20), AC Power Adaptor (SP-FG-40F-PA-10)

[/accesories]

The FortiGate 50G-5G series transforms distributed enterprise connectivity with a powerful combination of Next-Generation Firewall security and embedded high-speed 5G connectivity. Built on the revolutionary Secure SD-WAN ASIC SP5, this appliance delivers high performance, while the integrated 5G/LTE module provides a robust primary or failover connection to help maintain business continuity at remote or branch locations.

This compact, fanless desktop appliance features a Telit Cinterion FN990A28-HP modem supporting 5G and a broad range of LTE bands. With dual Nano SIM slots (Active/Passive), it enables carrier redundancy, allowing organizations to maintain uptime even if one cellular network becomes unavailable. The FortiGate 50G-5G seamlessly integrates into the Fortinet Security Fabric, offering centralized management, visibility, and threat protection for hybrid networks.

High-Performance 5G SD-WAN Gateway

Key Benefits

• Embedded 5G Connectivity: Integrated 5G modem with fallback to LTE enables fast, resilient wireless WAN connectivity.
• SP5 ASIC Performance: Powered by Fortinet’s Secure SD-WAN ASIC SP5 to deliver up to 5 / 5 / 4 Gbps firewall throughput and 2.25 Gbps IPS performance.
• Carrier Redundancy: Dual Nano SIM slots (Active/Passive) allow for flexible carrier switching to maximize uptime and network resilience.
• Silent & Reliable: Fanless desktop form factor enables deployment in noise-sensitive environments like retail stores and small offices.
• Converged Security: Unifies advanced threat protection, SSL inspection, and SD-WAN into a single device to reduce complexity and cost.

Ideal Use Cases

• 5G Branch Connectivity: Provides high-speed primary connectivity for locations where wired broadband is unavailable, expensive, or slow.
• Mission-Critical Failover: Acts as a reliable backup connection for retail and enterprise branches to reduce downtime during wired outage events.
• Pop-Up & Mobile Sites: Rapidly deploys secure, high-bandwidth networking for temporary kiosks, construction sites, or mobile workstations.
• Secure SD-WAN: Optimizes application performance with intelligent steering across wired and 5G links from a single, centrally managed console.

Technical Specifications Summary

• Firewall Throughput: 5 / 5 / 4 Gbps (1518/512/64 byte UDP packets)
• IPS Throughput: 2.25 Gbps
• NGFW Throughput: 1.25 Gbps
• Threat Protection Throughput: 1.1 Gbps
• IPsec VPN Throughput: 4.5 Gbps (512 byte)
• SSL Inspection Throughput: 1.3 Gbps (IPS, avg. HTTPS)
• Firewall Latency: 2.42 μs (64 byte UDP packets)
• Sessions & Policies: 720,000 concurrent sessions (TCP), 85,000 new sessions/second (TCP), 2,000 firewall policies
• Cellular: Telit Cinterion FN990A28-HP modem, 2x Nano SIM (Active/Passive), PTCRB and AT&T certified

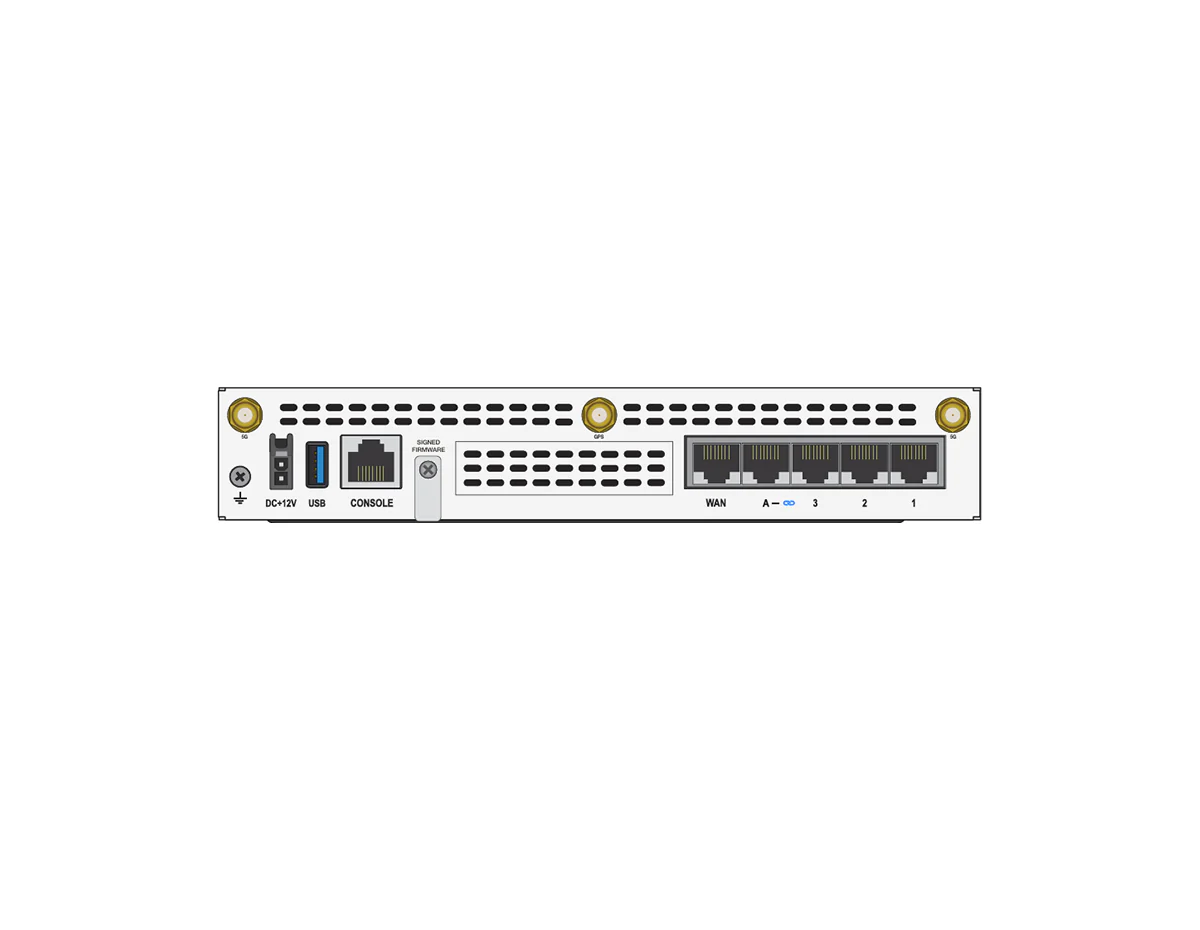

• Interfaces: 5x GE RJ45 (1x WAN, 1x FortiLink, 3x Ethernet), 1x USB, 1x RJ45 console, 5x SMA WWAN antenna ports
• Power & Acoustics: 12VDC, 3A; 8.3 W average / 8.9 W max; fanless 0 dBA
• Physical & Environment: 1.6 x 8.5 x 6.3 in, 2.2 lb; operating 0°C to 40°C; humidity 10% to 90% non-condensing

Upgrade Your Network Security

Deploy the FortiGate 50G-5G today for a secure, resilient, and future-proof network utilizing the power of 5G.
