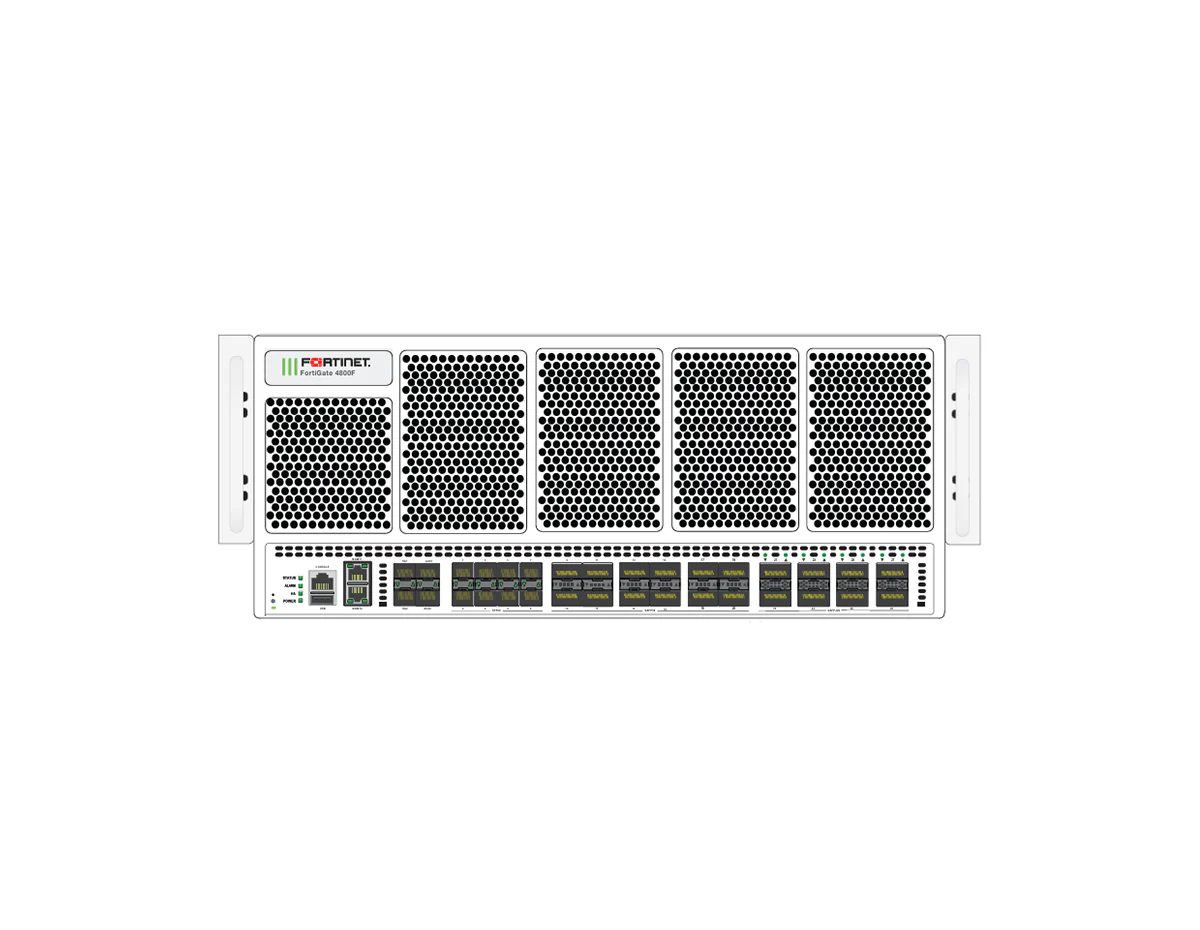

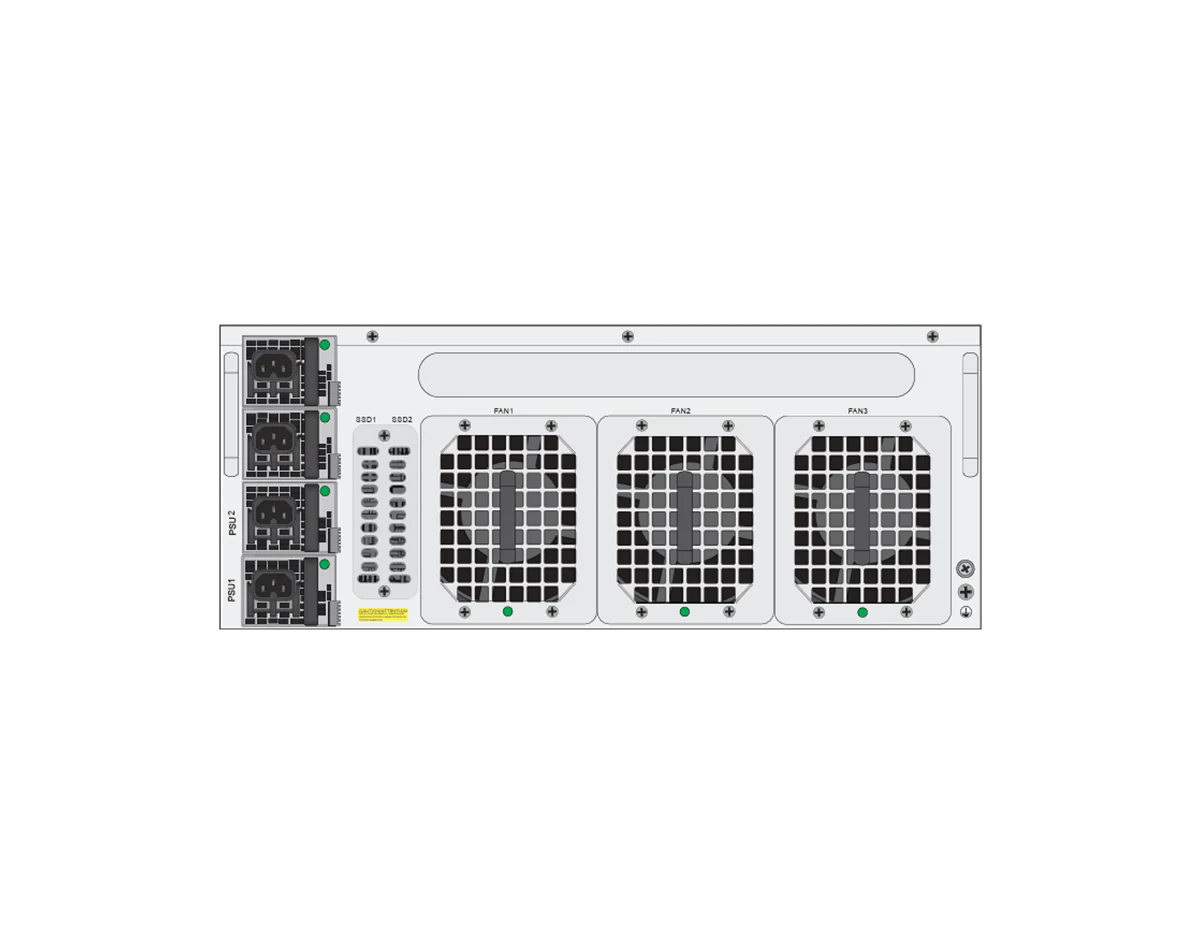

Fortinet FG-4801F-NEBS-BDL-950-60 Next-Generation Firewall
[shortdesc]FG-4801F-NEBS-BDL-950-60 carrier-grade NGFW, NEBS Level 3, 8x 400GE QSFP-DD, NP7/CP9, 3.1 Tbps firewall, UTP bundle, 5-Year.[/shortdesc]
[properties]
| Model | FortiGate 4801F-NEBS (FG-4801F-NEBS-BDL-950-60) |
| Bundle / Subscription | BDL-950 (Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP)), 5 Year |
| Form Factor | 4U Rackmount |
| Firewall Throughput | 3.1 Tbps |
| High-Speed Interfaces | 8x 400GE/200GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/QSFP28/QSFP+, 8x 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP, 4x 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP (HA & Aux) |
| Internal Storage | 2x 1.92 TB SSD |
| Power Supplies | 4x AC Power Supplies (Included) |
| Dimensions | 6.89 x 17.13 x 26.10 inches (175 x 435 x 663 mm) |
| Weight | 93.03 lbs (42.2 kg) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Certifications | NEBS Level 3, USGv6/IPv6 |
[/properties]
[specifications]
| System Performance | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 3.1 / 3.1 / 0.93 Tbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 3.1 / 3.1 / 0.93 Tbps |
| IPsec VPN Throughput (512 byte) | 800 Gbps |
| Threat Protection Throughput | 75 Gbps |
| NGFW Throughput | 77 Gbps |
| IPS Throughput | 87 Gbps |
| SSL-VPN Throughput | 18 Gbps |
| Firewall Throughput (Packet per Second) | 1396 Mpps |
| Hardware & Interfaces | |
| 400GE/200GE/100GE/40GE QSFP-DD Slots | 8 |
| 200GE/100GE/40GE QSFP56/28 Slots | 12 |
| 50GE/25GE/10GE SFP56/28 Slots | 8 |
| 50GE/25GE/10GE SFP56/28 HA and Aux Slots | 4 |
| 10GE/GE RJ45 Management Ports | 2 |
| USB Ports | 1x USB Port (3.0) |
| Console Port | 1x Console Port |
| Environment & Power | |
| Power Input | 200–240V AC, 50/60 Hz |
| Power Consumption (Average) | 1528.8 W |
| Power Consumption (Maximum) | 1964.9 W |
| Heat Dissipation | 6700.31 / 6711.31 BTU/h |
[/specifications]
[accesories]
| Included Accessories | 4x AC Power Supplies, 2x SFP+ Transceivers (SR 10 GE) |
| Optional Accessories | Spare AC Power Supply (SP-FG4000F-PS), AC Power Cord (SP-FGPCORC15-XX), Fan Tray (SP-FG4K6K-FAN), Transceiver Modules (QSFP-DD/QSFP56/QSFP28/QSFP+/SFP28/SFP+), 400GE QSFPDD Passive Direct Attach Cables (FN-CABLE-QSFPDD-DAC-01, FN-CABLE-QSFPDD-DAC-B5) |
[/accesories]
The FortiGate 4801F-NEBS is a carrier-grade, NEBS Level 3 compliant Next-Generation Firewall for hyperscale data centers and service providers, with NP7 and CP9 SPUs, 8x 400GE/200GE QSFP-DD slots, internal SSD storage, and redundant AC power.
This bundle SKU includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for 5 Year.
Securing Critical Infrastructure with NEBS Level 3 Compliance and 400GE
- NEBS Level 3 compliant for carrier-grade deployments.
- 8x 400GE/200GE QSFP-DD for backbone segmentation.
- NP7 and CP9 SPUs for high-performance inspection.
- 1.8B concurrent sessions with Hyperscale Firewall License.
- 2x 1.92TB SSD for local log storage.
- 4x AC power supplies included, hot-swappable 2+2.
Upgrade Your Network Security
Deploy FG-4801F-NEBS-BDL-950-60 with 5-Year UTP coverage.
