[shortdesc]FG-4801F-NEBS-BDL-950-36 carrier-grade NGFW, NEBS Level 3, 8x 400GE QSFP-DD, NP7/CP9, 3.1 Tbps firewall, UTP bundle, 3-Year.[/shortdesc]

[properties]

Model	FortiGate 4801F-NEBS (FG-4801F-NEBS-BDL-950-36)
Bundle / Subscription	BDL-950 (Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP)), 3 Year
Form Factor	4U Rackmount
Firewall Throughput	3.1 Tbps
High-Speed Interfaces	8x 400GE/200GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/QSFP28/QSFP+, 8x 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP, 4x 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP (HA & Aux)
Internal Storage	2x 1.92 TB SSD
Power Supplies	4x AC Power Supplies (Included)
Dimensions	6.89 x 17.13 x 26.10 inches (175 x 435 x 663 mm)
Weight	93.03 lbs (42.2 kg)
Operating Temperature	32°F to 122°F (0°C to 50°C)
Certifications	NEBS Level 3, USGv6/IPv6

[/properties]

[specifications]

System Performance
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
IPsec VPN Throughput (512 byte)	800 Gbps
Threat Protection Throughput	75 Gbps
NGFW Throughput	77 Gbps
IPS Throughput	87 Gbps
SSL-VPN Throughput	18 Gbps
Firewall Throughput (Packet per Second)	1396 Mpps
Hardware & Interfaces
400GE/200GE/100GE/40GE QSFP-DD Slots	8
200GE/100GE/40GE QSFP56/28 Slots	12
50GE/25GE/10GE SFP56/28 Slots	8
50GE/25GE/10GE SFP56/28 HA and Aux Slots	4
10GE/GE RJ45 Management Ports	2
USB Ports	1x USB Port (3.0)
Console Port	1x Console Port
Environment & Power
Power Input	200–240V AC, 50/60 Hz
Power Consumption (Average)	1528.8 W
Power Consumption (Maximum)	1964.9 W
Heat Dissipation	6700.31 / 6711.31 BTU/h

[/specifications]

[accesories]

Included Accessories	4x AC Power Supplies, 2x SFP+ Transceivers (SR 10 GE)
Optional Accessories	Spare AC Power Supply (SP-FG4000F-PS), AC Power Cord (SP-FGPCORC15-XX), Fan Tray (SP-FG4K6K-FAN), Transceiver Modules (QSFP-DD/QSFP56/QSFP28/QSFP+/SFP28/SFP+), 400GE QSFPDD Passive Direct Attach Cables (FN-CABLE-QSFPDD-DAC-01, FN-CABLE-QSFPDD-DAC-B5)

[/accesories]

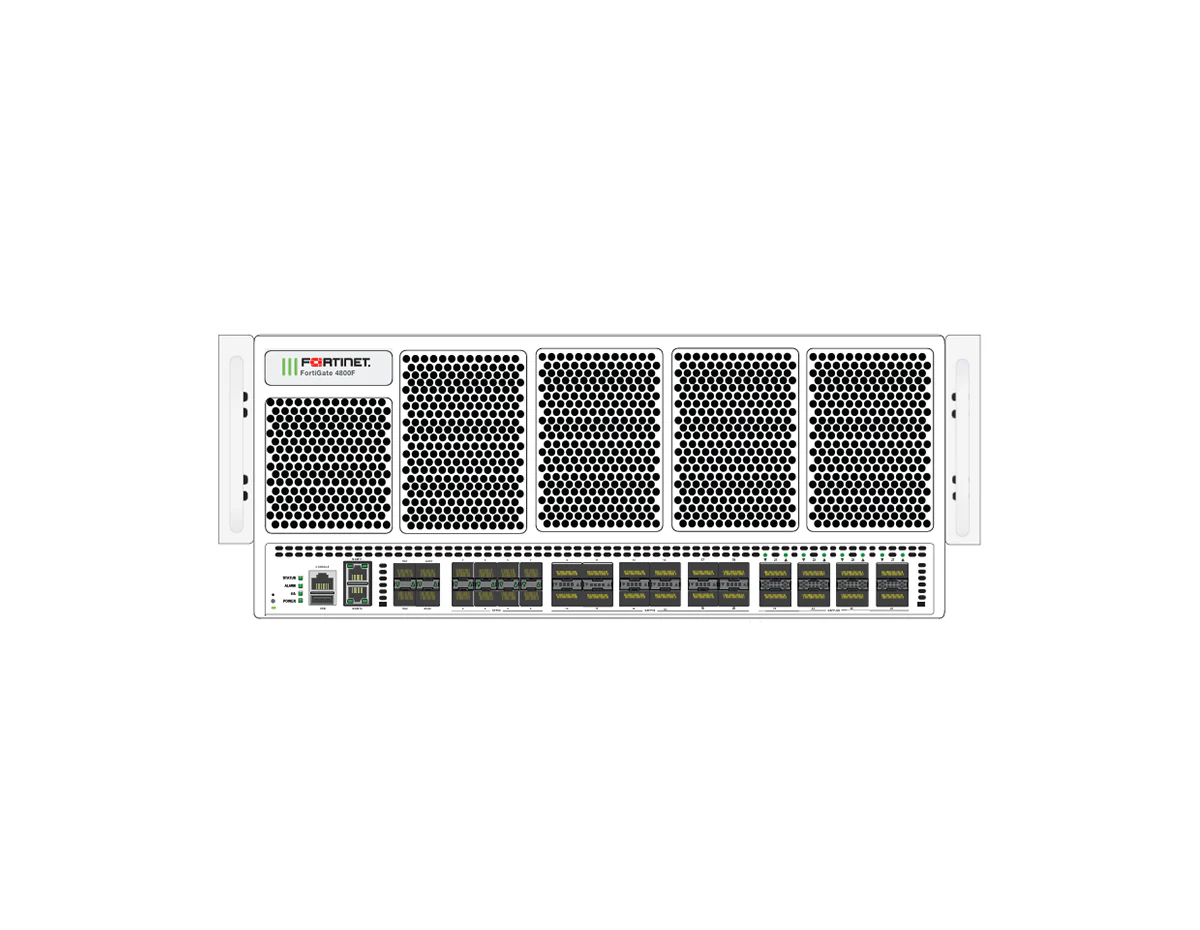

The FortiGate 4801F-NEBS is a carrier-grade, NEBS Level 3 compliant Next-Generation Firewall for hyperscale data centers and service providers, with NP7 and CP9 SPUs, 8x 400GE/200GE QSFP-DD slots, internal SSD storage, and redundant AC power.

This bundle SKU includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for 3 Year.

Securing Critical Infrastructure with NEBS Level 3 Compliance and 400GE

• NEBS Level 3 compliant for carrier-grade deployments.
• 8x 400GE/200GE QSFP-DD for backbone segmentation.
• NP7 and CP9 SPUs for high-performance inspection.
• 1.8B concurrent sessions with Hyperscale Firewall License.
• 2x 1.92TB SSD for local log storage.

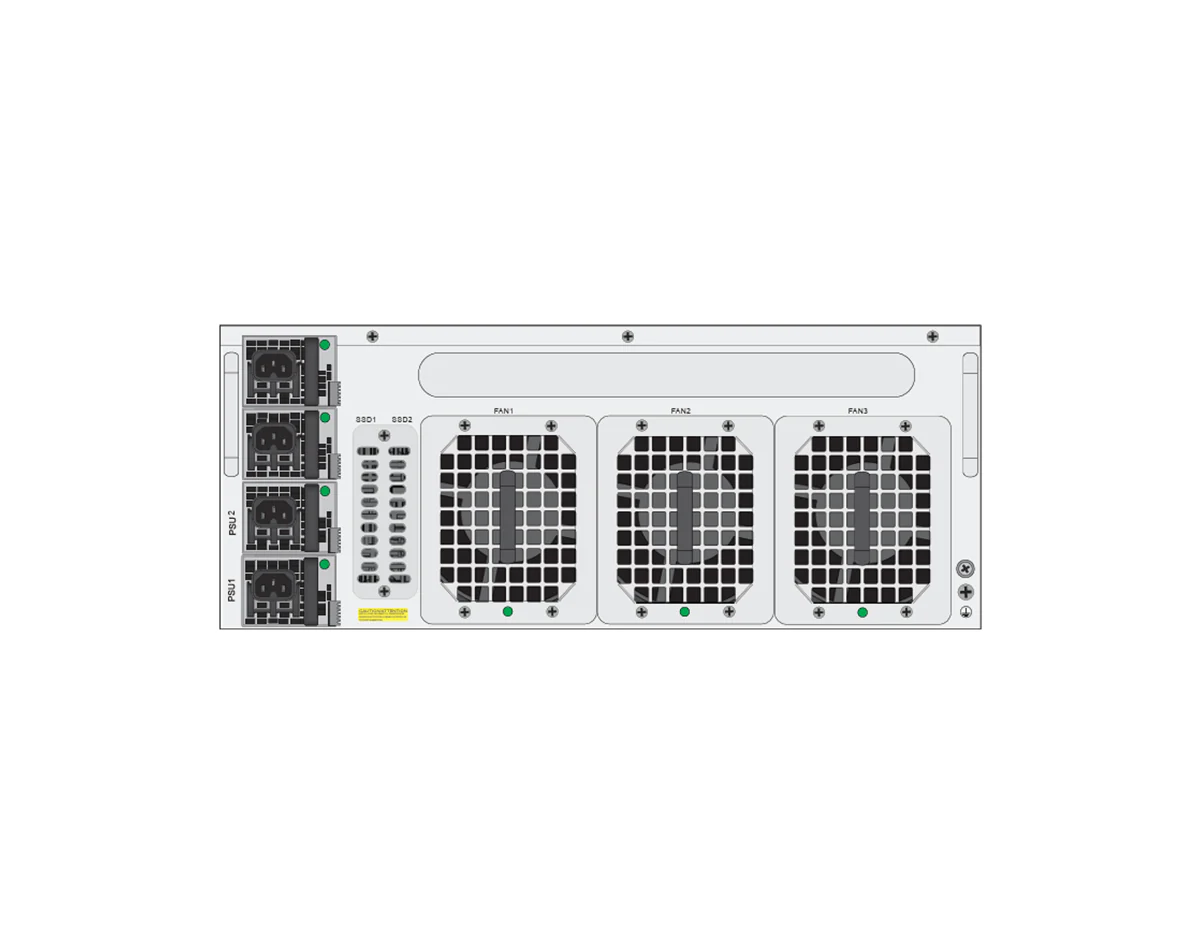

• 4x AC power supplies included, hot-swappable 2+2.

Upgrade Your Network Security

Deploy FG-4801F-NEBS-BDL-950-36 with 3-Year UTP coverage.
