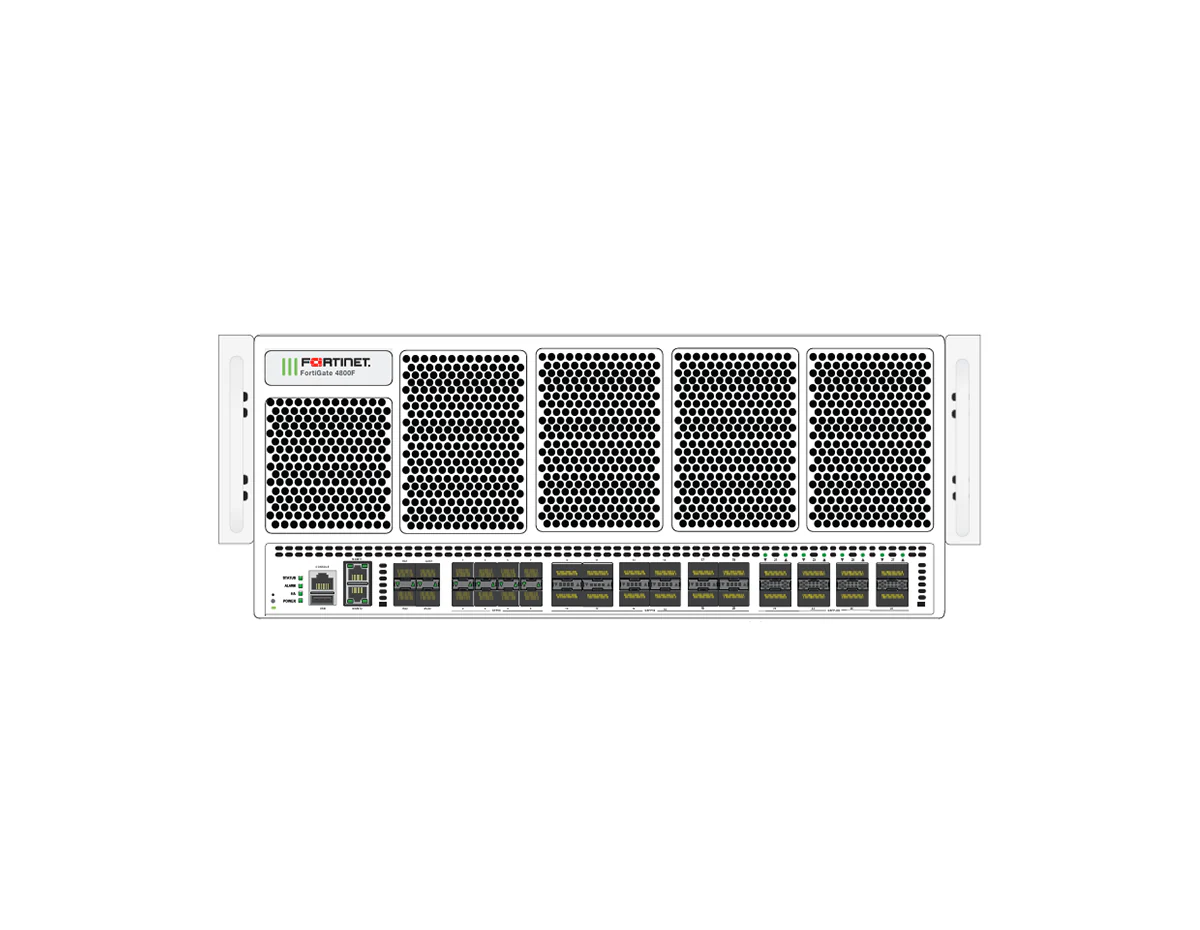

[shortdesc]Firewall, 4 RU rack mount, 8x 400GE/200GE/100GE/40GE QSFP-DD, 3.1 Tbps, 2x 1.92TB SSD, 4x AC PSU, NEBS Level 3[/shortdesc]

[properties]

Model	FortiGate 4801F-NEBS (FG-4801F-NEBS)
Form Factor	4U Rackmount
Firewall Throughput	3.1 Tbps
High-Speed Interfaces	8x 400GE/200GE/100GE/40GE QSFP-DD/QSFP56/QSFP28/QSFP+, 12x 200GE/100GE/40GE QSFP56/QSFP28/QSFP+, 8x 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP, 4x 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP (HA & Aux)
Internal Storage	2x 1.92 TB SSD
Power Supplies	4x AC Power Supplies (Included)
Dimensions	6.89 x 17.13 x 26.10 inches (175 x 435 x 663 mm)
Weight	93.03 lbs (42.2 kg)
Operating Temperature	32°F to 122°F (0°C to 50°C)
Certifications	NEBS Level 3, USGv6/IPv6

[/properties]

[specifications]

System Performance
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
Firewall Latency (64 byte, UDP)	3.6 μs
Firewall Throughput (Packet per Second)	1396 Mpps
IPsec VPN Throughput (512 byte)	800 Gbps
Threat Protection Throughput	75 Gbps
NGFW Throughput	77 Gbps
SSL-VPN Throughput	18 Gbps
IPS Throughput	87 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	63 Gbps
Application Control Throughput (HTTP 64K)	180 Gbps
System Capacity
Concurrent Sessions (TCP)	280 Million / 1.8 Billion (Hyperscale)
New Sessions/Second (TCP)	915,000 / 25 Million (Hyperscale)
Firewall Policies	200,000
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	30,000
Virtual Domains (Default / Maximum)	10 / 500
Hardware & Interfaces
400GE/200GE/100GE/40GE QSFP-DD Slots	8
200GE/100GE/40GE QSFP56/28 Slots	12
50GE/25GE/10GE SFP56/28 Slots	8
50GE/25GE/10GE SFP56/28 HA and Aux Slots	4
10GE/GE RJ45 Management Ports	2
USB Ports	1 (USB 3.0)
Console Port	1
Dimensions & Weight
Environment & Power
Power Input	200–240V AC, 50/60 Hz
Power Consumption (Average)	1528.8 W
Power Consumption (Maximum)	1964.9 W
Heat Dissipation	6700.31 / 6711.31 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	63.794 dBA
Forced Airflow	Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)
Certifications
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

[/specifications]

[accesories]

Included Accessories	4x AC Power Supplies, 2x SFP+ Transceivers (SR 10 GE)
Optional Accessories	Spare AC Power Supply (SP-FG4000F-PS), AC Power Cord (SP-FGPCORC15-XX), Fan Tray (SP-FG4K6K-FAN), Transceiver Modules (QSFP-DD/QSFP56/QSFP28/QSFP+/SFP28/SFP+), 400GE QSFPDD Passive Direct Attach Cables (FN-CABLE-QSFPDD-DAC-01, FN-CABLE-QSFPDD-DAC-B5)

[/accesories]

The Fortinet FortiGate 4801F-NEBS is a high-performance Next-Generation Firewall (NGFW) engineered specifically for carrier-grade environments and hyperscale data centers that require NEBS Level 3 compliance. This robust 4U rackmount appliance is built to withstand rigorous environmental conditions while delivering industry-leading security and connectivity. Powered by Fortinet's specialized NP7 and CP9 security processing units, it offers a massive firewall throughput of 3.1 Tbps, ensuring that security measures do not become a bottleneck for critical network traffic.

Equipped with ultra-high-speed interfaces, including 8x 400GE/200GE/100GE/40GE QSFP-DD slots and 12x 200GE/100GE/40GE QSFP56/QSFP28/QSFP+ slots, the FG-4801F-NEBS is designed to handle elephant flows and support massive data aggregation. The unit includes dual 1.92TB internal SSDs for local log storage and reporting, enhancing visibility and compliance capabilities. With four AC power supplies and a design focused on reliability, this firewall provides the resilience needed for core networks and telecommunications infrastructure.

Securing Critical Infrastructure with NEBS Level 3 Compliance and 400GE

• NEBS Level 3 Compliant: Certified for carrier-class environments, meeting strict standards for safety, spatial footprint, and environmental resilience.
• Unmatched 400GE Connectivity: Features 8x 400GE/200GE/100GE/40GE QSFP-DD slots to support high-bandwidth backbone requirements and future-proof networks.
• Hyperscale Performance: Powered by SPU NP7 and CP9 to deliver up to 1.8 billion concurrent sessions (Hyperscale).
• Integrated Internal Storage: Includes 2x 1.92 TB SSDs for local log storage and reporting.

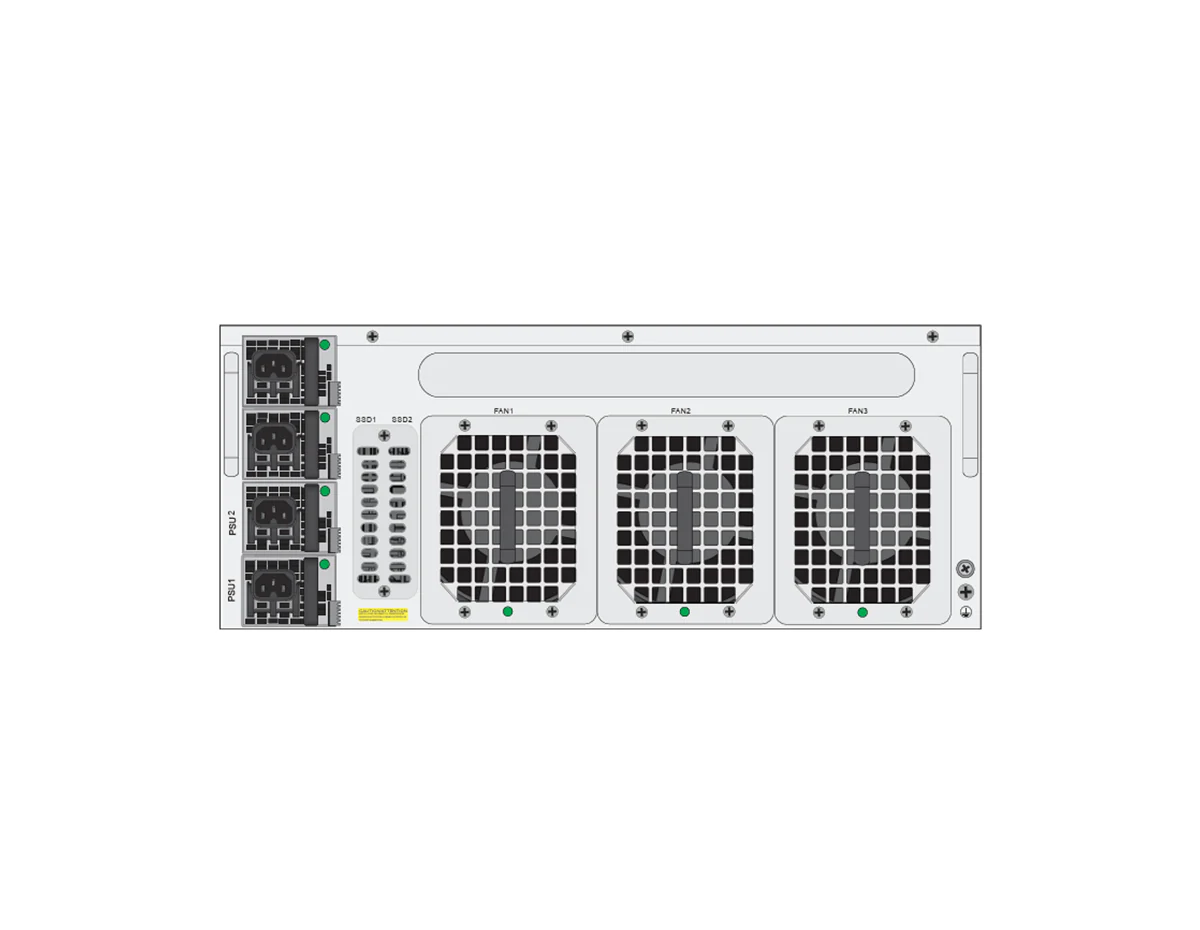

• Resilient Power Architecture: Comes with 4x AC power supplies in a redundant 2+2 configuration for maximum uptime.
• Advanced Threat Protection: Delivers up to 87 Gbps IPS, 77 Gbps NGFW, and 75 Gbps Threat Protection performance.

• Telecommunications Carriers: Securing core networks and Gi-LAN interfaces where NEBS compliance is mandatory.
• Hyperscale Data Centers: Protecting North-South and East-West traffic flows with ultra-high throughput and low latency.
• Service Providers: Supporting high-volume multi-tenant architectures requiring distinct segmentation and high-speed interconnects.
• Mobile Security for 4G, 5G, and IoT: Supporting CGNAT/IPv6 migration and high-performance IPsec aggregation and control security gateway use cases.

• IPv4/IPv6 Firewall Throughput (UDP): 3.1 / 3.1 / 0.93 Tbps (1518/512/64 byte IPv4; 1518/512/86 byte IPv6)
• Threat Protection / NGFW / IPS: 75 Gbps / 77 Gbps / 87 Gbps
• VPN Performance: IPsec VPN 800 Gbps (512 byte); SSL-VPN 18 Gbps
• Interface Capacity: 8x QSFP-DD (400GE/200GE/100GE/40GE), 12x QSFP56/28 (200GE/100GE/40GE), 8x SFP56/28 (50GE/25GE/10GE/GE) + 4x HA/Aux
• Power & Cooling: 200–240V AC; 1528.8 W avg / 1964.9 W max; 6700.31 / 6711.31 BTU/h; Front-to-Back airflow
• Physical & Compliance: 4 RU; 6.89 x 17.13 x 26.10 in (175 x 435 x 663 mm); 93.03 lbs (42.2 kg); NEBS Level 3; USGv6/IPv6
