[shortdesc]FG-4801F-DC-NEBS-BDL-950-36 carrier-grade NGFW, NEBS Level 3 DC power, 8x 400GE QSFP-DD, NP7/CP9 acceleration, FortiCare Premium + FortiGuard UTP, 3 year[/shortdesc]

[properties]

Model	FortiGate 4801F-DC-NEBS (FG-4801F-DC-NEBS-BDL-950-36)
Bundle / Subscription	BDL-950 (Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP)), 3 Year
Form Factor	4U Rackmount
Firewall Throughput	Up to 3.1 Tbps (IPv4/IPv6, 1518/512 byte UDP)
High-Speed Interfaces	8x 400GE/200GE/100GE/40GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/QSFP28/QSFP+, 12x 50GE/25GE/10GE/GE SFP56/SFP28 (8 slots + 4 HA/Aux), 2x 10GE/GE RJ45 Management Ports
Internal Storage	2x 1.92 TB SSD
Power Input	-72V to -40V DC
Dimensions	6.89 x 17.13 x 26.10 inches (175 x 435 x 663 mm)
Weight	93.03 lbs (42.2 kg)

[/properties]

[specifications]

Performance / Throughput
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
Firewall Latency (64 byte, UDP)	3.6 μs
Firewall Throughput (Packet per Second)	1396 Mpps
IPS Throughput	87 Gbps
NGFW Throughput	77 Gbps
Threat Protection Throughput	75 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	63 Gbps
VPN / NGFW
IPsec VPN Throughput (512 byte)	800 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
SSL-VPN Throughput	18 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	30,000
Virtual Domains (Default / Maximum)	10 / 500
Interfaces / Ports
400GE/200GE/100GE/40GE QSFP-DD Slots	8
200GE/100GE/40GE QSFP56/28 Slots	12
50GE/25GE/10GE/GE SFP56/28 Slots	8
50GE/25GE/10GE/GE SFP56/28 HA and Aux Slots	4
10GE/GE RJ45 Management Ports	2
USB Ports	1x USB Port (3.0)
Console Port	1x Console Port
Onboard Storage	2x 1.92TB SSD
Power / Consumption
DC Current (Maximum)	40.94A @ -48VDC
Power Consumption (Average)	1528.8 W
Power Consumption (Maximum)	1964.9 W
Heat Dissipation	6700.31 / 6711.31 BTU/h

[/specifications]

[accesories]

Included Accessories	4x DC Power Supplies (Included), 2x SFP+ (SR 10 GE) Transceivers (Included)
Optional Accessories	Spare DC Power Supply (SP-FG4000F-DC-PS), Fan Tray (SP-FG4K6K-FAN), Transceiver Modules (SFP/SFP+/SFP28/QSFP+/QSFP28/QSFP56/QSFP-DD), QSFP-DD Passive Direct Attach Cables

[/accesories]

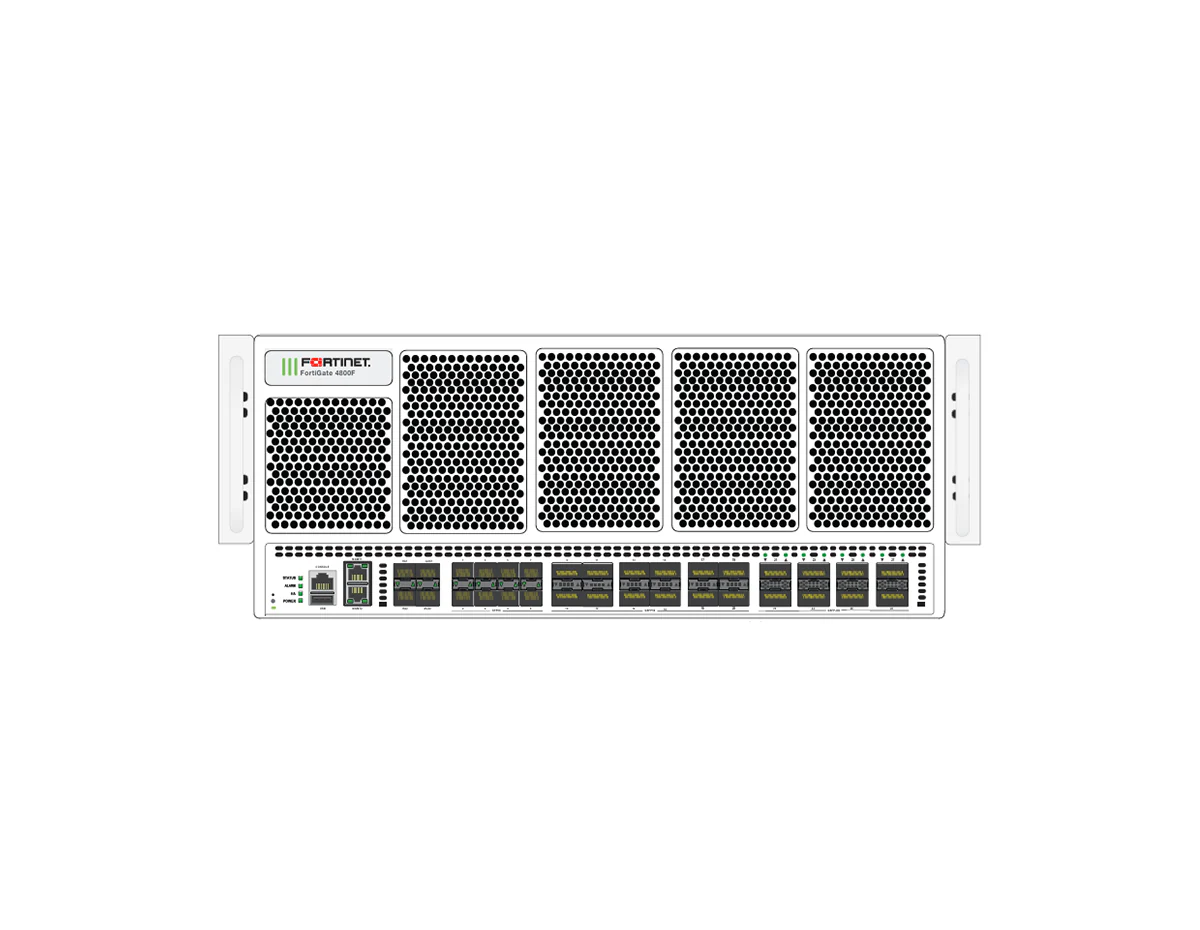

The FortiGate 4801F-DC-NEBS is a NEBS Level 3 compliant Next-Generation Firewall for carrier and hyperscale environments, powered by Fortinet SPU NP7 and CP9 processors. This BDL-950 bundle includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for 3 years.

It provides 8x 400GE/200GE QSFP-DD slots, 12x 200GE/100GE/40GE QSFP56/QSFP28 slots, and 2x 1.92TB SSDs for onboard storage, alongside -72V to -40V DC power input for telecom power infrastructures. Use it to secure high-bandwidth backbones without changing your core hardware platform.

Carrier-Grade Security with NEBS Compliance and 400GE Connectivity

• NEBS Level 3 compliant, DC power for telecom facilities.
• 8x 400GE/200GE QSFP-DD slots for high-bandwidth segmentation.
• SPU NP7 and CP9 hardware acceleration.
• 2x 1.92TB SSD onboard storage for local logging.
• Up to 3.1 Tbps IPv4 firewall throughput.
• BDL-950: FortiCare Premium + FortiGuard Unified Threat Protection, 3 years.

Upgrade Your Network Security

Contact us today to deploy the FG-4801F-DC-NEBS-BDL-950-36 in your infrastructure.
