[shortdesc]FG-4801F-BDL-950-60 hyperscale NGFW, NP7/CP9 accelerated, 8x 400GE QSFP-DD, up to 3.1 Tbps firewall, FortiCare Premium + FortiGuard Unified Threat Protection, 5-Year[/shortdesc]

[properties]

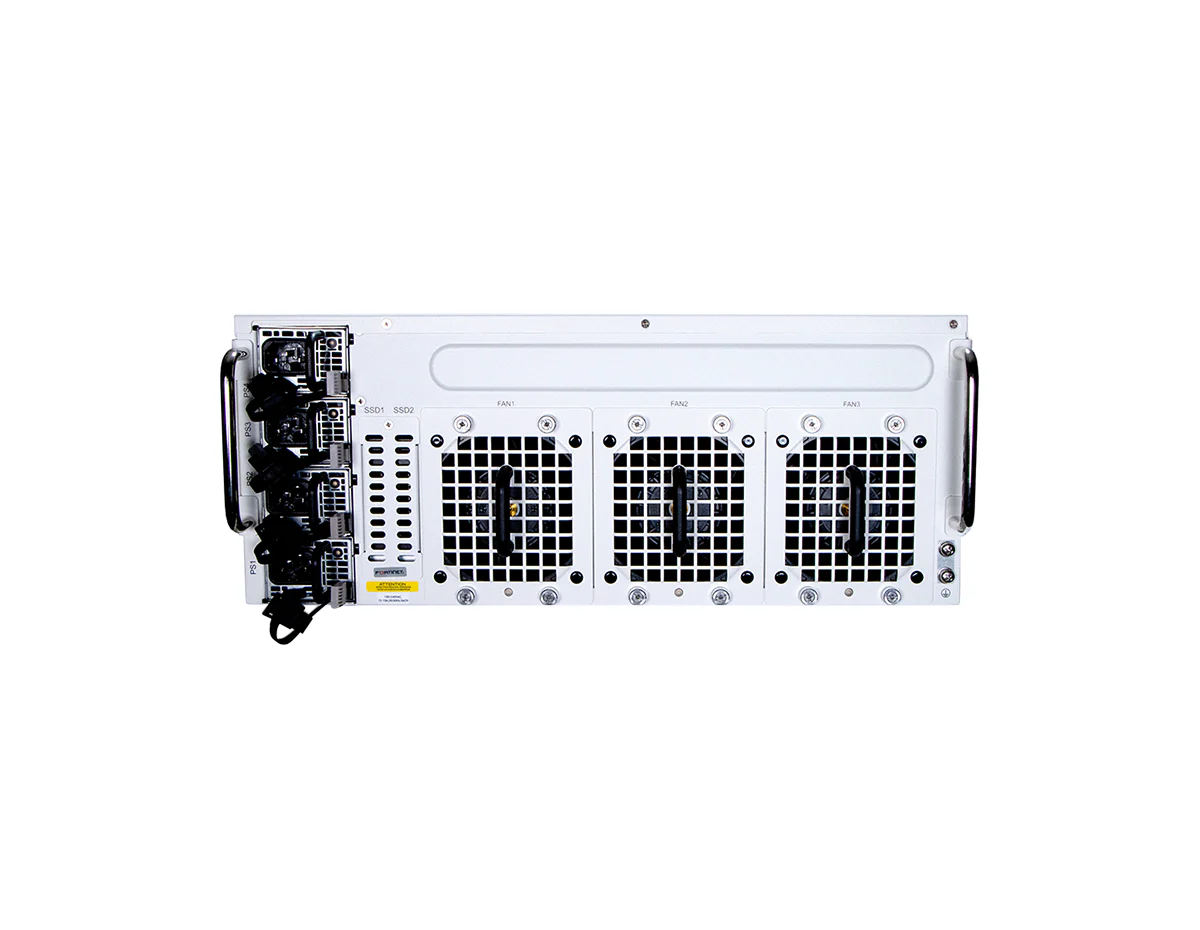

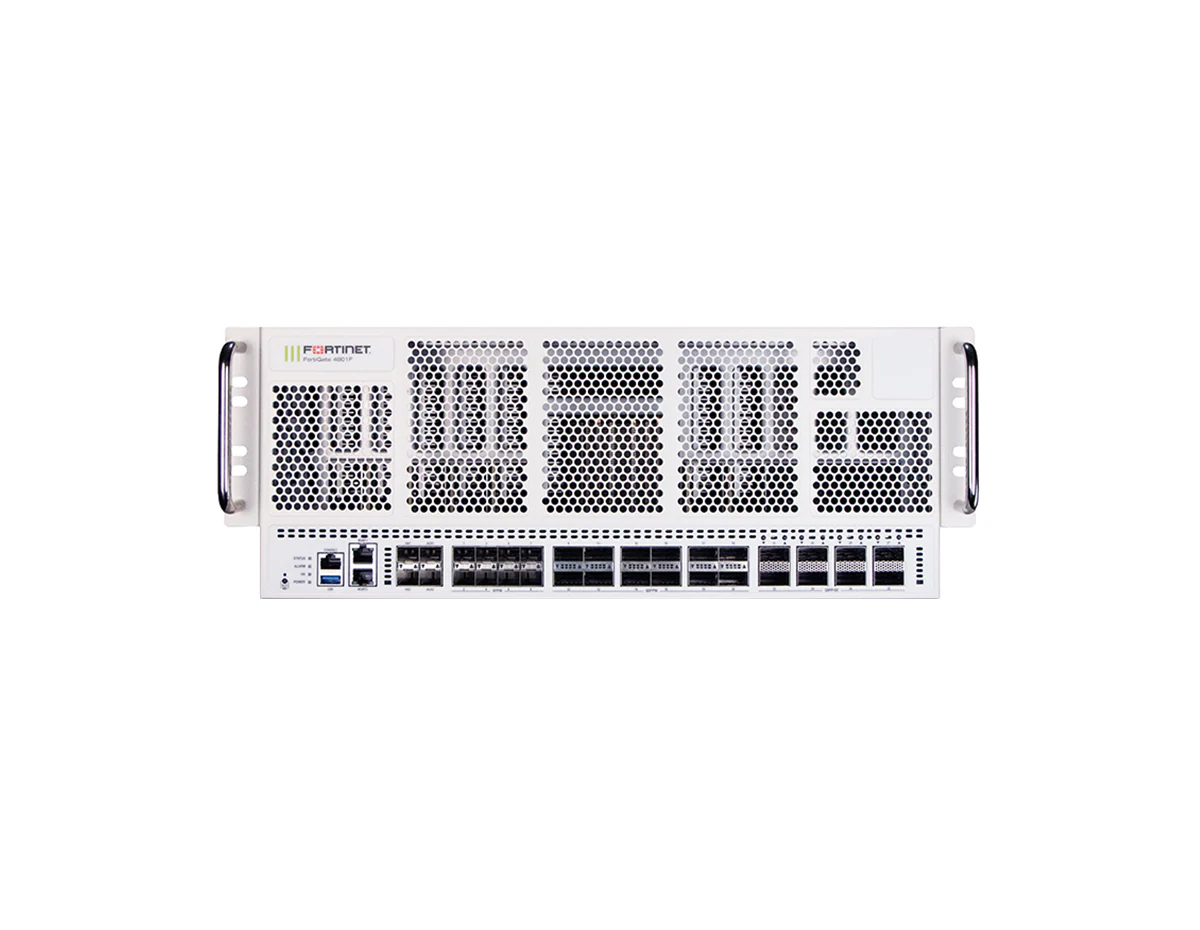

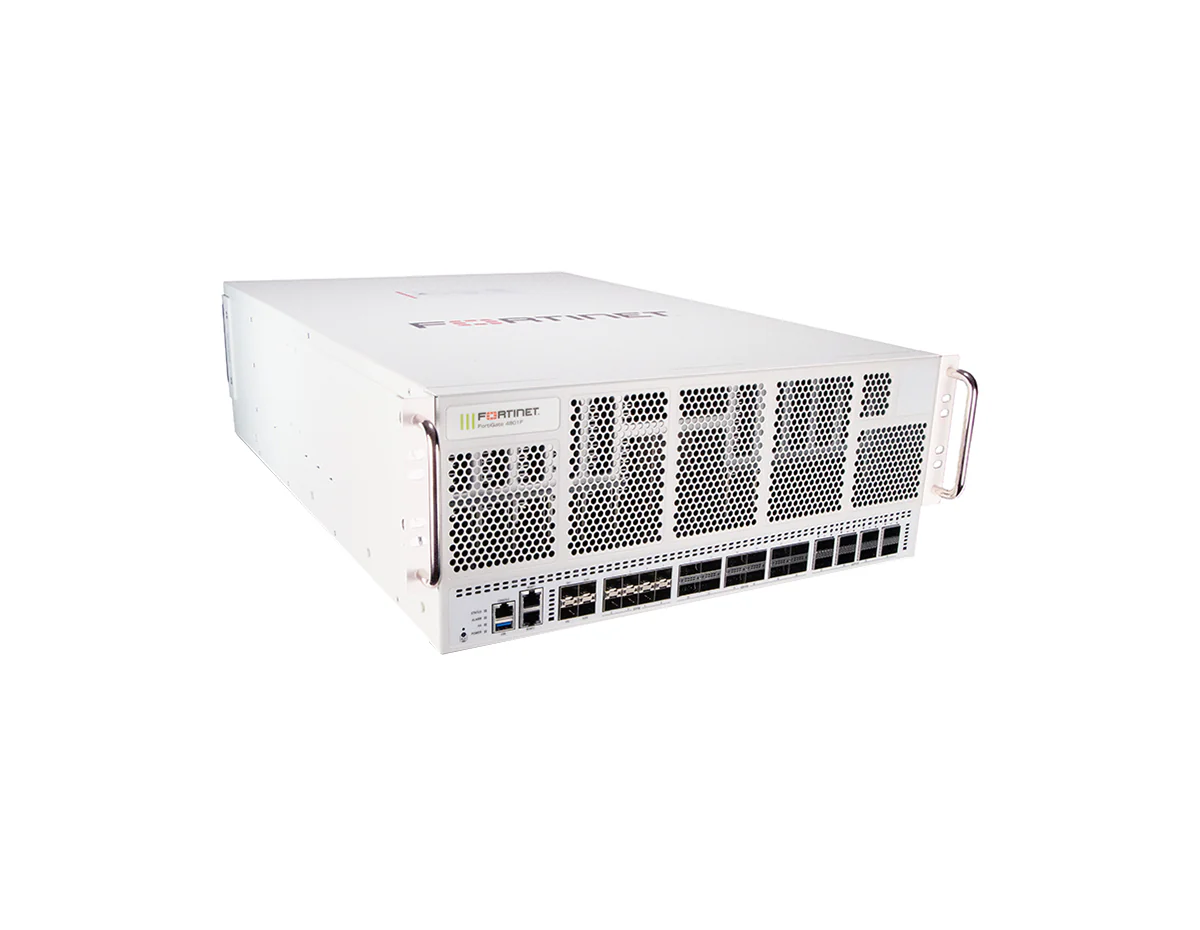

Model	FortiGate 4801F (FG-4801F-BDL-950-60)
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year)
Form Factor	4U Rackmount
Firewall Throughput	3.1 Tbps
High-Speed Interfaces	8x 400GE QSFP-DD, 12x 200GE QSFP56, 12x 50GE SFP56
Internal Storage	2x 1.92TB SSD
Power Supplies	4x AC Power Supplies (Included)
Processors	SPU NP7 and CP9 Accelerated

[/properties]

[specifications]

Performance / Throughput
Firewall Throughput (IPv4) (1518 / 512 / 64 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
IPsec VPN Throughput	1,800 Gbps
Threat Protection Throughput	75 Gbps
NGFW Throughput	77 Gbps
SSL-VPN Throughput	18 Gbps
Concurrent Sessions (TCP)	280 Million / 1.8 Billion (Hyperscale Firewall License)
New Sessions/Second (TCP)	915,000 / 25 Million (Hyperscale Firewall License)
Interfaces / Ports
400GE/200GE/100GE/40GE QSFP-DD Slots	8
200GE/100GE/40GE QSFP56/28 Slots	12
50GE/25GE/10GE SFP56/28 Slots	12 (8x Standard + 4x HA/Aux)
Management Ports	2x 10GE/GE RJ45
USB Ports	1x USB Port (3.0)
Console Port	1x Console Port
Dimensions / Weight / Form Factor
Height	6.89 inches (175 mm)
Width	17.13 inches (435 mm)
Length	26.10 inches (663 mm)
Weight	90.83 lbs (41.2 kg)
Power / Consumption
Power Input	200–240V AC, 50/60 Hz
Power Consumption (Average)	1622 W
Power Consumption (Maximum)	1938.2 W
Heat Dissipation	6613.14 BTU/h

[/specifications]

[accesories]

Included Accessories	4x AC Power Supplies (Included), 2x SFP+ (SR 10 GE) Transceivers
Optional Accessories	AC Power Supply (SP-FG4000F-PS), AC Power Cord (SP-FGPCORC15-XX), DC Power Supply (SP-FG4000F-DC-PS), Fan Tray (SP-FG4K6K-FAN), Transceiver Modules and Cables

[/accesories]

The Fortinet FortiGate 4801F is a high-performance Next-Generation Firewall (NGFW) engineered for hyperscale data centers and service providers facing unprecedented traffic volumes. It is designed to reduce security processing bottlenecks that can appear in software-based architectures.

Securing Hyperscale Architectures with 400GE Connectivity and NP7 Acceleration

• 12x 200GE QSFP56 and 12x 50GE SFP56 slots.
• 2x 10GE/GE RJ45 management ports plus console and USB.
• Dual 1.92TB SSD for local logging and caching.
• Hyperscale Firewall License enables expanded session scale and sessions/second.
• Redundant 4x AC power supplies included for data center resilience.
