[shortdesc]Firewall, 3.1 Tbps IPv4, 8x 400GE QSFP-DD, 12x 200GE QSFP56/28, 12x 50GE SFP56/28, 4U, 2x 1.92TB SSD[/shortdesc]

[properties]

Model	FortiGate 4801F (FG-4801F)
Form Factor	4U Rackmount
Firewall Throughput	3.1 Tbps
High-Speed Interfaces	8x 400GE/200GE/100GE/40GE QSFP-DD slots, 12x 200GE/100GE/40GE QSFP56/28 slots, 12x 50GE/25GE/10GE/GE SFP56/28 slots (8x standard + 4x HA/Aux)
Internal Storage	2x 1.92TB SSD
Power Supplies	4x AC Power Supplies (Included)
Processors	SPU NP7 and CP9 Accelerated

[/properties]

[specifications]

System Performance
Firewall Throughput (IPv4) (1518 / 512 / 64 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
IPsec VPN Throughput	1,800 Gbps
Threat Protection Throughput	75 Gbps
NGFW Throughput	77 Gbps
SSL-VPN Throughput	18 Gbps
Concurrent Sessions (TCP)	280 Million / 1.8 Billion (Hyperscale Firewall License)
New Sessions/Second (TCP)	915,000 / 25 Million (Hyperscale Firewall License)
Hardware & Interfaces
400GE/200GE/100GE/40GE QSFP-DD Slots	8
200GE/100GE/40GE QSFP56/28 Slots	12
50GE/25GE/10GE/GE SFP56/28 Slots	12 (8x Standard + 4x HA/Aux)
Management Ports	2x 10GE/GE RJ45
USB Ports	1x USB Port (3.0)
Console Port	1x Console Port
Dimensions & Weight
Height	6.89 inches (175 mm)
Width	17.13 inches (435 mm)
Length	26.10 inches (663 mm)
Weight	90.83 lbs (41.2 kg)
Environment & Power
Power Input	200–240V AC, 50/60 Hz
Power Consumption (Average)	1622 W
Power Consumption (Maximum)	1938.2 W
Heat Dissipation	6613.14 BTU/h
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	63.794 dBA

[/specifications]

[accesories]

Included Accessories	4x AC Power Supplies (Included), 2x SFP+ (SR 10 GE) Transceivers
Optional Accessories	AC Power Supply (SP-FG4000F-PS), AC Power Cord (SP-FGPCORC15-XX), DC Power Supply (SP-FG4000F-DC-PS), Fan Tray (SP-FG4K6K-FAN), Transceiver Modules and Cables

[/accesories]

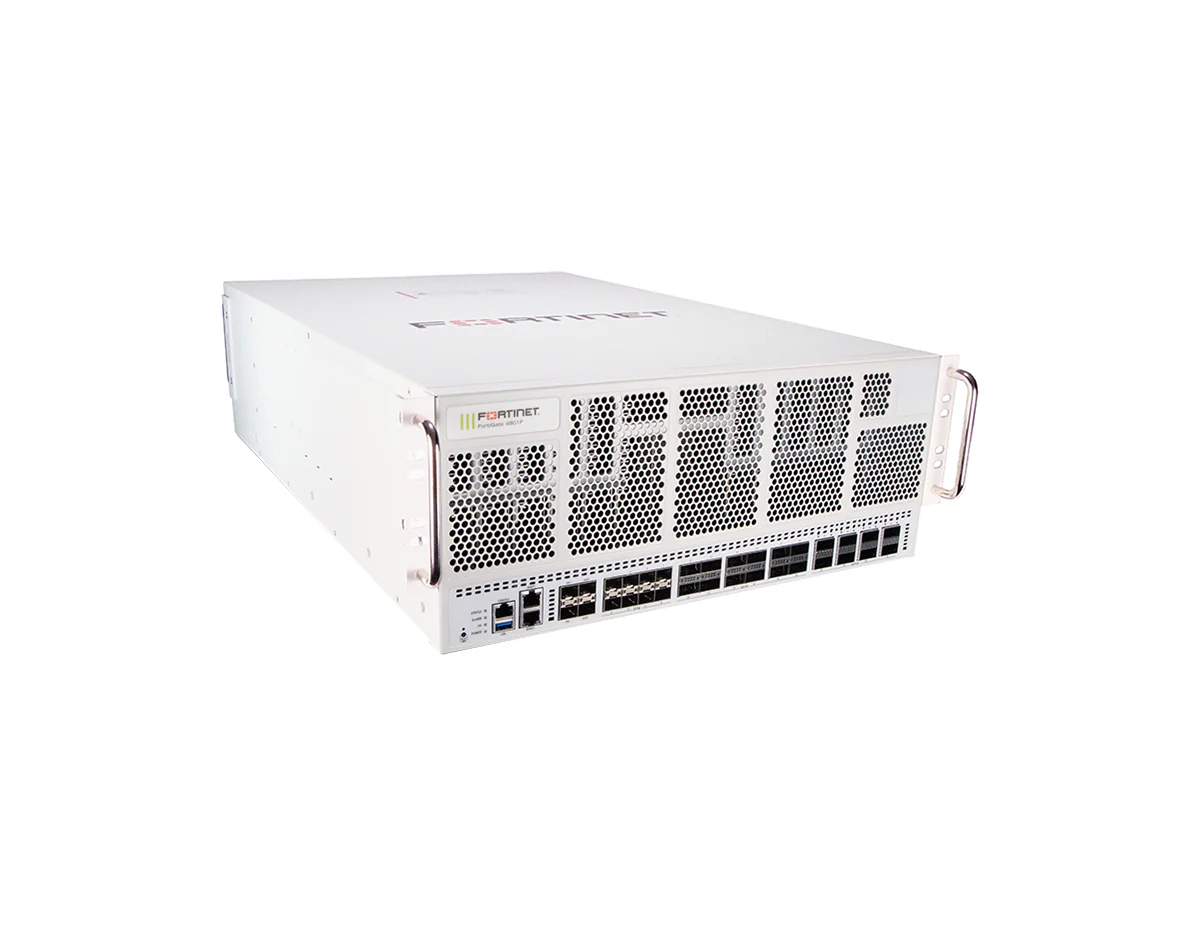

The Fortinet FortiGate 4801F is a high-performance Next-Generation Firewall (NGFW) engineered for hyperscale data centers and service providers handling high-volume traffic. Built on Fortinet's specialized SPU NP7 and CP9 security processing units, this 4U rackmount appliance delivers up to 3.1 Tbps IPv4 firewall throughput and 3.6 μs firewall latency (64 byte, UDP) to help minimize performance impact during security inspection.

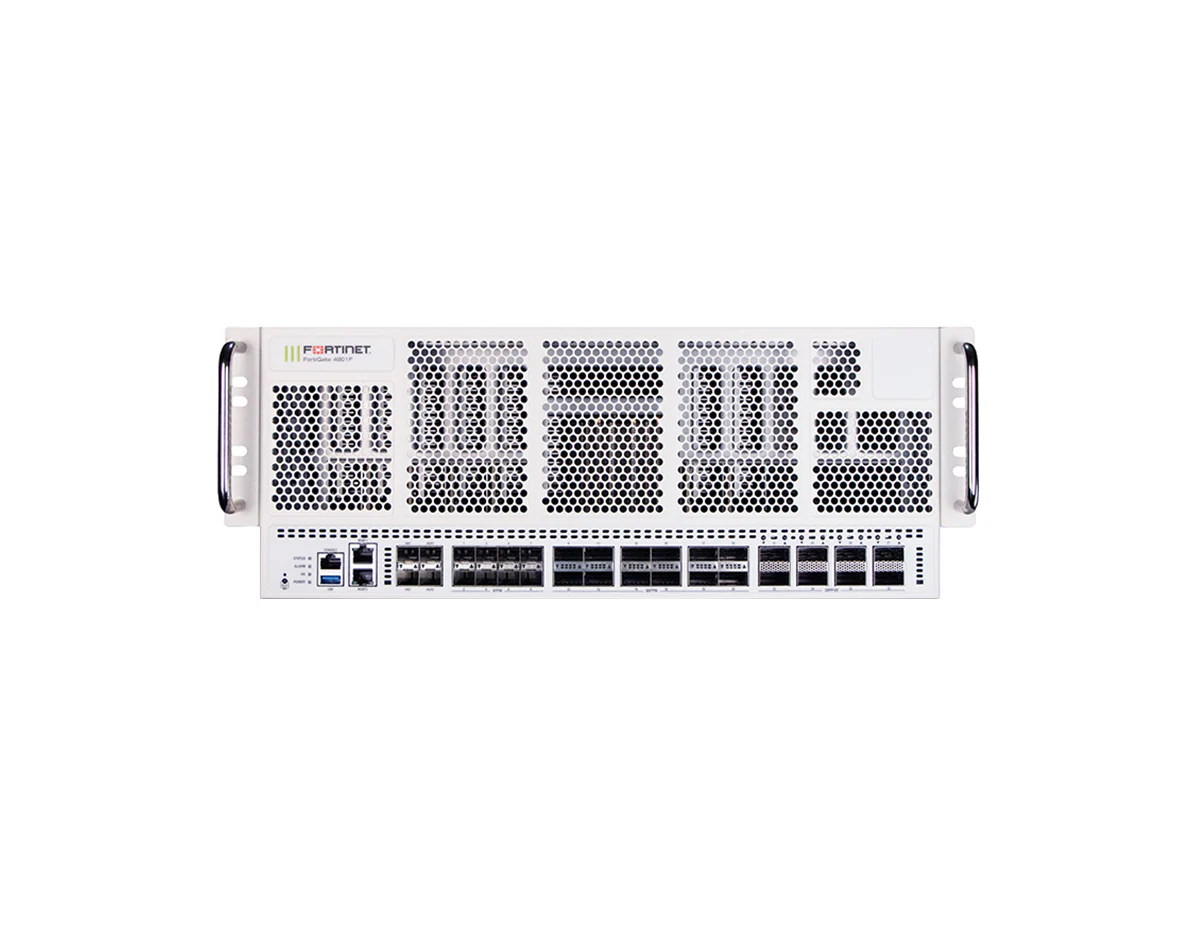

With high-speed connectivity, including 8x 400GE/200GE/100GE/40GE QSFP-DD slots, 12x 200GE/100GE/40GE QSFP56/28 slots, and 12x 50GE/25GE/10GE/GE SFP56/28 slots, the FG-4801F supports dense, high-bandwidth deployments and segmentation at scale. Dual 1.92TB internal SSDs provide local storage for logging and related use cases, supporting operational needs in large environments.

Securing Hyperscale Architectures with 400GE Connectivity and NP7 Acceleration

• Unmatched 400GE Connectivity: Features 8x 400GE/200GE/100GE/40GE QSFP-DD slots to support high-bandwidth data center connectivity.
• Hyperscale Performance: Powered by SPU NP7 and CP9 processors to deliver up to 3.1 Tbps IPv4 firewall throughput and hyperscale session capacity with the appropriate license.
• Integrated Internal Storage: Includes 2x 1.92TB SSDs for local log storage and reporting.
• Compact 4U Form Factor: Delivers high interface density and performance within a standard data center rack footprint.

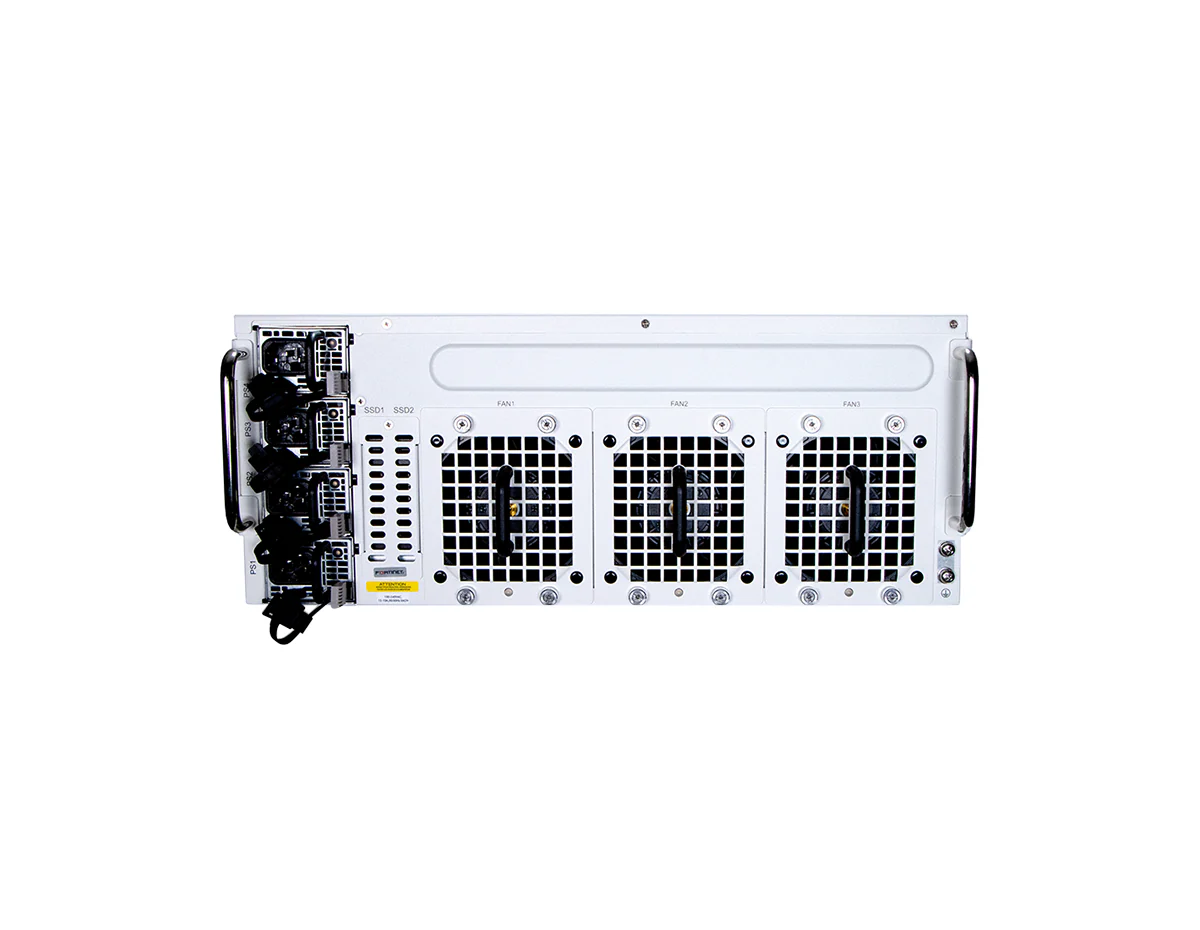

• Redundant Power and Cooling Design: Supports redundant, hot-swappable power supplies (2+2) and a hot-swappable fan tray design.
• Advanced Threat Protection: Provides consolidated security inspection with enterprise traffic mix performance for NGFW and threat protection.

• Hyperscale Data Centers: Ideal for securing North-South and East-West traffic flows in large cloud and data center environments.
• Service Providers: Supports high-volume multi-tenant architectures requiring distinct segmentation and high-speed interconnects.
• Segmentation at Scale: Helps enforce segmentation to limit lateral movement and support large-scale network architectures.
• Large Enterprise Gateways: Managing heavy encrypted traffic loads with dedicated SSL inspection capabilities.

• Firewall Throughput (IPv4): 3.1 / 3.1 / 0.93 Tbps (1518 / 512 / 64 byte, UDP)
• IPsec VPN Throughput: 1,800 Gbps (512 byte)
• IPS Throughput: 87 Gbps (Enterprise Traffic Mix)
• NGFW Throughput: 77 Gbps (Enterprise Traffic Mix)
• Threat Protection Throughput: 75 Gbps (Enterprise Traffic Mix)
• SSL Inspection Throughput: 63 Gbps (IPS, avg. HTTPS)
• SSL-VPN Throughput: 18 Gbps (RSA-2048)
• Firewall Latency: 3.6 μs (64 byte, UDP)
• Session Scale: 280 Million / 1.8 Billion concurrent sessions and 915,000 / 25 Million new sessions/second (Hyperscale Firewall License)
• High-Speed Slots: 8x 400GE/200GE/100GE/40GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/28, 12x 50GE/25GE/10GE/GE SFP56/28 (8x standard + 4x HA/Aux)
• Storage and Included Optics: 2x 1.92TB SSD; 2x SFP+ (SR 10 GE) transceivers included
• Power, Physical, Compliance: 200–240V AC; 1622 W average / 1938.2 W maximum; 4U; 175 x 435 x 663 mm; 90.83 lbs (41.2 kg); FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6
