[shortdesc]FG-4800F-DC-BDL-950-36 NGFW, DC power, 400GE QSFP-DD, NP7/CP9 SPUs, 87 Gbps IPS, FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 3 Year term[/shortdesc]

[properties]

Property	Value
Model / SKU	FG-4800F-DC-BDL-950-36
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (3 Year)
Form Factor	Rack Mount 4 RU
Firewall Throughput (IPv4 1518 byte)	3.1 Tbps
IPS Throughput	87 Gbps
Interfaces (Summary)	8x 400GE/200GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/28, 12x 50GE/25GE/10GE SFP56/28, 2x 10GE RJ45 Management Ports
Power Input	-72V to -40V DC

[/properties]

[specifications]

Specification	Value
Performance / Throughput
IPS Throughput	87 Gbps
NGFW Throughput	77 Gbps
Threat Protection Throughput	75 Gbps
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	3.1/3.1/0.93 Tbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	3.1/3.1/0.93 Tbps
Firewall Latency (64 byte, UDP)	3.6 μs
Concurrent Sessions (TCP)	280 Million / 1.8 Billion*
New Sessions/Second (TCP)	915,000 / 25 Million*
Interfaces / Ports
Hardware Accelerated 400GE/200GE/100GE/40GE QSFP-DD/QSFP56/QSFP28/QSFP+ Slots	8
Hardware Accelerated 200GE/100GE/40GE QSFP56/QSFP28/QSFP+ slots	12
Hardware Accelerated 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP slots	8
Hardware Accelerated 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP High Availability and Aux Slots	4
10GE/GE RJ45 Management Ports	2
USB Port (3.0)	1
Console Port	1
VPN / SD-WAN / NGFW
IPsec VPN Throughput (512 byte)	1,800 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
SSL-VPN Throughput	18 Gbps
SSL Inspection Throughput	63 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	60,000
Dimensions / Weight / Form Factor
Form Factor	Rack Mount 4 RU
Dimensions (H x W x L)	175 x 435 x 663 mm (6.89 x 17.13 x 26.10 inches)
Weight	41.2 kg (90.83 lbs)
Power / Consumption
Power Input	-72V to -40V DC
Power Consumption (Average/Maximum)	1602 W / 1918.2 W
DC Current (Maximum)	40.94A @ 48VDC
Redundant Power Supplies	Hot Swappable, 2+2

[/specifications]

[accesories]

Item	Description
Included — Transceivers	2x SFP+ (SR 10 GE)
Optional — Hyperscale Firewall License (LIC-FGT-HYPSC)	Hyperscale Firewall License for hardware session setup acceleration and logging; enables hardware acceleration of CGNAT features and is required for starred session metrics.
Optional — DC Power Supply (SP-FG4000F-DC-PS)	DC power supply for FG-4200F-DC/4400F-DC/4800F-DC/6000F-DC, comes with 3m DC cable.
Optional — Fan Tray (SP-FG4K6K-FAN)	Spare Hotswappable Fan Module for FG-420xF/440xF/480xF/6000F.
Optional — Transceiver Modules	Examples include FN-TRAN-GC (1 GE SFP RJ45), FN-TRAN-SFP+SR (10 GE SFP+ SR), FN-TRAN-SFP28-SR (25 GE SFP28 SR), FN-TRAN-QSFP28-SR (100 GE QSFP28 SR), FN-TRAN-QSFP56-FR4 (200 GE QSFP56 FR4), and FN-TRAN-QSFPDD-LR4 (400 GE QSFPDD LR4).
Optional — Cables	400 GE QSFPDD Passive Direct Attach Cable options include FN-CABLE-QSFPDD-DAC-01 (1m) and FN-CABLE-QSFPDD-DAC-B5 (2.5m).

[/accesories]

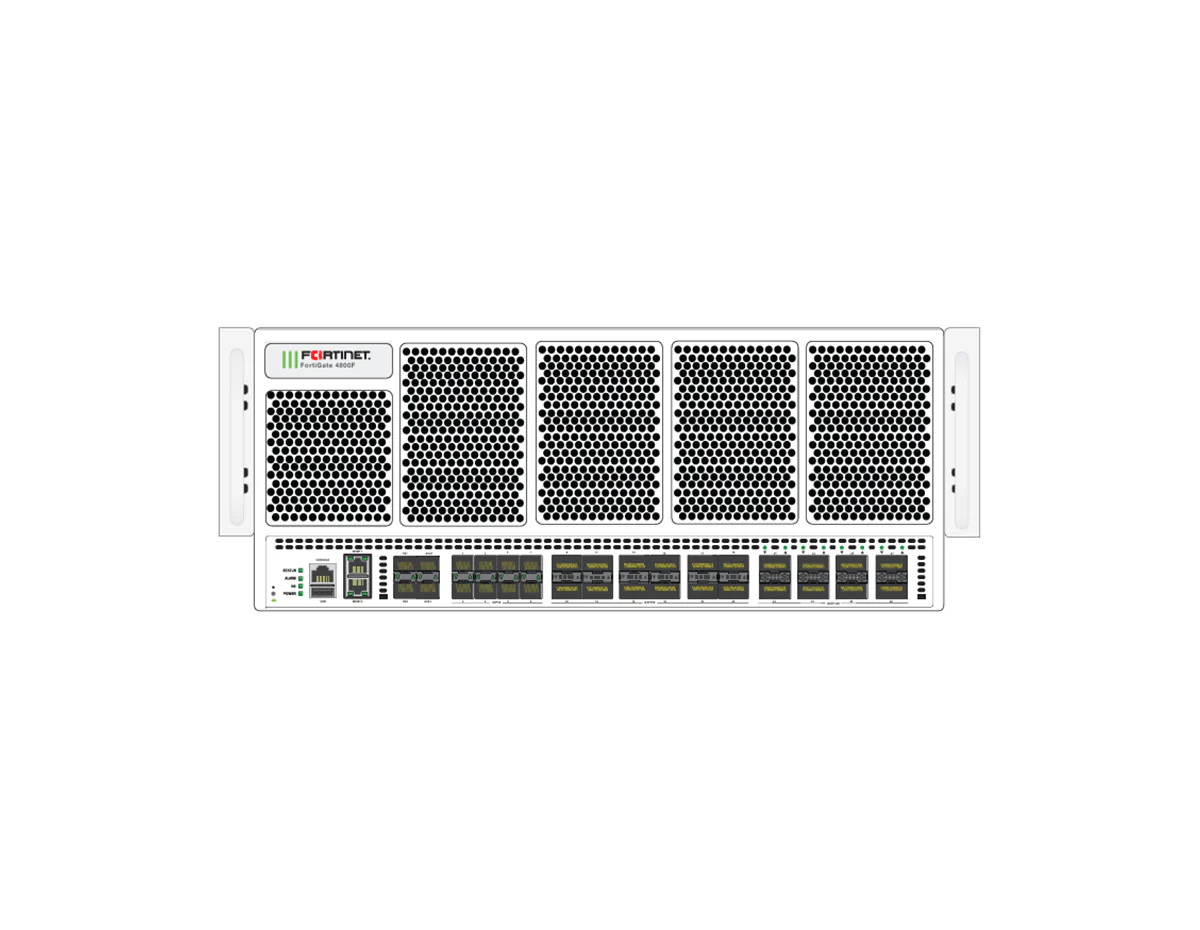

The Fortinet FortiGate 4800F-DC is built for DC-powered data centers and service provider environments that require high-speed NGFW connectivity and consistent performance at scale. It supports dense interfaces including multiple 400GE/200GE QSFP-DD slots for core segmentation and aggregation.

FG-4800F-DC-BDL-950-36 bundles the appliance with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 3 Year term, aligning support and security services under one SKU.

Secure Networking with Hyperscale Performance and DC Power Support

• DC power input for telecom and data center infrastructures.
• 8x 400GE/200GE QSFP-DD slots for core segmentation.
• NP7 and CP9 SPUs accelerate firewalling and security inspection.
• Integrated ZTNA enforcement within the NGFW solution.
• High scale sessions and tunnel capacity for hyperscale environments.
• Bundle includes FortiCare Premium + FortiGuard UTP, 3 year.

Upgrade Your Network Security

Request a quote for FG-4800F-DC-BDL-950-36 to deploy 3-year UTP coverage.
