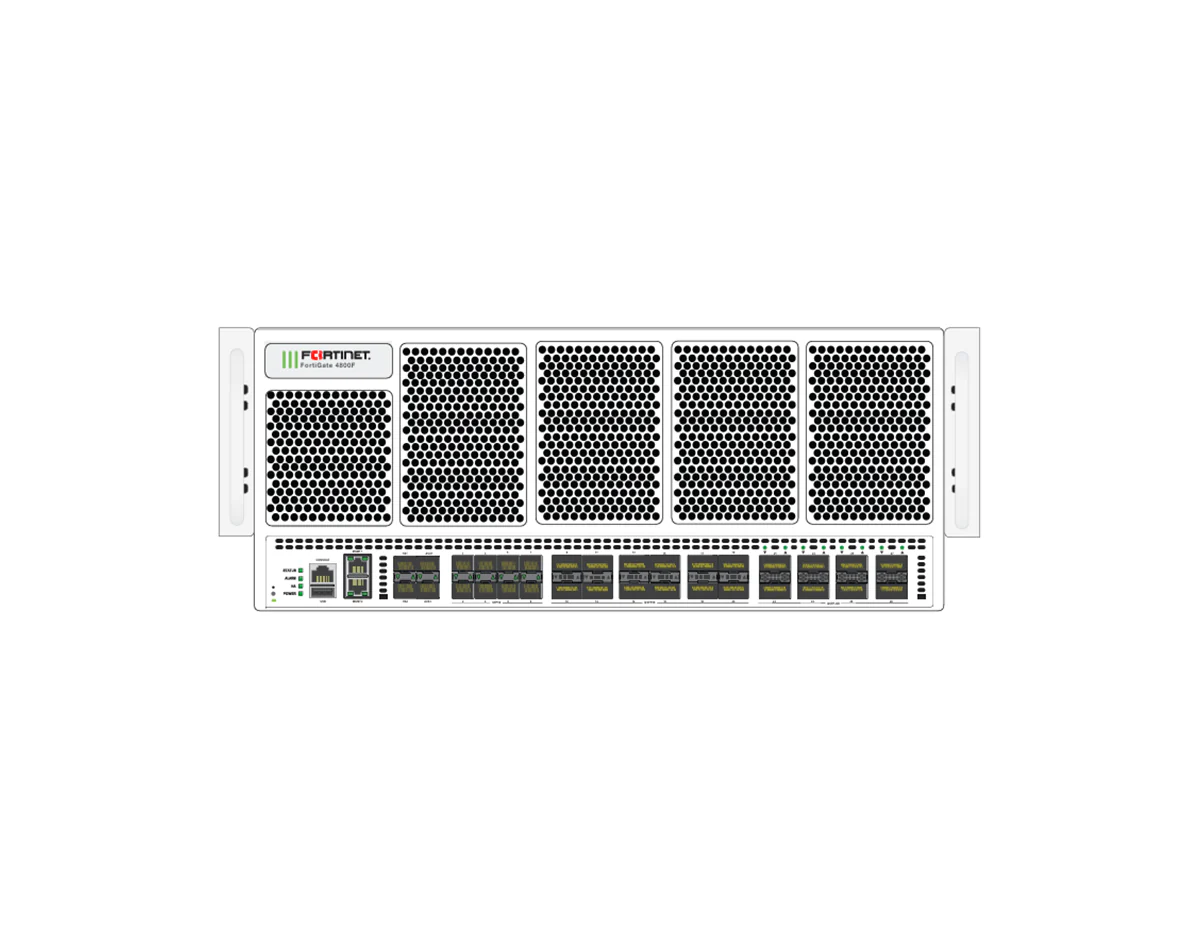

[shortdesc]FG-4800F-BDL-809-12 FortiGate 4800F NGFW, hyperscale 4RU, NP7+CP9 SPUs, 400GE QSFP-DD, FortiCare Premium + FortiGuard Enterprise Protection, 1-Year term.[/shortdesc]

[properties]

Property	Value
Model / SKU	FG-4800F-BDL-809-12
Bundle / Subscription	BDL-809 (FortiCare Premium + FortiGuard Enterprise Protection), 1-Year term
Form Factor	Rack Mount 4 RU
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
IPS Throughput	87 Gbps
Interfaces (Summary)	8x 400GE/200GE/100GE/40GE QSFP-DD, 12x 200GE/100GE/40GE QSFP56/QSFP28/QSFP+, 12x 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP, 2x 10GE/GE RJ45 Management
Power Input	200-240V AC, 50/60 Hz
Dimensions (H x W x L)	175 x 435 x 663 mm (6.89 x 17.13 x 26.10 inches)
Weight	41.2 kg (90.83 lbs)

[/properties]

[specifications]

Specification	Value
Performance / Throughput
IPS Throughput	87 Gbps
Threat Protection Throughput	75 Gbps
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	3.1 / 3.1 / 0.93 Tbps
SSL Inspection Throughput (IPS, avg. HTTPS)	63 Gbps
Concurrent Sessions (TCP)	280 Million/1.8 Billion
New Sessions/Second (TCP)	915,000/25 Million
VPN / NGFW
NGFW Throughput	77 Gbps
IPsec VPN Throughput (512 byte)	1800 Gbps
SSL-VPN Throughput	18 Gbps
Interfaces / Ports
Hardware Accelerated 400GE/200GE/100GE/40GE QSFP-DD/QSFP56/QSFP28/QSFP+ Slots	8
Hardware Accelerated 200GE/100GE/40GE QSFP56/QSFP28/QSFP+ slots	12
Hardware Accelerated 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP slots	8
Hardware Accelerated 50GE/25GE/10GE/GE SFP56/SFP28/SFP+/SFP High Availability and Aux Slots	4
10GE/GE RJ45 Management Ports	2
USB Port (3.0)	1
Console Port	1
Dimensions / Weight / Form Factor
Form Factor (supports EIA/non-EIA standards)	Rack Mount, 4 RU
Height x Width x Length (mm)	175 x 435 x 663
Weight	90.83 lbs ( 41.2 kg)
Power / Consumption
AC Power Supply	200–240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	1602 W / 1918.2 W
Redundant Power Supplies	Hot Swappable, 2+2
Power Supply Efficiency Rating	80Plus Compliant

[/specifications]

[accesories]

Category	Item	Description
Included	Transceivers	2x SFP+ (SR 10 GE)
Optional	Hyperscale Firewall License (LIC-FGT-HYPSC)	Unlocks further performance boosts and enables hardware acceleration of CGNAT features.
Optional	AC Power Supply (SP-FG4000F-PS)	2000W AC power supply for 4000F and 6000F series, does not include power cord.
Optional	AC Power Cord (SP-FGPCORC15-XX)	6ft power cord, 15A125V XXX, PSE BLACK ROHS-6, for FG-3900E, 4000F, 6000F, and 7000E/F Series.
Optional	Fan Tray (SP-FG4K6K-FAN)	Spare Hotswappable Fan Module for FG-420xF/440xF/480xF/6000F.
Optional	Transceiver Modules	Multiple options listed in datasheet (e.g., 1 GE SFP, 10 GE SFP+, 400 GE QSFPDD).
Optional	Cables	Multiple options listed in datasheet (e.g., 400 GE QSFPDD Passive Direct Attach Cable).

[/accesories]

The FortiGate 4800F Series enables organizations to build security-driven networks, forming the foundation of a robust Hybrid Mesh Firewall architecture that protects any edge at any scale. Powered by AI/ML-based FortiGuard Services and an integrated security fabric platform, FortiGate 4800F delivers coordinated, automated threat protection with integrated ZTNA enforcement.

This FG-4800F-BDL-809-12 bundle includes FortiCare Premium and FortiGuard Enterprise Protection for a 1-Year term.

Secure Networking with Unparalleled Performance and AI/ML-Powered Threat Protection

• NP7 and CP9 SPUs accelerate security processing with low latency.
• 400GE/200GE QSFP-DD slots simplify high-speed core segmentation.
• Enterprise AI/ML FortiGuard Services deliver coordinated, automated threat protection.
• Integrated ZTNA enforcement controls and verifies user access to applications.
• Hybrid Mesh Firewall architecture protects datacenter and hybrid IT environments.
• FortiOS converges networking and security across IT, OT, and IoT.

Upgrade Your Network Security

Contact us to deploy the Fortinet FG-4800F-BDL-809-12 bundle in your datacenter.
