[shortdesc]FG-4400F-DC-BDL-809-12 NGFW, DC power -48V to -60V, 12x 100 GE QSFP28, up to 1.15 Tbps firewall, FortiCare Premium + FortiGuard Enterprise Protection, 1 Year.[/shortdesc]

[properties]

Model	FG-4400F-DC-BDL-809-12
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Enterprise Protection (1 Year)
Form Factor	Rack Mount, 4 RU
Firewall Throughput (IPv4)	1.15 Tbps
Interfaces	12x 100 GE QSFP28 / 40 GE QSFP+, 16x 25 GE SFP28 Data, 2x HA, 2x AUX, 2x Mgmt
Power Input	-48V to -60V DC
Dimensions (H x W x L)	177 x 437 x 665 mm (6.97 x 17.20 x 26.17 inches)
Weight	37.1 kg (81.8 lbs)

[/properties]

[specifications]

Performance / Throughput
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	1.15 / 1.14 / 0.50 Tbps
IPS Throughput	94 Gbps
NGFW Throughput	82 Gbps
Threat Protection Throughput	75 Gbps
Firewall Latency (64 byte, UDP)	2.98 µs
Firewall Throughput (Packet per Second)	750 Mpps
VPN / NGFW
IPsec VPN Throughput (512 byte)	310 Gbps
SSL-VPN Throughput	16 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	86 Gbps
Interfaces / Ports
Hardware Accelerated 100 GE QSFP28/40 GE QSFP+ Slots	12
Hardware Accelerated 25 GE SFP28/10 GE SFP+/GE SFP Slots	16
Hardware Accelerated 25 GE SFP28/10 GE SFP+/GE SFP HA Slots	2
Hardware Accelerated 25 GE SFP28/10 GE SFP+/GE SFP AUX Slots	2
GE RJ45 Management Ports	2
USB Port (3.0)	1
Console Port	1
Trusted Platform Module (TPM)	Yes
Included Transceivers	2x SFP+ (SR 10 GE)
Dimensions / Weight / Form Factor
Form Factor (supports EIA/non-EIA standards)	Rack Mount, 4 RU
Height x Width x Length (mm)	177 x 437 x 665
Weight	81.8 lbs (37.1 kg)
Power / Consumption
DC Power Supply	-48V to -60V DC
DC Current (Average / Maximum)	32A / 100A pk
Power Consumption (Average / Maximum)	1533W / 1875W
Redundant Power Supplies	Yes, Hot Swappable, 1+1 (DC)

[/specifications]

[accesories]

Included Transceivers	2x SFP+ (SR 10 GE)
Optional Accessories	SP-FG4000F-DC-PS (DC Power Supply), SP-FG4K6K-FAN (Fan Tray), various Transceivers (SFP, SFP+, SFP28, QSFP+, QSFP28), Direct Attach Cables

[/accesories]

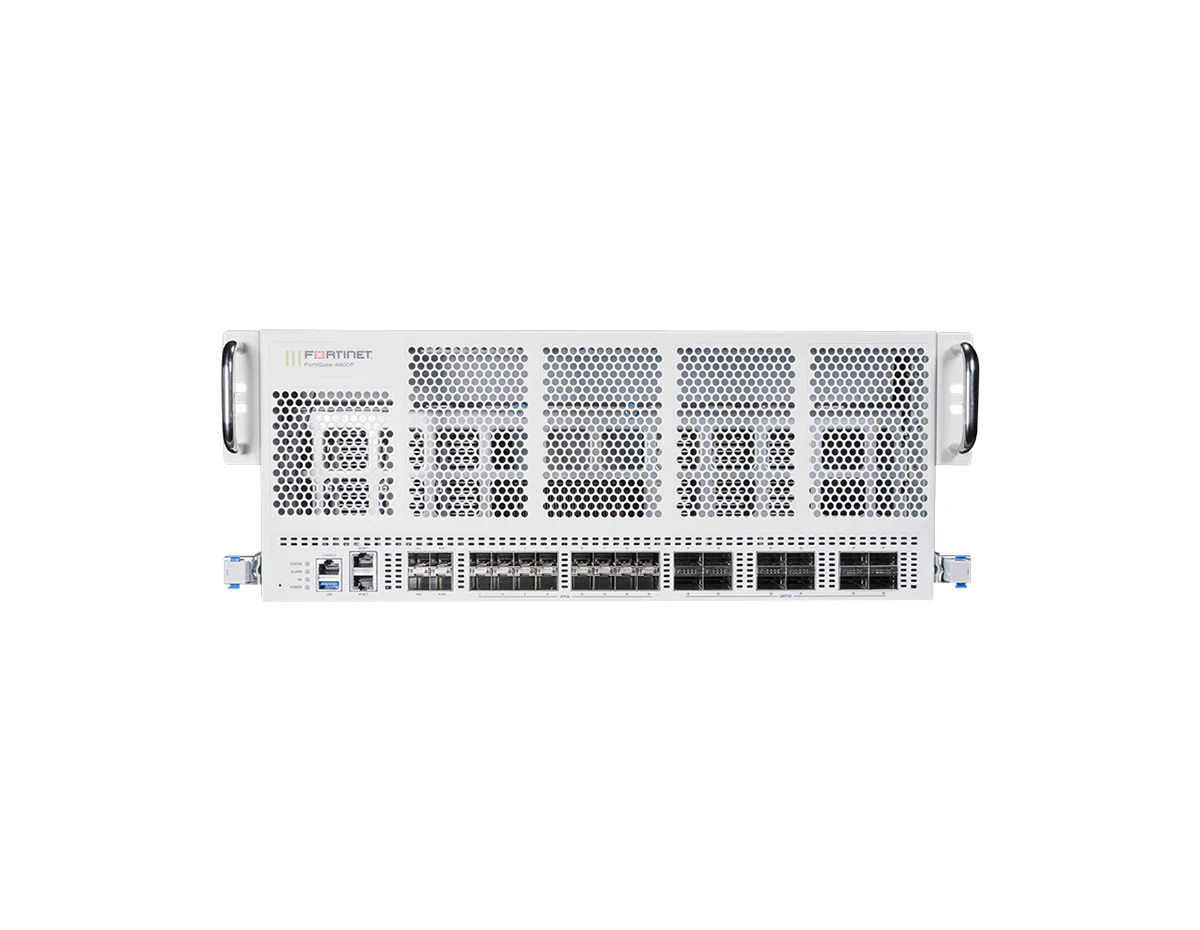

The FortiGate 4400F-DC is a hyperscale next-generation firewall for DC-powered data centers and large enterprise environments, powered by Fortinet's NP7 and CP9 SPUs. It delivers up to 1.15 Tbps of firewall throughput and 94 Gbps of IPS throughput for demanding traffic loads.

This bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection (1 Year). The FortiGate 4400F-DC supports hyperscale use cases with Carrier-Grade NAT (CGNAT) and highly scalable IPsec aggregation.

Hyperscale Security with DC Power Reliability

• NP7 and CP9 SPUs accelerate inspection and session handling.
• Up to 1.15 Tbps IPv4 firewall throughput.
• 12x 100 GE QSFP28 and 16x 25 GE SFP28 ports.
• Integrated ZTNA enforcement within NGFW for validated application access.
• IPsec VPN throughput up to 310 Gbps (512 byte).
• DC power supplies -48V to -60V, hot-swappable 1+1.

Upgrade Your Network Security

Deploy the FG-4400F-DC-BDL-809-12 to pair DC-powered NGFW performance with Enterprise Protection (1 Year).
