[shortdesc] FG-4201F-DC-BDL-809-36 FortiGate NGFW, 2x 1.92TB SSD, 8x 100GE QSFP28, -48V to -60V DC, FortiCare Premium + FortiGuard Enterprise Protection, 3 Year [/shortdesc]

[properties]

Brand	Fortinet
Model / SKU	FG-4201F-DC-BDL-809-36
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Enterprise Protection (3 Year)
Form Factor	Rack Mount, 3 RU
Firewall Throughput	800 Gbps
Internal Storage	2x 1.92 TB SSD
Interfaces Summary	8x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 2x 25 GE HA slots, 2x 25 GE AUX slots, 2x GE RJ45 Mgmt
Power Input	-48V to -60V DC
Dimensions (H x W x L)	5.22 x 17.20 x 26.17 in (132.5 x 437 x 664.8 mm)
Weight	61.07 lbs (27.7 kg)

[/properties]

[specifications]

Performance / Throughput
IPS Throughput	52 Gbps
NGFW Throughput	47 Gbps
Threat Protection Throughput	45 Gbps
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	800 / 788 / 400 Gbps
Firewall Latency (64 byte UDP)	3.02 μs
Firewall Throughput (Packets per Second)	600 Mpps
Concurrent Sessions (TCP)	210 Million / 450 Million
New Sessions/Second (TCP)	1 Million / 7 Million
VPN / NGFW
IPsec VPN Throughput (512 byte)	210 Gbps
SSL-VPN Throughput	16 Gbps
SSL Inspection Throughput	50 Gbps
Interfaces / Ports
100 GE QSFP28 / 40 GE QSFP+ Slots	8 (Hardware Accelerated)
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16 (Hardware Accelerated)
25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots	2 (Hardware Accelerated)
25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots	2 (Hardware Accelerated)
GE RJ45 Management Ports	2
USB Port	1
Console Port	1
Dimensions / Weight / Form Factor
Height x Width x Length (inches)	5.22 x 17.20 x 26.17
Height x Width x Length (mm)	132.5 x 437 x 664.8
Weight	61.07 lbs (27.7 kg)
Form Factor	Rack Mount, 3 RU
Power / Consumption
DC Current (Average / Maximum)	20A / 100Apk
Power Consumption (Average / Maximum)	940 W / 1306 W
Heat Dissipation	4456 BTU/h
Redundant Power Supplies	Default 1+1 Redundant, Hot Swappable

[/specifications]

[accesories]

Included in Box	2x DC power supplies, 2x SFP+ (SR 10 GE) Transceivers
Optional Accessories	Rack mount sliding rails (SP-FG3040B-RAIL), DC Power Supply (SP-FG4000F-DC-PS), Spare Fan Tray (SP-FG4K6K-FAN), Various SFP/QSFP Transceivers

[/accesories]

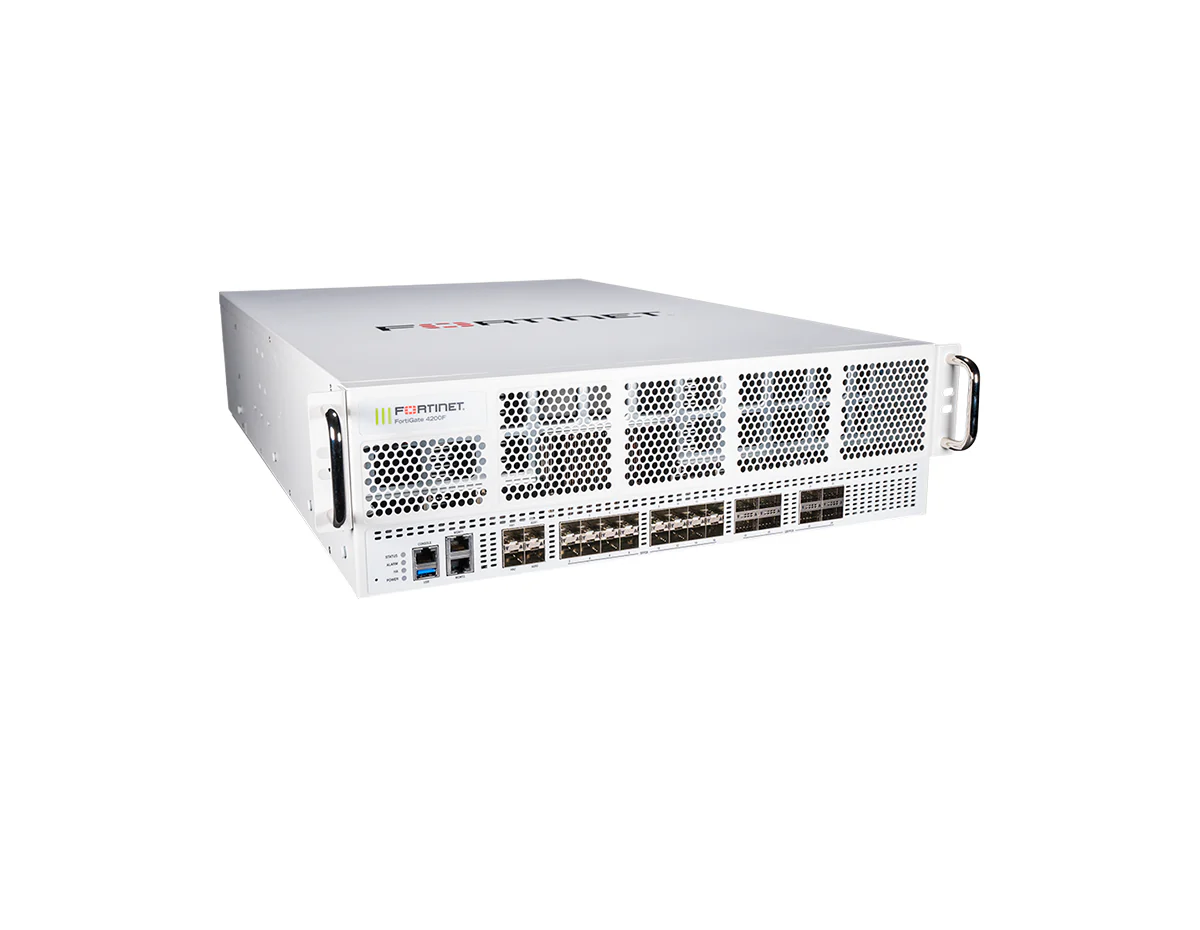

The FortiGate 4201F-DC is a Next-Generation Firewall (NGFW) optimized for DC-powered data centers and service provider environments requiring onboard storage. Powered by Fortinet's SPU NP7 and CP9 processors, it delivers up to 800 Gbps firewall throughput, integrated 2x 1.92 TB SSDs for local logging, and dense 100 GE / 25 GE interfaces for scalable segmentation and policy enforcement.

This bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection (3 Year) to align security services and support with your contract term. Use it to standardize purchasing across deployments, simplify renewals, and keep the appliance interfaces, performance, and physical specifications consistent.

Hyperscale Security with Onboard Storage and DC Power

• 2x 1.92TB SSD onboard storage for local logging and caching
• -48V to -60V DC input for telco and data centers
• 800 Gbps firewall throughput with NP7 and CP9 SPUs
• 8x 100GE/40GE, 16x 25GE, plus 2x HA and AUX
• Up to 210 million concurrent TCP sessions for large-scale networks
• FortiCare Premium + FortiGuard Enterprise Protection bundle (3 Year)

Upgrade Your Network Security

Deploy FG-4201F-DC-BDL-809-36 to secure DC-powered infrastructure for a 3 Year term with FortiCare Premium support across teams.
