[shortdesc] FG-4200F-DC-BDL-950-12 NGFW, DC power, NP7/CP9 SPUs, 8x 100GE QSFP28, up to 800 Gbps firewall, FortiCare Premium + FortiGuard UTP, 1 Year. [/shortdesc]

[properties]

Brand	Fortinet
Model / SKU	FG-4200F-DC-BDL-950-12
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year)
Form Factor	Rack Mount, 3 RU
Firewall Throughput	800 Gbps
Threat Protection Throughput	45 Gbps
Interfaces Summary	8x 100GE/40GE QSFP28/QSFP+, 18x 25GE SFP28 (25GE/10GE/GE) + 2x 25GE HA, 2x GE RJ45 Mgmt
Power Input	-48V to -60V DC
Dimensions (H x W x L)	5.22 x 17.20 x 26.17 in (132.5 x 437 x 664.8 mm)
Weight	59.75 lbs (27.1 kg)

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
IPS Throughput	52 Gbps
NGFW Throughput	47 Gbps
Threat Protection Throughput	45 Gbps
System Performance & Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	800 / 788 / 400 Gbps
Firewall Latency (64 byte, UDP)	3.02 μs
Concurrent Sessions (TCP)	210 Million / 450 Million* (with Hyperscale Firewall License)
New Sessions/Second (TCP)	1 Million / 7 Million* (with Hyperscale Firewall License)
IPsec VPN Throughput (512 byte)	210 Gbps
Interfaces & Modules
100 GE QSFP28 / 40 GE QSFP+ Slots	8 (Hardware Accelerated)
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16 (Hardware Accelerated)
25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots	2 (Hardware Accelerated)
25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots	2 (Hardware Accelerated)
GE RJ45 Management Ports	2
USB Port	1
Console Port	1
Power & Environment
DC Current (Average / Maximum)	20A / 100Apk
Power Consumption (Average / Maximum)	931 W / 1291 W
Heat Dissipation	4405 BTU/h
Redundant Power Supplies	Default 1+1 Redundant, Hot Swappable

[/specifications]

[accesories]

Included in Box	2x DC power supplies, 2x SFP+ (SR 10 GE) Transceivers
Optional Accessories	Hyperscale Firewall License (LIC-FGT-HYPSC), Rack mount sliding rails (SP-FG3040B-RAIL), DC Power Supply (SP-FG4000F-DC-PS), Spare Fan Tray (SP-FG4K6K-FAN), Various SFP/QSFP Transceivers

[/accesories]

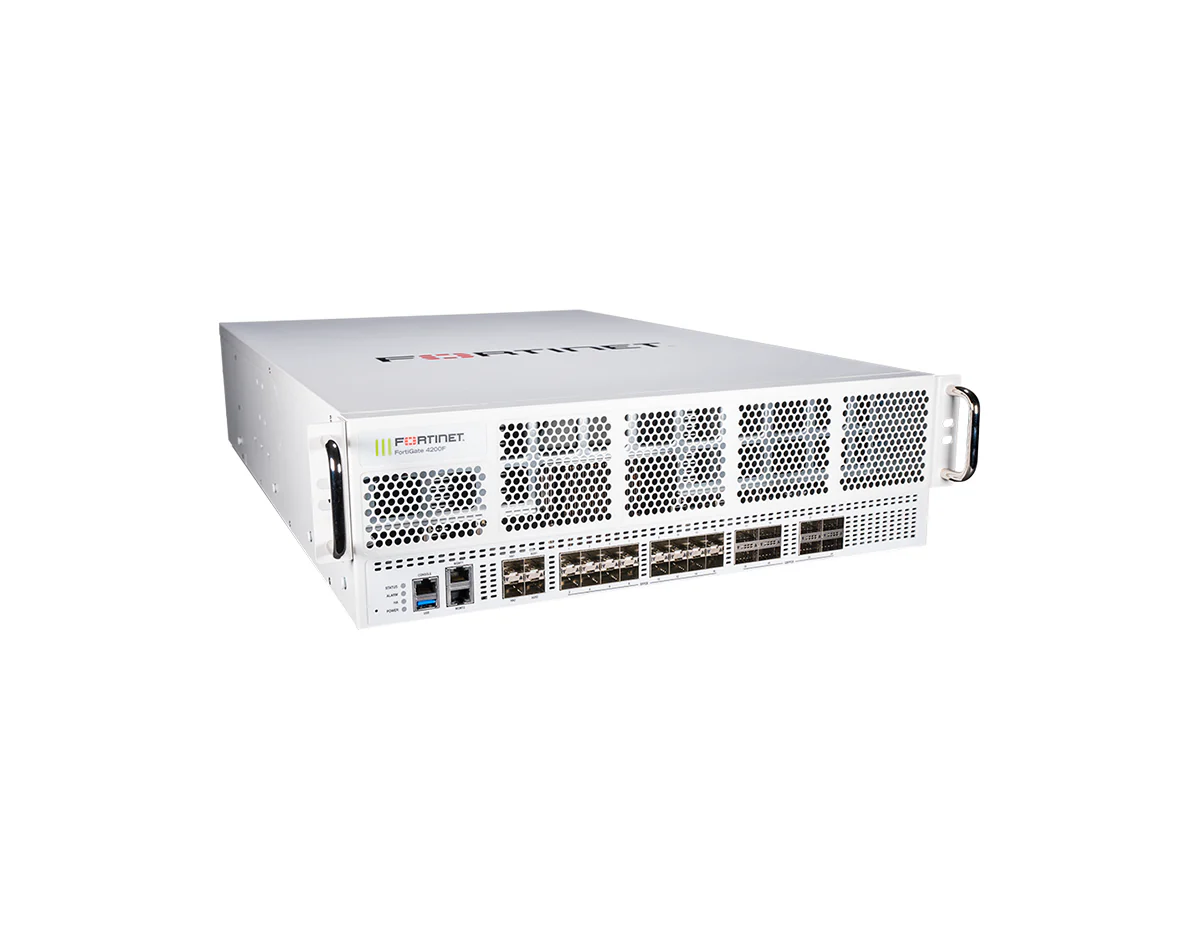

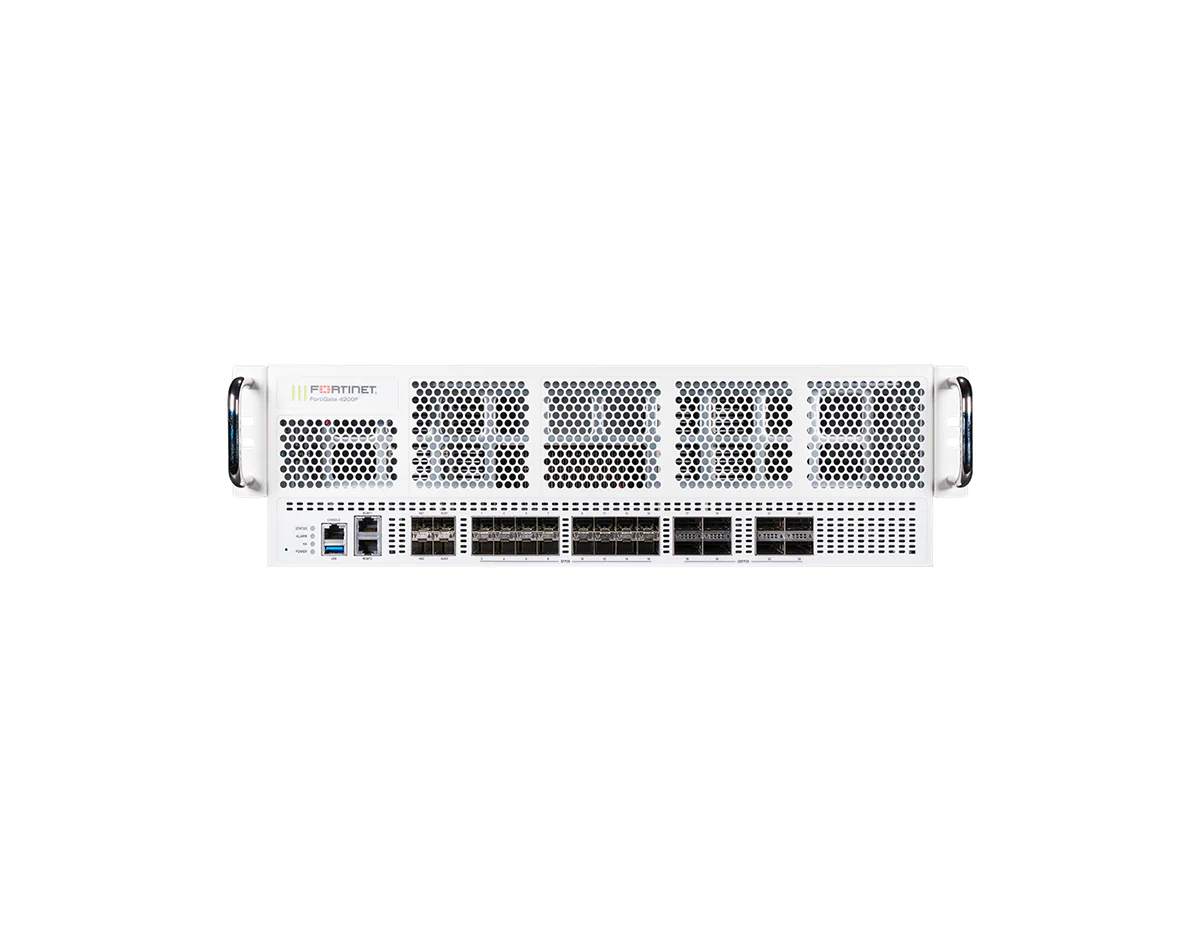

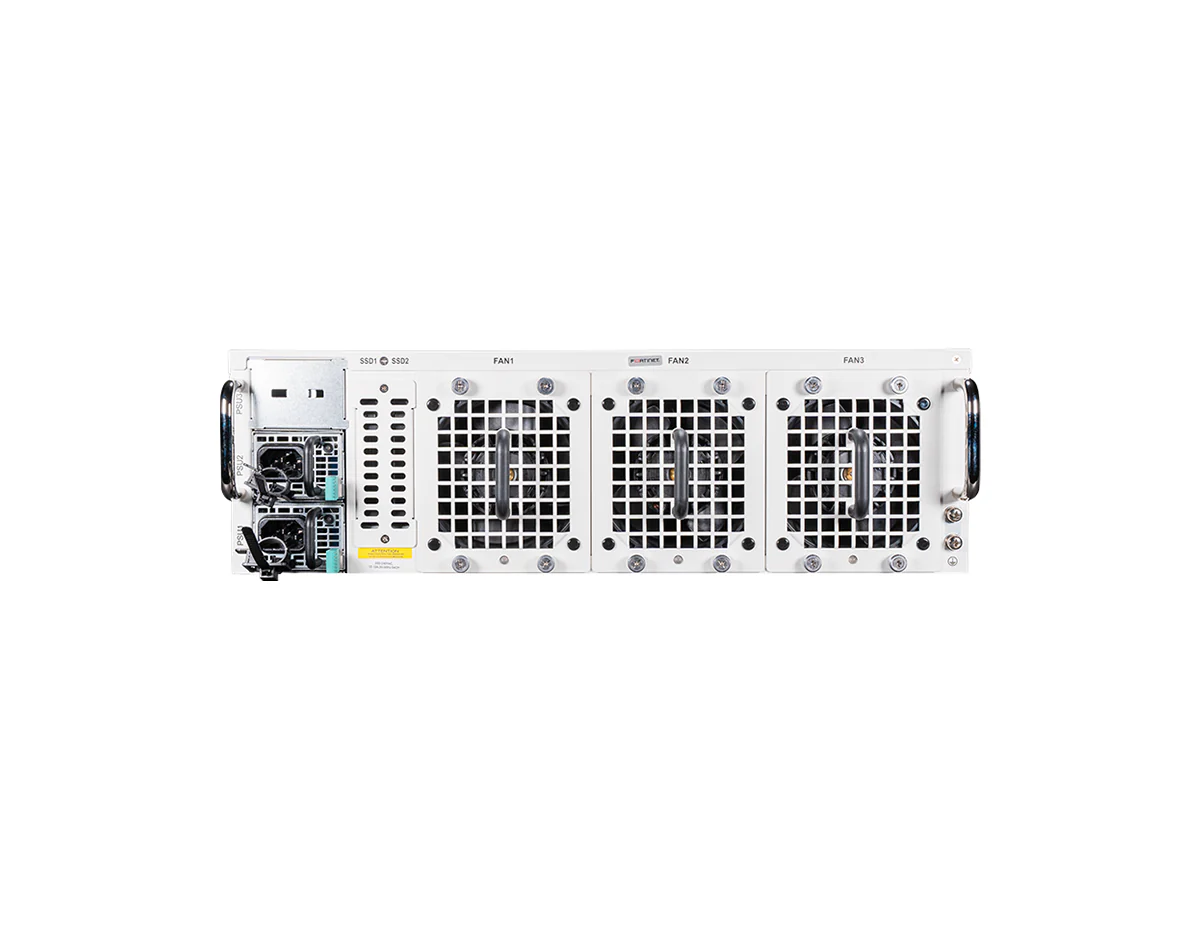

The Fortinet FortiGate 4200F-DC Series consolidates networking and security for DC-powered data centers and service provider networks. Its SPU-accelerated design supports high-speed segmentation for 100 GE architectures.

This bundle SKU includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 1 Year term. Use it to standardize support and security services while maintaining the same FG-4200F-DC hardware.

Hyperscale Security for DC Power Environments

• Up to 800 Gbps firewall throughput with NP7 and CP9 SPUs.
• 8x 100GE/40GE QSFP28/QSFP+ plus 18x 25GE SFP28 ports.
• DC power input -48V to -60V with redundant supplies.
• Enterprise Mix: 52 Gbps IPS, 47 Gbps NGFW, 45 Gbps protection.
• IPsec VPN up to 210 Gbps; supports 210M sessions.
• Includes FortiCare Premium + FortiGuard UTP (1 Year).

Upgrade Your Network Security

Deploy the FG-4200F-DC-BDL-950-12 for DC-powered NGFW protection with FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year).
