Fortinet FG-40F-BDL-950-36 Firewall
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle
[properties]
| Properties | FG-40F-BDL-950-36 |
| Description |

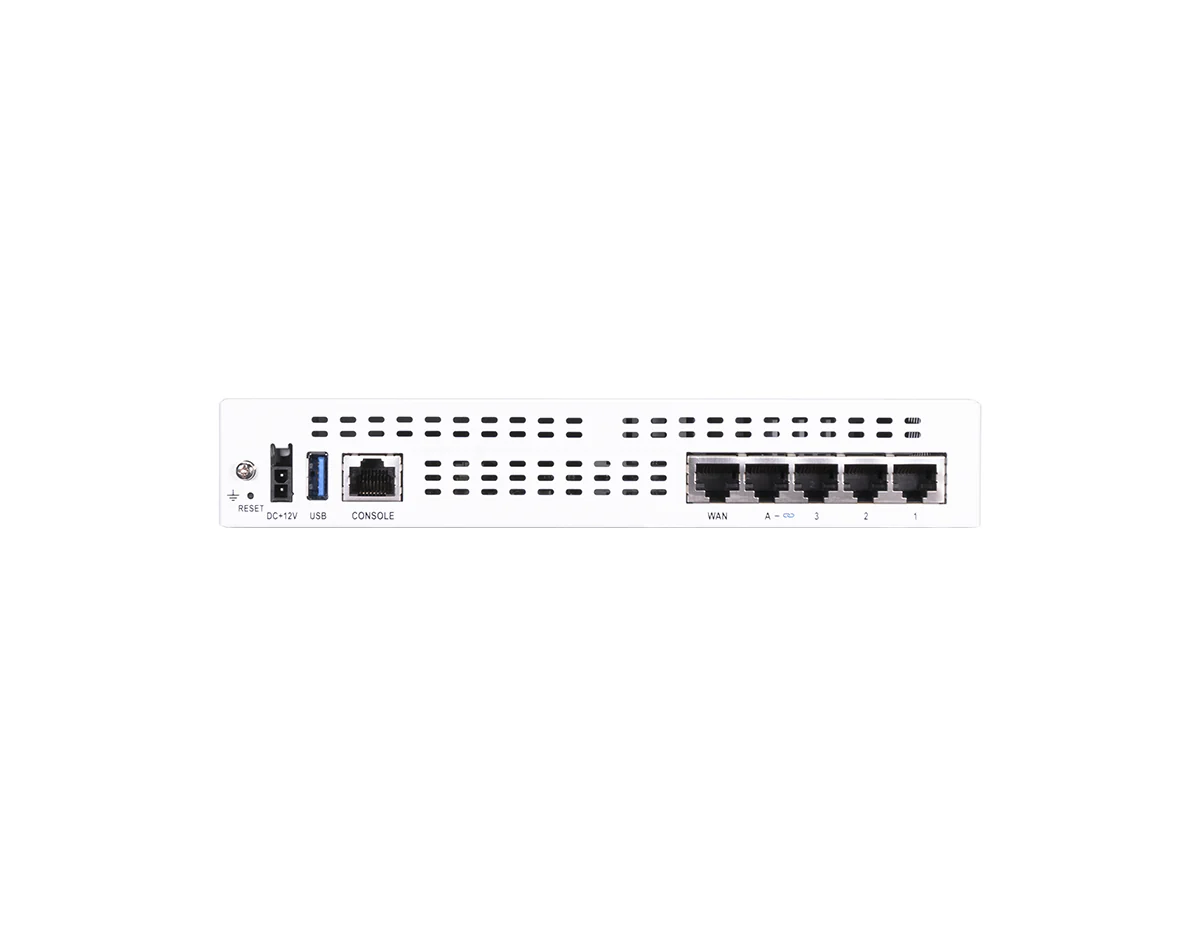

5 x GE RJ45 ports (including 4 x Internal Ports, 1 x WAN Ports)
|
| Product Family |
Early Level Fortigate Firewalls
|
| Product Type | Firewall |
| GE RJ45 Internal Ports | 4 |
| GE RJ45 WAN Port | 1 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 3 Year |
[/properties][specifications]
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 5 / 5 / 5 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.97 μs |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps |
| Concurrent Sessions (TCP) | 700.000 |
| New Sessions/Second (TCP) | 35.000 |
| Firewall Policies | 5.000 |
| IPsec VPN Throughput (512 byte packets) | 4.4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 490 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 |
| IPS Throughput | 1 Gbps |
| SSL Inspection Throughput | 310 Mbps |
| Application Control Throughput | 990 Mbps |
| NGFW Throughput | 800 Mbps |
| Threat Protection Throughput | 600 Mbps |
| CAPWAP Throughput | 3.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of FortiSwitches Supported | 8 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.5 x 8.5 x 6.3 |
| Form Factor | Desktop |
| Power Required |
100240V AC, 6050 Hz (External DC Power Adapter)
|
| Maximum Current |
100V AC / 0.2A, 240V AC / 0.1A
|
| Power Consumption (Average / Maximum) | 7.74 W / 9.46 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| Certifications |
Certifications USGv6/IPv6
|
[/specifications][accesories]
| SP-RACKTRAY-02 |
Rack mount tray for all FortiGate E series and F series desktop models are backwards compatible with SP-RackTray-01. For list of compatible FortiGate products, visit our Documentation website, docs.fortinet.com
|
|
| SP-FG-40F-PA-10(-XX |
Pack of 10 AC power adaptors for FG/FWF-40F, come with interchangeable power plugs. (XX=various countries code)
|
|
| SP-FG60F-MOUNT-20 |
Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass
|
[/accesories]
Fortinet FG-40F-BDL-950-36 Firewall
The FortiGate FG-40F-BDL-950-36 is an excellent choice for small offices seeking reliable network security and SD-WAN functionality. Powered by Fortinet's ASIC SOC4, it delivers consistent performance while safeguarding against threats. With 1x GE RJ45 WAN port, 3x GE RJ45 LAN ports, and 1x FortiLink port, this device integrates easily into existing setups. It includes a 3-year subscription to 24x7 FortiCare support and FortiGuard UTM for ongoing protection.
Key Features
- 5 Gbps firewall throughput for high-performance security
- 1x GE RJ45 WAN, 3x GE RJ45 LAN, and 1x FortiLink port for easy integration
- Secure SD-WAN powered by ASIC SOC4 for enhanced efficiency
- Includes 3-year FortiCare and FortiGuard UTM subscription
Please see the related tabs for the FG-40F-BDL-950-36 datasheet and compatible accessories.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Fortinet FG-40F-BDL-950-36 Firewall
Fortinet FG-40F-BDL-950-36 Firewall
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle
[properties]
| Properties | FG-40F-BDL-950-36 |
| Description |
5 x GE RJ45 ports (including 4 x Internal Ports, 1 x WAN Ports)
|
| Product Family |
Early Level Fortigate Firewalls
|
| Product Type | Firewall |
| GE RJ45 Internal Ports | 4 |
| GE RJ45 WAN Port | 1 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 3 Year |
[/properties][specifications]
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 5 / 5 / 5 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.97 μs |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps |
| Concurrent Sessions (TCP) | 700.000 |
| New Sessions/Second (TCP) | 35.000 |
| Firewall Policies | 5.000 |
| IPsec VPN Throughput (512 byte packets) | 4.4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 490 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 |
| IPS Throughput | 1 Gbps |
| SSL Inspection Throughput | 310 Mbps |
| Application Control Throughput | 990 Mbps |
| NGFW Throughput | 800 Mbps |
| Threat Protection Throughput | 600 Mbps |
| CAPWAP Throughput | 3.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of FortiSwitches Supported | 8 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.5 x 8.5 x 6.3 |
| Form Factor | Desktop |
| Power Required |
100240V AC, 6050 Hz (External DC Power Adapter)
|
| Maximum Current |
100V AC / 0.2A, 240V AC / 0.1A
|
| Power Consumption (Average / Maximum) | 7.74 W / 9.46 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| Certifications |
Certifications USGv6/IPv6
|
[/specifications][accesories]
| SP-RACKTRAY-02 |
Rack mount tray for all FortiGate E series and F series desktop models are backwards compatible with SP-RackTray-01. For list of compatible FortiGate products, visit our Documentation website, docs.fortinet.com
|
|
| SP-FG-40F-PA-10(-XX |
Pack of 10 AC power adaptors for FG/FWF-40F, come with interchangeable power plugs. (XX=various countries code)
|
|
| SP-FG60F-MOUNT-20 |
Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass
|
[/accesories]
Fortinet FG-40F-BDL-950-36 Firewall
The FortiGate FG-40F-BDL-950-36 is an excellent choice for small offices seeking reliable network security and SD-WAN functionality. Powered by Fortinet's ASIC SOC4, it delivers consistent performance while safeguarding against threats. With 1x GE RJ45 WAN port, 3x GE RJ45 LAN ports, and 1x FortiLink port, this device integrates easily into existing setups. It includes a 3-year subscription to 24x7 FortiCare support and FortiGuard UTM for ongoing protection.
Key Features
- 5 Gbps firewall throughput for high-performance security
- 1x GE RJ45 WAN, 3x GE RJ45 LAN, and 1x FortiLink port for easy integration
- Secure SD-WAN powered by ASIC SOC4 for enhanced efficiency
- Includes 3-year FortiCare and FortiGuard UTM subscription
Please see the related tabs for the FG-40F-BDL-950-36 datasheet and compatible accessories.
Original: $845.00
-65%$845.00
$295.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 3Yr Bundle
[properties]
| Properties | FG-40F-BDL-950-36 |
| Description |
5 x GE RJ45 ports (including 4 x Internal Ports, 1 x WAN Ports)
|
| Product Family |
Early Level Fortigate Firewalls
|
| Product Type | Firewall |
| GE RJ45 Internal Ports | 4 |
| GE RJ45 WAN Port | 1 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | 0 |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 3 Year |
[/properties][specifications]
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 5 / 5 / 5 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.97 μs |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps |
| Concurrent Sessions (TCP) | 700.000 |
| New Sessions/Second (TCP) | 35.000 |
| Firewall Policies | 5.000 |
| IPsec VPN Throughput (512 byte packets) | 4.4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 490 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 |
| IPS Throughput | 1 Gbps |
| SSL Inspection Throughput | 310 Mbps |
| Application Control Throughput | 990 Mbps |
| NGFW Throughput | 800 Mbps |
| Threat Protection Throughput | 600 Mbps |
| CAPWAP Throughput | 3.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of FortiSwitches Supported | 8 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 1.5 x 8.5 x 6.3 |
| Form Factor | Desktop |
| Power Required |
100240V AC, 6050 Hz (External DC Power Adapter)
|
| Maximum Current |
100V AC / 0.2A, 240V AC / 0.1A
|
| Power Consumption (Average / Maximum) | 7.74 W / 9.46 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
|
| Certifications |
Certifications USGv6/IPv6
|
[/specifications][accesories]
| SP-RACKTRAY-02 |
Rack mount tray for all FortiGate E series and F series desktop models are backwards compatible with SP-RackTray-01. For list of compatible FortiGate products, visit our Documentation website, docs.fortinet.com
|
|
| SP-FG-40F-PA-10(-XX |
Pack of 10 AC power adaptors for FG/FWF-40F, come with interchangeable power plugs. (XX=various countries code)
|
|
| SP-FG60F-MOUNT-20 |
Pack of 20 wall mount kits for FG/FWF-40F series, FG/FWF-60F series, FG-80F, FG-81F and FG-80F-Bypass
|
[/accesories]
Fortinet FG-40F-BDL-950-36 Firewall
The FortiGate FG-40F-BDL-950-36 is an excellent choice for small offices seeking reliable network security and SD-WAN functionality. Powered by Fortinet's ASIC SOC4, it delivers consistent performance while safeguarding against threats. With 1x GE RJ45 WAN port, 3x GE RJ45 LAN ports, and 1x FortiLink port, this device integrates easily into existing setups. It includes a 3-year subscription to 24x7 FortiCare support and FortiGuard UTM for ongoing protection.
Key Features
- 5 Gbps firewall throughput for high-performance security
- 1x GE RJ45 WAN, 3x GE RJ45 LAN, and 1x FortiLink port for easy integration
- Secure SD-WAN powered by ASIC SOC4 for enhanced efficiency
- Includes 3-year FortiCare and FortiGuard UTM subscription
Please see the related tabs for the FG-40F-BDL-950-36 datasheet and compatible accessories.
