[shortdesc] Firewall, 960GB SSD, 8x 10GE SFP+, 10 Gbps NGFW, 12 Gbps IPS, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP). [/shortdesc]

[properties]

Model / SKU	FG-401F-BDL-950-12
Bundle / Subscription	BDL-950 (1 Year): Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP)
Form Factor	Rack Mount, 1 RU
Firewall Throughput	IPv4: 79.5 / 78.5 / 70 Gbps (1518/512/64 byte, UDP); IPv6: 79.5 / 78.5 / 70 Gbps (1518/512/64 byte, UDP)
NGFW Throughput	10 Gbps
Interfaces	18x GE RJ45, 8x GE SFP, 8x 10GE SFP+
Internal Storage	2x 480 GB SSD
Power Input	100-240V AC, 50/60Hz
Dimensions (H x W x L)	1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	14.33 lbs (6.5 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Certifications	Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; Certifications: USGv6/IPv6

[/properties]

[specifications]

System Performance
IPS Throughput	12 Gbps
Threat Protection Throughput	9 Gbps
Firewall Latency (64 byte, UDP)	4.19 μs / 2.5 μs (Ultra Low Latency ports)
Firewall Throughput (Packet per Second)	105 Mpps
IPsec VPN Throughput (512 byte)	55 Gbps
SSL-VPN Throughput	3.6 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	8 Gbps
Application Control Throughput (HTTP 64K)	28 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
System Capacity
Concurrent Sessions (TCP)	7.8 Million
New Sessions/Second (TCP)	500,000
Firewall Policies	10,000
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
Concurrent SSL-VPN Users (Recommended Max)	5,000
Virtual Domains (Default/Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	96 (FortiOS 7.6.1+; prior releases support up to 72)
Maximum Number of FortiAPs (Total/Tunnel)	512 / 256
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
Hardware Accelerated GE RJ45 Interfaces	16
GE RJ45 Management Ports	2
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated 10GE SFP+ Slots	4
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots	4
USB Ports	1
RJ45 Console Port	1
Trusted Platform Module (TPM)	Yes
Dimensions & Environment
Power Supply	Dual hot swappable AC PSU
AC Current (Maximum)	6A
Power Consumption (Average / Maximum)	161.1 W / 196.9 W
Heat Dissipation	671.85 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Included Accessories
Included Transceivers	2x SFP (SX 1 GE)
Optional Accessories (Sold Separately)
AC Power Supply	SP-FG400F-PS
DC Power Supply	SP-FG400F-DC-PS (for FG-400/401F-DC and FG-900/901G-DC models)
Transceivers	FN-TRAN-LX (1 GE SFP LX), FN-TRAN-GC (1 GE SFP RJ45), FN-TRAN-SX (1 GE SFP SX); FN-TRAN-SFP+GC (10 GE SFP+ RJ45), FN-TRAN-SFP+SR (10 GE SFP+ SR), FN-TRAN-SFP+LR (10 GE SFP+ LR), FN-TRAN-SFP+ER (10 GE SFP+ ER), FN-TRAN-SFP+ZR (10 GE SFP+ ZR, 80KM)
Cables	FN-CABLE-SFP+1 (10 GE SFP+ DAC, 1m), FN-CABLE-SFP+3 (10 GE SFP+ DAC, 3m), FN-CABLE-SFP+5 (10 GE SFP+ DAC, 5m)

[/accesories]

The Fortinet FortiGate 401F Series Next-Generation Firewall (NGFW) combines AI-powered security and machine learning to deliver threat protection at any scale. This model is distinguished by its 2x 480GB onboard SSDs (960GB total), allowing for local data logging directly on the appliance. Powered by Fortinet's patented NP7 and CP9 SPUs, it provides 10 Gbps of NGFW throughput and ultra-low latency, making it ideal for enterprise campus and branch deployments. The solution integrates seamlessly into the Fortinet Security Fabric, offering deep visibility into applications, users, and devices beyond traditional firewall techniques.

This bundle includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for 1 Year.

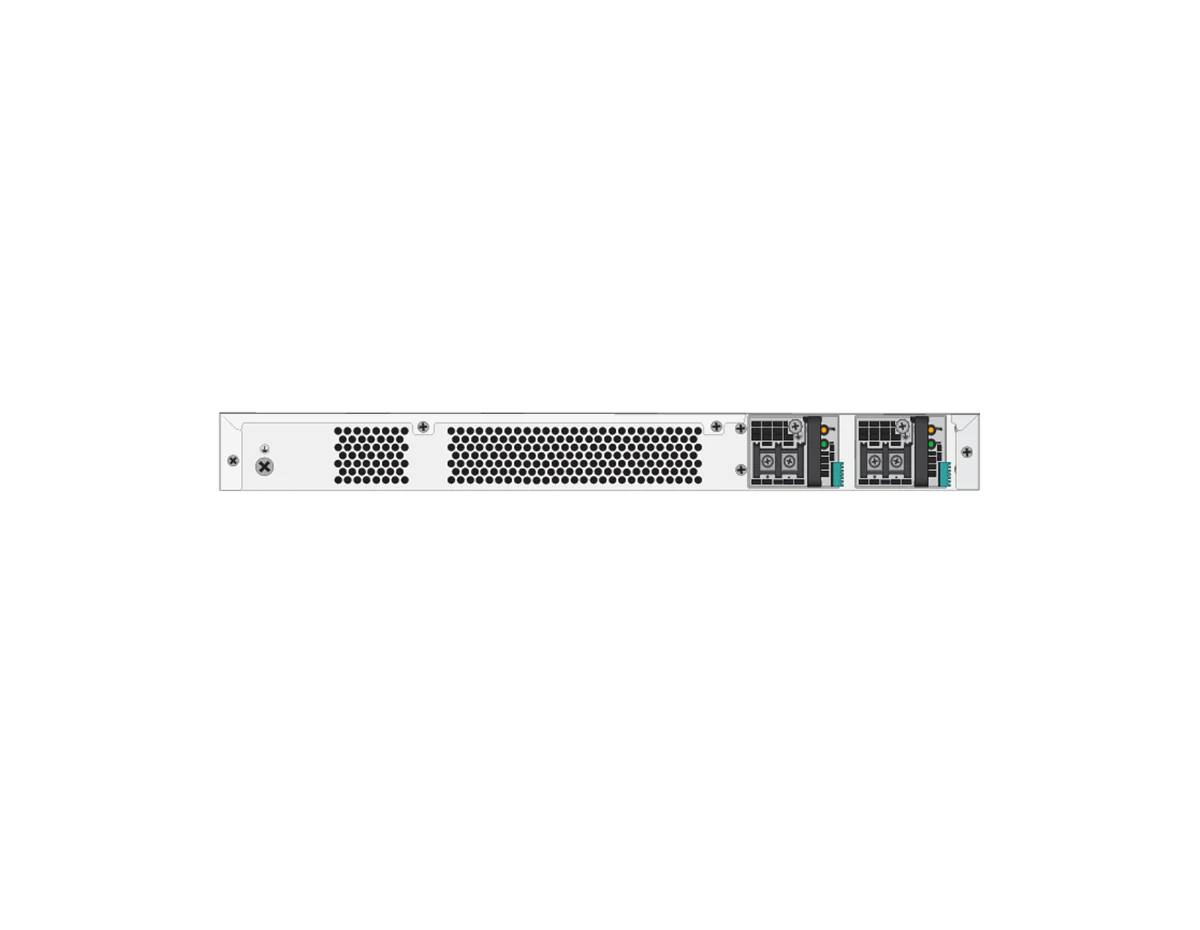

This rackmount appliance is designed to reduce complexity in hybrid IT networks through secure SD-WAN and network segmentation. With universal ZTNA, the FortiGate 401F automatically controls, verifies, and facilitates user access to applications, reducing lateral threats. The device supports dual hot-swappable power supplies for mission-critical reliability and includes specialized ultra-low latency ports for demanding environments.

Secure Networking with Onboard Storage and AI-Powered Threat Protection

• Integrated Storage: Features 2x 480GB SSDs (960GB total) for local logging and reporting.
• Unparalleled Performance: Delivers up to 12 Gbps IPS throughput, 10 Gbps NGFW throughput, and 9 Gbps threat protection throughput with SPU acceleration.
• Integrated AI/ML Security: Features FortiGuard Labs' suite of AI-powered security services to protect against zero-day threats and sophisticated cyberattacks.
• High-Speed Connectivity: Equipped with 8x 10GE SFP+ slots, including 4 dedicated ultra-low latency slots, to handle elephant flows and critical traffic.
• Secure SD-WAN: Unified management framework transforms WAN edges, delivering superior quality of experience for hybrid work models.
• Encrypted Traffic Inspection: Accelerates SSL inspection (including TLS 1.3) with CP9 processors, providing full visibility with high-performance inspection.
• Resilient Hardware: Includes dual hot-swappable power supplies to ensure continuous operation in mission-critical networks.

• Enterprise Edge Protection: Secures large-scale networks with high-performance threat protection and deep packet inspection.
• Hybrid Mesh Firewalls: Ensures consistent policy enforcement across all network segments, including on-premise and cloud environments.
• Compliance and Logging: Ideal for environments requiring local data retention and reporting due to integrated SSD storage.
• Secure SD-WAN Deployments: Optimizes connectivity and security for branch offices and cloud-first WAN use cases.

• IPS Throughput: 12 Gbps
• NGFW Throughput: 10 Gbps
• Threat Protection Throughput: 9 Gbps
• IPv4 Firewall Throughput (1518/512/64 byte, UDP): 79.5 / 78.5 / 70 Gbps
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL-VPN Throughput: 3.6 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 8 Gbps
• Concurrent Sessions (TCP): 7.8 Million
• New Sessions/Second (TCP): 500,000
• Power Consumption (Average / Maximum): 161.1 W / 196.9 W

Upgrade Your Network Security

Deploy the FortiGate 401F (FG-401F-BDL-950-12) for scalable, AI-driven threat protection with Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for 1 Year.
