[shortdesc] Firewall, 18x GE RJ45, 8x GE SFP, 8x 10GE SFP+, 960GB SSD, 10 Gbps NGFW, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Model / SKU	FG-401F-BDL-809-12
Bundle / Subscription	BDL-809 (1 Year): Hardware + FortiCare Premium + FortiGuard Enterprise Protection
Form Factor	Rack Mount, 1 RU
Firewall Throughput	IPv4: 79.5 / 78.5 / 70 Gbps (1518/512/64 byte, UDP); IPv6: 79.5 / 78.5 / 70 Gbps (1518/512/64 byte, UDP)
NGFW Throughput	10 Gbps

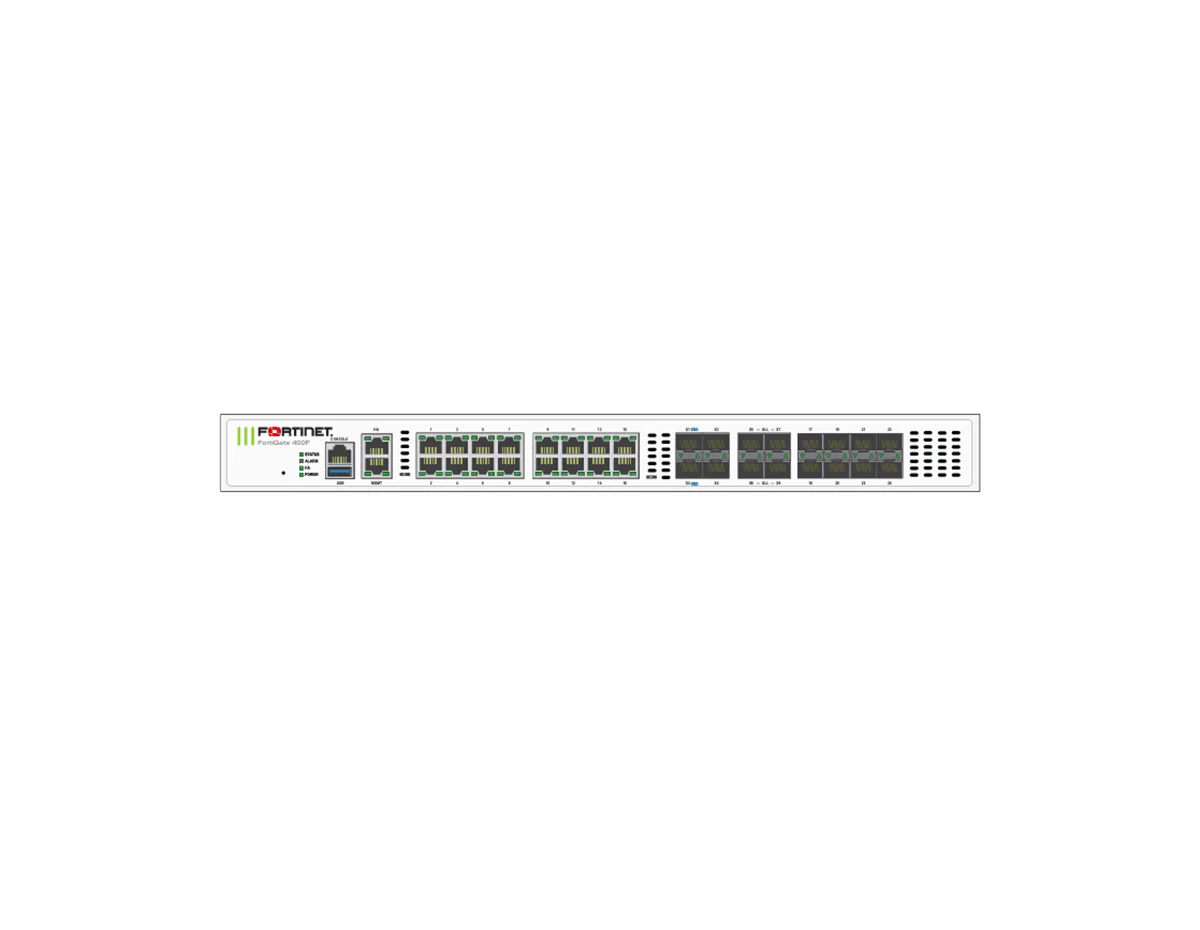

Interfaces	18x GE RJ45, 8x GE SFP, 8x 10GE SFP+
Internal Storage	2x 480 GB SSD
Power Input	100-240V AC, 50/60Hz
Dimensions (H x W x L)	1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	14.33 lbs (6.5 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Certifications	Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; Certifications: USGv6/IPv6

[/properties]

[specifications]

System Performance
IPS Throughput	12 Gbps
Threat Protection Throughput	9 Gbps
Firewall Latency (64 byte, UDP)	4.19 μs / 2.5 μs (Ultra Low Latency ports)
Firewall Throughput (Packet per Second)	105 Mpps
IPsec VPN Throughput (512 byte)	55 Gbps
SSL-VPN Throughput	3.6 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	8 Gbps
Application Control Throughput (HTTP 64K)	28 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
System Capacity
Concurrent Sessions (TCP)	7.8 Million
New Sessions/Second (TCP)	500,000
Firewall Policies	10,000
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
Concurrent SSL-VPN Users (Recommended Max)	5,000
Virtual Domains (Default/Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	96 (FortiOS 7.6.1+; prior releases support up to 72)
Maximum Number of FortiAPs (Total/Tunnel)	512 / 256
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
Hardware Accelerated GE RJ45 Interfaces	16
GE RJ45 Management Ports	2
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated 10GE SFP+ Slots	4
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots	4
USB Ports	1
RJ45 Console Port	1
Trusted Platform Module (TPM)	Yes
Dimensions & Environment

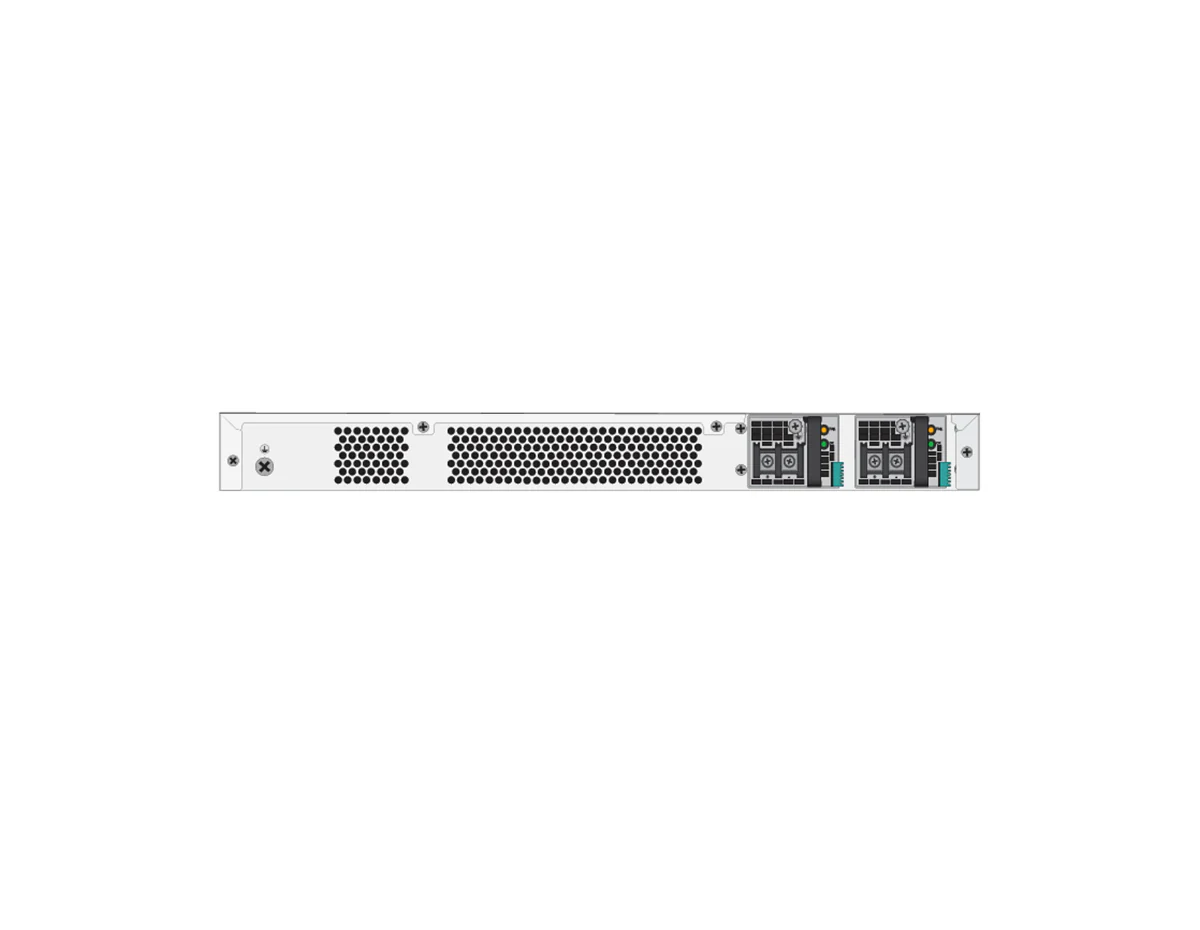

Power Supply	Dual hot swappable AC PSU
AC Current (Maximum)	6A
Power Consumption (Average / Maximum)	161.1 W / 196.9 W
Heat Dissipation	671.85 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Included Accessories
Included Transceivers	2x SFP (SX 1 GE)
Optional Accessories (Sold Separately)
AC Power Supply	SP-FG400F-PS
DC Power Supply	SP-FG400F-DC-PS (for FG-400/401F-DC models)
Transceivers	FN-TRAN-LX (1 GE SFP LX), FN-TRAN-GC (1 GE SFP RJ45), FN-TRAN-SX (1 GE SFP SX); FN-TRAN-SFP+GC (10 GE SFP+ RJ45), FN-TRAN-SFP+SR (10 GE SFP+ SR), FN-TRAN-SFP+LR (10 GE SFP+ LR), FN-TRAN-SFP+ER (10 GE SFP+ ER), FN-TRAN-SFP+ZR (10 GE SFP+ ZR, 80KM)
Cables	FN-CABLE-SFP+1 (10 GE SFP+ DAC, 1m), FN-CABLE-SFP+3 (10 GE SFP+ DAC, 3m), FN-CABLE-SFP+5 (10 GE SFP+ DAC, 5m)

[/accesories]

Fortinet FortiGate 401F Series Overview

The Fortinet FortiGate 400F Series Next Generation Firewall (NGFW) combines AI powered security and machine learning to deliver threat protection at any scale. This model is distinguished by its 2x 480GB onboard SSDs, providing 960GB total storage for extensive local data logging and reporting directly on the appliance. Powered by Fortinet's patented NP7 and CP9 SPUs, it delivers 10 Gbps NGFW throughput with ultra low latency, making it ideal for enterprise campus and branch deployments. The solution integrates seamlessly into the Fortinet Security Fabric, offering deep visibility into applications, users, and devices beyond traditional firewall techniques.

This rackmount appliance is designed to reduce complexity in hybrid IT networks through secure SD WAN and network segmentation. With universal ZTNA, the FortiGate 401F automatically controls and facilitates user access to applications, reducing lateral threats. The device supports dual hot swappable power supplies for mission critical reliability and includes specialized ultra low latency ports for demanding environments.

Bundle Details

This bundle includes Hardware plus FortiCare Premium plus FortiGuard Enterprise Protection for 1 Year.

Key Features

• Integrated Storage: Features 2x 480GB SSDs with 960GB total for local logging and reporting.
• Unparalleled Performance: Delivers up to 12 Gbps IPS throughput, 10 Gbps NGFW throughput, and 9 Gbps threat protection throughput with SPU acceleration.
• AI and ML Security: Powered by FortiGuard Labs to protect against zero day threats and advanced cyberattacks.
• High Speed Connectivity: Includes 8x 10GE SFP plus ports with 4 ultra low latency slots for critical traffic handling.
• Secure SD WAN: Unified management framework improves WAN performance and user experience.
• Encrypted Traffic Inspection: Supports high performance SSL inspection including TLS 1.3 using CP9 processors.
• Resilient Hardware: Dual hot swappable power supplies ensure continuous operation.

Use Cases

• Enterprise Edge Protection: High performance threat protection and deep packet inspection for large networks.
• Hybrid Mesh Firewalls: Consistent security policies across on premises and cloud environments.
• Compliance and Logging: Ideal for environments requiring local data retention with onboard SSD storage.
• Secure SD WAN Deployments: Optimized connectivity for branch and cloud first architectures.

Technical Specifications

• IPS Throughput: 12 Gbps
• NGFW Throughput: 10 Gbps
• Threat Protection Throughput: 9 Gbps
• IPv4 Firewall Throughput (1518 512 64 byte UDP): 79.5 / 78.5 / 70 Gbps
• IPv6 Firewall Throughput (1518 512 64 byte UDP): 79.5 / 78.5 / 70 Gbps
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL VPN Throughput: 3.6 Gbps
• SSL Inspection Throughput (IPS avg HTTPS): 8 Gbps
• Concurrent Sessions (TCP): 7.8 Million
• Interfaces: 18x GE RJ45, 8x GE SFP, 8x 10GE SFP plus
• Power Consumption (Average Maximum): 161.1 W / 196.9 W
• Operating Temperature: 0°C to 40°C (32°F to 104°F)

Upgrade Your Network Security

Deploy the FortiGate 401F (FG-401F-BDL-809-12) for scalable AI driven threat protection with integrated hardware, FortiCare Premium, and FortiGuard Enterprise Protection.
