[shortdesc] FortiGate 400F-DC Firewall, DC 1RU, 8x 10GE SFP+ + 8x GE SFP, 10 Gbps NGFW, including 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Model / SKU	FG-400F-DC-BDL-950-36
Bundle / Subscription	BDL-950: Appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (3 Year)
Form Factor	Rack Mount, 1 RU
Firewall Throughput	79.5 / 78.5 / 70 Gbps (IPv4 & IPv6, 1518 / 512 / 64 byte, UDP)
NGFW Throughput	10 Gbps
Interfaces	18x GE RJ45, 8x GE SFP, 8x 10GE SFP+
Power Input	48-60VDC
Dimensions (H x W x L)	1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	14.11 lbs (6.4 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Compliance / Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6

[/properties]

[specifications]

System Performance
IPS Throughput	12 Gbps
Threat Protection Throughput	9 Gbps
Firewall Latency (64 byte, UDP)	4.19 μs / 2.5 μs (ULL ports)
Firewall Throughput (Packet per Second)	105 Mpps
IPsec VPN Throughput (512 byte)	55 Gbps
SSL-VPN Throughput	3.6 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	8 Gbps
Application Control Throughput (HTTP 64K)	28 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
System Capacity
Concurrent Sessions (TCP)	7.8 Million
New Sessions/Second (TCP)	500,000
Firewall Policies	10,000
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
Concurrent SSL-VPN Users (Recommended Max)	5,000
Virtual Domains (Default/Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	96 (FortiOS 7.6.1+; otherwise 72)
Maximum Number of FortiAPs (Total/Tunnel)	512 / 256
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
Hardware Accelerated GE RJ45 Interfaces	16
GE RJ45 Management Ports	2
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated 10GE SFP+ Slots	4
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots	4
USB Ports	1
RJ45 Console Port	1
Onboard Storage	0
Trusted Platform Module (TPM)	Yes
Dimensions & Environment
Power Supply	Dual DC power supplies
DC Current (Maximum)	12A
Power Consumption (Average / Maximum)	154.8 W / 189.2 W
Heat Dissipation	645.58 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

[/specifications]

[accesories]

Included Accessories
Included Transceivers	2x SFP (SX 1 GE)
Optional Accessories (Sold Separately)
DC Power Supply	SP-FG400F-DC-PS
Transceivers	FN-TRAN-LX (1 GE SFP LX), FN-TRAN-GC (1 GE SFP RJ45), FN-TRAN-SX (1 GE SFP SX); FN-TRAN-SFP+GC (10 GE SFP+ RJ45), FN-TRAN-SFP+SR (10 GE SFP+ Short Range), FN-TRAN-SFP+LR (10 GE SFP+ Long Range), FN-TRAN-SFP+ER (10 GE SFP+ Extended Range), FN-TRAN-SFP+ZR (10 GE SFP+ 80KM extreme long range)
Cables	FN-CABLE-SFP+1 (10 GE SFP+ Passive Direct Attach Cable, 1m), FN-CABLE-SFP+3 (3m), FN-CABLE-SFP+5 (5m)

[/accesories]

The Fortinet FortiGate 400F-DC-BDL-950-36 bundle includes a FortiGate 400F-DC Firewall appliance plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 3 Year. The Fortinet FortiGate 400F-DC is designed for deployments that rely on DC power infrastructure. This next-generation firewall combines AI-powered security and machine learning to deliver threat protection at scale. Powered by Fortinet's patented NP7 and CP9 SPUs, the FortiGate 400F-DC provides 10 Gbps of NGFW throughput and ultra-low latency, supporting high-speed performance for demanding applications.

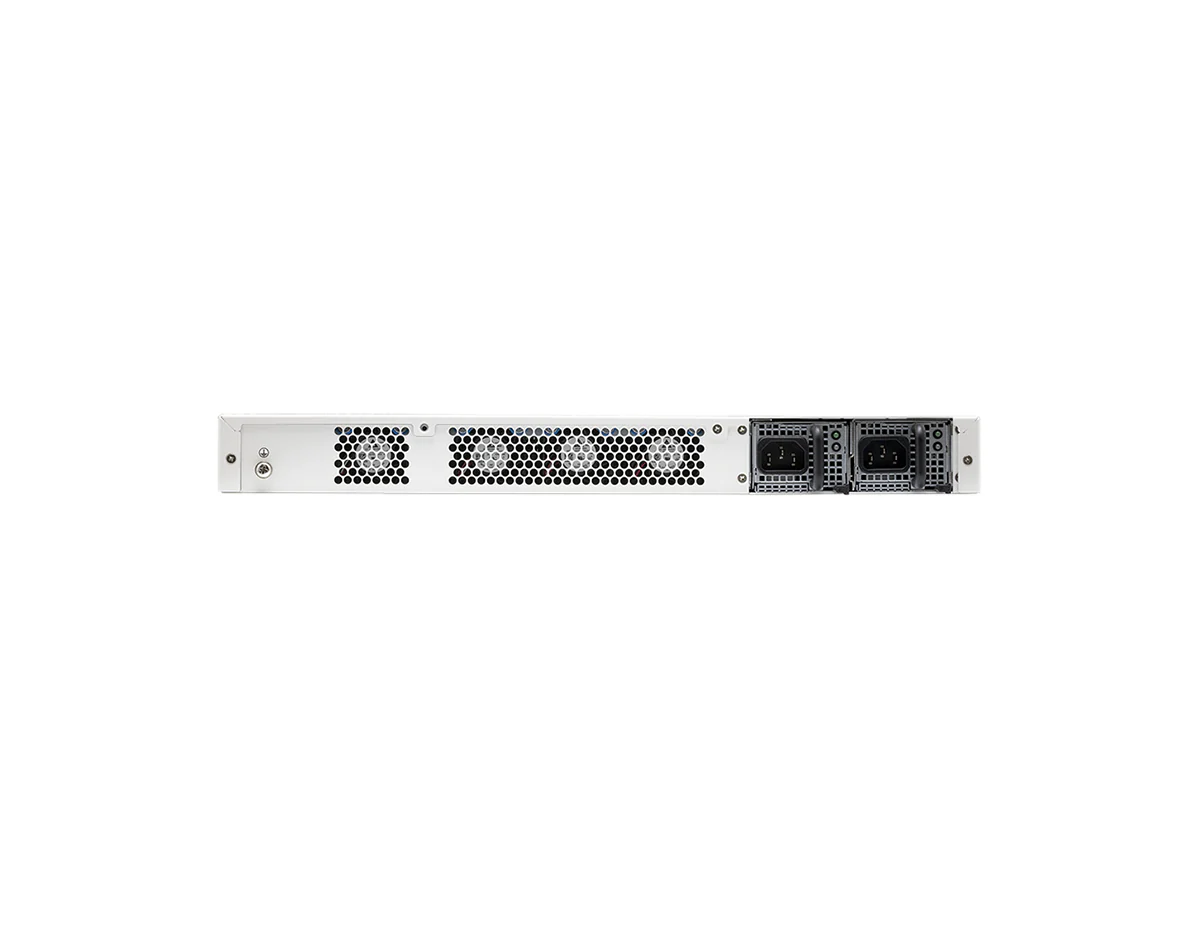

With integrated Secure SD-WAN and universal ZTNA capabilities, this appliance helps simplify network operations while reducing complexity in hybrid IT networks. It provides 8x 10GE SFP+ slots, including 4x 10GE SFP+ Ultra Low Latency slots, plus 8x GE SFP slots and 18x GE RJ45 ports for flexible connectivity. The device is built with dual redundant DC power supplies, supporting continuous operation in mission-critical environments.

Technical Specifications Summary

• Threat Protection & NGFW Performance: Up to 12 Gbps IPS throughput, 10 Gbps NGFW throughput, and 9 Gbps threat protection throughput (Enterprise Mix with logging enabled).
• Firewall Throughput & Latency: Up to 79.5 / 78.5 / 70 Gbps (1518 / 512 / 64 byte, UDP) with 4.19 μs latency or 2.5 μs via Ultra Low Latency (ULL) ports.
• VPN Performance & Scale: Up to 55 Gbps IPsec VPN throughput (512 byte), supports 2,000 gateway-to-gateway tunnels and 50,000 client-to-gateway tunnels; SSL-VPN throughput up to 3.6 Gbps with up to 5,000 concurrent users (recommended).
• SSL Inspection: Up to 8 Gbps SSL inspection throughput (IPS, average HTTPS), 6,000 SSL inspection CPS, and up to 800,000 concurrent SSL inspection sessions.
• Interfaces: 18x GE RJ45 (16 accelerated + 2x GE RJ45 MGMT/HA), 8x GE SFP, and 8x SFP+ (4x 1GE/10GE SFP+ + 4x 10GE SFP+ Ultra Low Latency slots).
• Power, Size & Environment: Dual DC power supplies, 48-60VDC input, 12A max DC current, 154.8 W average / 189.2 W maximum, 1RU (44.45 x 432 x 380 mm), 6.4 kg, 0°C to 40°C operating temperature.

• Next Generation Firewall (NGFW): AI-powered FortiGuard services with real-time SSL inspection (including TLS 1.3) and patented SPU acceleration.
• Secure SD-WAN: Unified security and WAN edge capabilities under one OS and management framework.
• Universal ZTNA: Controls and verifies user access to applications with policy enforcement prior to access.
• Segmentation: Dynamic segmentation and coordinated protection to reduce lateral movement across the network.

• Firewall Throughput: 79.5 / 78.5 / 70 Gbps (1518 / 512 / 64 byte, UDP)
• IPS Throughput: 12 Gbps
• Power Input: 48-60VDC
• Interfaces: 18x GE RJ45, 8x GE SFP, 8x 10GE SFP+
• VPN Throughput: 55 Gbps (IPsec, 512 byte)
• Concurrent Sessions: 7.8 Million
• Power Supply: Dual DC power supplies
