[shortdesc] Firewall, DC-powered 1RU rackmount, 8x 10GE SFP+, 10 Gbps NGFW, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Model / SKU	FG-400F-DC-BDL-809-60
Bundle / Subscription	BDL-809: Hardware + FortiCare Premium + FortiGuard Enterprise Protection (5 Year)
Form Factor	Rack Mount, 1 RU
Firewall Throughput	79.5 / 78.5 / 70 Gbps (IPv4 & IPv6, 1518 / 512 / 64 byte, UDP)
NGFW Throughput	10 Gbps
Interfaces	18x GE RJ45, 8x GE SFP, 8x 10GE SFP+
Power Input	48-60VDC
Dimensions (H x W x L)	1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	14.11 lbs (6.4 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Compliance / Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6

[/properties]

[specifications]

System Performance
IPS Throughput	12 Gbps
Threat Protection Throughput	9 Gbps
Firewall Latency (64 byte, UDP)	4.19 μs / 2.5 μs (ULL ports)
Firewall Throughput (Packet per Second)	105 Mpps
IPsec VPN Throughput (512 byte)	55 Gbps
SSL-VPN Throughput	3.6 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	8 Gbps
Application Control Throughput (HTTP 64K)	28 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
System Capacity
Concurrent Sessions (TCP)	7.8 Million
New Sessions/Second (TCP)	500,000
Firewall Policies	10,000
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
Concurrent SSL-VPN Users (Recommended Max)	5,000
Virtual Domains (Default/Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	96 (FortiOS 7.6.1+; otherwise 72)
Maximum Number of FortiAPs (Total/Tunnel)	512 / 256
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
Hardware Accelerated GE RJ45 Interfaces	16
GE RJ45 Management Ports	2
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated 10GE SFP+ Slots	4
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots	4
USB Ports	1
RJ45 Console Port	1
Onboard Storage	0
Trusted Platform Module (TPM)	Yes
Dimensions & Environment
Power Supply	Dual DC power supplies
DC Current (Maximum)	12A
Power Consumption (Average / Maximum)	154.8 W / 189.2 W
Heat Dissipation	645.58 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Included Accessories
Included Transceivers	2x SFP (SX 1 GE)
Optional Accessories (Sold Separately)
DC Power Supply	SP-FG400F-DC-PS
Transceivers	FN-TRAN-LX (1 GE SFP LX), FN-TRAN-GC (1 GE SFP RJ45), FN-TRAN-SX (1 GE SFP SX); FN-TRAN-SFP+GC (10 GE SFP+ RJ45), FN-TRAN-SFP+SR (10 GE SFP+ Short Range), FN-TRAN-SFP+LR (10 GE SFP+ Long Range), FN-TRAN-SFP+ER (10 GE SFP+ Extended Range), FN-TRAN-SFP+ZR (10 GE SFP+ 80KM extreme long range)
Cables	FN-CABLE-SFP+1 (10 GE SFP+ Passive Direct Attach Cable, 1m), FN-CABLE-SFP+3 (3m), FN-CABLE-SFP+5 (5m)

[/accesories]

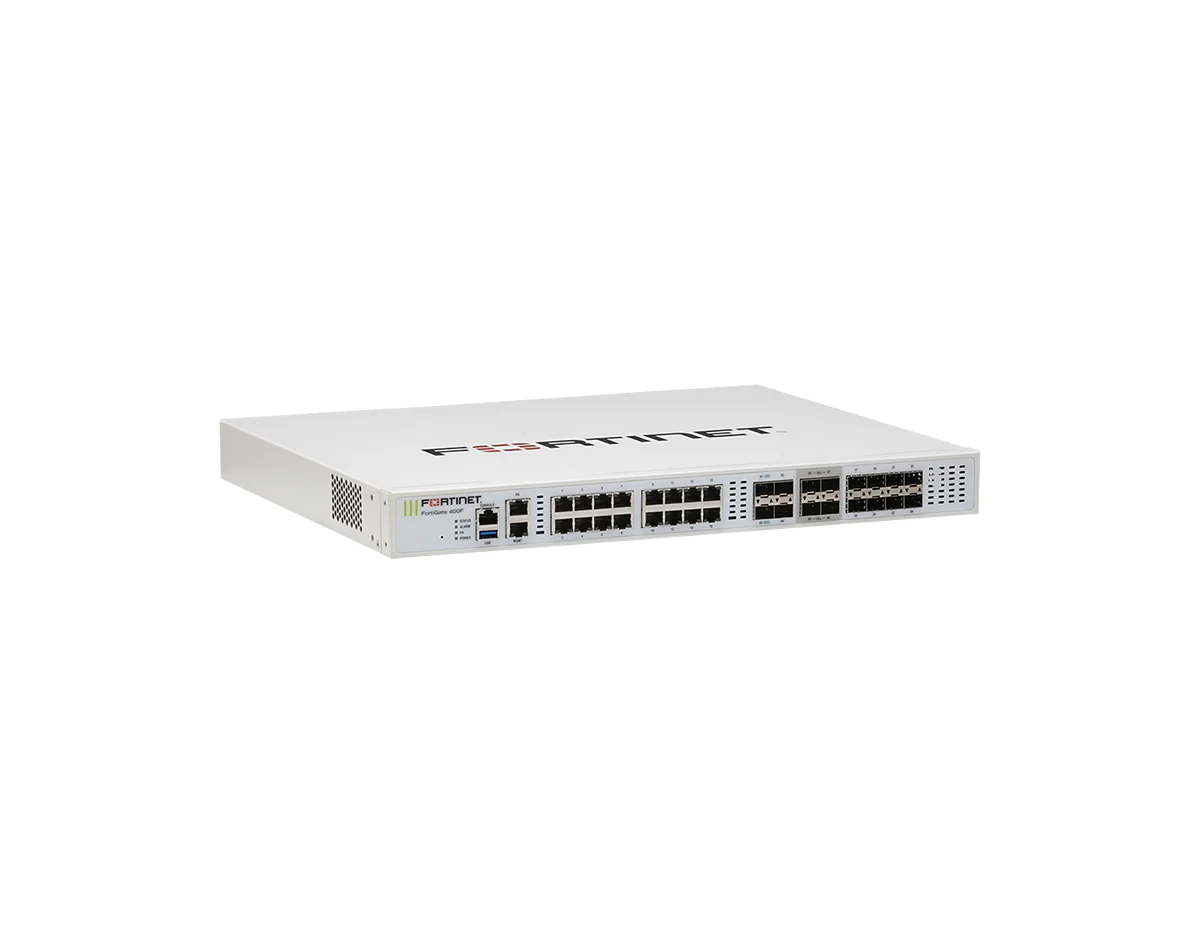

The Fortinet FortiGate 400F-DC-BDL-809-60 bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection for 5 Year. The Fortinet FortiGate 400F-DC is specifically engineered for data centers and telecommunications environments that rely on DC power infrastructure. This next-generation firewall combines AI-powered security and machine learning (ML) to deliver comprehensive threat protection. Powered by Fortinet's patented NP7 and CP9 SPUs, the FortiGate 400F-DC provides 10 Gbps of NGFW throughput and ultra-low latency, ensuring high-speed performance for mission-critical applications.

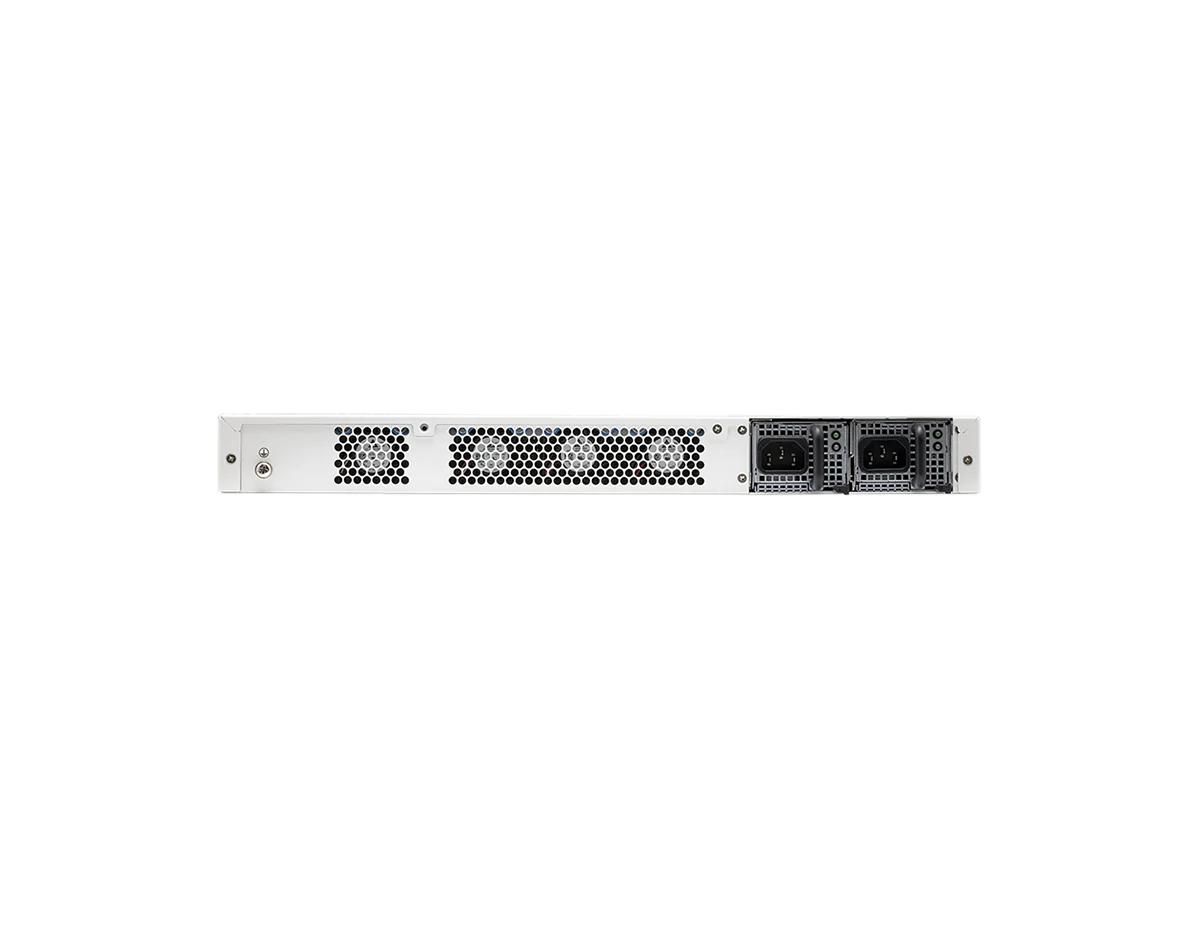

With integrated Secure SD-WAN and universal ZTNA capabilities, this appliance simplifies network management while reducing complexity in hybrid IT environments. It features 8x 10GE SFP+ slots, including 4 dedicated ultra-low latency slots, to handle high-bandwidth traffic efficiently. The device is built with dual redundant DC power supplies, ensuring continuous operation and reliability in demanding deployments.

Technical Specifications Summary

• Enterprise Traffic Mix Performance: IPS throughput up to 12 Gbps, NGFW throughput up to 10 Gbps, threat protection throughput up to 9 Gbps (logging enabled).
• Firewall Throughput: Up to 79.5 / 78.5 / 70 Gbps (IPv4 & IPv6, 1518 / 512 / 64 byte, UDP) and 105 Mpps firewall throughput.
• Ultra-Low Latency: Firewall latency 4.19 μs (standard) or 2.5 μs via Ultra Low Latency (ULL) ports (64 byte, UDP).
• VPN Performance & Scale: IPsec VPN throughput up to 55 Gbps (512 byte); supports 2,000 gateway-to-gateway tunnels and 50,000 client-to-gateway tunnels.
• SSL Performance: SSL-VPN throughput up to 3.6 Gbps; SSL inspection throughput up to 8 Gbps (IPS, avg. HTTPS).
• Interfaces: 18x GE RJ45 (16 accelerated + 2x GE RJ45 MGMT/HA), 8x GE SFP, 8x 10GE SFP+ (4x standard + 4x 10GE SFP+ ULL slots), plus 1x USB and 1x RJ45 console port.
• Power & Physical: Dual DC power supplies, 48-60VDC input, 12A max DC current, 154.8 W average / 189.2 W maximum power consumption; 1RU (44.45 x 432 x 380 mm), 6.4 kg.

• Next Generation Firewall (NGFW): Designed to deliver AI-powered security and deep visibility for threat protection at scale.
• Secure SD-WAN: Enables converged networking and security with simplified operations for hybrid IT environments.
• Universal ZTNA: Controls and verifies user access to applications to reduce lateral threats.
• Segmentation: Supports segmentation strategies to reduce complexity and risk across hybrid networks.

• Firewall Throughput: 79.5 / 78.5 / 70 Gbps (IPv4 & IPv6, 1518 / 512 / 64 byte, UDP)
• IPS Throughput: 12 Gbps
• Power Input: 48-60VDC
• Interfaces: 18x GE RJ45, 8x GE SFP, 8x 10GE SFP+
• VPN Throughput: 55 Gbps (IPsec, 512 byte)
• Concurrent Sessions: 7.8 Million
• Power Supply: Dual DC power supplies

Upgrade Your Network Security

Deploy the FortiGate FG-400F-DC-BDL-809-60 for high-performance protection in your DC-powered environment.
