[shortdesc] FG-400F firewall, 18x GE RJ45, 8x GE SFP, 8x 10GE SFP+, 10 Gbps NGFW, including 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Model / SKU	FG-400F-BDL-950-36
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (3 Year)
Form Factor	Rack Mount, 1 RU
Firewall Throughput	79.5 / 78.5 / 70 Gbps (1518/512/64 byte, UDP; IPv4 & IPv6)
NGFW Throughput	10 Gbps
Interfaces	18x GE RJ45 (2x GE RJ45 MGMT/HA, 16x GE RJ45), 8x GE SFP, 8x 10GE SFP+ (4x 1GE/10GE SFP+, 4x 10GE SFP+ Ultra Low Latency)
AC Power Input	100-240V AC, 50/60Hz
Height x Width x Length	1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	14.11 lbs (6.4 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Certifications	USGv6/IPv6

[/properties]

[specifications]

System Performance
IPS Throughput	12 Gbps
Threat Protection Throughput	9 Gbps
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	79.5 / 78.5 / 70 Gbps
IPv6 Firewall Throughput (1518/512/64 byte, UDP)	79.5 / 78.5 / 70 Gbps
Firewall Latency (64 byte, UDP)	4.19 μs / 2.5 μs (ULL ports)
Firewall Throughput (Packet per Second)	105 Mpps
IPsec VPN Throughput (512 byte)	55 Gbps
SSL-VPN Throughput	3.6 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	8 Gbps
Application Control Throughput (HTTP 64K)	28 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
System Capacity
Concurrent Sessions (TCP)	7.8 Million
New Sessions/Second (TCP)	500,000
Firewall Policies	10,000
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
Concurrent SSL-VPN Users (Recommended Max)	5,000
Virtual Domains (Default/Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	96 (FortiOS 7.6.1+)
Maximum Number of FortiAPs (Total/Tunnel)	512 / 256
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
Hardware Accelerated GE RJ45 Interfaces	16
GE RJ45 Management Ports	2
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated 10GE SFP+ Slots	4
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots	4
USB Ports	1
RJ45 Console Port	1
Onboard Storage	0
Dimensions & Environment

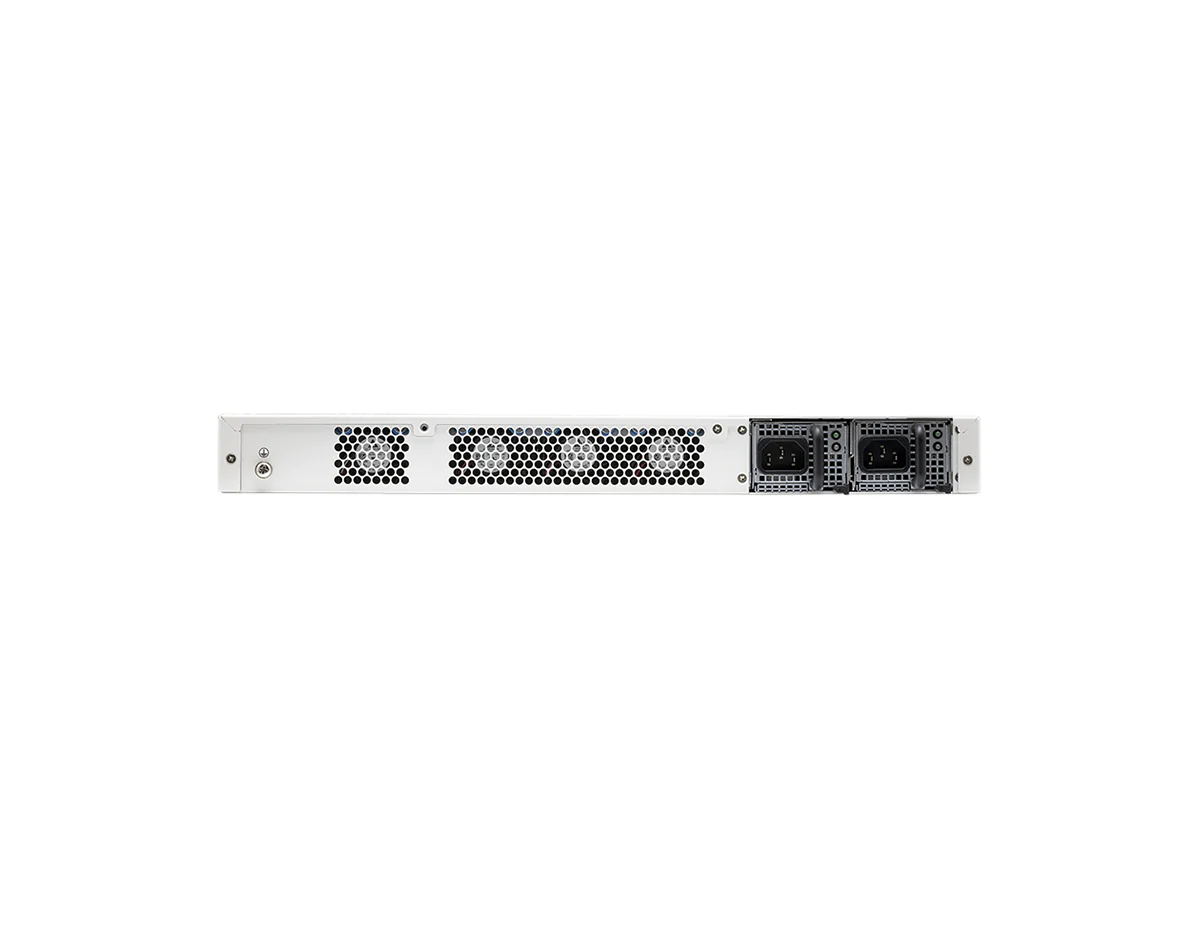

Power Supply	Redundant hot-swappable dual AC power supplies (1+1 redundancy)
AC Current (Maximum)	6A
Power Consumption (Average / Maximum)	154.8 W / 189.2 W
Heat Dissipation	645.58 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

[/specifications]

[accesories]

Included Accessories
Included Transceivers	2x SFP (SX 1 GE)
Optional Accessories (Sold Separately)
AC Power Supply	SP-FG400F-PS
DC Power Supply	SP-FG400F-DC-PS
Transceivers	1 GE SFP LX (FN-TRAN-LX); 1 GE SFP RJ45 (FN-TRAN-GC); 1 GE SFP SX (FN-TRAN-SX); 10 GE SFP+ RJ45 (FN-TRAN-SFP+GC); 10 GE SFP+ SR (FN-TRAN-SFP+SR); 10 GE SFP+ LR (FN-TRAN-SFP+LR); 10 GE SFP+ ER (FN-TRAN-SFP+ER); 10 GE SFP+ ZR 80KM (FN-TRAN-SFP+ZR)
Cables	10 GE SFP+ Passive Direct Attach Cable: 1m (FN-CABLE-SFP+1), 3m (FN-CABLE-SFP+3), 5m (FN-CABLE-SFP+5)

[/accesories]

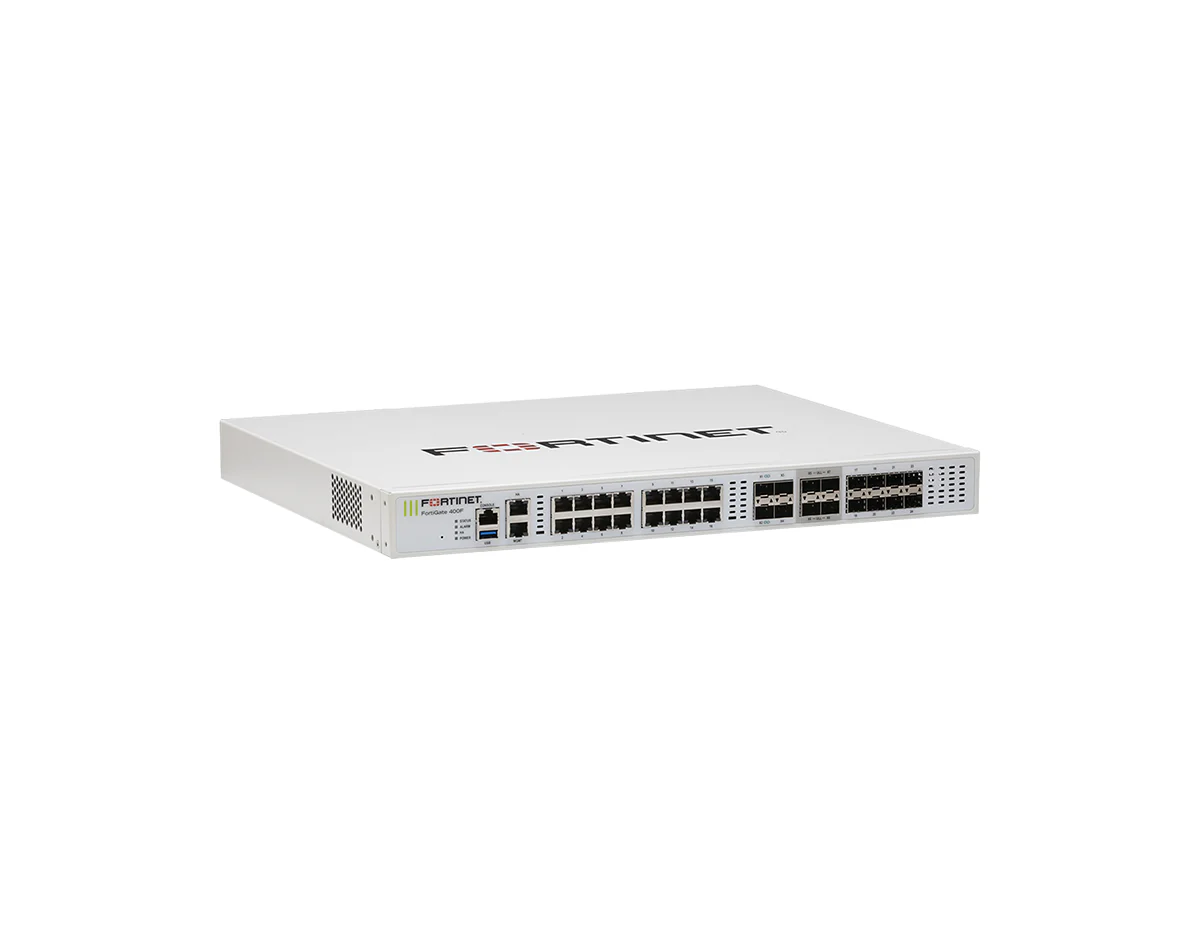

The Fortinet FortiGate 400F Series Next-Generation Firewall (NGFW) combines AI-powered security and machine learning to deliver threat protection at any scale. This FG-400F-BDL-950-36 bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 3 Year. Powered by Fortinet's patented NP7 and CP9 SPUs, it provides 10 Gbps of NGFW throughput and ultra-low latency, making it ideal for enterprise campus and branch deployments. The solution integrates seamlessly into the Fortinet Security Fabric, offering deep visibility into applications, users, and devices beyond traditional firewall techniques.

This rackmount appliance is designed to reduce complexity in hybrid IT networks through secure SD-WAN and network segmentation. With universal ZTNA, the FortiGate 400F automatically controls and facilitates user access to applications, reducing lateral threats. The device supports dual hot-swappable power supplies for mission-critical reliability and includes specialized ultra-low latency ports for demanding environments.

Data-Driven Security with AI-Powered Threat Protection

• Unparalleled Performance: Delivers up to 79.5 / 78.5 / 70 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP) and 12 Gbps IPS throughput using custom SPU acceleration.
• Integrated AI/ML Security: FortiGuard Labs’ AI-powered security services help protect against ransomware, malware, zero-day, and sophisticated cyberattacks.
• High-Speed Connectivity: Equipped with 8x 10GE SFP+ slots, including 4 dedicated ultra-low latency slots, plus 18x GE RJ45 and 8x GE SFP connectivity.
• Secure SD-WAN: Unified management framework helps transform and secure WAN edges for hybrid work, SD-Branch, and cloud-first WAN use cases.
• Encrypted Traffic Inspection: Real-time SSL inspection (including TLS 1.3) provides visibility into users, devices, and applications without impacting performance.
• Resilient Hardware: Includes redundant hot-swappable dual AC power supplies (1+1 redundancy) for continuous operation in mission-critical networks.

• Enterprise Edge Protection: Secures large-scale networks with high-performance threat protection and deep packet inspection.
• Hybrid Mesh Firewalls: Ensures consistent policy enforcement across all network segments, including on-premise and cloud environments.
• Secure SD-WAN Deployments: Optimizes connectivity and security for branch offices and cloud-first WAN use cases.
• Segmentation: Prevents lateral movement with VXLAN segmentation and Layer 4 firewall rules.

• IPS Throughput: 12 Gbps
• NGFW Throughput: 10 Gbps
• Threat Protection Throughput: 9 Gbps
• IPv4/IPv6 Firewall Throughput (1518/512/64 byte, UDP): 79.5 / 78.5 / 70 Gbps
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 8 Gbps
• SSL-VPN Throughput: 3.6 Gbps, 5,000 concurrent SSL-VPN users (recommended max)
• System Capacity: 7.8 Million concurrent sessions, 500,000 new sessions/second, 10,000 firewall policies
• Interfaces: 18x GE RJ45, 8x GE SFP, 8x 10GE SFP+ (4 Ultra Low Latency)
• Power, Form Factor, Certifications: 154.8 W / 189.2 W (avg/max), Rack Mount 1 RU, USGv6/IPv6

Upgrade Your Network Security

Deploy the FortiGate FG-400F-BDL-950-36 for scalable, AI-driven threat protection and high-performance connectivity.
