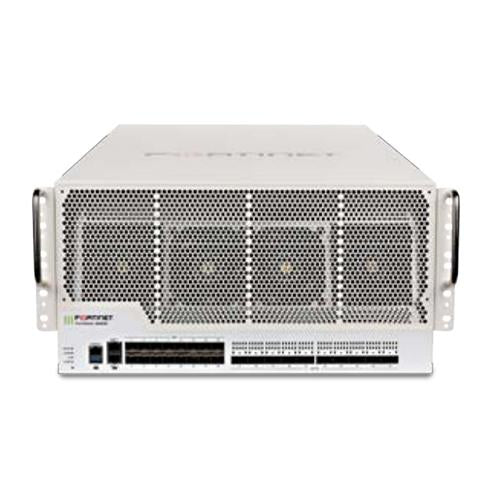

Fortinet FG-3980E-BDL-950-60 Firewall
[shortdesc]
- Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 5Yr Bundle
[properties]
| Properties | FG-3980E-BDL-950-60 |
| Description |
10x 100 GE QSFP28 slots and 16x 10 GE SFP+ slots, 2x GE RJ45 management ports, SPU NP6 and CP9 hardware accelerated, and 3 AC power supplies.
|
| Product Family | High End Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | - |
| GE RJ45 Management/DMZ/HA Ports | 2 |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 10 |
| 40 GE SFP+ Slots | - |
| 10 GE SFP+ (Ultra-low Latency) | 16 |
| 10 GE SFP+ / GE SFP Slots |
- |
| GE SFP Slots | - |
| GE RJ45 WAN Port | - |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| Included Transceivers | 2x SFP+ (SR 10GE) |
| Bundle |
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
|
| Bundle Duration | 5 Years |
[/properties][specifications]
| Firewall Throughput (1518 / 512 / 64 byte, UDP) |
1.05 Tbps / 1.05 Tbps / 680 Gbps
|
| Firewall Latency (64 byte UDP packets) | 4.00 μs |
| Firewall Throughput (Packets Per Second) | 1020 Mpps |
| Concurrent Sessions (TCP) | 160 Million |
| New Sessions/Second (TCP) | 800.000 |
| Firewall Policies | 200.000 |
| IPsec VPN Throughput (512 byte packets) | 400 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40000 |
| Client-to-Gateway IPsec VPN Tunnels | 200000 |
| SSL-VPN Throughput | 9.5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30000 |
| SSL Inspection Throughput | 26 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 17000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 12 Million |
| Application Control Throughput | 55 Gbps |
| IPS Throughput | 32 Gbps |
| NGFW Throughput | 28 Gbps |
| Threat Protection Throughput | 20 Gbps |
| CAPWAP Throughput | 14 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 8192 / 4096 |
| Maximum Number of FortiTokens | 20000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 8.8 x 17.2 x 27.3 |
| Form Factor | Rack Mount, 5 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current | 12A@100V, 10A@240V |
| Power Consumption (Average / Maximum) | 1172 / 2350 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
|
| Certifications | USGv6/IPv6 |
[/specifications][accesories]
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP28-SR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 slots.
|
| FN-TRAN-QSFP28-LR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, long range for all systems with QSFP28 slots
|
| FN-TRAN-QSFP28-CWDM4 |
100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots.
|
| FG-7040E-PS-AC |
1500 W AC power supply module for FG-7030E, FG-7040E, FG-6300/6301F, FG-6500/6501F, FG-3960E, FG-3980E (not compatible for use with FG-7060E).
|
[/accesories]
10x 100GE QSFP28 slots and 16x 10GE SFP+ slots, 2 x GE RJ45 Management Ports, SPU NP6 and CP9 hardware accelerated, and 3 AC power supplies, Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 5Yr Bundle, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web Filtering and Antispam Service) plus term of contract.
This product has been discontinued.
