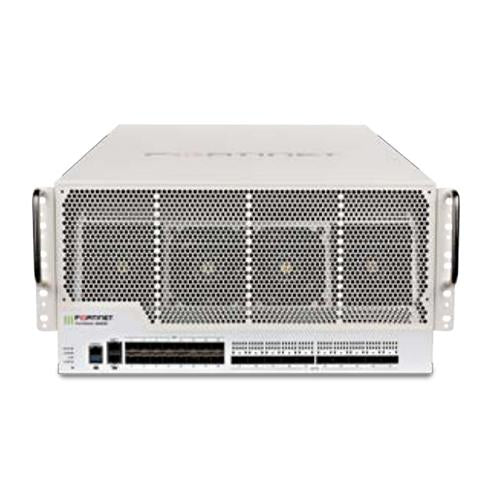

Fortinet FG-3980E Firewall
[shortdesc]
- 10x 100GE QSFP28 slots and 16x 10GE SFP+ slots, 2 x GE RJ45 Management Ports, SPU NP6 and CP9 hardware accelerated, and 3 AC power supplies
[properties]
| Properties | FG-3980E |
| Description |
10x 100 GE QSFP28 slots and 16x 10 GE SFP+ slots, 2x GE RJ45 management ports, SPU NP6 and CP9 hardware accelerated, and 3 AC power supplies.
|
| Product Family | High End Firewalls |
| Product Type | Firewall |
| GE RJ45 Ports | - |
| GE RJ45 Management/DMZ/HA Ports | 2 |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 10 |
| 40 GE SFP+ Slots | - |
| 10 GE SFP+ (Ultra-low Latency) | 16 |
| 10 GE SFP+ / GE SFP Slots |
- |
| GE SFP Slots | - |
| GE RJ45 WAN Port | - |
| USB Port | 1 |
| Console (RJ45) | 1 |
| Internal Storage | - |
| Included Transceivers | 2x SFP+ (SR 10GE) |
[/properties][specifications]
| Firewall Throughput (1518 / 512 / 64 byte, UDP) |
1.05 Tbps / 1.05 Tbps / 680 Gbps
|
| Firewall Latency (64 byte UDP packets) | 4.00 μs |
| Firewall Throughput (Packets Per Second) | 1020 Mpps |
| Concurrent Sessions (TCP) | 160 Million |
| New Sessions/Second (TCP) | 800.000 |
| Firewall Policies | 200.000 |
| IPsec VPN Throughput (512 byte packets) | 400 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40000 |
| Client-to-Gateway IPsec VPN Tunnels | 200000 |
| SSL-VPN Throughput | 9.5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 30000 |
| SSL Inspection Throughput | 26 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 17000 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 12 Million |
| Application Control Throughput | 55 Gbps |
| IPS Throughput | 32 Gbps |
| NGFW Throughput | 28 Gbps |
| Threat Protection Throughput | 20 Gbps |
| CAPWAP Throughput | 14 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Maximum Number of FortiSwitches Supported | 300 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 8192 / 4096 |
| Maximum Number of FortiTokens | 20000 |
| Maximum Number of Registered FortiClients | - |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions in. | 8.8 x 17.2 x 27.3 |
| Form Factor | Rack Mount, 5 RU |
| Power Required | 100240V AC, 5060 Hz |
| Maximum Current | 12A@100V, 10A@240V |
| Power Consumption (Average / Maximum) | 1172 / 2350 W |
| Operating Temperature | 32104°F (040°C) |
| Regulatory Compliance |
FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB
|
| Certifications | USGv6/IPv6 |
[/specifications][accesories]
| FN-TRAN-LX |
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-GC |
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
|
| FN-TRAN-SX |
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
|
| FN-TRAN-SFP+SR |
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-SFP+LR |
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
|
| FN-TRAN-SFP+GC |
10 GE SFP+ RJ45 transceiver module for systems with SFP+ slots.
|
| FN-TRAN-SFP+ER |
10 GE SFP+ transceiver module, extended range for all systems with SFP+ and SFP/SFP+ slots
|
| FN-TRAN-QSFP+SR |
40 GE QSFP+ transceiver module, short range for all systems with QSFP+ slots
|
| FN-TRAN-QSFP+LR |
40 GE QSFP+ transceiver module, long range for all systems with QSFP+ slots.
|
| FN-TRAN-QSFP28-SR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, short range for all systems with QSFP28 slots.
|
| FN-TRAN-QSFP28-LR |
100 GE QSFP28 transceivers, 4 channel parallel fiber, long range for all systems with QSFP28 slots
|
| FN-TRAN-QSFP28-CWDM4 |
100 GE QSFP28 transceivers, LC connectors, 2KM for all systems with QSFP28 slots.
|
| FG-7040E-PS-AC |
1500 W AC power supply module for FG-7030E, FG-7040E, FG-6300/6301F, FG-6500/6501F, FG-3960E, FG-3980E (not compatible for use with FG-7060E).
|
[/accesories]
10x 100GE QSFP28 slots and 16x 10GE SFP+ slots, 2 x GE RJ45 Management Ports, SPU NP6 and CP9 hardware accelerated, and 3 AC power supplies.
This product has been discontinued.
