[shortdesc]FG-3701F-BDL-809-12 NGFW, NP7/CP9 acceleration, 4x 400GE QSFP-DD, 2x 1.92TB SSD, FortiCare Premium + FortiGuard Enterprise Protection, 1 Year.[/shortdesc]

[properties]

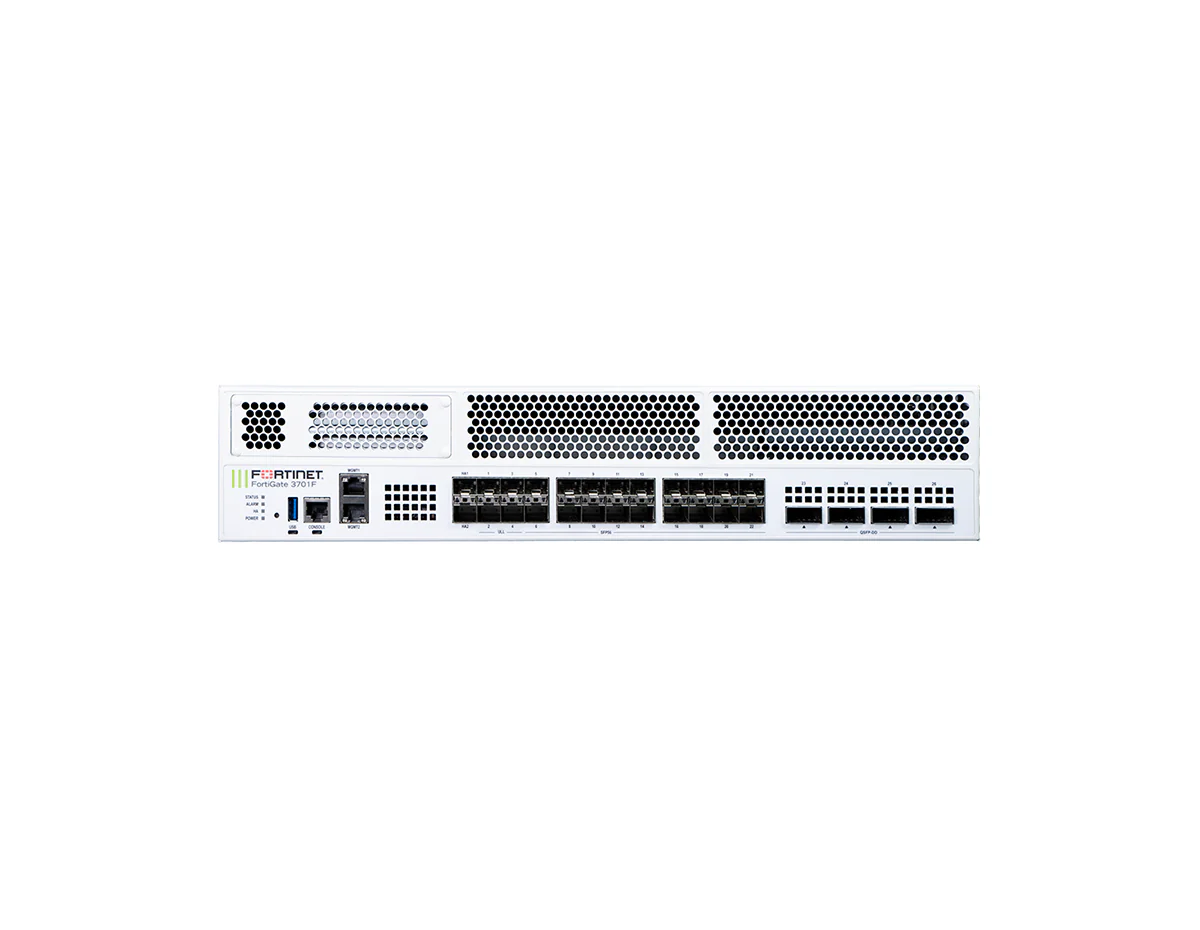

Product Name	FortiGate 3701F
SKU	FG-3701F-BDL-809-12
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Enterprise Protection (1 Year)
Form Factor	Rack Mount, 2 RU
Firewall Throughput	589 / 589 / 420 Gbps (1518/512/64 byte, UDP)
Internal Storage	2x 1.92TB SSD
Interfaces Summary	4x 400GE QSFP-DD (also supports 200GE QSFP56/100GE QSFP28/40GE QSFP+), 18x 50GE SFP56 (also supports 25GE SFP28/10GE SFP+), 4x ULL ports (25GE SFP28/10GE SFP+/GE SFP), 2x HA1/HA2 ports, 2x 10GE/GE RJ45 management
Dimensions	3.5 x 17.44 x 23.9 in (88.9 x 443 x 607.1 mm)
Weight	48.7 lbs (22.1 kg)
Power Input	100–240 VAC, 60/50 Hz

[/properties]

[specifications]

Performance / Throughput
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	589 / 589 / 420 Gbps
IPS Throughput	86 Gbps
NGFW Throughput	80 Gbps
Threat Protection Throughput	75 Gbps
IPsec VPN Throughput (512 byte)	160 Gbps
SSL-VPN Throughput	16 Gbps
Concurrent Sessions (TCP)	140 Million
New Sessions/Second (TCP)	930,000
Interfaces / Ports
Hardware Accelerated 400GE QSFP-DD / 200GE QSFP56 / 100GE QSFP28 / 40GE QSFP+ Ports	4
Hardware Accelerated 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ Ports	18
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP ULL Ports	4
Hardware Accelerated 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ / 1 GE HA1/HA2 Ports	2
10GE / GE RJ45 Management Ports	2
USB Ports (Client/Server)	1 / 1
Console Port	1
Power / Consumption
Power Consumption (Average / Maximum)	600 W / 1150 W
AC Current (Maximum)	12A@100V, 9A@240V
Heat Dissipation	3921 BTU/h
Redundant Power Supplies	Default dual AC PSU for 1+1 Redundancy (Hot Swappable)

[/specifications]

[accesories]

Included

2x SFP+ (SR 10 GE) Transceivers

Optional

Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (FG-7040E-PS-AC), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR, BiDi), 25 GE SFP28 Transceivers (SR, LR), 40 GE QSFP+ Transceivers (SR, BiDi, LR, ER), 50 GE SFP56 Transceivers (SR), 100 GE QSFP28 Transceivers (SR, LR, CWDM4, BiDi, DR, ER), 200 GE QSFP56 Transceivers (FR4, SR4), 400 GE QSFP-DD Transceivers (LR4, FR4, DR4+, DR4, SR8), Direct Attach Cables (SFP28, SFP56, QSFP28, QSFP56, QSFP-DD)

[/accesories]

The FG-3701F-BDL-809-12 delivers converged networking and security for hyperscale environments. This bundle includes hardware with FortiCare Premium and FortiGuard Enterprise Protection for 1 Year.

Powered by Fortinet’s NP7 and CP9 SPUs, it accelerates security functions while maintaining ultra-low latency. Dual 1.92TB SSDs provide onboard storage for local logging and retention.

High-Performance Protection for the Hybrid Enterprise

• Firewall performance: Up to 589 / 589 / 420 Gbps throughput.
• Security performance: IPS 86 Gbps, NGFW 80 Gbps, Threat 75 Gbps.
• High-speed ports: 4x 400GE QSFP-DD and 18x 50GE SFP56.
• Integrated ZTNA: Enforces access control within the NGFW.
• SPU acceleration: NP7 + CP9 with ULL ports support.
• Onboard storage: 2x 1.92TB SSD for local logging.

Upgrade Your Network Security

Secure your high-performance network with the FortiGate FG-3701F-BDL-809-12 today.
