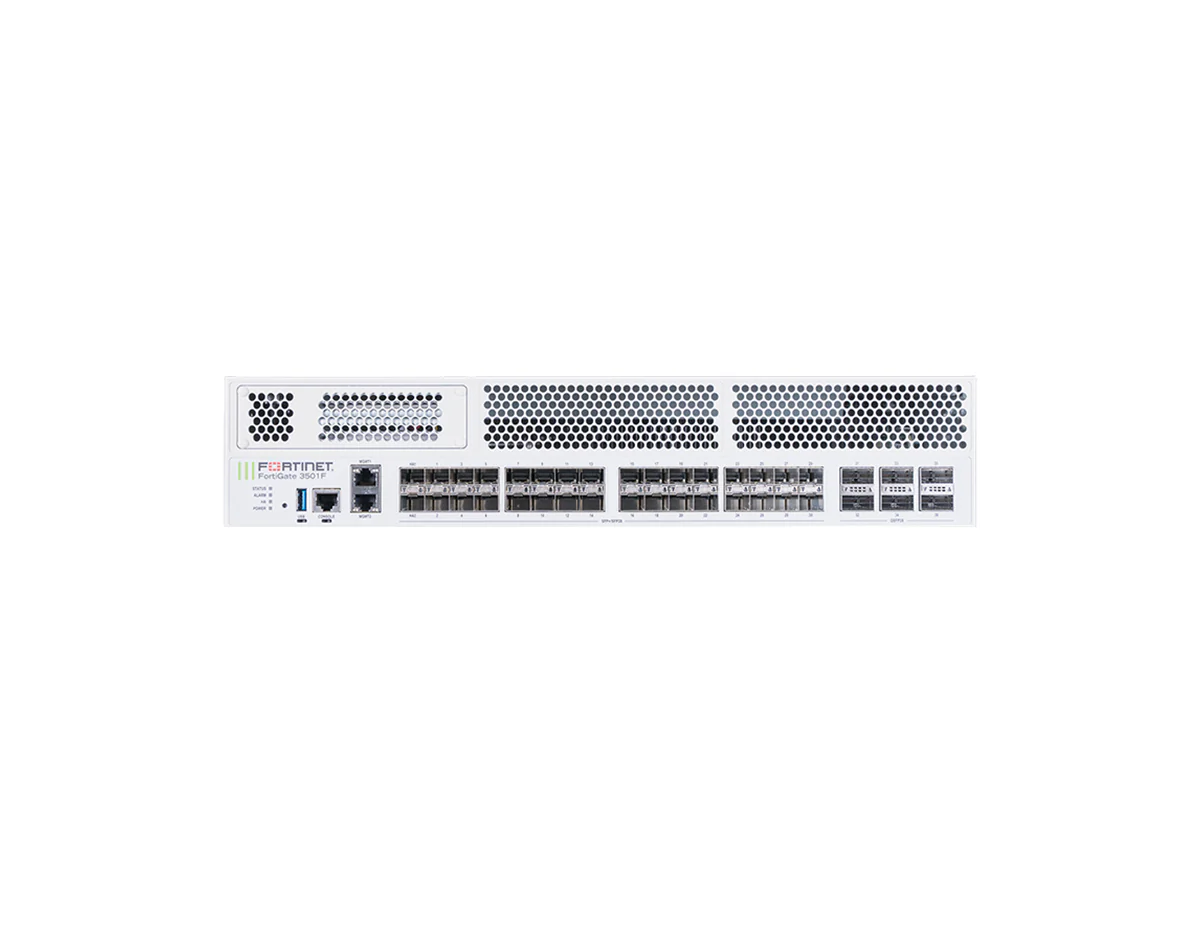

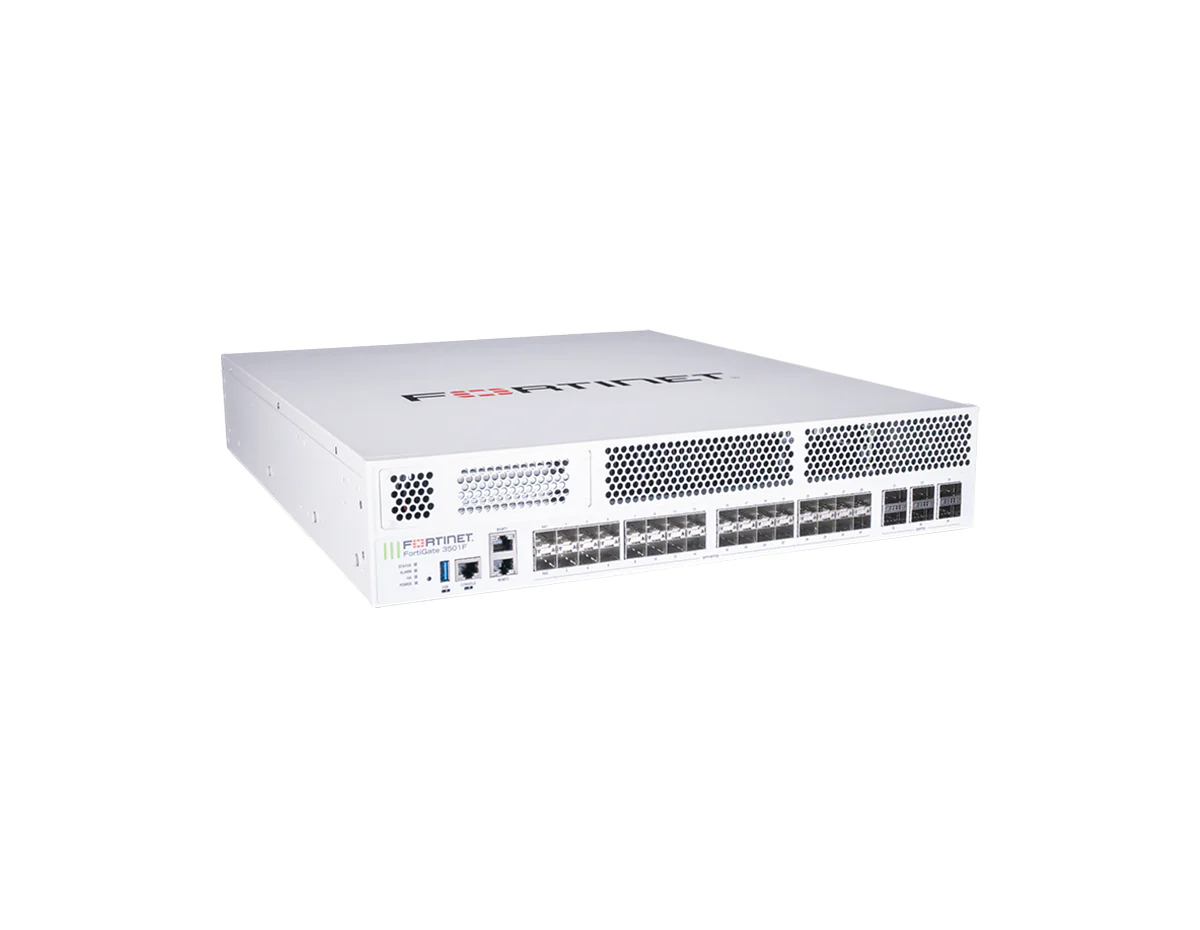

Fortinet FG-3501F-BDL-809-36 Next-Generation Firewall (NGFW)
[shortdesc]FG-3501F-BDL-809-36 Next-Generation Firewall, 65 Gbps NGFW, 2x 1.92TB SSD, 6x 100GE + 32x 25GE slots, FortiCare Premium + FortiGuard Enterprise Protection, 3 Year.[/shortdesc]
[properties]
| Product Series | FortiGate 3500F Series |
| Model / SKU | FG-3501F-BDL-809-36 |
| Bundle / Subscription | Hardware + FortiCare Premium + FortiGuard Enterprise Protection (3 Year) |
| Form Factor | Rack Mount, 2 RU |
| Throughput (NGFW) | 65 Gbps |
| Throughput (IPS) | 72 Gbps |
| Interfaces | 6x 100GE QSFP28 / 40GE QSFP+ Slots, 32x 25GE SFP28 / 10GE SFP+ / GE SFP Slots, 2x 10GE / GE RJ45 Management |
| Internal Storage | 2x 1.92TB SSD |
| Dimensions (H x W x L) | 3.5 x 17.4 x 21.9 in (89 x 443 x 556 mm) |
| Weight | 45.3 lbs (20.6 kg) |
| Power Input | 100ā240V AC, 50/60 Hz |
[/properties]
[specifications]
| Performance / Throughput | |
| Threat Protection Throughput | 63 Gbps |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 595 / 590 / 420 Gbps |
| Firewall Latency (64 byte, UDP) | 2.98 Ī¼s |
| Firewall Throughput (Packet per Second) | 630 Mpps |
| Concurrent Sessions (TCP) | 140 Million / 348 Million* |
| New Sessions/Second (TCP) | 1 Million / 5 Million* |
| IPsec VPN Throughput (512 byte) | 165 Gbps |
| SSL-VPN Throughput | 16 Gbps |
| Interfaces / Ports | |
| USB Ports (Client/Server) | 1 / 1 |
| Console Port | 1 |
| Trusted Platform Module (TPM) | Yes |
| Power / Consumption | |
| Power Consumption (Average / Maximum) | 765 W / 1181 W |
| AC Current (Maximum) | 12A @ 120V, 9A @ 240V |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (FG-7040E-PS-AC), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR), 25 GE SFP28 Transceivers (SR, LR), 40 GE QSFP+ Transceivers (SR, SR BiDi, LR), 100 GE QSFP28 Transceivers (SR, LR, CWDM4, DR, BIDI), Direct Attach Cables (25 GE SFP28, 100 GE QSFP28) |
[/accesories]
The Fortinet FortiGate 3501F enables security-driven networks across data centers and hybrid IT environments. It consolidates networking and security into a single FortiOS-powered platform to reduce complexity.
Integrated Zero Trust Network Access (ZTNA) enforcement and advanced segmentation help limit lateral movement. FG-3501F-BDL-809-36 includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection for a 3 Year term.
High-Performance Security for Hyperscale Hybrid Environments
- 65 Gbps NGFW throughput with NP7 and CP9 acceleration.
- Integrated 2x 1.92TB SSD for onboard storage.
- 6x 100GE QSFP28 plus 32x 25GE SFP28 slots.
- 63 Gbps threat protection throughput with logging enabled.
- IPsec VPN throughput up to 165 Gbps (512 byte).
- BDL-809 includes FortiCare Premium + Enterprise Protection, 3 Year.
Upgrade Your Network Security
Deploy the FortiGate FG-3501F-BDL-809-36 to add FortiCare Premium + FortiGuard Enterprise Protection for 3 Years.
