[shortdesc]FG-3501F-BDL-809-12 NGFW, 2x 1.92TB SSD, 6x 100GE QSFP28 + 32x 25GE SFP28 slots, FortiCare Premium + FortiGuard Enterprise Protection, 1 Year.[/shortdesc]

[properties]

Product Series	FortiGate 3500F Series
Model / SKU	FG-3501F-BDL-809-12
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Enterprise Protection (1 Year)
Form Factor	Rack Mount, 2 RU
Throughput (NGFW)	65 Gbps
Throughput (IPS)	72 Gbps
Interfaces	6x 100GE QSFP28 / 40GE QSFP+ Slots, 32x 25GE SFP28 / 10GE SFP+ / GE SFP Slots, 2x 10GE / GE RJ45 Management
Internal Storage	2x 1.92TB SSD
Dimensions (H x W x L)	3.5 x 17.4 x 21.9 in (89 x 443 x 556 mm)
Weight	45.3 lbs (20.6 kg)
Power Input	100–240V AC, 50/60 Hz

[/properties]

[specifications]

System Performance (Enterprise Traffic Mix)
Threat Protection Throughput	63 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	595 / 590 / 420 Gbps
Firewall Latency (64 byte, UDP)	2.98 μs
Firewall Throughput (Packet per Second)	630 Mpps
Concurrent Sessions (TCP)	140 Million / 348 Million*
New Sessions/Second (TCP)	1 Million / 5 Million*
IPsec VPN Throughput (512 byte)	165 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
SSL-VPN Throughput	16 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	30,000
SSL Inspection Throughput	63 Gbps
Hardware and Interfaces
USB Ports (Client/Server)	1 / 1
Console Port	1
Trusted Platform Module (TPM)	Yes
Power and Environment
Power Consumption (Average / Maximum)	765 W / 1181 W
AC Current (Maximum)	12A @ 120V, 9A @ 240V

[/specifications]

[accesories]

Optional Accessories

Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (FG-7040E-PS-AC), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR), 25 GE SFP28 Transceivers (SR, LR), 40 GE QSFP+ Transceivers (SR, SR BiDi, LR), 100 GE QSFP28 Transceivers (SR, LR, CWDM4, DR, BIDI), Direct Attach Cables (25 GE SFP28, 100 GE QSFP28)

[/accesories]

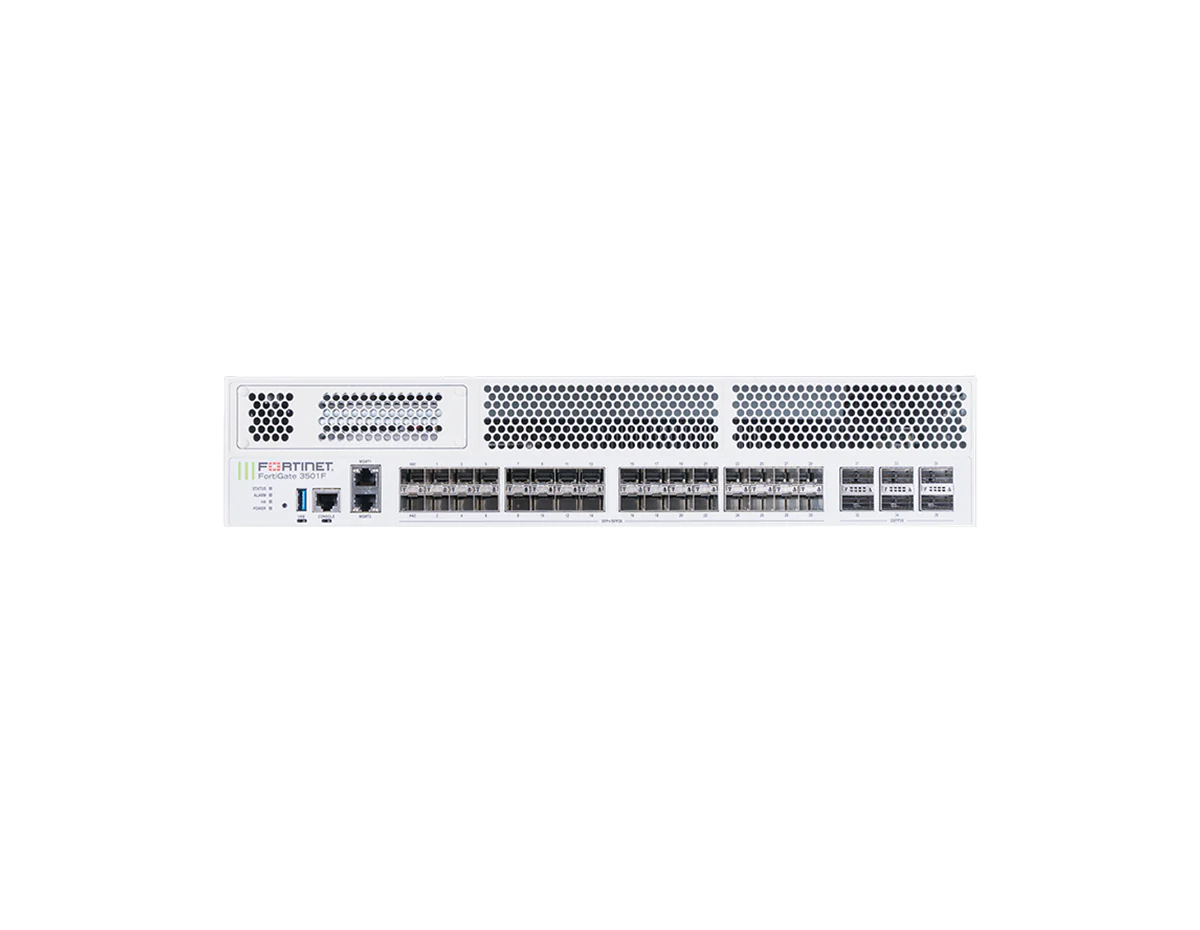

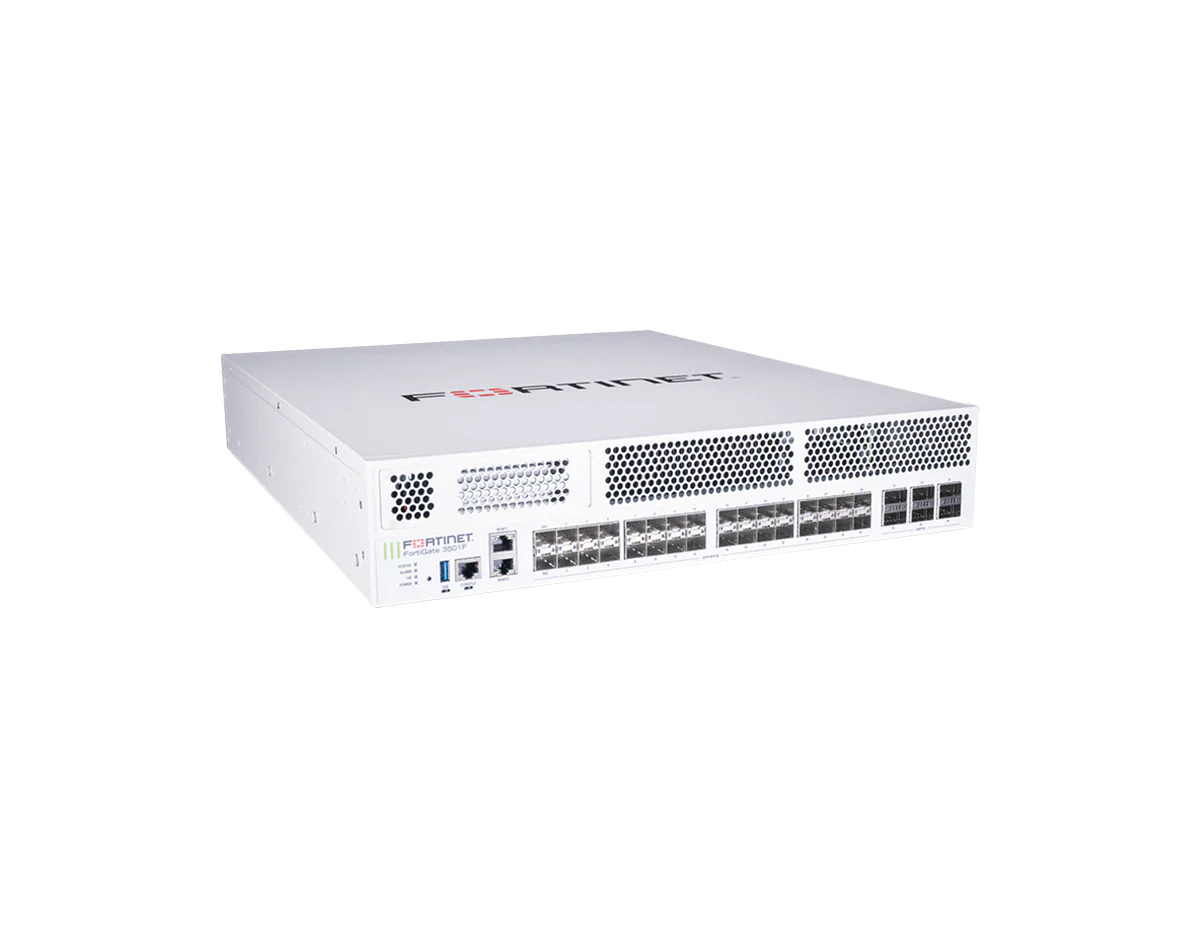

The Fortinet FortiGate 3501F is a high-performance Next-Generation Firewall (NGFW) for hyperscale data centers and hybrid IT environments. It combines integrated storage and high-speed 100GE/25GE connectivity to secure any edge at scale.

Powered by Fortinet’s patented SPU NP7 and CP9 processors, it delivers 65 Gbps NGFW throughput and 72 Gbps IPS throughput with ultra-low latency. FG-3501F-BDL-809-12 includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection for a 1 Year term.

High-Performance Security for Hyperscale Hybrid Environments

• 65 Gbps NGFW throughput powered by Fortinet NP7 and CP9 SPUs.
• Integrated 2x 1.92TB SSD storage for onboard logging.
• 6x 100GE QSFP28/40GE QSFP+ slots plus 32x 25GE slots.
• 63 Gbps threat protection throughput with logging enabled.
• Supports Active-Active, Active-Passive, and Clustering high availability.
• BDL-809 includes FortiCare Premium + FortiGuard Enterprise Protection, 1 Year.

Upgrade Your Network Security

Deploy the FortiGate FG-3501F-BDL-809-12 to add FortiCare Premium + FortiGuard Enterprise Protection for 1 Year.
