Fortinet FortiGate 3501F Next-Generation Firewall
[shortdesc] Firewall, 2RU rack mount, 6x 100GE QSFP28 slots, 32x 25GE SFP28 slots, 65 Gbps NGFW, 2x 1.92TB SSD [/shortdesc]
[properties]
| Product Series | FortiGate 3500F Series |
| Model / SKU | FG-3501F |
| Form Factor | Rack Mount, 2 RU |
| Throughput (NGFW) | 65 Gbps |
| Throughput (IPS) | 72 Gbps |
| Interfaces | 6x 100GE QSFP28 / 40GE QSFP+ Slots, 2x 25GE SFP28 / 10GE SFP+ HA Slots, 30x 25GE SFP28 / 10GE SFP+ / GE SFP Slots, 2x 10GE / GE RJ45 Management |
| Internal Storage | 2x 1.92TB SSD |
| Dimensions (H x W x L) | 3.5 x 17.4 x 21.9 in (89 x 443 x 556 mm) |
| Weight | 45.3 lbs (20.6 kg) |
| Power Input | 100–240V AC, 50/60 Hz |
| Heat Dissipation | 4030 BTU/h |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
|---|---|
| Threat Protection Throughput | 63 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 595 / 590 / 420 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 595 / 590 / 420 Gbps |
| Firewall Latency (64 byte, UDP) | 2.98 μs |
| Firewall Throughput (Packet per Second) | 630 Mpps |
| Concurrent Sessions (TCP) | 140 Million / 348 Million* |
| New Sessions/Second (TCP) | 1 Million / 5 Million* |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 165 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput | 63 Gbps |
| SSL Inspection CPS | 60,000 |
| Application Control Throughput | 135 Gbps |
| CAPWAP Throughput | 65 Gbps |
| Virtual Domains (Default / Max) | 10 / 500 |
| Max Number of FortiSwitches Supported | 300 |
| Max Number of FortiAPs (Total / Tunnel) | 4096 / 2048 |
| Max Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Hardware and Interfaces | |
| USB Ports (Client/Server) | 1 / 1 |
| Console Port | 1 |
| Trusted Platform Module (TPM) | Yes |
| Power and Environment | |
| Power Consumption (Average / Maximum) | 765 W / 1181 W |
| AC Current (Maximum) | 12A @ 120V, 9A @ 240V |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 20% to 90% non-condensing |
| Noise Level | 53.5 dBA |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 10,000 ft (3048 m) |
| Certifications and Compliance | |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (FG-7040E-PS-AC), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR), 25 GE SFP28 Transceivers (SR, LR), 40 GE QSFP+ Transceivers (SR, SR BiDi, LR), 100 GE QSFP28 Transceivers (SR, LR, CWDM4, DR, BIDI), Direct Attach Cables (25 GE SFP28, 100 GE QSFP28) |
[/accesories]
The Fortinet FortiGate 3501F enables organizations to build security-driven networks that weave security deep into datacenters and across hybrid IT environments. By consolidating networking and security into a single platform powered by FortiOS, this firewall significantly reduces complexity and eliminates security silos. It offers unparalleled performance and ultra-low latency, making it an ideal foundation for a robust Hybrid Mesh Firewall architecture that protects any edge at any scale.
Driven by Fortinet’s purpose-built SPU NP7 and CP9 processors, the FortiGate 3501F delivers industry-leading throughput and inspection capabilities, including 65 Gbps NGFW throughput and 63 Gbps threat protection throughput. The appliance features integrated Zero Trust Network Access (ZTNA) enforcement and supports advanced segmentation to prevent lateral movement of threats. With 2x 1.92TB SSDs for onboard storage and a rich set of high-speed 100GE and 25GE interfaces, the FortiGate 3501F ensures business-critical applications remain secure without becoming a performance bottleneck.
High-Performance Security for Hyperscale Hybrid Environments
- Unmatched Performance: Delivers 65 Gbps NGFW throughput and IPv4 firewall throughput (1518/512/64 byte, UDP) of 595 / 590 / 420 Gbps powered by NP7 and CP9 SPUs.
- Integrated Storage: Includes 2x 1.92TB SSDs for onboard storage.
- Massive Connectivity: Equipped with 6x 100GE QSFP28 slots and 32x 25GE SFP28 slots to support high-bandwidth datacenter requirements.
- Hardware-Accelerated Inspection: CP9 content processors accelerate resource-intensive SSL inspection (including TLS 1.3) and security functions.
- Efficient Operations: Consolidates security and networking to reduce complexity and eliminate security silos.
- Advanced Threat Protection: Supports FortiGuard AI-powered security services for coordinated, automated threat protection.
- High Availability: Supports Active-Active, Active-Passive, and Clustering configurations with redundant hot-swappable power supplies.
Ideal Use Cases
- Hyperscale Data Centers: Securing high-volume traffic with ultra-low latency and hardware-assisted acceleration.
- Hybrid Mesh Firewalls: Providing consistent security and unified management across distributed networks and hybrid environments.
- Segmentation: Implementing dynamic and VXLAN segmentation to bridge physical and virtual domains and prevent lateral threat movement.
- Secure SD-WAN: Transforming WAN architectures with a unified framework for security and management at scale.
- Mobile Security: Protecting 4G and 5G networks with SPU-accelerated CGNAT and comprehensive threat visibility.
Technical Specifications Summary
- IPS Throughput (Enterprise Mix): 72 Gbps
- NGFW Throughput: 65 Gbps
- Threat Protection Throughput: 63 Gbps
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 595 / 590 / 420 Gbps
- IPsec VPN Throughput (512 byte): 165 Gbps
- SSL-VPN Throughput: 16 Gbps
- Interfaces: 6x 100GE QSFP28 / 40GE QSFP+ slots, 32x 25GE SFP28 / 10GE SFP+ / GE SFP slots, 2x 10GE / GE RJ45 management
- Onboard Storage: 2x 1.92TB SSD
- Power Consumption (Average / Maximum): 765 W / 1181 W
- Dimensions (H x W x L): 3.5 x 17.4 x 21.9 in (89 x 443 x 556 mm)
- Weight: 45.3 lbs (20.6 kg)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Upgrade Your Network Security
Deploy the FortiGate 3501F today for high-performance security and consolidated networking across hybrid environments.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Fortinet FortiGate 3501F Next-Generation Firewall
Fortinet FortiGate 3501F Next-Generation Firewall
[shortdesc] Firewall, 2RU rack mount, 6x 100GE QSFP28 slots, 32x 25GE SFP28 slots, 65 Gbps NGFW, 2x 1.92TB SSD [/shortdesc]
[properties]
| Product Series | FortiGate 3500F Series |
| Model / SKU | FG-3501F |
| Form Factor | Rack Mount, 2 RU |
| Throughput (NGFW) | 65 Gbps |
| Throughput (IPS) | 72 Gbps |
| Interfaces | 6x 100GE QSFP28 / 40GE QSFP+ Slots, 2x 25GE SFP28 / 10GE SFP+ HA Slots, 30x 25GE SFP28 / 10GE SFP+ / GE SFP Slots, 2x 10GE / GE RJ45 Management |
| Internal Storage | 2x 1.92TB SSD |
| Dimensions (H x W x L) | 3.5 x 17.4 x 21.9 in (89 x 443 x 556 mm) |
| Weight | 45.3 lbs (20.6 kg) |
| Power Input | 100–240V AC, 50/60 Hz |
| Heat Dissipation | 4030 BTU/h |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
|---|---|
| Threat Protection Throughput | 63 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 595 / 590 / 420 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 595 / 590 / 420 Gbps |
| Firewall Latency (64 byte, UDP) | 2.98 μs |
| Firewall Throughput (Packet per Second) | 630 Mpps |
| Concurrent Sessions (TCP) | 140 Million / 348 Million* |
| New Sessions/Second (TCP) | 1 Million / 5 Million* |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 165 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput | 63 Gbps |
| SSL Inspection CPS | 60,000 |
| Application Control Throughput | 135 Gbps |
| CAPWAP Throughput | 65 Gbps |
| Virtual Domains (Default / Max) | 10 / 500 |
| Max Number of FortiSwitches Supported | 300 |
| Max Number of FortiAPs (Total / Tunnel) | 4096 / 2048 |
| Max Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Hardware and Interfaces | |
| USB Ports (Client/Server) | 1 / 1 |
| Console Port | 1 |
| Trusted Platform Module (TPM) | Yes |
| Power and Environment | |
| Power Consumption (Average / Maximum) | 765 W / 1181 W |
| AC Current (Maximum) | 12A @ 120V, 9A @ 240V |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 20% to 90% non-condensing |
| Noise Level | 53.5 dBA |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 10,000 ft (3048 m) |
| Certifications and Compliance | |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (FG-7040E-PS-AC), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR), 25 GE SFP28 Transceivers (SR, LR), 40 GE QSFP+ Transceivers (SR, SR BiDi, LR), 100 GE QSFP28 Transceivers (SR, LR, CWDM4, DR, BIDI), Direct Attach Cables (25 GE SFP28, 100 GE QSFP28) |
[/accesories]
The Fortinet FortiGate 3501F enables organizations to build security-driven networks that weave security deep into datacenters and across hybrid IT environments. By consolidating networking and security into a single platform powered by FortiOS, this firewall significantly reduces complexity and eliminates security silos. It offers unparalleled performance and ultra-low latency, making it an ideal foundation for a robust Hybrid Mesh Firewall architecture that protects any edge at any scale.
Driven by Fortinet’s purpose-built SPU NP7 and CP9 processors, the FortiGate 3501F delivers industry-leading throughput and inspection capabilities, including 65 Gbps NGFW throughput and 63 Gbps threat protection throughput. The appliance features integrated Zero Trust Network Access (ZTNA) enforcement and supports advanced segmentation to prevent lateral movement of threats. With 2x 1.92TB SSDs for onboard storage and a rich set of high-speed 100GE and 25GE interfaces, the FortiGate 3501F ensures business-critical applications remain secure without becoming a performance bottleneck.
High-Performance Security for Hyperscale Hybrid Environments
- Unmatched Performance: Delivers 65 Gbps NGFW throughput and IPv4 firewall throughput (1518/512/64 byte, UDP) of 595 / 590 / 420 Gbps powered by NP7 and CP9 SPUs.
- Integrated Storage: Includes 2x 1.92TB SSDs for onboard storage.
- Massive Connectivity: Equipped with 6x 100GE QSFP28 slots and 32x 25GE SFP28 slots to support high-bandwidth datacenter requirements.
- Hardware-Accelerated Inspection: CP9 content processors accelerate resource-intensive SSL inspection (including TLS 1.3) and security functions.
- Efficient Operations: Consolidates security and networking to reduce complexity and eliminate security silos.
- Advanced Threat Protection: Supports FortiGuard AI-powered security services for coordinated, automated threat protection.
- High Availability: Supports Active-Active, Active-Passive, and Clustering configurations with redundant hot-swappable power supplies.
Ideal Use Cases
- Hyperscale Data Centers: Securing high-volume traffic with ultra-low latency and hardware-assisted acceleration.
- Hybrid Mesh Firewalls: Providing consistent security and unified management across distributed networks and hybrid environments.
- Segmentation: Implementing dynamic and VXLAN segmentation to bridge physical and virtual domains and prevent lateral threat movement.
- Secure SD-WAN: Transforming WAN architectures with a unified framework for security and management at scale.
- Mobile Security: Protecting 4G and 5G networks with SPU-accelerated CGNAT and comprehensive threat visibility.
Technical Specifications Summary
- IPS Throughput (Enterprise Mix): 72 Gbps
- NGFW Throughput: 65 Gbps
- Threat Protection Throughput: 63 Gbps
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 595 / 590 / 420 Gbps
- IPsec VPN Throughput (512 byte): 165 Gbps
- SSL-VPN Throughput: 16 Gbps
- Interfaces: 6x 100GE QSFP28 / 40GE QSFP+ slots, 32x 25GE SFP28 / 10GE SFP+ / GE SFP slots, 2x 10GE / GE RJ45 management
- Onboard Storage: 2x 1.92TB SSD
- Power Consumption (Average / Maximum): 765 W / 1181 W
- Dimensions (H x W x L): 3.5 x 17.4 x 21.9 in (89 x 443 x 556 mm)
- Weight: 45.3 lbs (20.6 kg)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Upgrade Your Network Security
Deploy the FortiGate 3501F today for high-performance security and consolidated networking across hybrid environments.
Original: $171,360.00
-65%$171,360.00
$59,976.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
[shortdesc] Firewall, 2RU rack mount, 6x 100GE QSFP28 slots, 32x 25GE SFP28 slots, 65 Gbps NGFW, 2x 1.92TB SSD [/shortdesc]
[properties]
| Product Series | FortiGate 3500F Series |
| Model / SKU | FG-3501F |
| Form Factor | Rack Mount, 2 RU |
| Throughput (NGFW) | 65 Gbps |
| Throughput (IPS) | 72 Gbps |
| Interfaces | 6x 100GE QSFP28 / 40GE QSFP+ Slots, 2x 25GE SFP28 / 10GE SFP+ HA Slots, 30x 25GE SFP28 / 10GE SFP+ / GE SFP Slots, 2x 10GE / GE RJ45 Management |
| Internal Storage | 2x 1.92TB SSD |
| Dimensions (H x W x L) | 3.5 x 17.4 x 21.9 in (89 x 443 x 556 mm) |
| Weight | 45.3 lbs (20.6 kg) |
| Power Input | 100–240V AC, 50/60 Hz |
| Heat Dissipation | 4030 BTU/h |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
|---|---|
| Threat Protection Throughput | 63 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 595 / 590 / 420 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 595 / 590 / 420 Gbps |
| Firewall Latency (64 byte, UDP) | 2.98 μs |
| Firewall Throughput (Packet per Second) | 630 Mpps |
| Concurrent Sessions (TCP) | 140 Million / 348 Million* |
| New Sessions/Second (TCP) | 1 Million / 5 Million* |
| Firewall Policies | 200,000 |
| IPsec VPN Throughput (512 byte) | 165 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 40,000 |
| Client-to-Gateway IPsec VPN Tunnels | 200,000 |
| SSL-VPN Throughput | 16 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| SSL Inspection Throughput | 63 Gbps |
| SSL Inspection CPS | 60,000 |
| Application Control Throughput | 135 Gbps |
| CAPWAP Throughput | 65 Gbps |
| Virtual Domains (Default / Max) | 10 / 500 |
| Max Number of FortiSwitches Supported | 300 |
| Max Number of FortiAPs (Total / Tunnel) | 4096 / 2048 |
| Max Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Hardware and Interfaces | |
| USB Ports (Client/Server) | 1 / 1 |
| Console Port | 1 |
| Trusted Platform Module (TPM) | Yes |
| Power and Environment | |
| Power Consumption (Average / Maximum) | 765 W / 1181 W |
| AC Current (Maximum) | 12A @ 120V, 9A @ 240V |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 20% to 90% non-condensing |
| Noise Level | 53.5 dBA |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 10,000 ft (3048 m) |
| Certifications and Compliance | |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (FG-7040E-PS-AC), 1 GE SFP Transceivers (LX, RJ45, SX), 10 GE SFP+ Transceivers (RJ45, SR, LR, ER, ZR), 25 GE SFP28 Transceivers (SR, LR), 40 GE QSFP+ Transceivers (SR, SR BiDi, LR), 100 GE QSFP28 Transceivers (SR, LR, CWDM4, DR, BIDI), Direct Attach Cables (25 GE SFP28, 100 GE QSFP28) |
[/accesories]

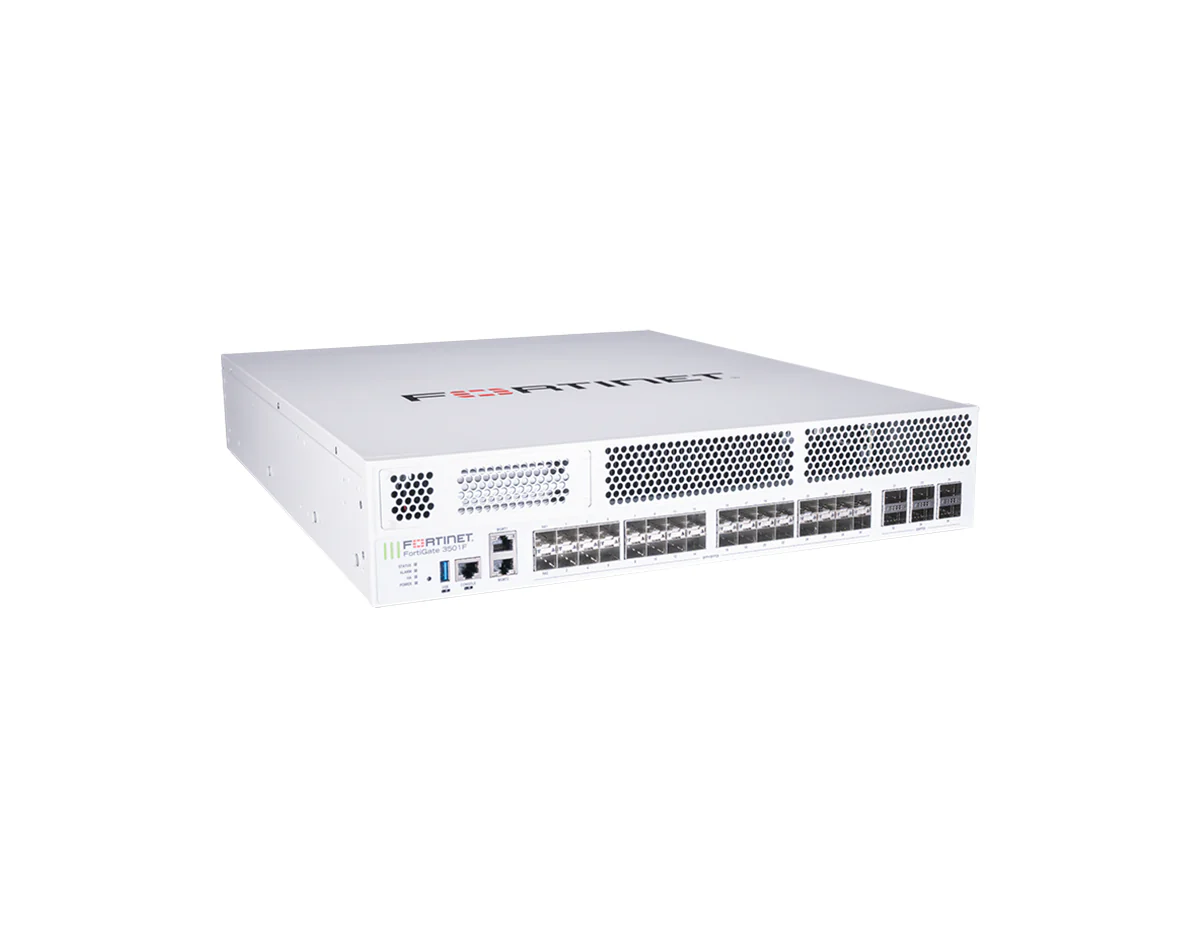

The Fortinet FortiGate 3501F enables organizations to build security-driven networks that weave security deep into datacenters and across hybrid IT environments. By consolidating networking and security into a single platform powered by FortiOS, this firewall significantly reduces complexity and eliminates security silos. It offers unparalleled performance and ultra-low latency, making it an ideal foundation for a robust Hybrid Mesh Firewall architecture that protects any edge at any scale.
Driven by Fortinet’s purpose-built SPU NP7 and CP9 processors, the FortiGate 3501F delivers industry-leading throughput and inspection capabilities, including 65 Gbps NGFW throughput and 63 Gbps threat protection throughput. The appliance features integrated Zero Trust Network Access (ZTNA) enforcement and supports advanced segmentation to prevent lateral movement of threats. With 2x 1.92TB SSDs for onboard storage and a rich set of high-speed 100GE and 25GE interfaces, the FortiGate 3501F ensures business-critical applications remain secure without becoming a performance bottleneck.
High-Performance Security for Hyperscale Hybrid Environments
- Unmatched Performance: Delivers 65 Gbps NGFW throughput and IPv4 firewall throughput (1518/512/64 byte, UDP) of 595 / 590 / 420 Gbps powered by NP7 and CP9 SPUs.
- Integrated Storage: Includes 2x 1.92TB SSDs for onboard storage.
- Massive Connectivity: Equipped with 6x 100GE QSFP28 slots and 32x 25GE SFP28 slots to support high-bandwidth datacenter requirements.
- Hardware-Accelerated Inspection: CP9 content processors accelerate resource-intensive SSL inspection (including TLS 1.3) and security functions.
- Efficient Operations: Consolidates security and networking to reduce complexity and eliminate security silos.
- Advanced Threat Protection: Supports FortiGuard AI-powered security services for coordinated, automated threat protection.

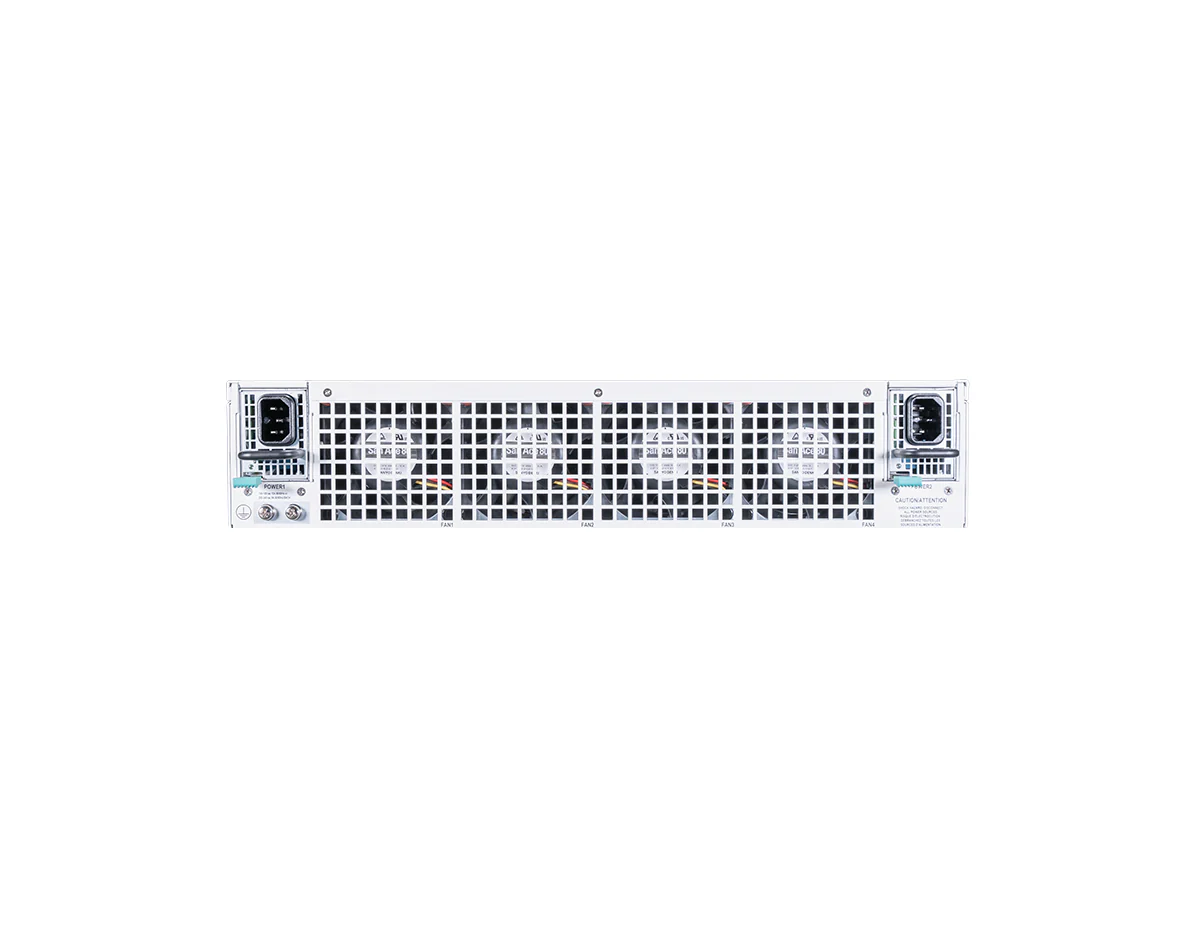

- High Availability: Supports Active-Active, Active-Passive, and Clustering configurations with redundant hot-swappable power supplies.
Ideal Use Cases
- Hyperscale Data Centers: Securing high-volume traffic with ultra-low latency and hardware-assisted acceleration.
- Hybrid Mesh Firewalls: Providing consistent security and unified management across distributed networks and hybrid environments.
- Segmentation: Implementing dynamic and VXLAN segmentation to bridge physical and virtual domains and prevent lateral threat movement.
- Secure SD-WAN: Transforming WAN architectures with a unified framework for security and management at scale.
- Mobile Security: Protecting 4G and 5G networks with SPU-accelerated CGNAT and comprehensive threat visibility.
Technical Specifications Summary
- IPS Throughput (Enterprise Mix): 72 Gbps
- NGFW Throughput: 65 Gbps
- Threat Protection Throughput: 63 Gbps
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 595 / 590 / 420 Gbps
- IPsec VPN Throughput (512 byte): 165 Gbps
- SSL-VPN Throughput: 16 Gbps

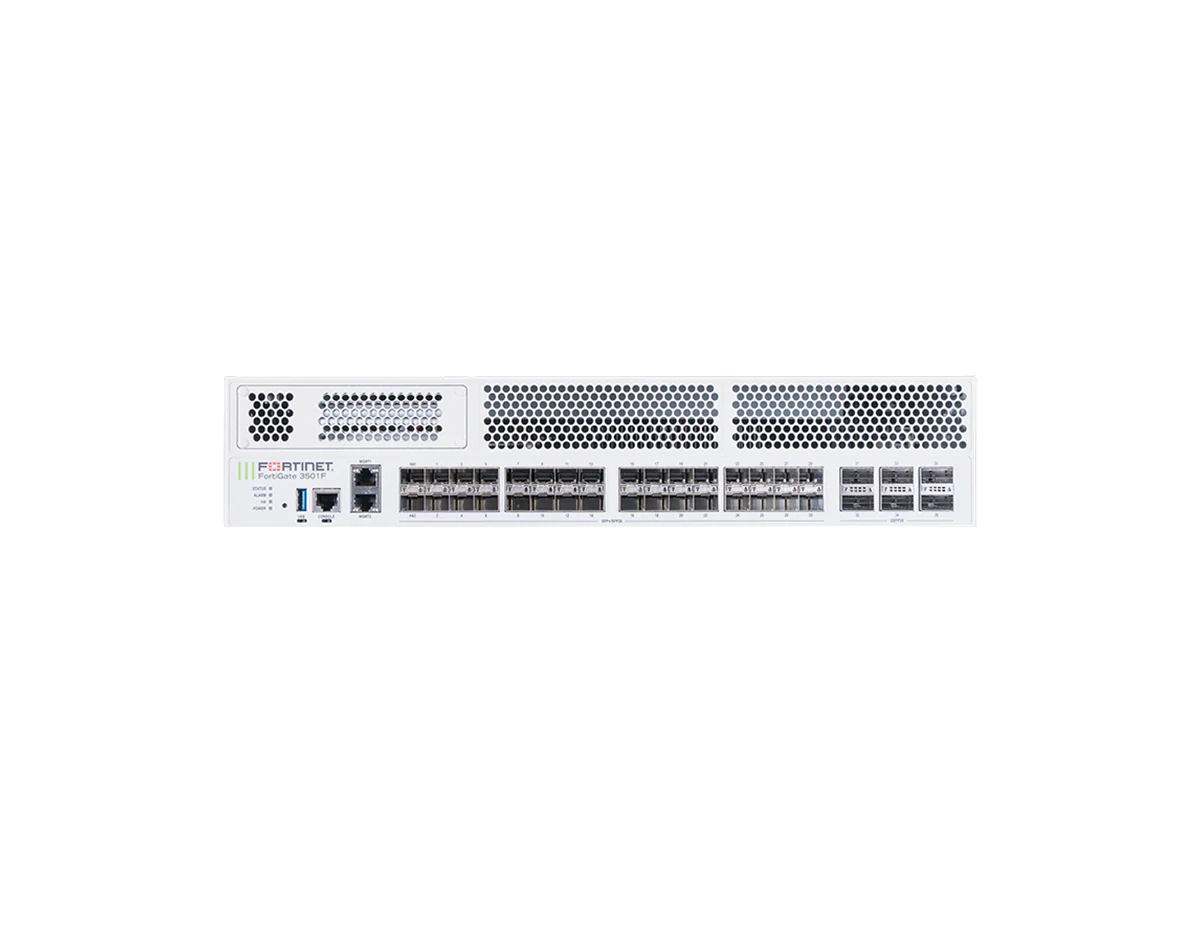

- Interfaces: 6x 100GE QSFP28 / 40GE QSFP+ slots, 32x 25GE SFP28 / 10GE SFP+ / GE SFP slots, 2x 10GE / GE RJ45 management
- Onboard Storage: 2x 1.92TB SSD
- Power Consumption (Average / Maximum): 765 W / 1181 W
- Dimensions (H x W x L): 3.5 x 17.4 x 21.9 in (89 x 443 x 556 mm)
- Weight: 45.3 lbs (20.6 kg)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
Upgrade Your Network Security
Deploy the FortiGate 3501F today for high-performance security and consolidated networking across hybrid environments.
