[shortdesc]FG-3500F-BDL-809-12 NGFW, 595 Gbps firewall, 6x 100GE QSFP28, 32x 25GE SFP28, FortiCare Premium + FortiGuard Enterprise Protection (1 Year).[/shortdesc]

[properties]

Model / SKU	FG-3500F-BDL-809-12
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Enterprise Protection  (1 Year)
Form Factor	Rack Mount, 2 RU
Firewall Throughput	595 Gbps
Interfaces	6x 100 GE QSFP28 / 40 GE QSFP+, 32x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 2x 10 GE / GE RJ45 Management
Power Input	100-240V AC, 50/60 Hz

[/properties]

[specifications]

System Performance
IPS Throughput	72 Gbps
NGFW Throughput	65 Gbps
Threat Protection Throughput	63 Gbps
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	595 / 590 / 420 Gbps
Firewall Latency	2.98 µs
IPsec VPN Throughput (512 byte)	165 Gbps
SSL-VPN Throughput	16 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	63 Gbps
Interfaces and Modules
100 GE QSFP28 / 40 GE QSFP+ Slots	6 (Hardware Accelerated)
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	32 (Hardware Accelerated)
10 GE / GE RJ45 Management Ports	2
USB Ports (Client / Server)	1 / 1
Console Port	1
Power and Environment
Power Supply	Redundant Power Supplies (Hot Swappable), Default dual AC PSU
Power Consumption (Average / Maximum)	760 W / 1174 W
AC Current (Maximum)	12A@120V, 9A@240V
AC Power Supply	100–240V AC, 50/60 Hz
Dimensions and Weight
Form Factor (supports EIA/non-EIA standards)	Rack Mount, 2 RU
Height x Width x Length (inches)	3.5 x 17.4 x 21.9
Height x Width x Length (mm)	89 x 443 x 556
Weight	43.8 lbs (19.9 kg)

[/specifications]

[accesories]

Included Transceivers	2x SFP+ (SR 10 GE)
Optional Accessories	Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (FG-7040E-PS-AC), Transceiver Modules (FN-TRAN / FG-TRAN series), Direct Attach Cables (FN-CABLE series)

[/accesories]

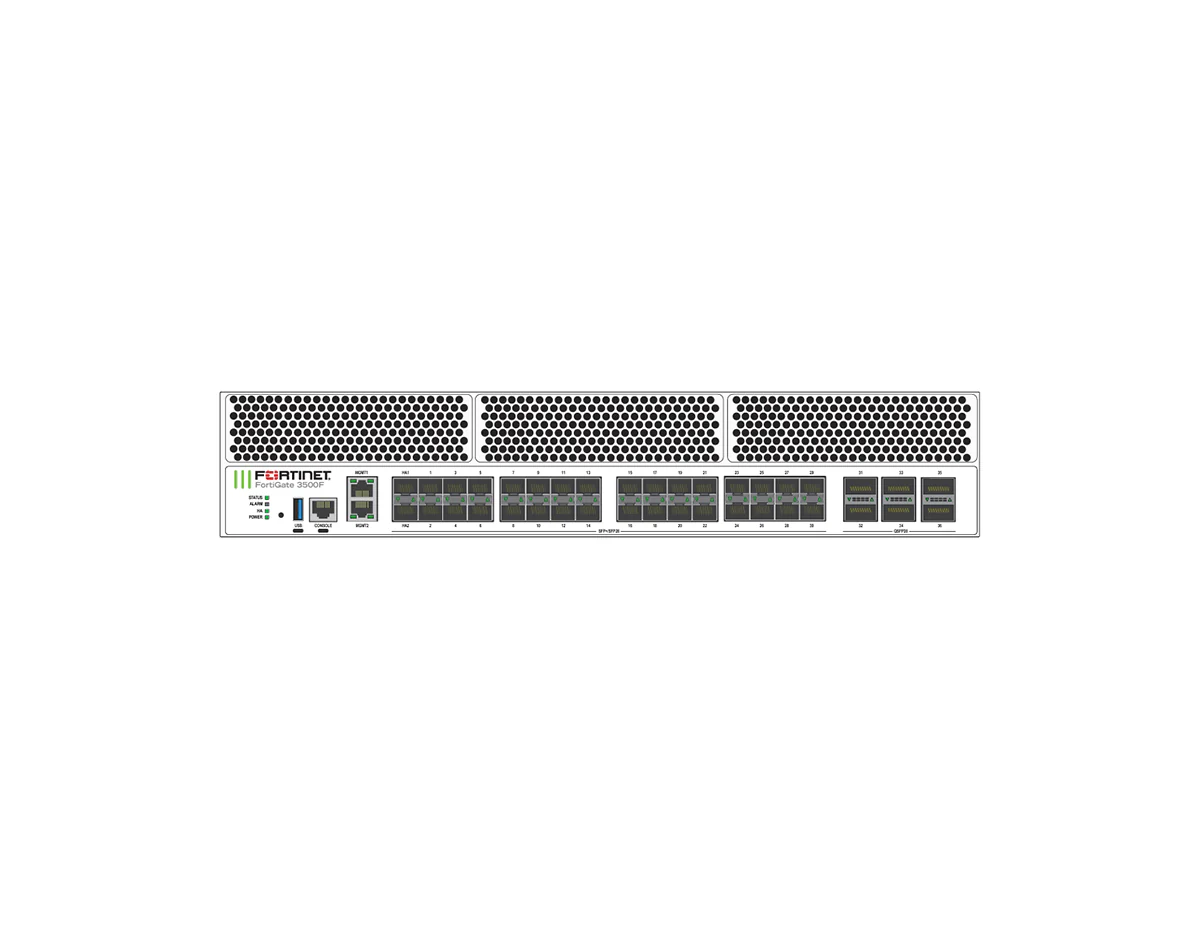

The FortiGate 3500F Series builds security-driven networks for large enterprises and data centers using FortiOS and Fortinet’s SPU NP7 and CP9 processors.

This bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection (1 Year) to support and protect the deployment.

High Performance with Flexibility and Hyperscale Security

• NP7 and CP9 SPUs accelerate security inspection and SSL.
• 6x 100GE QSFP28 and 32x 25GE SFP28 connectivity.
• Integrated ZTNA enforcement controls and verifies application access.
• Supports Hyperscale Firewall License for higher sessions and CPS.
• FortiOS converged networking and security with FortiGuard Services.
• Rack-mount 2RU design for large enterprises and data centers.

Upgrade Your Network Security

Upgrade your hyperscale environment with the Fortinet FG-3500F-BDL-809-12 today.
