[shortdesc]FG-3201F-BDL-809-36 Next-Generation Firewall, four 400GE QSFP-DD, dual 960GB SSDs, NP7/CP9 SPUs, 47 Gbps NGFW, FortiCare Premium + FortiGuard Enterprise Protection, 3 Year.[/shortdesc]

[properties]

Model	FG-3201F-BDL-809-36
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Enterprise Protection (3 Year)
Form Factor	Rack Mount, 2RU
Firewall Throughput (IPv4)	387 / 385 / 178.5 Gbps (1518 / 512 / 64 byte UDP)
Threat Protection Throughput	45 Gbps
Network Interfaces	4x 400GE QSFP-DD, 10x 50GE SFP56 (data), 2x 50GE SFP56 (HA1/HA2), 4x 25GE SFP28 ULL, 2x 10GE RJ45 Mgmt
Internal Storage	2x 960GB SSD
Dimensions (H x W x L)	3.5 x 17.44 x 23.9 inches (88.9 x 443 x 607.1 mm)
Weight	45.5 lbs (20.7 kg)
Power Input	100–240VAC, 60/50 Hz

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	63 Gbps
NGFW Throughput	47 Gbps
System Performance and Capacity
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	387 / 385 / 178.5 Gbps
Firewall Latency (64 byte, UDP)	3.42 μs / 1.45 μs*
Concurrent Sessions (TCP)	70 Million
New Sessions/Second (TCP)	800,000
IPsec VPN Throughput (512 byte)	105 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
SSL-VPN Throughput	11 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	30,000
Hardware Specifications
USB 3.0 Port	1
Console RJ45 Port	1
Dimensions and Power
Power Consumption (Average/Maximum)	527 W / 870 W
Current (Maximum)	12A@100V, 9A@240V
Heat Dissipation	2971 BTU/h
Redundant Power Supplies	Yes (Default dual AC PSU for 1+1 Redundancy)

[/specifications]

[accesories]

Optional Accessories

Rack Mount Sliding Rails (SP-FG3040B-RAIL), Spare AC Power Supply (SP-FG3800D-PS), various SFP/QSFP Transceiver Modules and Cables

[/accesories]

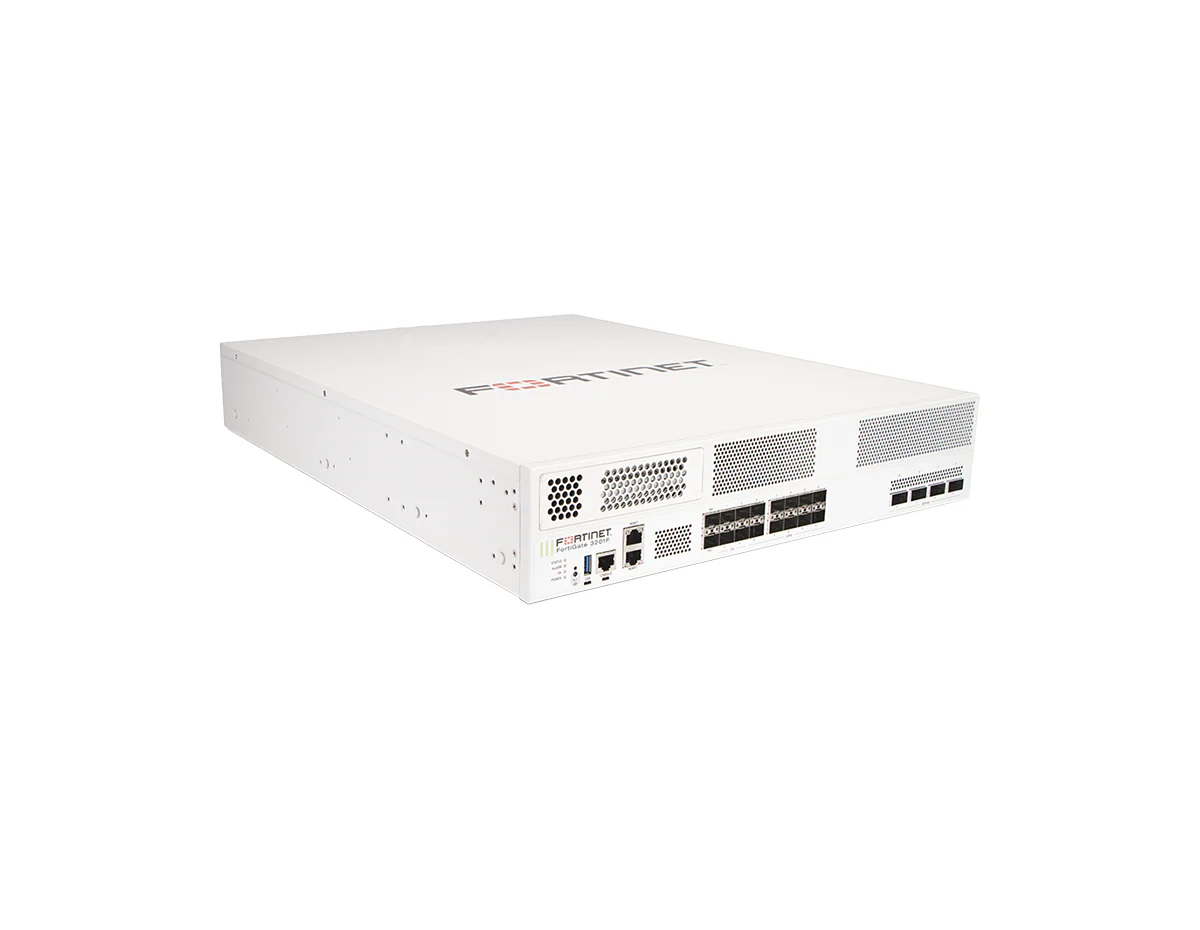

The FortiGate 3201F enables security-driven networks for hyperscale data centers and hybrid IT environments. This bundle SKU includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection (3 Year).

Purpose-built SPU NP7 and CP9 processors and onboard SSD storage support high-speed inspection plus local logging. Four 400GE QSFP-DD slots help maintain performance in demanding deployments.

Secure Networking with 400GE Hyperscale Connectivity and Onboard Storage

• SPU Acceleration: NP7/CP9 SPUs accelerate inspection for high-speed traffic.
• Hyperscale Ports: Four 400GE QSFP-DD slots simplify core connectivity.
• Onboard Storage: Dual 960GB SSDs support local logging and reporting.
• VPN Capacity: 105 Gbps IPsec throughput supports large site VPNs.
• Session Scale: Supports up to 70 Million concurrent TCP sessions.
• Resilient Power: Dual AC PSUs enable 1+1 redundancy.

Upgrade Your Network Security

Deploy FG-3201F-BDL-809-36 with FortiCare Premium + FortiGuard Enterprise Protection (3 Year).
