[shortdesc]Firewall, 2RU rack mount, 4x 400 GE QSFP-DD, 2x 960GB SSD, NGFW 47 Gbps, threat protection 45 Gbps[/shortdesc]

[properties]

Model	FG-3201F
Form Factor	Rack Mount, 2RU
Firewall Throughput (IPv4)	387 / 385 / 178.5 Gbps (1518 / 512 / 64 byte UDP)
Threat Protection Throughput	45 Gbps

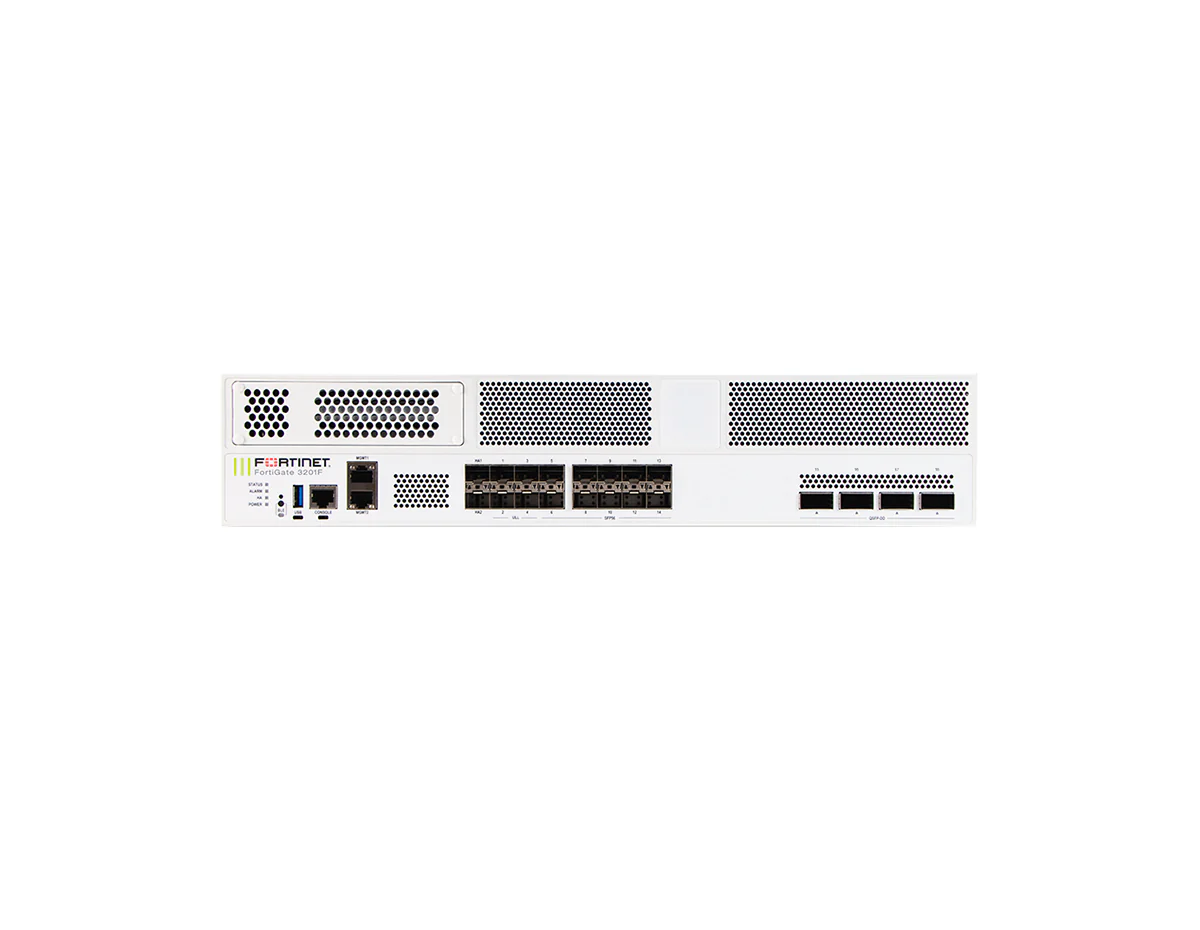

Network Interfaces	4 x 400 GE QSFP-DD / 200 GE QSFP56 / 100 GE QSFP28 / 40 GE QSFP+ slots, 10 x 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 2 x 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ HA1/HA2 slots, 4 x 25 GE SFP28 / 10 GE SFP+ ULL slots, 2 x 10 GE / GE RJ45 management ports
Internal Storage	2x 960GB SSD
Dimensions (H x W x L)	3.5 x 17.44 x 23.9 inches (88.9 x 443 x 607.1 mm)
Weight	45.5 lbs (20.7 kg)
Power Input	100–240VAC, 60/50 Hz
Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	63 Gbps
NGFW Throughput	47 Gbps
System Performance and Capacity
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	387 / 385 / 178.5 Gbps
Firewall Latency (64 byte, UDP)	3.42 μs / 1.45 μs*
Firewall Throughput (Packet per Second)	267.75 Mpps
Concurrent Sessions (TCP)	70 Million
New Sessions/Second (TCP)	800,000
Firewall Policies	200,000
IPsec VPN Throughput (512 byte)	105 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
SSL-VPN Throughput	11 Gbps
Concurrent SSL-VPN Users (Tunnel Mode)	30,000
SSL Inspection Throughput (IPS, avg HTTPS)	29 Gbps
SSL Inspection CPS (IPS, avg HTTPS)	30,000
Application Control Throughput (HTTP 64K)	109 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
Virtual Domains (Default/Maximum)	10 / 500
Max FortiSwitches Supported	300
Max FortiAPs (Total/Tunnel)	4096 / 2048
Max FortiTokens	20,000
Max Registered FortiClients	20,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware Specifications
USB 3.0 Port	1
Console RJ45 Port	1
Dimensions and Power
Power Consumption (Average/Maximum)	527 W / 870 W
Current (Maximum)	12A@100V, 9A@240V
Heat Dissipation	2971 BTU/h

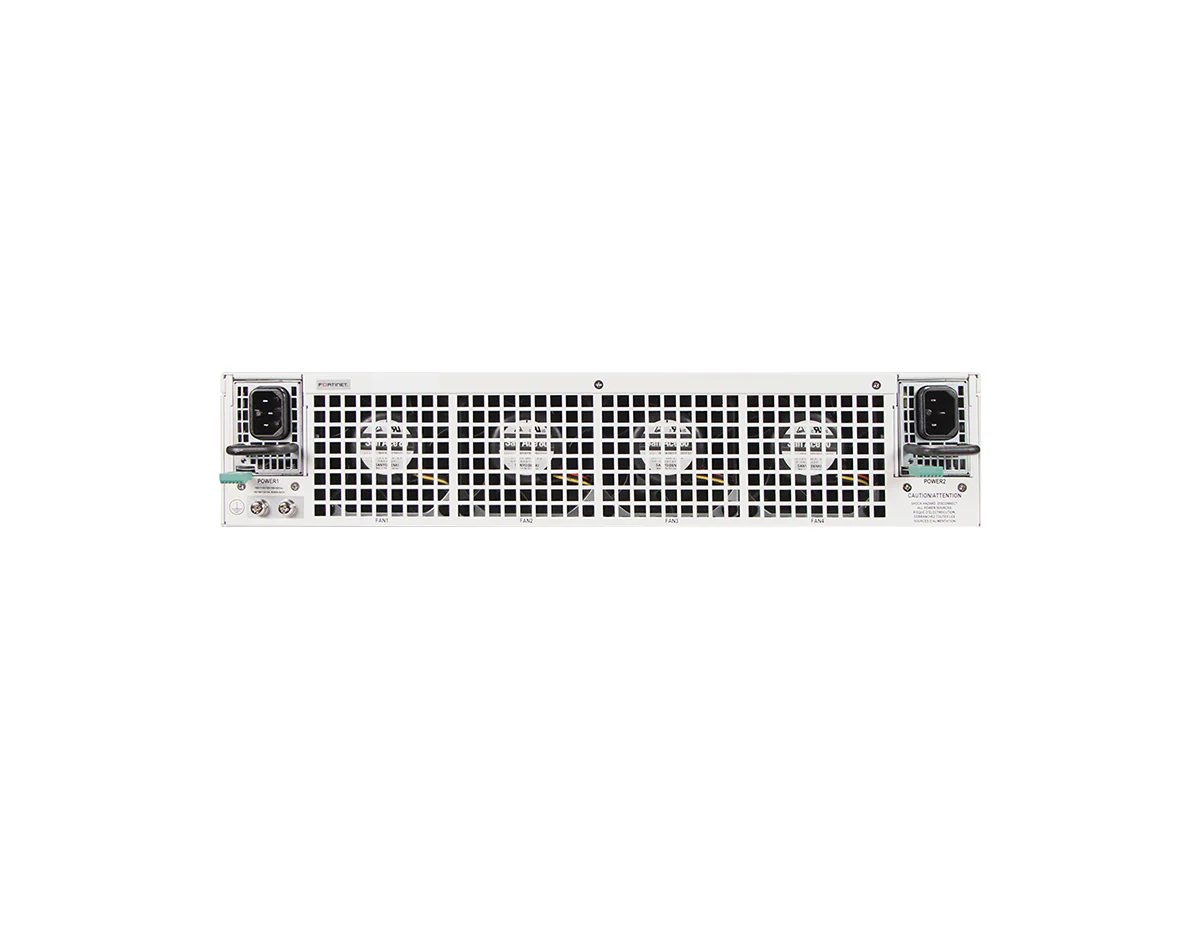

Redundant Power Supplies	Yes (Default dual AC PSU for 1+1 Redundancy)
Operating Environment and Certifications
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	71 dBA
Forced Airflow	Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Optional Accessories

Rack Mount Sliding Rails (SP-FG3040B-RAIL), Spare AC Power Supply (SP-FG3800D-PS), various SFP/QSFP Transceiver Modules and Cables

[/accesories]

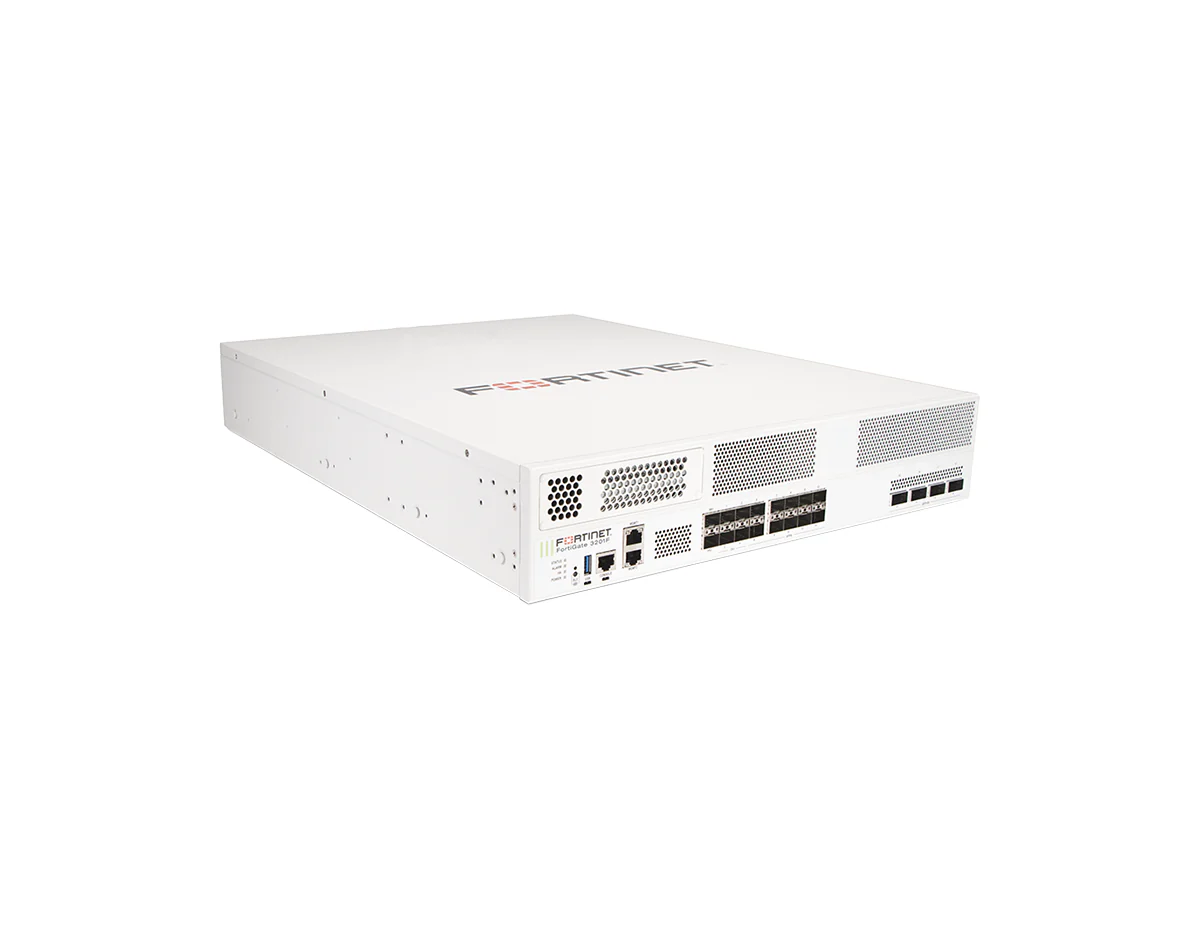

The FortiGate 3201F enables organizations to build robust security-driven networks with the foundation of a Hybrid Mesh Firewall architecture. Designed for high-performance enterprise and data center environments, this appliance weaves security deep into the network fabric, protecting any edge at any scale. By consolidating networking and security into a single platform powered by FortiOS, the FG-3201F reduces complexity while providing unparalleled visibility and control over users, applications, and devices.

Equipped with Fortinet’s purpose-built SPU NP7 and CP9 processors, the FortiGate 3201F delivers industry-leading throughput, including 63 Gbps of IPS performance and 47 Gbps of NGFW performance. The device supports hyperscale connectivity with four 400GE QSFP-DD slots, ensuring that security never becomes a bottleneck in high-speed data environments. Additionally, the FG-3201F includes dual 960GB onboard SSDs, enhancing logging, reporting, and local storage capabilities for improved operational efficiency.

Secure Networking with 400GE Hyperscale Connectivity and Onboard Storage

• Hyperscale Performance: Leverages patented SPU NP7 and CP9 technology to deliver 387 / 385 / 178.5 Gbps of IPv4 firewall throughput (1518 / 512 / 64 byte UDP) and 45 Gbps of threat protection throughput, handling massive traffic volumes with ease.
• Integrated Local Storage: Includes dual 960GB internal SSDs for local logging and reporting, distinguishing it from the standard 3200F model.
• 400GE High-Speed Connectivity: Features four 400GE QSFP-DD slots to simplify network design and support high-bandwidth core networks without additional bridging devices.
• AI-Powered Security: Integrates with FortiGuard AI-Powered Security Services to provide real-time protection against known, unknown, and zero-day threats.
• Ultra-Low Latency: Dedicated ULL ports and hardware acceleration support firewall latency as low as 1.45 μs on ULL ports (64 byte UDP), helping maintain performance in latency-sensitive environments.
• Integrated ZTNA Enforcement: Combines Next-Generation Firewall capabilities with universal Zero Trust Network Access (ZTNA) to automatically control and verify user access to applications.
• Energy Efficient Design: Engineered for strong performance per watt, helping reduce power consumption and total cost of ownership.

• Hyperscale Data Centers: Protects core networks with high-speed 400GE interfaces and massive session capacity (70 million concurrent TCP sessions).
• Hybrid Cloud Segmentation: Delivers dynamic segmentation across physical and virtual domains with VXLAN support and high-speed firewalling.
• Secure Web Gateway: Inspects SSL/TLS traffic at scale (29 Gbps SSL Inspection) to secure web access and block malicious content.
• High-Performance Edge: Secures the network edge with consolidated networking and security, supporting connectivity options from 10GE to 400GE.

• Firewall Throughput: 387 / 385 / 178.5 Gbps (1518 / 512 / 64 byte UDP)
• IPS Throughput: 63 Gbps
• NGFW Throughput: 47 Gbps
• Interfaces: 4 x 400 GE QSFP-DD / 200 GE QSFP56 / 100 GE QSFP28 / 40 GE QSFP+ slots, 10 x 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 2 x 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ HA1/HA2 slots, 4 x 25 GE SFP28 / 10 GE SFP+ ULL slots, 2 x 10 GE / GE RJ45 management ports
• Storage: 2x 960GB Internal SSDs
• Concurrent Sessions: 70 Million
• Form Factor: 2RU Rack Mount

Upgrade Your Network Security

Secure your high-performance network with the FortiGate 3201F and its advanced hyperscale capabilities today.
