[shortdesc]FG-3200F-BDL-950-60 NGFW, 400 GE connectivity, NP7/CP9 SPU acceleration, AI/ML FortiGuard Services, FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 5 Year.[/shortdesc]

[properties]

Product Series	FortiGate 3200F Series
Model / SKU	FG-3200F-BDL-950-60
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year)
Form Factor	Rack Mount, 2RU
Firewall Throughput (IPv4)	387 Gbps (1518 byte, UDP)
NGFW Throughput	47 Gbps
Threat Protection Throughput	45 Gbps
Interfaces Summary	4x 400 GE QSFP-DD, 10x 50 GE SFP56 + 2x 50 GE HA, 4x 25 GE SFP28 ULL, 2x 10 GE/GE RJ45 Mgmt
Power Supplies	Dual AC Power Supplies (1+1 Redundancy)
Dimensions (H x W x L)	3.5 x 17.44 x 23.9 inches (88.9 x 443 x 607.1 mm)
Weight	43.9 lbs (20 kg)

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	63 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	387 / 385 / 178.5 Gbps
Firewall Latency (64 byte, UDP)	3.42 μs / 1.45 μs (ULL)
Concurrent Sessions (TCP)	70 Million
New Sessions/Second (TCP)	800,000
IPsec VPN Throughput (512 byte)	105 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
Interfaces and Modules
Hardware Accelerated 400 GE QSFP-DD / 200 GE QSFP56 / 100 GE QSFP28 / 40 GE QSFP+ Slots	4
Hardware Accelerated 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	10
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP ULL Slots	4
Hardware Accelerated 50 GE SFP56 / 25 GE SFP28 / 10 GE SFP+ HA1/HA2 Slots	2
10 GE / GE RJ45 Management Ports	2
USB 3.0 Port	1
Console RJ45 Port	1
Onboard Storage	NA
Dimensions and Power
AC Power Supply	100-240VAC, 60/50 Hz
Power Consumption (Average/Maximum)	520 W / 865 W
Current (Maximum)	12A@100V, 9A@240V
Redundant Power Supplies	Yes (Default dual AC PSU for 1+1 Redundancy)
Height x Width x Length (inches)	3.5 x 17.44 x 23.9 inches (88.9 x 443 x 607.1 mm)
Weight	43.9 lbs (20 kg)
Form Factor	Rack Mount, 2RU

[/specifications]

[accesories]

Included	2x AC power supplies
Optional Accessories	Rack Mount Sliding Rails (SP-FG3040B-RAIL), Spare Power Supply (SP-FG3800D-PS), Various Transceiver Modules (1 GE to 400 GE), Direct Attach Cables (25 GE to 400 GE)

[/accesories]

The Fortinet FortiGate 3200F Series provides high-performance, hyperscale security for data centers and hybrid IT environments. This FG-3200F-BDL-950-60 bundle includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).

Engineered with Fortinet's patented SPU NP7 and CP9 processors, the FortiGate 3200F delivers massive throughput with ultra-low latency and integrated support for 400 GE connectivity via QSFP-DD slots. It simplifies management and reduces operational costs while delivering deep visibility into users, devices, and applications.

Hyperscale Security with 400 GE Connectivity

• Up to 387 Gbps IPv4 firewall throughput, SPU NP7/CP9.

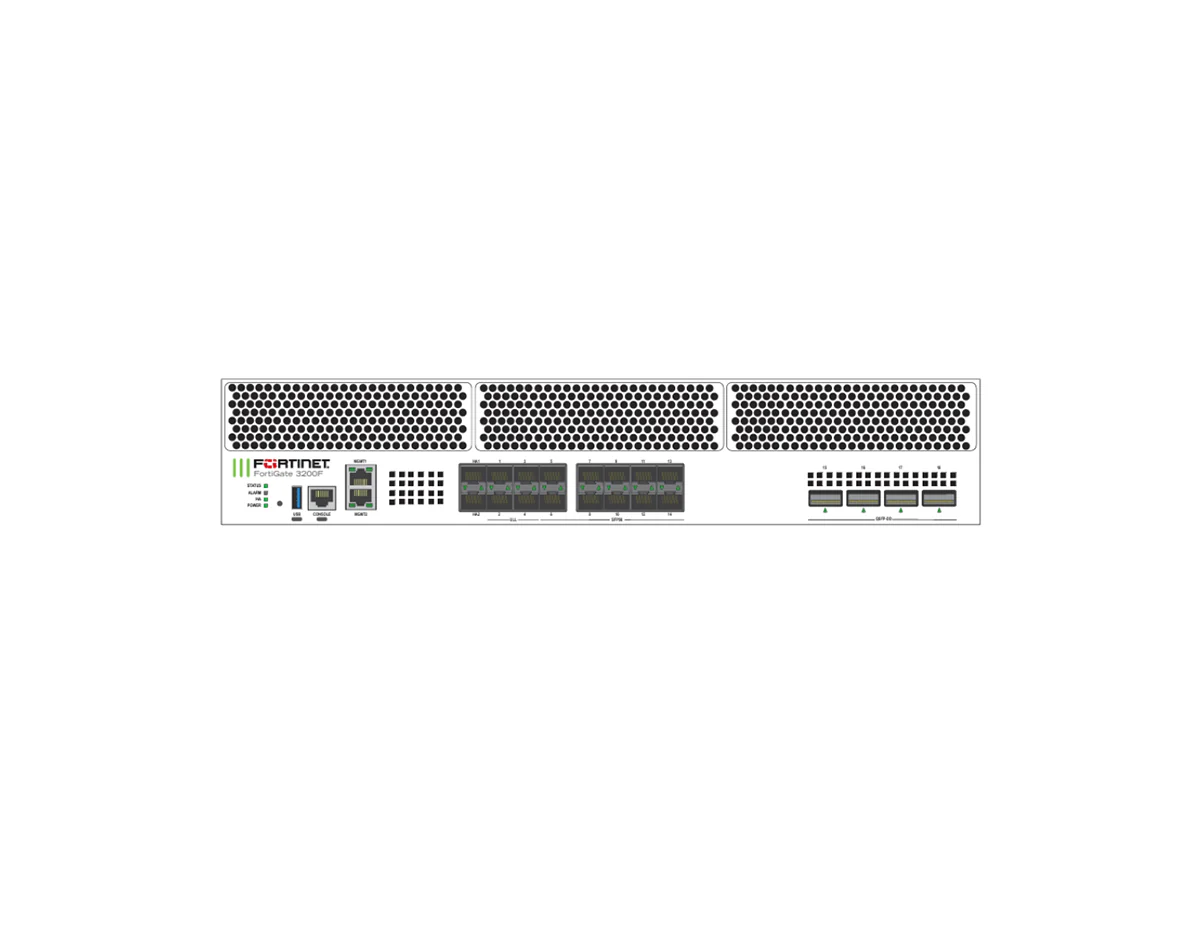

• 4x 400 GE QSFP-DD slots plus 50 GE SFP56 ports.
• 47 Gbps NGFW throughput and 45 Gbps threat protection.
• 63 Gbps IPS throughput with AI/ML FortiGuard Services.
• Ultra-low latency down to 1.45 μs on ULL ports.

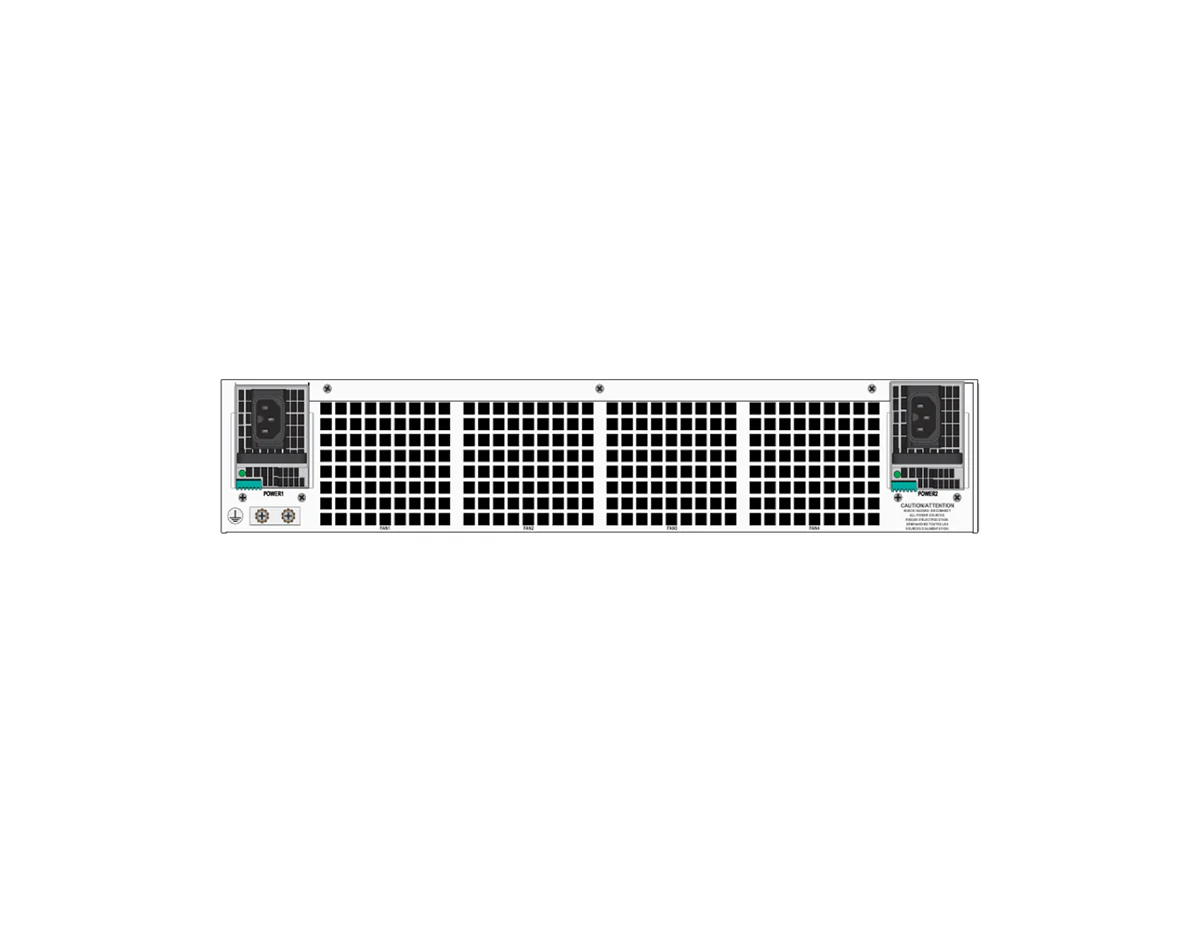

• Rack-mount 2RU chassis with dual AC power supplies.

Upgrade Your Network Security

Equip your data center with FG-3200F-BDL-950-60 for 400 GE speed and FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).
