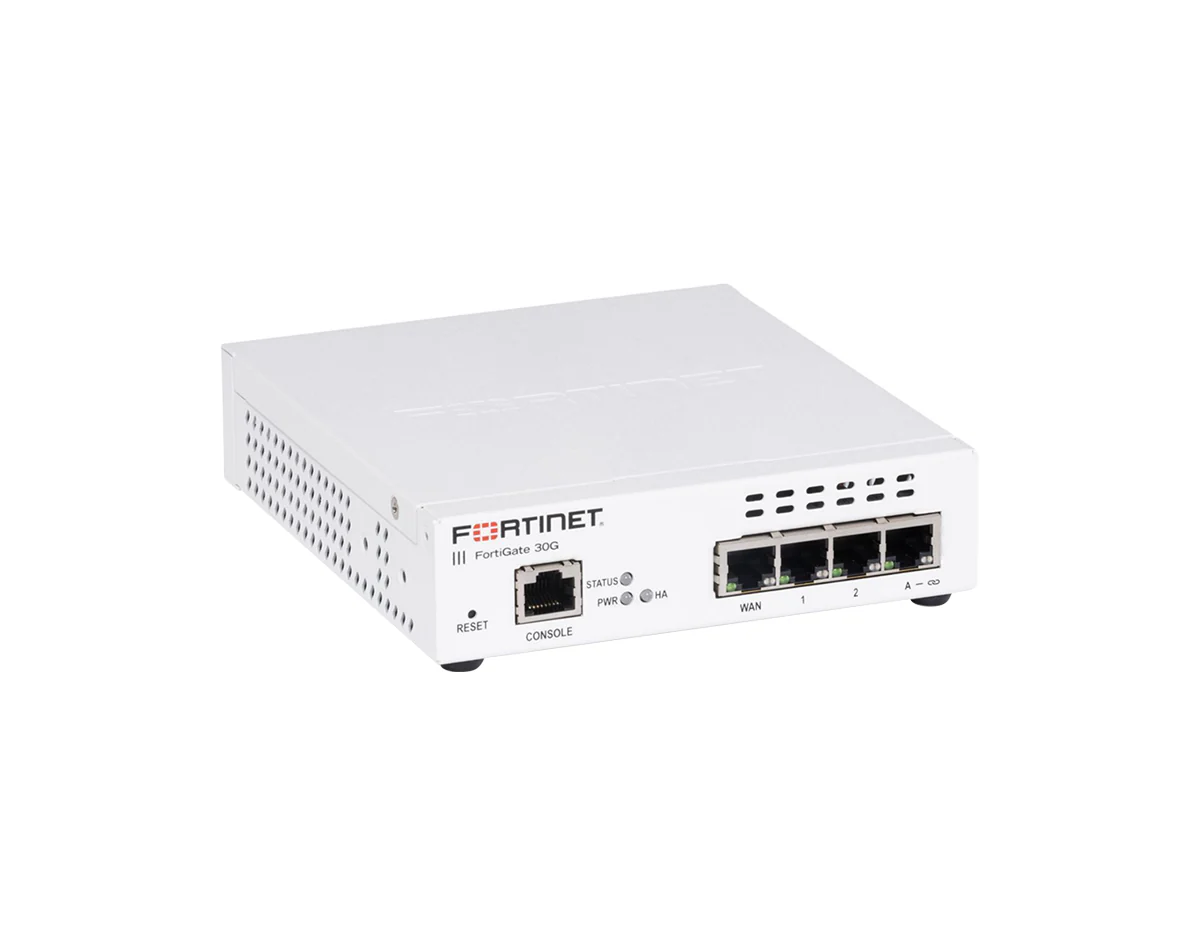

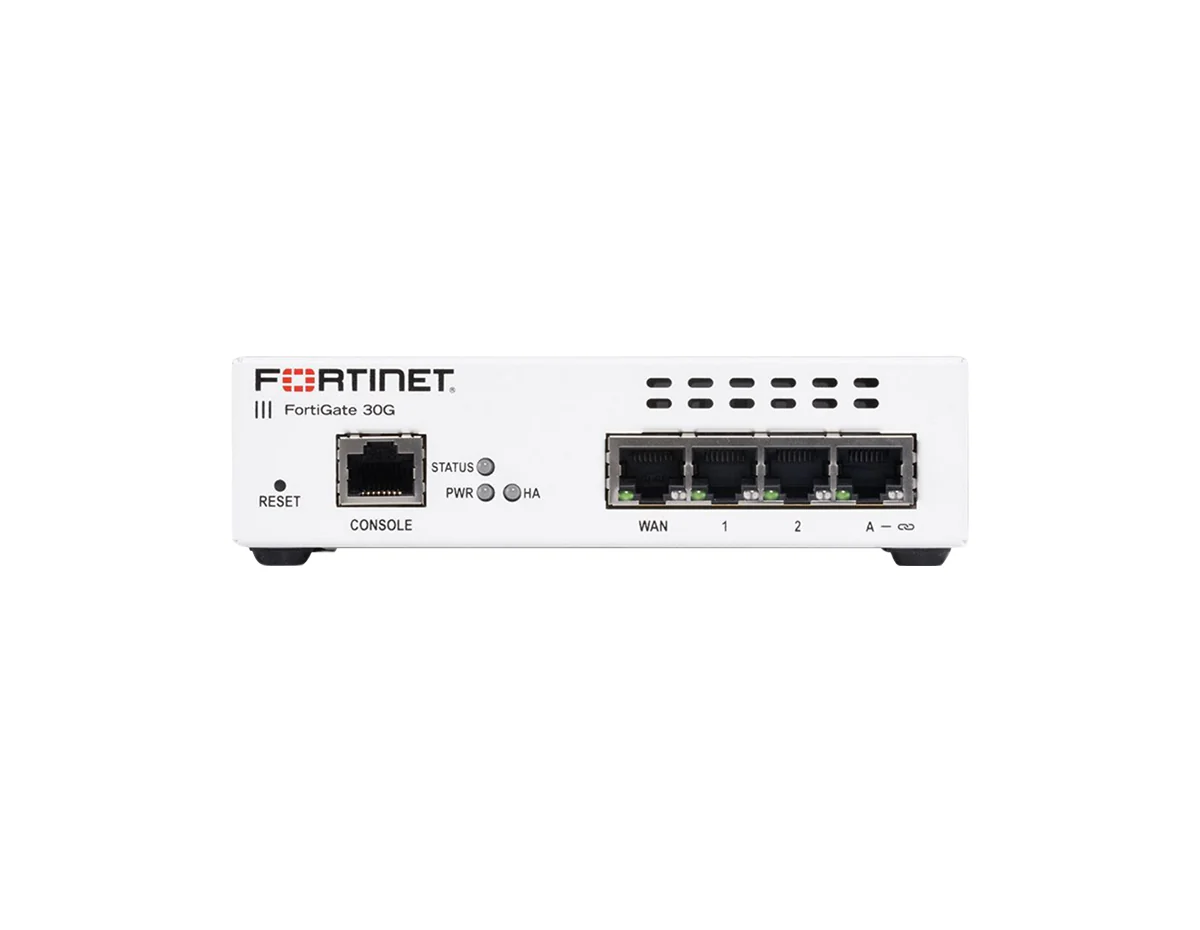

Fortinet FortiGate 31G Next-Generation Firewall - 1YR Unified Threat Protection (UTP) Bundle
[shortdesc] FortiGate 31G Firewall, desktop, 4x GE RJ45, 30 GB storage, 570 Mbps NGFW, SD-WAN, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]
[properties]
| Model / SKU | FortiGate 31G / FG-31G-BDL-950-12 |
| Bundle Service | 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) |
| Form Factor | Desktop |
| NGFW Throughput | 570 Mbps |
| Internal Storage | 30 GB SSD |
| Interfaces | 4x GE RJ45 (1x WAN, 3x Internal including 1x FortiLink) |
| Dimensions | 1.6 x 5.6 x 6.3 in (40.5 x 142 x 160 mm) |
| Weight | 1.3 lbs (0.6 kg) |
[/properties]
[specifications]
| System Performance (Enterprise Traffic Mix) | |
|---|---|
| IPS Throughput | 800 Mbps |
| Threat Protection Throughput | 500 Mbps |
| System Performance | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 4 / 4 / 3.9 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 4 / 4 / 3.9 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.87 μs |
| IPsec VPN Throughput (512 byte) | 3.5 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 400 Mbps |
| Application Control Throughput (HTTP 64K) | 830 Mbps |
| System Capacity | |
| Concurrent Sessions (TCP) | 600,000 |
| New Sessions/Second (TCP) | 30,000 |
| Firewall Policies | 2,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| Max FortiSwitches Supported | 8 |
| Max FortiAPs (Total / Tunnel) | 16 / 8 |
| Hardware Specifications | |
| Hardware Accelerated GE WAN Port | 1 |
| Hardware Accelerated GE RJ45 Ports | 2 |
| Hardware Accelerated GE RJ45 FortiLink Port | 1 |
| Console Port (RJ45) | 1 |
| Trusted Platform Module (TPM) | Yes |
| Environment & Power | |
| Power Rating | 12VDC, 2A |
| Power Consumption (Average / Maximum) | 8.1 W / 9.3 W |
| Heat Dissipation | 31.713 BTU/hr |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Altitude | 10,000 ft (3,048 m) |
| Compliance / Certifications | FCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional | Wall Mount Kit (SP-FG60F-MOUNT-20) |
| Optional | AC Power Adaptor (SP-FG-30G-PA-10(-XX)) |
[/accesories]
The FortiGate 31G (FG-31G-BDL-950-12) is a cornerstone for modern branch security, integrating firewalling, SD-WAN, and security functions into a single, power-efficient appliance. Built on a patented SD-WAN-based ASIC and powered by the FortiOS operating system, it delivers strong performance for distributed enterprise sites while reducing cost and power consumption. This unit includes 30 GB of onboard storage for localized logging and data management at the branch edge.
The included Unified Threat Protection (UTP) bundle combines FortiGuard security services with FortiCare Premium for streamlined operations and support. It helps protect against network and web-based threats while enabling centralized management and visibility for small to mid-size businesses and remote office locations.
High-Performance Security with 30GB Storage and Unified Protection
- Patented SD-WAN-based ASIC: Accelerates networking and security convergence for efficient application identification and secure connectivity at branch locations.
- 1-Year Unified Threat Protection: Includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) entitlement for consolidated security services.
- Onboard Storage: 30 GB integrated storage to support local logging and reporting.
- Integrated Secure SD-WAN: Combines SD-WAN and firewalling in a single FortiOS operating system for unified networking and security management.
- Hardware-Based Hardening: Built-in Trusted Platform Module (TPM) to support secure key storage and platform integrity.
- Security Fabric Integration: Operates as part of the Fortinet Security Fabric for coordinated, automated threat protection across connected environments.
- Compact Desktop Design: Small, reliable form factor with low power consumption for space- and energy-conscious deployments.
Ideal Use Cases
- Perimeter Protection: Inspects and controls traffic with security policies and real-time SSL inspection for full visibility into users, devices, and applications.
- Secure SD-WAN: Delivers integrated WAN edge with unified management from a single FortiOS operating system.
- Secure Branch: Extends protection to WAN, LAN, and WLAN with integrated FortiSwitch and FortiAP connectivity support.
- Hybrid Work Enablement: Supports secure access and WAN connectivity for distributed users and branch locations.
Technical Specifications Summary
- IPS Throughput (Enterprise Traffic Mix): 800 Mbps
- Threat Protection Throughput (Enterprise Traffic Mix): 500 Mbps
- IPv4 Firewall Throughput (1518/512/64 byte UDP): 4 / 4 / 3.9 Gbps
- IPv6 Firewall Throughput (1518/512/86 byte UDP): 4 / 4 / 3.9 Gbps
- IPsec VPN Throughput (512 byte): 3.5 Gbps
- SSL Inspection Throughput (IPS, avg. HTTPS): 400 Mbps
- Application Control Throughput (HTTP 64K): 830 Mbps
- Concurrent Sessions / New Sessions: 600,000 (TCP) / 30,000 per second (TCP)
- Interfaces: 4x GE RJ45 (1x WAN, 3x Internal including 1x FortiLink) + 1x Console (RJ45)
- Storage Capacity: 30 GB
- Power Rating / Consumption (Avg/Max): 12VDC, 2A / 8.1 W / 9.3 W
- Dimensions / Weight / Operating Temp: 1.6 x 5.6 x 6.3 in (40.5 x 142 x 160 mm) / 1.3 lbs (0.6 kg) / 32°F to 104°F (0°C to 40°C)
Upgrade Your Network Security
Deploy the FortiGate 31G today to consolidate firewalling, SD-WAN, and security services in a compact desktop appliance for distributed sites.
