[shortdesc]FG-3001F-DC-BDL-950-60 Next-Generation Firewall, 100 GE QSFP28, 2x 960GB SSD, DC power, FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 5 Year.[/shortdesc]

[properties]

SKU	FG-3001F-DC-BDL-950-60
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year)
Form Factor	Rack Mount, 2 RU
NGFW Throughput	34 Gbps
Threat Protection Throughput	33 Gbps
Interfaces Summary	6x 100 GE QSFP28/40 GE QSFP+, 16x 25 GE SFP28/10 GE SFP+/GE SFP (includes 2x HA Slots), 16x 10 GE/5 GE/2.5 GE/GE RJ45, 2x 10 GE/GE RJ45 Mgmt
Internal Storage	2x 960GB SSD
Power Input	48-60VDC
Dimensions (H x W x L)	88.9 x 443 x 556 mm (3.5 x 17.44 x 21.89 inches)
Weight	17.3 kg (38.2 lbs)

[/properties]

[specifications]

System Performance
IPS Throughput	36 Gbps
NGFW Throughput	34 Gbps
Threat Protection Throughput	33 Gbps
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	397 / 389 / 221 Gbps
Firewall Latency (64 byte, UDP)	3.92 µs
IPsec VPN Throughput (512 byte)	105 Gbps
SSL Inspection Throughput	29 Gbps
Concurrent Sessions (TCP)	70 Million / 230 Million* (230 Million requires Hyperscale Firewall License)
Hardware & Interfaces
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	6
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16 (includes 2x HA Slots)
Hardware Accelerated 10 GE / 5 GE / 2.5 GE / GE RJ45 Ports	16
10 GE / GE RJ45 Management Ports	2
USB Ports	1 / 1 (Client / Server)
Console Port	1
Trusted Platform Module (TPM)	Yes
Environment & Power
DC Current (Maximum)	15A @ 48V
Power Consumption (Average / Maximum)	420 W / 690 W
Heat Dissipation	2356 BTU/h
Redundant Power Supplies	Yes (2 DC power supplies)

[/specifications]

[accesories]

Optional Accessories

Rack Mount Sliding Rails (SP-FG3040B-RAIL), DC Power Supply (SP-FG3800D-DC-PS), Transceiver Modules (1 GE SFP, 10 GE SFP+, 25 GE SFP28, 40 GE QSFP+, 100 GE QSFP28)

[/accesories]

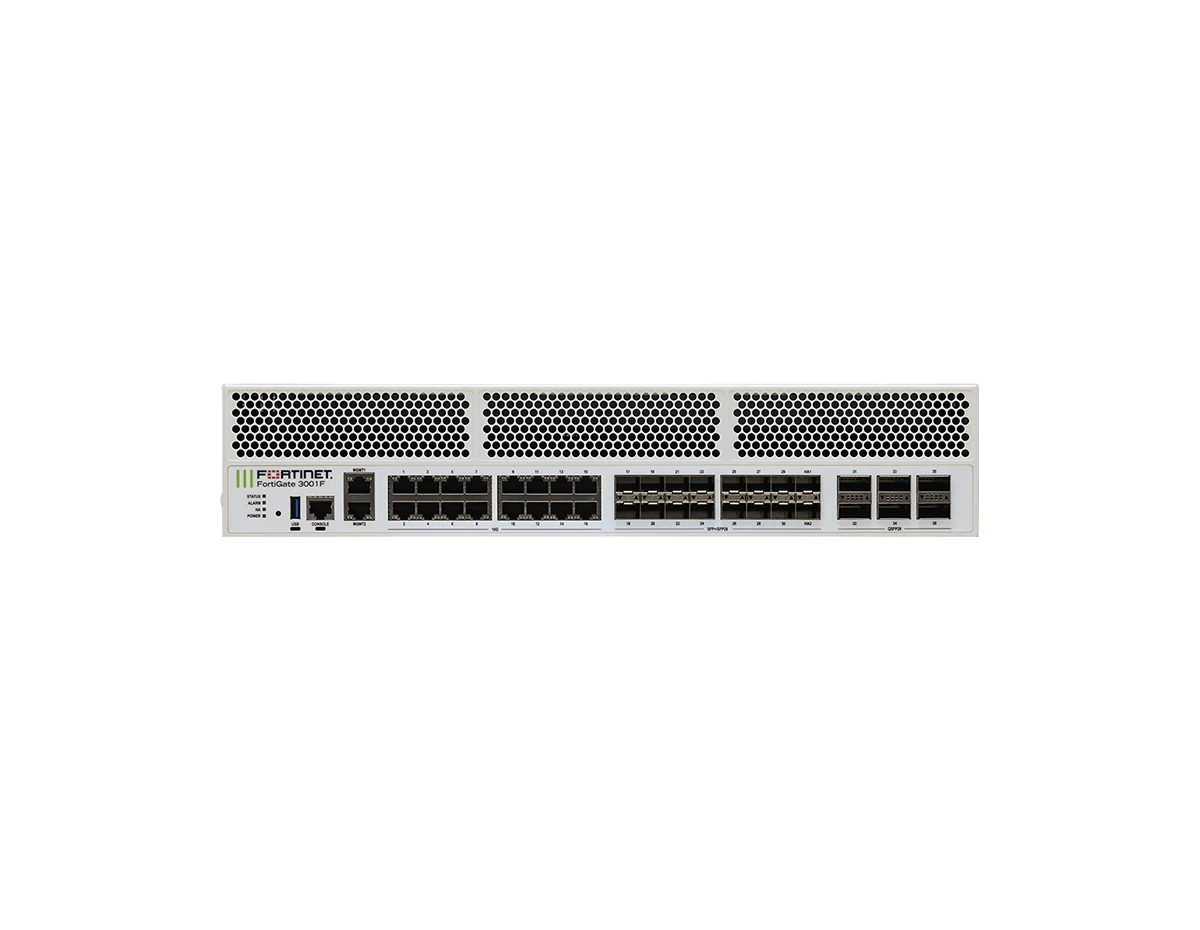

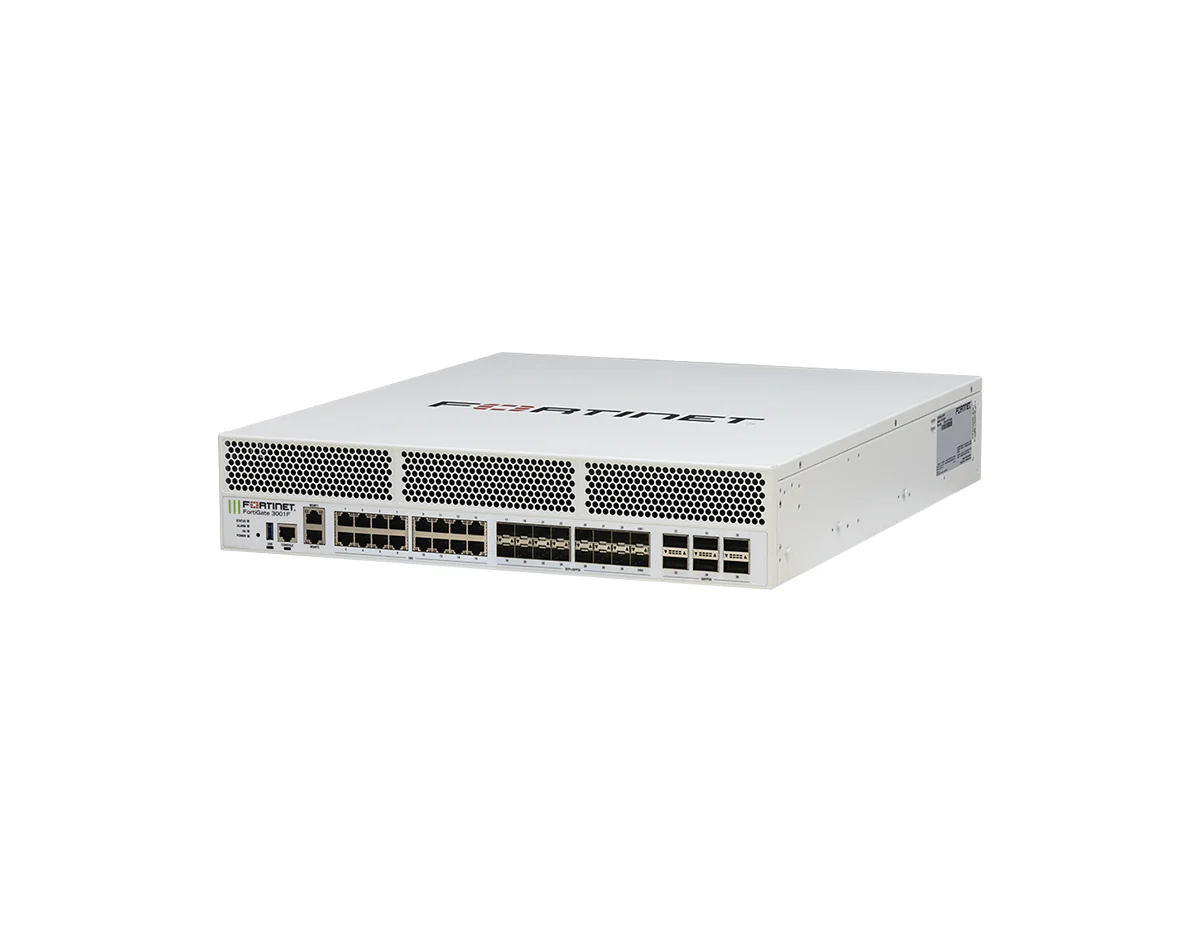

The FortiGate 3001F-DC is a Next-Generation Firewall (NGFW) for DC-powered data center and telecom deployments, with 2x 960GB SSDs and 100 GE connectivity. This bundle includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).

Powered by Fortinet's SPU NP7 and CP9 processors, it delivers 34 Gbps of NGFW throughput with ultra-low latency. High-speed interfaces and onboard storage support hyperscale security architectures and local logging.

Hyperscale Security with Dedicated DC Power and Onboard Storage

• 34 Gbps NGFW throughput with NP7 and CP9 acceleration.
• 6x 100 GE QSFP28 / 40 GE QSFP+ slots.
• 16x 25 GE SFP28/10 GE SFP+/GE SFP slots.
• 16x multi-gig RJ45 ports plus 2x 10 GE/GE mgmt.
• 2x 960GB SSD onboard storage for local logging.
• 48-60VDC input with redundant dual DC power supplies.

Upgrade Your Network Security

Deploy the FortiGate FG-3001F-DC-BDL-950-60 with FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).
