[shortdesc]FG-3001F-BDL-950-60 NGFW, 2x 960GB SSD, 100 GE QSFP28 + 25 GE SFP28, Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 5 Year.[/shortdesc]

[properties]

SKU	FG-3001F-BDL-950-60
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year)
Form Factor	Rack Mount, 2 RU
NGFW Throughput	34 Gbps
Threat Protection Throughput	33 Gbps
Interfaces Summary	6x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots (includes 2x HA slots), 16x 10 GE / 5 GE / 2.5 GE / GE RJ45 ports, 2x 10 GE / GE RJ45 management ports
Internal Storage	2x 960GB SSD
Power Input	100–240V AC, 50/60 Hz
Dimensions (H x W x L)	88.9 x 443 x 556 mm (3.5 x 17.44 x 21.89 inches)
Weight	17.3 kg (38.2 lbs)

[/properties]

[specifications]

Performance / Throughput
IPS Throughput	36 Gbps
NGFW Throughput	34 Gbps
Threat Protection Throughput	33 Gbps
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	397 / 389 / 221 Gbps
Firewall Latency (64 byte, UDP)	3.92 µs
IPsec VPN Throughput (512 byte)	105 Gbps
SSL Inspection Throughput	29 Gbps
Interfaces / Ports
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	6
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16 (includes 2x HA Slots)
Hardware Accelerated 10 GE / 5 GE / 2.5 GE / GE RJ45 Ports	16
10 GE / GE RJ45 Management Ports	2
USB Ports (Client / Server)	1 / 1
Console Port	1
Trusted Platform Module (TPM)	Yes
VPN / NGFW Capacity
Concurrent Sessions (TCP)	70 Million / 230 Million
New Sessions/Second (TCP)	870,000 / 3 Million
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
SSL-VPN Throughput	11 Gbps
Concurrent SSL-VPN Users (Recommended Max)	30,000
Dimensions / Weight / Form Factor
Height x Width x Length (mm)	88.9 x 443 x 556
Weight	17.3 kg (38.2 lbs)
Form Factor (supports EIA/non-EIA standards)	Rack Mount, 2 RU
Power / Consumption
Power Consumption (Average / Maximum)	420 W / 690 W
AC Power Supply	100–240V AC, 50/60 Hz
AC Current (Maximum)	12A @ 100V, 9A @ 240V
Redundant Power Supplies	Yes (Default dual AC PSU for 1+1 Redundancy)

[/specifications]

[accesories]

Optional Accessories

Rack Mount Sliding Rails (SP-FG3040B-RAIL), AC Power Supply (SP-FG3800D-PS), DC Power Supply (SP-FG3800D-DC-PS), Transceiver Modules (1 GE SFP LX/SX/RJ45, 10 GE SFP+ SR/LR/ER/BD27/BD33/ZR, 25 GE SFP28 SR/LR, 40 GE QSFP+ SR/SR-BiDi/LR/ER, 100 GE QSFP28 SR/LR/CWDM4/BiDi/ER), 25 GE SFP28 Passive Direct Attach Cables (FN-CABLE-SFP28-1/3/5)

[/accesories]

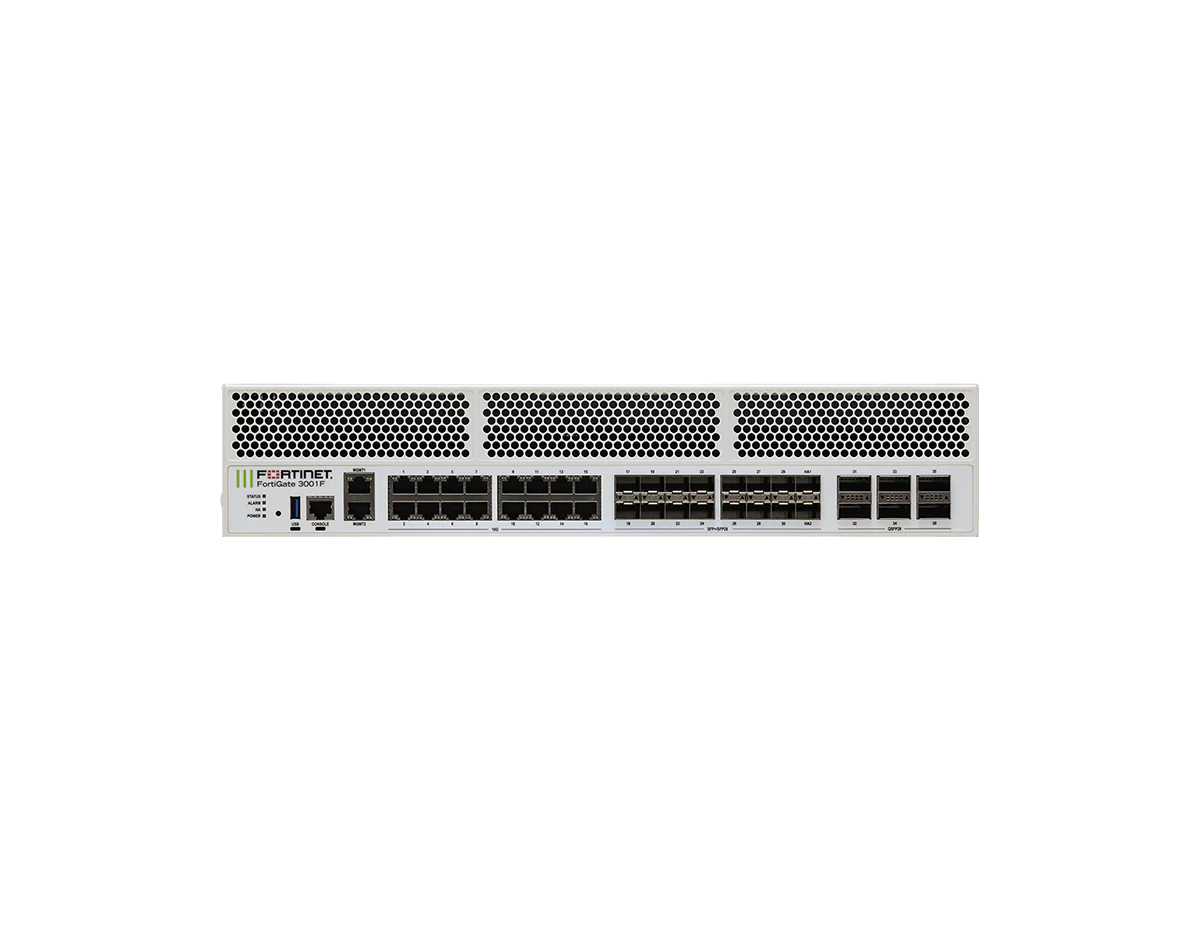

The FortiGate 3001F Series enables organizations to build security-driven networks for Hybrid Mesh Firewall deployments across data center and hybrid IT environments. FG-3001F-BDL-950-60 includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for a 5 Year term.

Designed for flexibility and hyperscale, the FortiGate 3001F includes 2x 960GB SSD onboard storage for local logging and operational needs. Multiple high-speed interfaces—including 100 GE QSFP28 and 25 GE SFP28 slots—help keep security aligned with performance demands.

High Performance with Flexibility and Integrated Storage

• 34 Gbps NGFW throughput with SPU NP7/CP9 acceleration.
• 33 Gbps Threat Protection for enterprise applications and workloads.
• 6x 100GE QSFP28 / 40GE QSFP+ slots.
• 16x 25GE SFP28 / 10GE SFP+ / GE SFP slots.
• 2x 960GB SSD onboard storage for local logging.
• Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (5 Year).

Upgrade Your Network Security

Deploy FG-3001F-BDL-950-60 with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 5 Year.
