[shortdesc]Firewall, 4x 100GE QSFP28, 2RU rack mount, 2x 960GB NVMe SSD, 25 Gbps threat protection, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]

[properties]

Product Series	FortiGate 2600F Series
SKU	FG-2601F-BDL-950-12
Bundle / Subscription	FortiGate appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year)
Form Factor	Rack Mount, 2RU
Threat Protection Throughput	25 Gbps
Interfaces	4x 100 GE QSFP28 / 40 GE QSFP+, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x 10 GE RJ45, 2x 10 GE SFP+ / GE SFP HA, 2x GE RJ45 MGMT
Onboard Storage	2x 960GB NVMe SSD
Dimensions (H x W x L)	3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm)
Weight	30.9 lbs (14.0 kg)

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	31 Gbps
NGFW Throughput	27 Gbps
System Performance & Capacity
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	198 / 196 / 140 Gbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	198 / 196 / 140 Gbps
Firewall Latency (64 byte, UDP)	3.41 μs
Firewall Throughput (Packet per Second)	210 Mpps
Concurrent Sessions (TCP)	24 Million / 40 Million*
New Sessions/Second (TCP)	1 Million / 2 Million*
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	16 Gbps
Concurrent SSL-VPN Users (Recommended Max, Tunnel Mode)	30,000
SSL Inspection Throughput (IPS, avg. HTTPS)	20 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	16,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	2.7 Million
Application Control Throughput (HTTP 64K)	64 Gbps
CAPWAP Throughput (HTTP 64K)	62.5 Gbps
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiSwitches Supported	196
Maximum Number of FortiAPs (Total / Tunnel)	4096 / 2048
Maximum Number of FortiTokens	20,000
Maximum Number of Registered FortiClients	20,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	4
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16
Hardware Accelerated 10 GE / GE RJ45 Ports	16
Hardware Accelerated 10 GE SFP+ / GE SFP HA Slots	2
GE RJ45 Management Ports	2
USB 3.0 Port	1
Console RJ45 Port	1
Trusted Platform Module (TPM)	Included
Dimensions & Power
AC Power Supply	100–240VAC, 47/63 Hz
Power Consumption (Average / Maximum)	420.3 W / 513.7 W
Heat Dissipation	1754 BTU/h

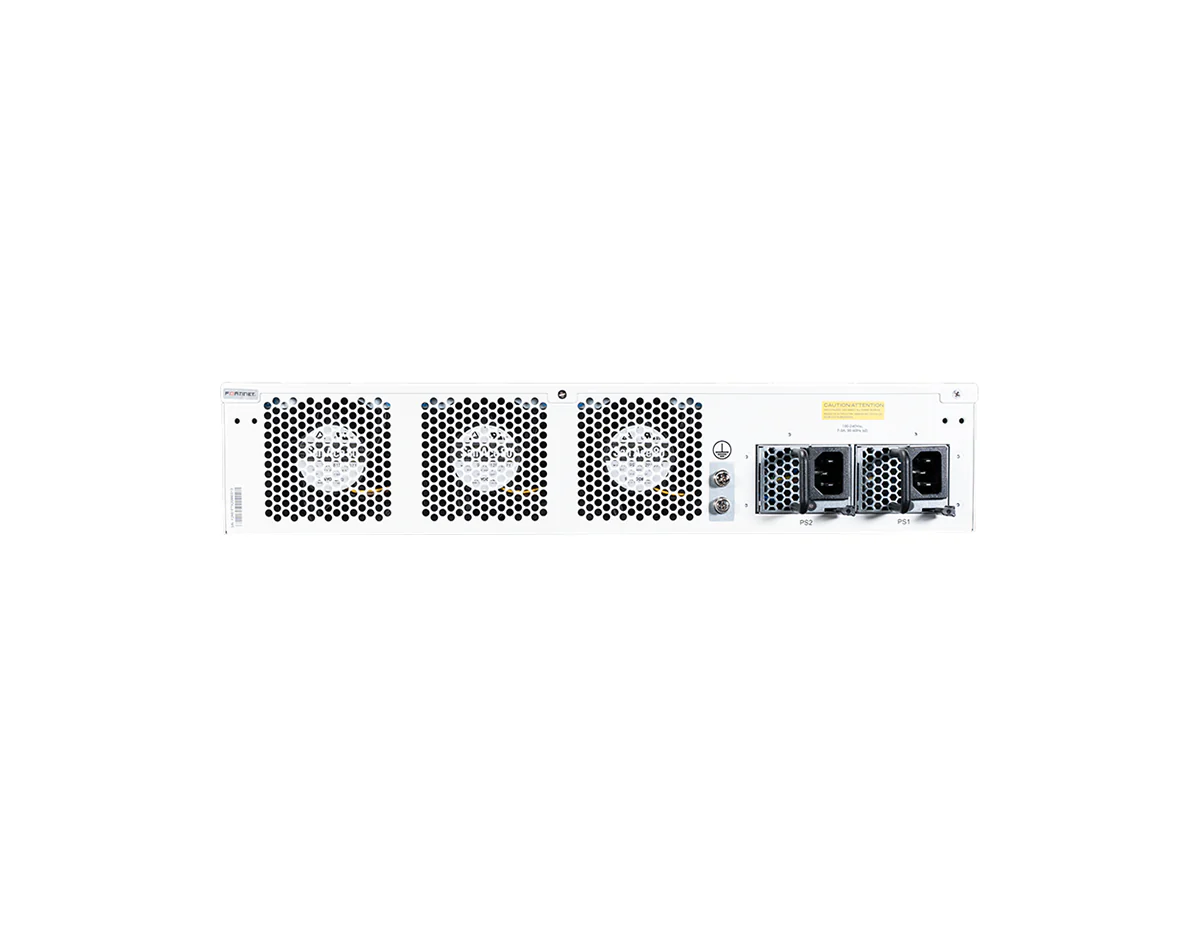

Redundant Power Supplies	Default dual AC PSU for 1+1 Redundancy (Hot Swappable)
Operating Environment & Certifications
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	71.72 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Included Transceivers	2x SFP+ (SR 10 GE)
Optional Accessories	Rack Mount Sliding Rails, AC Power Supply, DC Power Supply, Various Transceiver Modules (1 GE SFP, 10 GE SFP+, 25 GE SFP28, 40 GE QSFP+, 100 GE QSFP28), Direct Attach Cables

[/accesories]

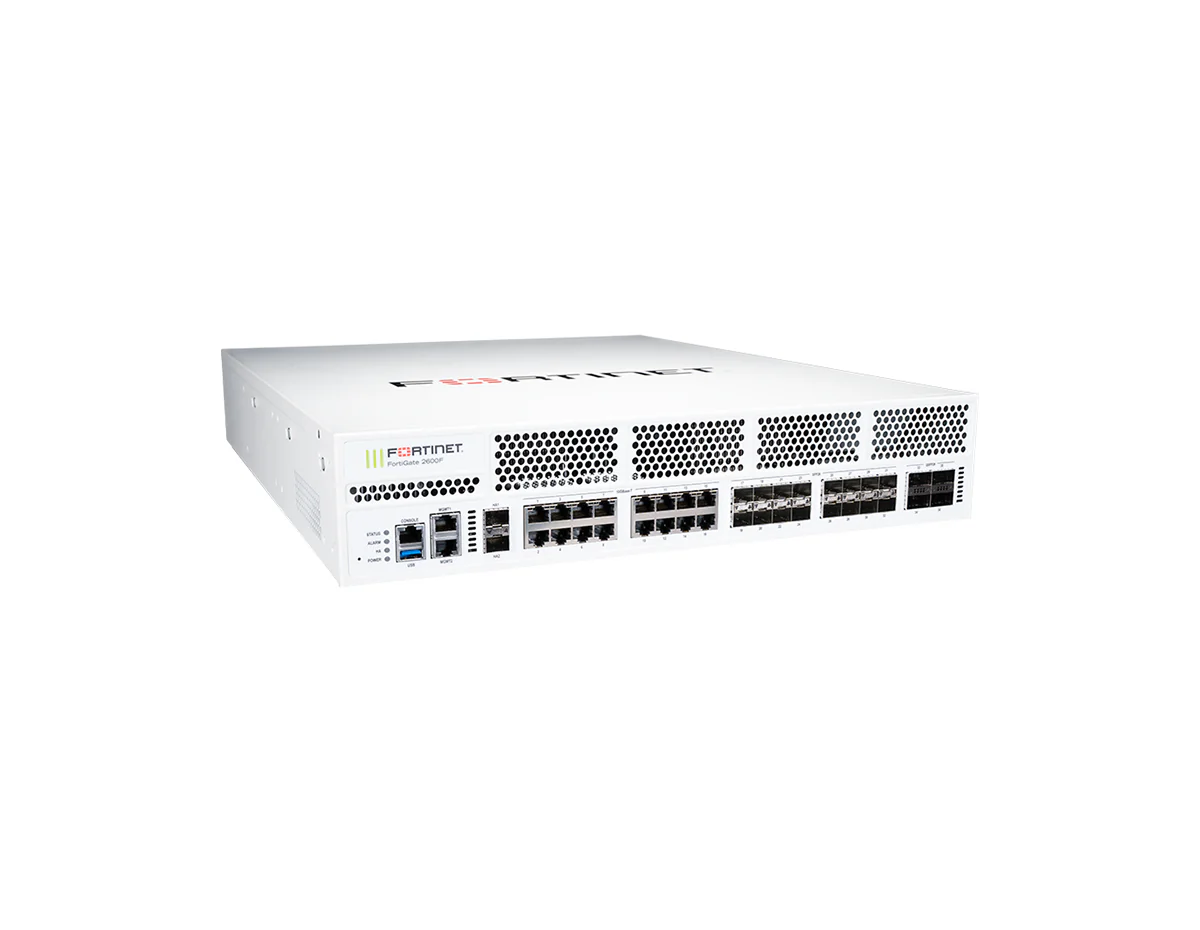

The FortiGate 2601F Series empowers organizations to build security-driven networks, forming the foundation of a robust Hybrid Mesh Firewall architecture. By weaving security deep into the data center and across hybrid IT environments, it protects any edge at any scale. This FG-2601F-BDL-950-12 bundle includes FortiGate 2601F with FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for a 1 Year term.

With integrated 2x 960GB NVMe SSD onboard storage, the FG-2601F adds local storage capacity within the appliance. It supports the industry's first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, automatically controlling and verifying user access to applications. The comprehensive interface options, including high-speed 100 GE and 25 GE slots, help ensure security does not become a performance bottleneck in high-bandwidth environments.

Hyperscale Security and Performance for the Enterprise Edge

• Unparalleled Performance: Patented SPU NP7 and CP9 processors deliver up to 198 Gbps firewall throughput and 25 Gbps threat protection throughput to handle massive traffic volumes.
• Local Storage Included: Equipped with dual 960GB NVMe SSDs to support on-device storage requirements within the appliance.
• High-Speed Connectivity: Features multiple 100 GE QSFP28 and 25 GE SFP28 slots to simplify network design and eliminate the need for additional bridging devices.
• Integrated ZTNA: Delivers the industry's first integrated Zero Trust Network Access enforcement, providing consistent convergence and seamless user experience.
• Operational Efficiency: Consolidates networking and security into a single platform powered by FortiOS, reducing complexity and lowering Total Cost of Ownership (TCO).
• Hardware-Assisted Security: Includes a Trusted Platform Module (TPM) to harden physical networking appliances and integrated hardware acceleration for VXLAN and IPsec.

• Enterprise Data Centers: Ideal for securing high-speed core networks with 100 GE connectivity and hyperscale inspection capabilities.
• Hybrid Cloud Environments: Provides dynamic segmentation and secure connectivity across on-premise and multi-cloud architectures.
• Internal Segmentation: Adapts to network topology to deliver end-to-end security and prevent lateral movement of threats using advanced VXLAN segmentation.
• Remote Workforce Security: Facilitates secure user access to applications through integrated ZTNA and high-performance IPsec VPN capabilities.

• IPS Throughput: 31 Gbps
• NGFW Throughput: 27 Gbps
• Threat Protection Throughput: 25 Gbps
• IPv4 Firewall Throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL-VPN Throughput: 16 Gbps
• Concurrent Sessions (TCP): 24 Million / 40 Million*
• Onboard Storage: 2x 960GB NVMe SSD
• Network Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x 10 GE RJ45, 2x 10 GE SFP+ / GE SFP HA, 2x GE RJ45 MGMT
• Power Consumption (Average / Maximum): 420.3 W / 513.7 W

Upgrade Your Network Security

Deploy the FortiGate 2601F-BDL-950-12 today for uncompromising performance, integrated storage, and UTP coverage backed by FortiCare Premium for a 1 Year term.
