[shortdesc]FG-2600F-DC-BDL-950-36, Firewall, 2RU DC power, NP7/CP9 SPUs, 4x100GE, 16x25GE, including 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]

[properties]

Product SKU	FG-2600F-DC-BDL-950-36
Bundle / Subscription	Appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (3 Year)
Form Factor	Rack Mount, 2RU
IPS Throughput	31 Gbps
NGFW Throughput	27 Gbps
Threat Protection Throughput	25 Gbps
Interfaces	4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, 8x 10GE SFP+ slots, 16x 10GE RJ45 ports, 2x 10G SFP+ HA slots, 2x 1G MGMT ports
Dimensions (H x W x L)	3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm)
Weight	30.6 lbs (13.9 kg)
Power Input	-48VDC to -60VDC

[/properties]

[specifications]

System Performance
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	198 / 196 / 140 Gbps
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	198 / 196 / 140 Gbps
Firewall Latency (64 byte, UDP)	3.41 μs
Firewall Throughput (Packet per Second)	210 Mpps
IPsec VPN Throughput (512 byte)	55 Gbps
SSL-VPN Throughput	16 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	20 Gbps
Application Control Throughput (HTTP 64K)	64 Gbps
CAPWAP Throughput (HTTP 64K)	62.5 Gbps
System Capacity
Concurrent Sessions (TCP)	24 Million / 40 Million*
New Sessions/Second (TCP)	1 Million / 2 Million*
Firewall Policies	100,000
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	30,000
Virtual Domains (Default / Maximum)	10 / 500
Hardware & Interfaces
100 GE QSFP28 / 40 GE QSFP+ Slots	4
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16
10 GE SFP+ Slots	8
10 GE / GE RJ45 Ports	16
10 GE SFP+ / GE SFP HA Slots	2
GE RJ45 Management Ports	2
USB 3.0 Port	1
Console RJ45 Port	1
Trusted Platform Module (TPM)	Included
Environment & Power
Power Supply	Dual DC Power Supplies (-48VDC to -60VDC)
Power Consumption (Average / Maximum)	416 W / 510 W
DC Current	15A@48V, 9A@240V
Heat Dissipation	1740 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	71.72 dBA
Operating Altitude	Up to 10,000 ft. (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

Rack Mount Sliding Rails (SP-FG3040B-RAIL) DC Power Supply (SP-FG1800F-DC-PS) Hyperscale Firewall License (LIC-FGT-HYPSC-1K2K) 1 GE SFP LX Transceiver (FN-TRAN-LX) 1 GE SFP RJ45 Transceiver (FN-TRAN-GC) 1 GE SFP SX Transceiver (FN-TRAN-SX) 10 GE SFP+ RJ45 Transceiver (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver SR (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver LR (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver ER (FN-TRAN-SFP+ER) 25 GE SFP28 Transceiver SR (FN-TRAN-SFP28-SR) 25 GE SFP28 Transceiver LR (FN-TRAN-SFP28-LR) 40 GE QSFP+ Transceiver SR (FN-TRAN-QSFP+SR) 40 GE QSFP+ Transceiver LR (FN-TRAN-QSFP+LR) 100 GE QSFP28 Transceiver SR (FN-TRAN-QSFP28-SR) 100 GE QSFP28 Transceiver LR (FN-TRAN-QSFP28-LR) 100 GE QSFP28 BIDI Transceiver (FN-TRAN-QSFP28-BIDI)

[/accesories]

The FortiGate 2600F-DC is engineered to provide security-driven networking for large enterprises, service providers, and data centers requiring DC power infrastructure. Powered by Fortinet’s proprietary SPU NP7 (Network Processor) and CP9 (Content Processor), this appliance delivers hyperscale performance, including 31 Gbps IPS throughput and up to 198 / 196 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP), ensuring that security never becomes a bottleneck in high-speed environments.

This bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 3 Year.

With a robust set of interfaces including 100 GE QSFP28, 25 GE SFP28, and additional 10 GE SFP+ slots specific to the DC model, the FG-2600F-DC simplifies network architecture by reducing the need for additional switches or bridges. It supports consolidated security functions, integrated Zero Trust Network Access (ZTNA) enforcement, and ultra-scalable, low latency VXLAN segmentation bridging physical and virtual domains with Layer 4 firewall rules, making it an ideal solution for securing hybrid clouds, telco edges, and core networks.

Secure any edge at any scale with hyperscale performance and DC power reliability.

• Hyperscale Performance: Leverages SPU NP7 and CP9 technology to deliver up to 198 / 196 / 140 Gbps IPv4 firewall throughput and 31 Gbps IPS throughput for massive scale.
• DC Power Optimized: Equipped with dual DC power supplies (-48VDC to -60VDC) specifically designed for telecom and data center racks.

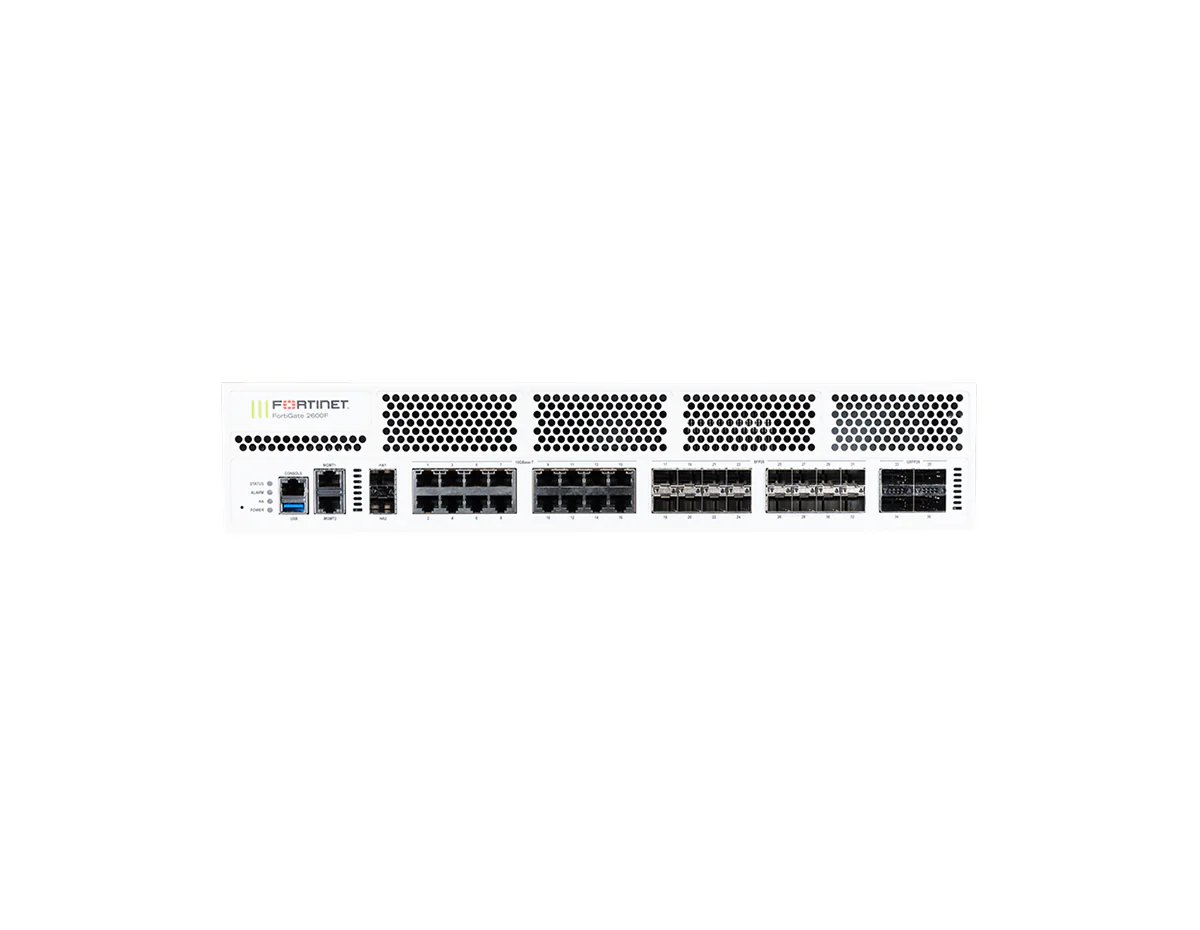

• Versatile Connectivity: Features 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, 8x 10GE SFP+ slots, and 16x 10GE RJ45 ports to support high-bandwidth segmentation.
• Integrated ZTNA: Integrated Zero Trust Network Access (ZTNA) enforcement automatically controls, verifies, and facilitates user access to applications.
• VXLAN Segmentation: Ultra-scalable, low latency VXLAN segmentation bridges physical and virtual domains with Layer 4 firewall rules.
• Real-time SSL Inspection: Provides full visibility into users, devices, and applications across the attack surface (including TLS 1.3).

• Service Provider/Telco Networks: Supports mobile security use cases for 4G, 5G, and IoT, including CGNAT and IPv6 migration options.
• Enterprise Data Centers: Provides high-speed segmentation and core security with redundant power and 100G interfaces.
• Hybrid Cloud Security: Enables dynamic segmentation and consistent policy enforcement across multi-cloud environments.
• Secure SD-WAN: Supports secure SD-WAN use cases within a unified security and management framework.
• High-Availability Clusters: Supports Active-Active, Active-Passive, and clustering configurations with dedicated HA slots.

Technical Specifications Summary

• IPv4 Firewall Throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps
• Firewall Latency (64 byte, UDP): 3.41 μs
• IPS Throughput: 31 Gbps
• NGFW Throughput: 27 Gbps
• Threat Protection Throughput: 25 Gbps
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL-VPN Throughput: 16 Gbps
• SSL Inspection Throughput (IPS, avg. HTTPS): 20 Gbps
• Concurrent Sessions (TCP): 24 Million / 40 Million*
• New Sessions/Second (TCP): 1 Million / 2 Million*
• Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+ slots, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, 8x 10 GE SFP+ slots, 16x 10 GE / GE RJ45 ports, 2x HA slots, 2x MGMT ports
• Power Consumption (Average / Maximum): 416 W / 510 W

Upgrade Your Network Security

Implement the FortiGate FG-2600F-DC-BDL-950-36 for robust, hyperscale protection in your DC-powered environment.
