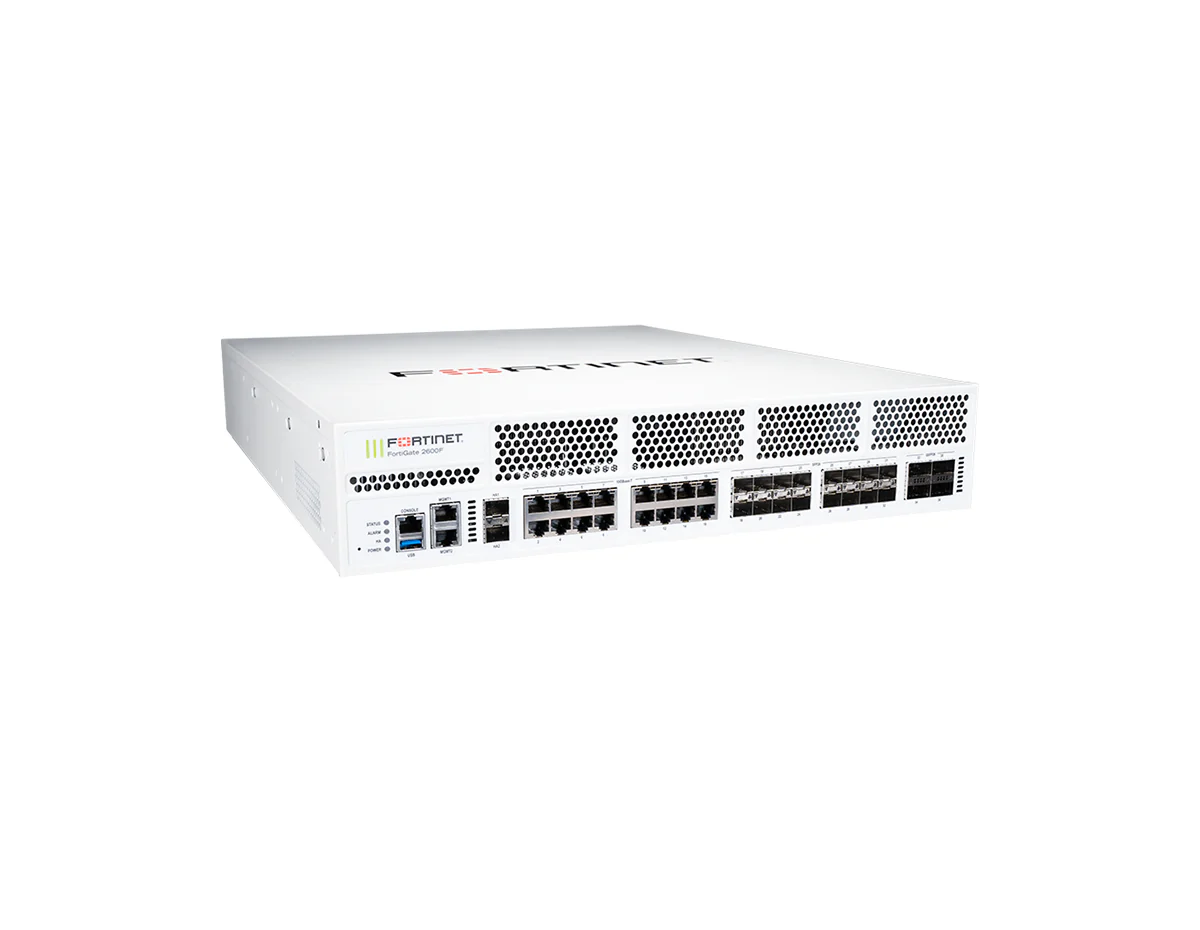

Fortinet FG-2600F-DC-BDL-950-12 Next-Generation Firewall
[shortdesc]Firewall, DC power 2RU, 4x 100GE QSFP28, 16x 25GE SFP28, IPS 31 Gbps, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]
[properties]
| Product SKU | FG-2600F-DC-BDL-950-12 |
| Bundle / Subscription | Appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year) |
| Form Factor | Rack Mount, 2RU |
| IPS Throughput | 31 Gbps |
| NGFW Throughput | 27 Gbps |
| Threat Protection Throughput | 25 Gbps |
| Interfaces | 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, 8x 10GE SFP+ slots, 16x 10GE RJ45 ports, 2x 10G SFP+ HA slots, 2x 1G MGMT ports |
| Dimensions (H x W x L) | 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm) |
| Weight | 30.6 lbs (13.9 kg) |
| Power Input | -48VDC to -60VDC |
[/properties]
[specifications]
| System Performance | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 198 / 196 / 140 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 198 / 196 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.41 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 16 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 20 Gbps |
| Application Control Throughput (HTTP 64K) | 64 Gbps |
| CAPWAP Throughput (HTTP 64K) | 62.5 Gbps |
| System Capacity | |
| Concurrent Sessions (TCP) | 24 Million / 40 Million* |
| New Sessions/Second (TCP) | 1 Million / 2 Million* |
| Firewall Policies | 100,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Hardware & Interfaces | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 |
| 10 GE SFP+ Slots | 8 |
| 10 GE / GE RJ45 Ports | 16 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Trusted Platform Module (TPM) | Included |
| Environment & Power | |
| Power Supply | Dual DC Power Supplies (-48VDC to -60VDC) |
| Power Consumption (Average / Maximum) | 416 W / 510 W |
| DC Current (Average / Maximum) | 15A@48V, 9A@240V |
| Heat Dissipation | 1740 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 71.72 dBA |
| Operating Altitude | Up to 10,000 ft. (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL) DC Power Supply (SP-FG1800F-DC-PS) Hyperscale Firewall License (LIC-FGT-HYPSC-1K2K) 1 GE SFP LX Transceiver (FN-TRAN-LX) 1 GE SFP RJ45 Transceiver (FN-TRAN-GC) 1 GE SFP SX Transceiver (FN-TRAN-SX) 10 GE SFP+ RJ45 Transceiver (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver SR (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver LR (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver ER (FN-TRAN-SFP+ER) 25 GE SFP28 Transceiver SR (FN-TRAN-SFP28-SR) 25 GE SFP28 Transceiver LR (FN-TRAN-SFP28-LR) 40 GE QSFP+ Transceiver SR (FN-TRAN-QSFP+SR) 40 GE QSFP+ Transceiver LR (FN-TRAN-QSFP+LR) 100 GE QSFP28 Transceiver SR (FN-TRAN-QSFP28-SR) 100 GE QSFP28 Transceiver LR (FN-TRAN-QSFP28-LR) 100 GE QSFP28 BIDI Transceiver (FN-TRAN-QSFP28-BIDI) |
[/accesories]
The FortiGate 2600F-DC is engineered to provide security-driven networking for large enterprises, service providers, and data centers requiring DC power infrastructure. Powered by Fortinet’s proprietary SPU NP7 (Network Processor) and CP9 (Content Processor), this appliance delivers hyperscale performance, including 31 Gbps IPS throughput and up to 198 / 196 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP), ensuring that security never becomes a bottleneck in high-speed environments.
This bundle includes the appliance plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 Year.
With a robust set of interfaces including 100 GE QSFP28, 25 GE SFP28, and additional 10 GE SFP+ slots specific to the DC model, the FG-2600F-DC simplifies network architecture by reducing the need for additional switches or bridges. It supports consolidated security functions, integrated Zero Trust Network Access (ZTNA) enforcement, and ultra-scalable, low latency, VXLAN segmentation, making it an ideal solution for securing hybrid clouds, telco edges, and core networks.
Secure any edge at any scale with hyperscale performance and DC power reliability.
- Hyperscale Performance: Leverages SPU NP7 and CP9 technology to deliver up to 198 / 196 / 140 Gbps IPv4 firewall throughput and 31 Gbps IPS throughput for massive scale.
- DC Power Optimized: Equipped with dual DC power supplies (-48VDC to -60VDC) specifically designed for telecom and data center racks.
- Versatile Connectivity: Features 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, and 8x 10GE SFP+ slots to support high-bandwidth segmentation.
- Integrated ZTNA: The industry's first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution to automatically control, verify, and facilitate user access to applications.
- VXLAN Segmentation: Ultra-scalable, low latency, VXLAN segmentation bridges physical and virtual domains with Layer 4 firewall rules.
- AI-Powered Security Services: FortiGuard AI-Powered Security Services and real-time SSL inspection provide visibility into users, devices, and applications across the attack surface.
- Service Provider/Telco Networks: Ideal for securing mobile cores and edges (4G/5G) with DC power and CGNAT options.
- Enterprise Data Centers: Provides high-speed segmentation and core security with redundant power and 100G interfaces.
- Hybrid Cloud Security: Secures multi-cloud environments with dynamic segmentation and consistent policy enforcement.
- Secure SD-WAN: Supports secure SD-WAN use cases through unified security and management.
- High-Availability Clusters: Dedicated HA slots allow for robust Active-Active or Active-Passive configurations.
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps
- IPv6 Firewall Throughput (1518/512/86 byte, UDP): 198 / 196 / 140 Gbps
- IPS Throughput: 31 Gbps
- NGFW Throughput: 27 Gbps
- Threat Protection Throughput: 25 Gbps
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL-VPN Throughput: 16 Gbps
- Firewall Latency (64 byte, UDP): 3.41 μs
- Concurrent Sessions (TCP): 24 Million / 40 Million*
- Power Consumption (Average / Maximum): 416 W / 510 W
- Heat Dissipation: 1740 BTU/h
Upgrade Your Network Security
Implement the FortiGate FG-2600F-DC-BDL-950-12 for robust, hyperscale protection in your DC-powered environment.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Fortinet FG-2600F-DC-BDL-950-12 Next-Generation Firewall
Fortinet FG-2600F-DC-BDL-950-12 Next-Generation Firewall
[shortdesc]Firewall, DC power 2RU, 4x 100GE QSFP28, 16x 25GE SFP28, IPS 31 Gbps, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]
[properties]
| Product SKU | FG-2600F-DC-BDL-950-12 |
| Bundle / Subscription | Appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year) |
| Form Factor | Rack Mount, 2RU |
| IPS Throughput | 31 Gbps |
| NGFW Throughput | 27 Gbps |
| Threat Protection Throughput | 25 Gbps |
| Interfaces | 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, 8x 10GE SFP+ slots, 16x 10GE RJ45 ports, 2x 10G SFP+ HA slots, 2x 1G MGMT ports |
| Dimensions (H x W x L) | 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm) |
| Weight | 30.6 lbs (13.9 kg) |
| Power Input | -48VDC to -60VDC |
[/properties]
[specifications]
| System Performance | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 198 / 196 / 140 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 198 / 196 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.41 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 16 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 20 Gbps |
| Application Control Throughput (HTTP 64K) | 64 Gbps |
| CAPWAP Throughput (HTTP 64K) | 62.5 Gbps |
| System Capacity | |
| Concurrent Sessions (TCP) | 24 Million / 40 Million* |
| New Sessions/Second (TCP) | 1 Million / 2 Million* |
| Firewall Policies | 100,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Hardware & Interfaces | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 |
| 10 GE SFP+ Slots | 8 |
| 10 GE / GE RJ45 Ports | 16 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Trusted Platform Module (TPM) | Included |
| Environment & Power | |
| Power Supply | Dual DC Power Supplies (-48VDC to -60VDC) |
| Power Consumption (Average / Maximum) | 416 W / 510 W |
| DC Current (Average / Maximum) | 15A@48V, 9A@240V |
| Heat Dissipation | 1740 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 71.72 dBA |
| Operating Altitude | Up to 10,000 ft. (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL) DC Power Supply (SP-FG1800F-DC-PS) Hyperscale Firewall License (LIC-FGT-HYPSC-1K2K) 1 GE SFP LX Transceiver (FN-TRAN-LX) 1 GE SFP RJ45 Transceiver (FN-TRAN-GC) 1 GE SFP SX Transceiver (FN-TRAN-SX) 10 GE SFP+ RJ45 Transceiver (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver SR (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver LR (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver ER (FN-TRAN-SFP+ER) 25 GE SFP28 Transceiver SR (FN-TRAN-SFP28-SR) 25 GE SFP28 Transceiver LR (FN-TRAN-SFP28-LR) 40 GE QSFP+ Transceiver SR (FN-TRAN-QSFP+SR) 40 GE QSFP+ Transceiver LR (FN-TRAN-QSFP+LR) 100 GE QSFP28 Transceiver SR (FN-TRAN-QSFP28-SR) 100 GE QSFP28 Transceiver LR (FN-TRAN-QSFP28-LR) 100 GE QSFP28 BIDI Transceiver (FN-TRAN-QSFP28-BIDI) |
[/accesories]
The FortiGate 2600F-DC is engineered to provide security-driven networking for large enterprises, service providers, and data centers requiring DC power infrastructure. Powered by Fortinet’s proprietary SPU NP7 (Network Processor) and CP9 (Content Processor), this appliance delivers hyperscale performance, including 31 Gbps IPS throughput and up to 198 / 196 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP), ensuring that security never becomes a bottleneck in high-speed environments.
This bundle includes the appliance plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 Year.
With a robust set of interfaces including 100 GE QSFP28, 25 GE SFP28, and additional 10 GE SFP+ slots specific to the DC model, the FG-2600F-DC simplifies network architecture by reducing the need for additional switches or bridges. It supports consolidated security functions, integrated Zero Trust Network Access (ZTNA) enforcement, and ultra-scalable, low latency, VXLAN segmentation, making it an ideal solution for securing hybrid clouds, telco edges, and core networks.
Secure any edge at any scale with hyperscale performance and DC power reliability.
- Hyperscale Performance: Leverages SPU NP7 and CP9 technology to deliver up to 198 / 196 / 140 Gbps IPv4 firewall throughput and 31 Gbps IPS throughput for massive scale.
- DC Power Optimized: Equipped with dual DC power supplies (-48VDC to -60VDC) specifically designed for telecom and data center racks.
- Versatile Connectivity: Features 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, and 8x 10GE SFP+ slots to support high-bandwidth segmentation.
- Integrated ZTNA: The industry's first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution to automatically control, verify, and facilitate user access to applications.
- VXLAN Segmentation: Ultra-scalable, low latency, VXLAN segmentation bridges physical and virtual domains with Layer 4 firewall rules.
- AI-Powered Security Services: FortiGuard AI-Powered Security Services and real-time SSL inspection provide visibility into users, devices, and applications across the attack surface.
- Service Provider/Telco Networks: Ideal for securing mobile cores and edges (4G/5G) with DC power and CGNAT options.
- Enterprise Data Centers: Provides high-speed segmentation and core security with redundant power and 100G interfaces.
- Hybrid Cloud Security: Secures multi-cloud environments with dynamic segmentation and consistent policy enforcement.
- Secure SD-WAN: Supports secure SD-WAN use cases through unified security and management.
- High-Availability Clusters: Dedicated HA slots allow for robust Active-Active or Active-Passive configurations.
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps
- IPv6 Firewall Throughput (1518/512/86 byte, UDP): 198 / 196 / 140 Gbps
- IPS Throughput: 31 Gbps
- NGFW Throughput: 27 Gbps
- Threat Protection Throughput: 25 Gbps
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL-VPN Throughput: 16 Gbps
- Firewall Latency (64 byte, UDP): 3.41 μs
- Concurrent Sessions (TCP): 24 Million / 40 Million*
- Power Consumption (Average / Maximum): 416 W / 510 W
- Heat Dissipation: 1740 BTU/h
Upgrade Your Network Security
Implement the FortiGate FG-2600F-DC-BDL-950-12 for robust, hyperscale protection in your DC-powered environment.
Original: $86,494.00
-65%$86,494.00
$30,272.90Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
[shortdesc]Firewall, DC power 2RU, 4x 100GE QSFP28, 16x 25GE SFP28, IPS 31 Gbps, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]
[properties]
| Product SKU | FG-2600F-DC-BDL-950-12 |
| Bundle / Subscription | Appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) (1 Year) |
| Form Factor | Rack Mount, 2RU |
| IPS Throughput | 31 Gbps |
| NGFW Throughput | 27 Gbps |
| Threat Protection Throughput | 25 Gbps |
| Interfaces | 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, 8x 10GE SFP+ slots, 16x 10GE RJ45 ports, 2x 10G SFP+ HA slots, 2x 1G MGMT ports |
| Dimensions (H x W x L) | 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm) |
| Weight | 30.6 lbs (13.9 kg) |
| Power Input | -48VDC to -60VDC |
[/properties]
[specifications]
| System Performance | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 198 / 196 / 140 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 198 / 196 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.41 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 16 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 20 Gbps |
| Application Control Throughput (HTTP 64K) | 64 Gbps |
| CAPWAP Throughput (HTTP 64K) | 62.5 Gbps |
| System Capacity | |
| Concurrent Sessions (TCP) | 24 Million / 40 Million* |
| New Sessions/Second (TCP) | 1 Million / 2 Million* |
| Firewall Policies | 100,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Hardware & Interfaces | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 |
| 10 GE SFP+ Slots | 8 |
| 10 GE / GE RJ45 Ports | 16 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Trusted Platform Module (TPM) | Included |
| Environment & Power | |
| Power Supply | Dual DC Power Supplies (-48VDC to -60VDC) |
| Power Consumption (Average / Maximum) | 416 W / 510 W |
| DC Current (Average / Maximum) | 15A@48V, 9A@240V |
| Heat Dissipation | 1740 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 71.72 dBA |
| Operating Altitude | Up to 10,000 ft. (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL) DC Power Supply (SP-FG1800F-DC-PS) Hyperscale Firewall License (LIC-FGT-HYPSC-1K2K) 1 GE SFP LX Transceiver (FN-TRAN-LX) 1 GE SFP RJ45 Transceiver (FN-TRAN-GC) 1 GE SFP SX Transceiver (FN-TRAN-SX) 10 GE SFP+ RJ45 Transceiver (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver SR (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver LR (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver ER (FN-TRAN-SFP+ER) 25 GE SFP28 Transceiver SR (FN-TRAN-SFP28-SR) 25 GE SFP28 Transceiver LR (FN-TRAN-SFP28-LR) 40 GE QSFP+ Transceiver SR (FN-TRAN-QSFP+SR) 40 GE QSFP+ Transceiver LR (FN-TRAN-QSFP+LR) 100 GE QSFP28 Transceiver SR (FN-TRAN-QSFP28-SR) 100 GE QSFP28 Transceiver LR (FN-TRAN-QSFP28-LR) 100 GE QSFP28 BIDI Transceiver (FN-TRAN-QSFP28-BIDI) |
[/accesories]
The FortiGate 2600F-DC is engineered to provide security-driven networking for large enterprises, service providers, and data centers requiring DC power infrastructure. Powered by Fortinet’s proprietary SPU NP7 (Network Processor) and CP9 (Content Processor), this appliance delivers hyperscale performance, including 31 Gbps IPS throughput and up to 198 / 196 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP), ensuring that security never becomes a bottleneck in high-speed environments.
This bundle includes the appliance plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 Year.
With a robust set of interfaces including 100 GE QSFP28, 25 GE SFP28, and additional 10 GE SFP+ slots specific to the DC model, the FG-2600F-DC simplifies network architecture by reducing the need for additional switches or bridges. It supports consolidated security functions, integrated Zero Trust Network Access (ZTNA) enforcement, and ultra-scalable, low latency, VXLAN segmentation, making it an ideal solution for securing hybrid clouds, telco edges, and core networks.
Secure any edge at any scale with hyperscale performance and DC power reliability.
- Hyperscale Performance: Leverages SPU NP7 and CP9 technology to deliver up to 198 / 196 / 140 Gbps IPv4 firewall throughput and 31 Gbps IPS throughput for massive scale.

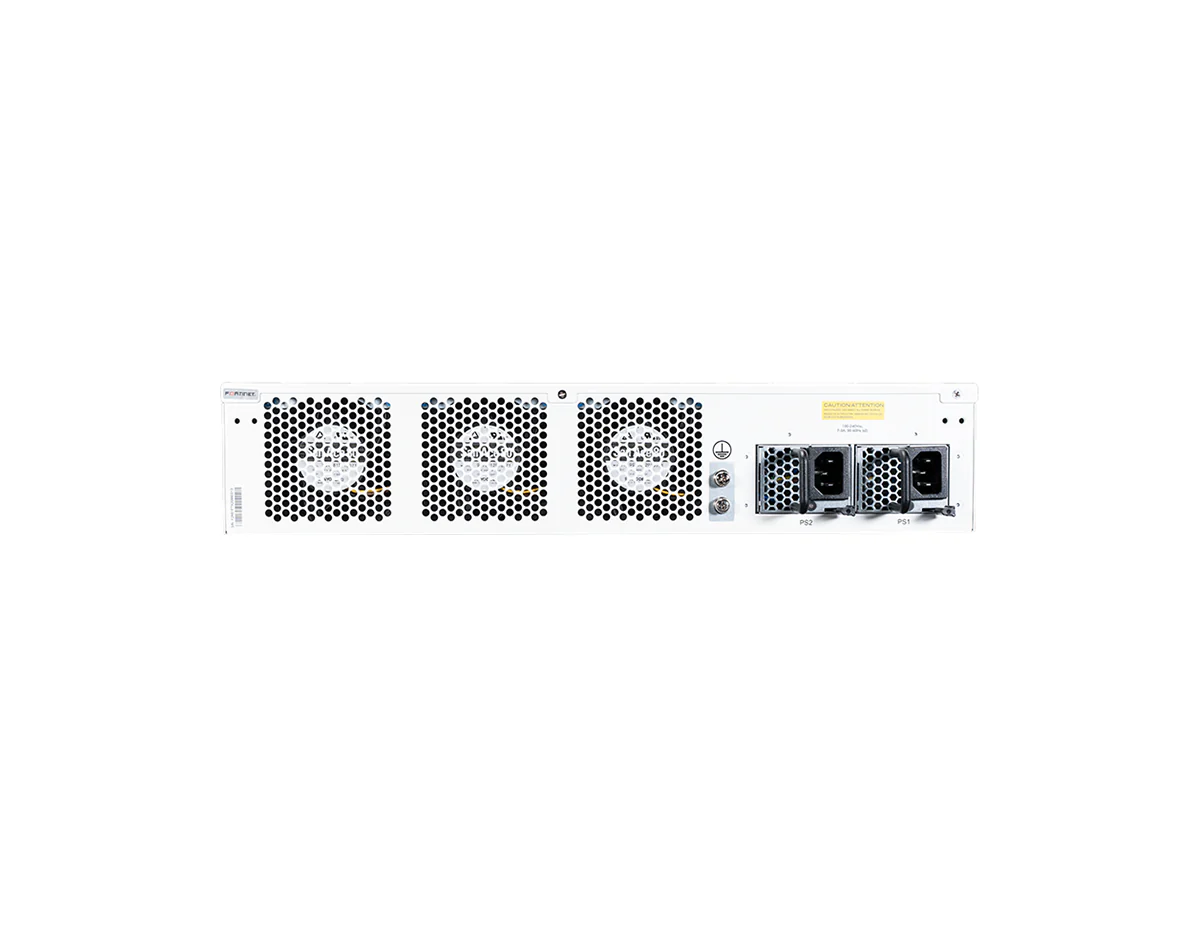

- DC Power Optimized: Equipped with dual DC power supplies (-48VDC to -60VDC) specifically designed for telecom and data center racks.
- Versatile Connectivity: Features 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, and 8x 10GE SFP+ slots to support high-bandwidth segmentation.
- Integrated ZTNA: The industry's first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution to automatically control, verify, and facilitate user access to applications.
- VXLAN Segmentation: Ultra-scalable, low latency, VXLAN segmentation bridges physical and virtual domains with Layer 4 firewall rules.
- AI-Powered Security Services: FortiGuard AI-Powered Security Services and real-time SSL inspection provide visibility into users, devices, and applications across the attack surface.
- Service Provider/Telco Networks: Ideal for securing mobile cores and edges (4G/5G) with DC power and CGNAT options.
- Enterprise Data Centers: Provides high-speed segmentation and core security with redundant power and 100G interfaces.
- Hybrid Cloud Security: Secures multi-cloud environments with dynamic segmentation and consistent policy enforcement.
- Secure SD-WAN: Supports secure SD-WAN use cases through unified security and management.
- High-Availability Clusters: Dedicated HA slots allow for robust Active-Active or Active-Passive configurations.
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps
- IPv6 Firewall Throughput (1518/512/86 byte, UDP): 198 / 196 / 140 Gbps
- IPS Throughput: 31 Gbps
- NGFW Throughput: 27 Gbps
- Threat Protection Throughput: 25 Gbps
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL-VPN Throughput: 16 Gbps
- Firewall Latency (64 byte, UDP): 3.41 μs
- Concurrent Sessions (TCP): 24 Million / 40 Million*
- Power Consumption (Average / Maximum): 416 W / 510 W
- Heat Dissipation: 1740 BTU/h
Upgrade Your Network Security
Implement the FortiGate FG-2600F-DC-BDL-950-12 for robust, hyperscale protection in your DC-powered environment.
