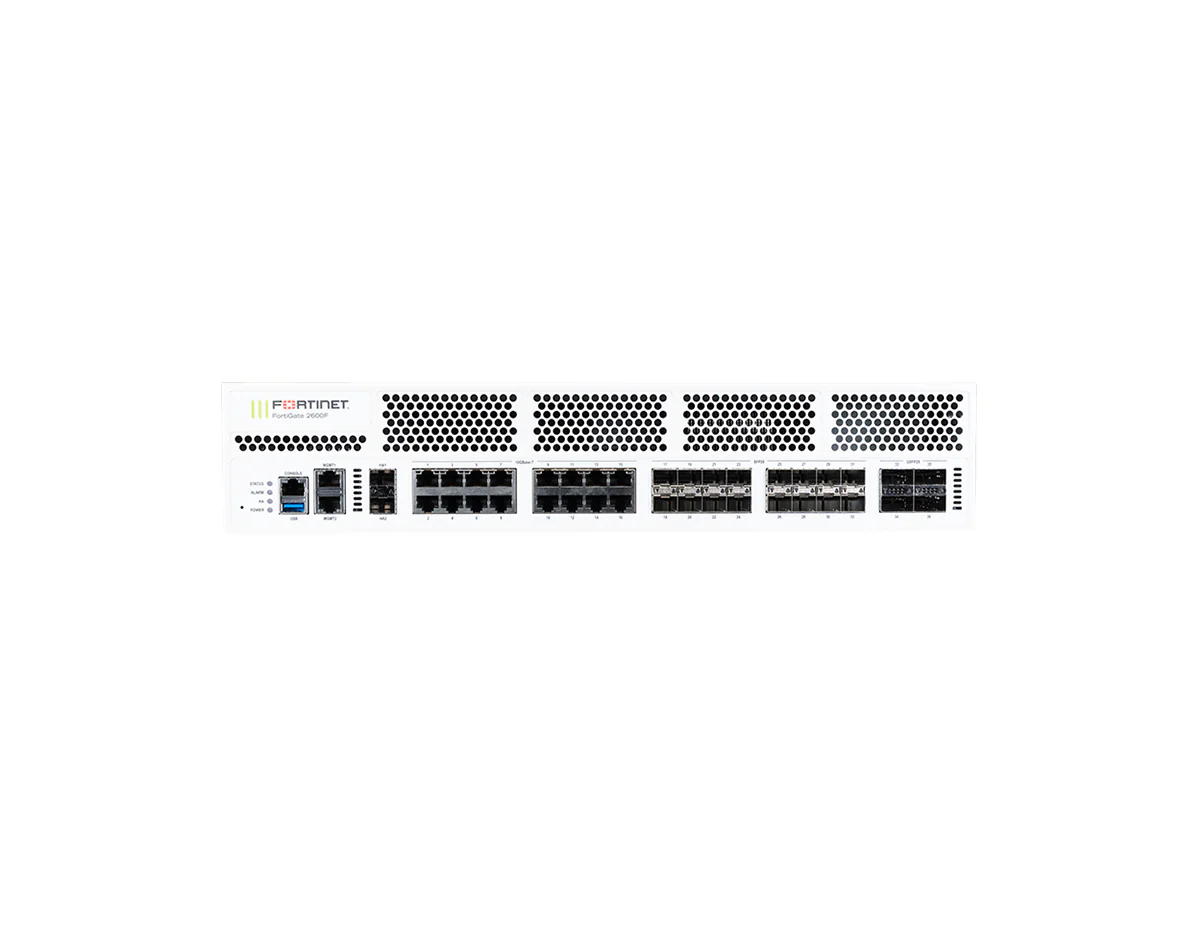

Fortinet FG-2600F-DC-BDL-809-60 Next-Generation Firewall
[shortdesc]Firewall, 2RU dual DC, 4x 100GE QSFP28, 16x 25GE SFP28, 31 Gbps IPS, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product SKU | FG-2600F-DC-BDL-809-60 |
| Bundle / Subscription | Hardware + FortiCare Premium + FortiGuard Enterprise Protection (5 Year) |
| Form Factor | Rack Mount, 2RU |
| IPS Throughput | 31 Gbps |
| NGFW Throughput | 27 Gbps |
| Threat Protection Throughput | 25 Gbps |
| Interfaces | 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, 8x 10GE SFP+ slots, 16x 10GE RJ45 ports, 2x 10G SFP+ HA slots, 2x 1G MGMT ports |
| Dimensions (H x W x L) | 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm) |
| Weight | 30.6 lbs (13.9 kg) |
| Power Input | Dual DC Power Supplies (-48VDC to -60VDC) |
[/properties]
[specifications]
| System Performance | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 198 / 196 / 140 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 198 / 196 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.41 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 16 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 20 Gbps |
| Application Control Throughput (HTTP 64K) | 64 Gbps |
| CAPWAP Throughput (HTTP 64K) | 62.5 Gbps |
| System Capacity | |
| Concurrent Sessions (TCP) | 24 Million / 40 Million* |
| New Sessions/Second (TCP) | 1 Million / 2 Million* |
| Firewall Policies | 100,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Hardware & Interfaces | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 |
| 10 GE SFP+ Slots | 8 |
| 10 GE / GE RJ45 Ports | 16 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Trusted Platform Module (TPM) | Included |
| Environment & Power | |
| Power Consumption (Average / Maximum) | 416 W / 510 W |
| DC Current (Average / Maximum) | 15A@48V, 9A@240V |
| Heat Dissipation | 1740 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 71.72 dBA |
| Operating Altitude | Up to 10,000 ft. (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL) AC Power Supply (SP-FG1800F-PS) DC Power Supply (SP-FG1800F-DC-PS) Hyperscale Firewall License (LIC-FGT-HYPSC-1K2K) 1 GE SFP LX Transceiver Module (FN-TRAN-LX) 1 GE SFP RJ45 Transceiver Module (FN-TRAN-GC) 1 GE SFP SX Transceiver Module (FN-TRAN-SX) 10 GE SFP+ RJ45 Transceiver Module (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver Module, Short Range (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver Module, Long Range (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver Module, Extended Range (FN-TRAN-SFP+ER) 10 GE SFP+ Transceiver Module, 30km Long Range (FN-TRAN-SFP+BD27) 10 GE SFP+ Transceiver Module, 30km Long Range (FN-TRAN-SFP+BD33) 10 GE SFP+ Transceiver Module, 80km Extreme Long Range (FN-TRAN-SFP+ZR) 25 GE SFP28 Transceiver Module, Short Range (FN-TRAN-SFP28-SR) 25 GE SFP28 Transceiver Module, Long Range (FN-TRAN-SFP28-LR) 40 GE QSFP+ Transceiver Module, Short Range (FN-TRAN-QSFP+SR) 40 GE QSFP+ Transceiver Module, Short Range, BiDi (FN-TRAN-QSFP+SR-BIDI) 40 GE QSFP+ Transceiver Module, Long Range (FN-TRAN-QSFP+LR) 40 GE QSFP+ Transceiver Module, 40km Extended Range (FN-TRAN-QSFP+ER) 100 GE QSFP28 Transceiver Module, Short Range (FN-TRAN-QSFP28-SR) 100 GE QSFP28 Transceiver Module, Long Range (FN-TRAN-QSFP28-LR) 100 GE QSFP28 BIDI Transceiver Module (FN-TRAN-QSFP28-BIDI) 100 GE QSFP28 Transceiver Module, Short Range BiDi (FN-TRAN-QSFP28-BIDI-I) 100 GE QSFP28 Transceiver Module (FN-TRAN-QSFP28-DR) 100 GE QSFP28 Transceiver Module, CWDM (FN-TRAN-QSFP28-CWDM4) 100 GE QSFP28 Transceiver Module, 20km Extended Range (FN-TRAN-QSFP28-ER) 40 GE QSFP+ Passive Direct Attach Cable 1m (SP-CABLE-FS-QSFP+1) 40 GE QSFP+ Passive Direct Attach Cable 3m (SP-CABLE-FS-QSFP+3) 40 GE QSFP+ Passive Direct Attach Cable 5m (SP-CABLE-FS-QSFP+5) 40G/100G QSFP+ to 4x SFP+/SFP28 optical breakout 1m (FG-TRAN-QSFP-4XSFP) 100 GE QSFP28 Passive Direct Attach Cable, 1m (FN-CABLE-QSFP28-1) 100 GE QSFP28 Passive Direct Attach Cable, 2m (FN-CABLE-QSFP28-2) |
[/accesories]
The FortiGate 2600F-DC is engineered to provide security-driven networking for large enterprises, service providers, and data centers requiring DC power infrastructure. Powered by Fortinet’s proprietary SPU NP7 (Network Processor) and CP9 (Content Processor), this appliance delivers hyperscale performance, including 31 Gbps IPS throughput and up to 198 / 196 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP), ensuring that security never becomes a bottleneck in high-speed environments.
This bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection for 5 Year.
With a robust set of interfaces including 100 GE QSFP28, 25 GE SFP28, and additional 10 GE SFP+ slots specific to the DC model, the FG-2600F-DC simplifies network architecture by reducing the need for additional switches or bridges. It supports consolidated security functions, integrated Zero Trust Network Access (ZTNA) enforcement, and ultra-scalable, low latency VXLAN segmentation, making it an ideal solution for securing hybrid clouds, telco edges, and core networks.
Secure any edge at any scale with hyperscale performance and DC power reliability.
- Hyperscale Performance: Leverages SPU NP7 and CP9 technology to deliver up to 198 / 196 / 140 Gbps IPv4 firewall throughput and 31 Gbps IPS throughput for massive scale.
- DC Power Optimized: Equipped with dual DC power supplies (-48VDC to -60VDC) specifically designed for telecom and data center racks.
- Versatile Connectivity: Features 4x 100GE/40GE QSFP28 slots, 16x 25GE/10GE SFP28 slots, and 8x 10GE SFP+ slots to support high-bandwidth segmentation.
- Integrated ZTNA: Integrated Zero Trust Network Access (ZTNA) enforcement to automatically control, verify, and facilitate user access to applications.
- Hardware-Accelerated VXLAN: Supports ultra-scalable, low latency VXLAN segmentation to bridge physical and virtual domains with Layer 4 firewall rules.
- AI-Powered Protection: Protects networks from ransomware, malware, zero days, and sophisticated AI-powered cyberattacks with FortiGuard AI-Powered Security Services and real-time SSL inspection (including TLS 1.3).
- Service Provider/Telco Networks: Ideal for securing mobile cores and edges (4G/5G) with DC power and CGNAT capabilities.
- Enterprise Data Centers: Provides high-speed segmentation and core security with redundant power and 100G interfaces.
- Hybrid Cloud Security: Secures multi-cloud environments with dynamic segmentation and consistent policy enforcement.
- Secure SD-WAN: Transforms and secures WANs with unified security and management.
- High-Availability Clusters: Dedicated HA slots support Active-Active, Active-Passive, and clustering configurations.
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps
- IPv6 Firewall Throughput (1518/512/86 byte, UDP): 198 / 196 / 140 Gbps
- IPS Throughput: 31 Gbps
- NGFW Throughput: 27 Gbps
- Threat Protection Throughput: 25 Gbps
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL-VPN Throughput: 16 Gbps
- Firewall Latency (64 byte, UDP): 3.41 μs
- Concurrent Sessions (TCP): 24 Million / 40 Million*
- Power Consumption (Average / Maximum): 416 W / 510 W
- Heat Dissipation: 1740 BTU/h
Upgrade Your Network Security
Implement the FortiGate FG-2600F-DC-BDL-809-60 for robust, hyperscale protection in your DC-powered environment.
