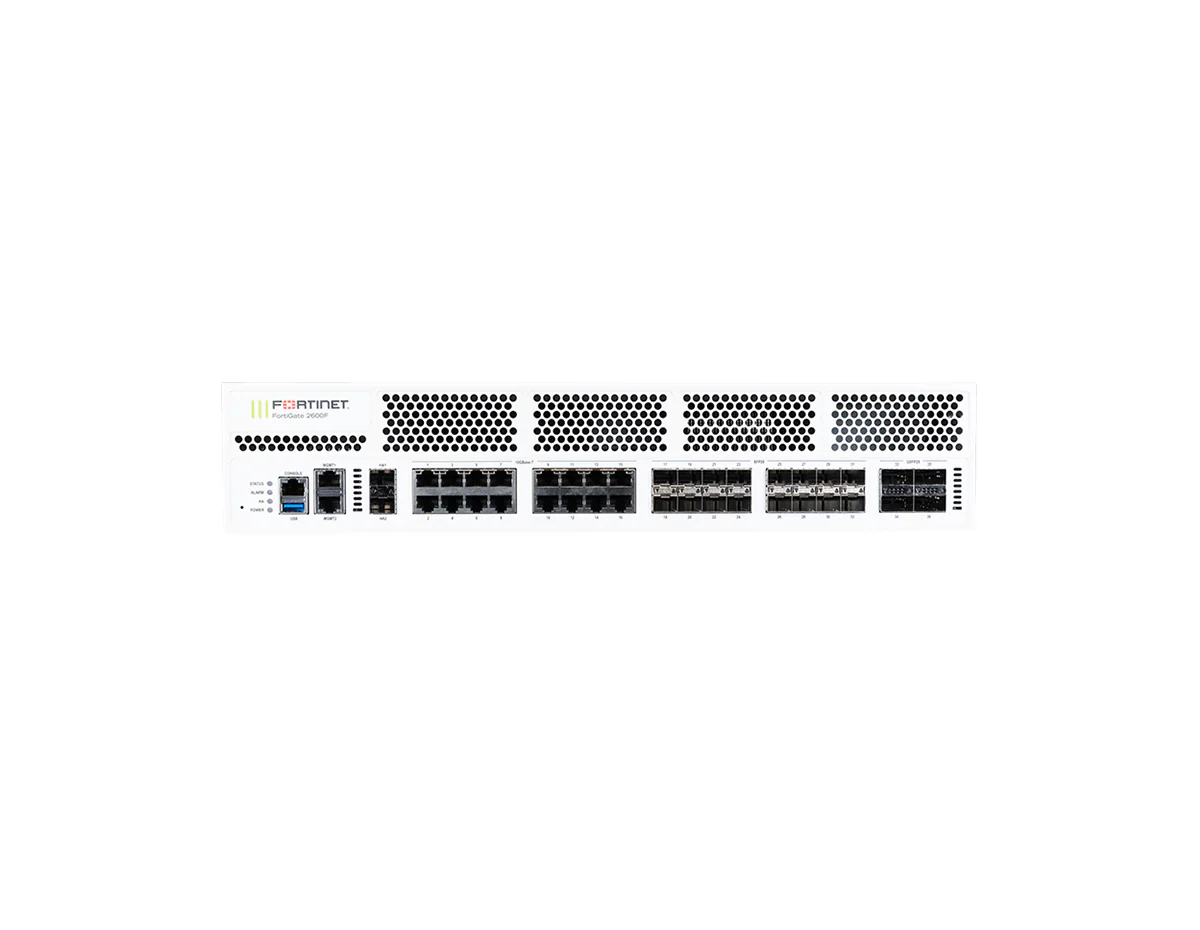

Fortinet FG-2600F-DC-BDL-809-12 Next-Generation Firewall
[shortdesc]Firewall, DC power, 2RU rack mount, 4x 100GE QSFP28, 16x 25GE SFP28, 31 Gbps IPS, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product SKU | FG-2600F-DC-BDL-809-12 |
| Bundle / Subscription | Hardware + FortiCare Premium + FortiGuard Enterprise Protection (1 Year) |
| Form Factor | Rack Mount, 2RU |
| IPS Throughput | 31 Gbps |
| NGFW Throughput | 27 Gbps |
| Threat Protection Throughput | 25 Gbps |
| Interfaces | 4x 100GE QSFP28 / 40GE QSFP+ slots, 16x 25GE SFP28 / 10GE SFP+ / GE SFP slots, 8x 10GE SFP+ slots, 16x 10GE / GE RJ45 ports, 2x 10GE SFP+ / GE SFP HA slots, 2x GE RJ45 MGMT ports |
| Dimensions (H x W x L) | 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm) |
| Weight | 30.6 lbs (13.9 kg) |
| Power Input | -48VDC to -60VDC |
[/properties]
[specifications]
| System Performance | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 198 / 196 / 140 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 198 / 196 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.41 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 16 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 20 Gbps |
| Application Control Throughput (HTTP 64K) | 64 Gbps |
| CAPWAP Throughput (HTTP 64K) | 62.5 Gbps |
| System Capacity | |
| Concurrent Sessions (TCP) | 24 Million / 40 Million* |
| New Sessions/Second (TCP) | 1 Million / 2 Million* |
| Firewall Policies | 100,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Hardware & Interfaces | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 |
| 10 GE SFP+ Slots | 8 |
| 10 GE / GE RJ45 Ports | 16 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Trusted Platform Module (TPM) | Included |
| Environment & Power | |
| Power Supply | Dual DC Power Supplies (-48VDC to -60VDC) |
| DC Current (Average / Maximum) | 15A@48V, 9A@240V |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL) DC Power Supply (SP-FG1800F-DC-PS) Hyperscale Firewall License (LIC-FGT-HYPSC-1K2K) 1 GE SFP LX Transceiver (FN-TRAN-LX) 1 GE SFP RJ45 Transceiver (FN-TRAN-GC) 1 GE SFP SX Transceiver (FN-TRAN-SX) 10 GE SFP+ RJ45 Transceiver (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver SR (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver LR (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver ER (FN-TRAN-SFP+ER) 25 GE SFP28 Transceiver SR (FN-TRAN-SFP28-SR) 25 GE SFP28 Transceiver LR (FN-TRAN-SFP28-LR) 40 GE QSFP+ Transceiver SR (FN-TRAN-QSFP+SR) 40 GE QSFP+ Transceiver LR (FN-TRAN-QSFP+LR) 100 GE QSFP28 Transceiver SR (FN-TRAN-QSFP28-SR) 100 GE QSFP28 Transceiver LR (FN-TRAN-QSFP28-LR) 100 GE QSFP28 BIDI Transceiver (FN-TRAN-QSFP28-BIDI) |
[/accesories]
The FortiGate 2600F-DC is engineered to provide security-driven networking for large enterprises, service providers, and data centers requiring DC power infrastructure. Powered by Fortinet’s proprietary SPU NP7 (Network Processor) and CP9 (Content Processor), this appliance delivers hyperscale performance, including 31 Gbps IPS throughput and up to 198 / 196 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP), ensuring that security never becomes a bottleneck in high-speed environments.
This bundle includes Hardware + FortiCare Premium + FortiGuard Enterprise Protection for 1 Year.
With a robust set of interfaces including 100 GE QSFP28, 25 GE SFP28, and 10 GE SFP+ slots specific to the DC model, the FG-2600F-DC simplifies network architecture by reducing the need for additional devices to bridge desired connectivity. It supports consolidated security functions and integrated Zero Trust Network Access (ZTNA) enforcement, and it enables ultra-scalable, low-latency VXLAN segmentation to bridge physical and virtual domains with Layer 4 firewall rules.
Secure any edge at any scale with hyperscale performance and DC power reliability.
- Hyperscale Performance: Leverages SPU NP7 and CP9 technology to deliver up to 198 / 196 / 140 Gbps IPv4 firewall throughput and 31 Gbps IPS throughput for massive scale.
- DC Power Optimized: Equipped with dual DC power supplies (-48VDC to -60VDC) designed for telecom and data center racks.
- Versatile Connectivity: Features 4x 100GE QSFP28 / 40GE QSFP+ slots, 16x 25GE SFP28 / 10GE SFP+ / GE SFP slots, and 8x 10GE SFP+ slots to support high-bandwidth segmentation.
- Integrated ZTNA: Integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution to control, verify, and facilitate user access to applications.
- VXLAN Segmentation: Ultra-scalable, low latency VXLAN segmentation bridges physical and virtual domains with Layer 4 firewall rules.
- AI-Powered Security Services: FortiGuard AI-Powered Security Services help protect against ransomware, malware, zero-day threats, and sophisticated AI-powered cyberattacks, with real-time SSL inspection support.
- Service Provider/Telco Networks: Supports mobile security for 4G/5G and IoT use cases, including high-performance CGNAT and IPv6 migration options.
- Enterprise Data Centers: Provides high-speed segmentation and core security with redundant power and 100G interfaces.
- Hybrid Cloud Security: Secures multi-cloud environments with dynamic segmentation and consistent policy enforcement.
- Secure SD-WAN: Delivers unified security and management framework for WAN edge transformation and security.
- High-Availability Clusters: Supports Active-Active, Active-Passive, and clustering configurations with dedicated HA slots.
- IPv4 Firewall Throughput (1518/512/64 byte, UDP): 198 / 196 / 140 Gbps
- IPv6 Firewall Throughput (1518/512/86 byte, UDP): 198 / 196 / 140 Gbps
- IPS Throughput: 31 Gbps
- NGFW Throughput: 27 Gbps
- Threat Protection Throughput: 25 Gbps
- IPsec VPN Throughput (512 byte): 55 Gbps
- SSL-VPN Throughput: 16 Gbps
- SSL Inspection Throughput (IPS, avg. HTTPS): 20 Gbps
- Concurrent Sessions (TCP): 24 Million / 40 Million*
- New Sessions/Second (TCP): 1 Million / 2 Million*
- Interfaces: 4x 100GE QSFP28 / 40GE QSFP+ slots, 16x 25GE SFP28 slots, 8x 10GE SFP+ slots, 16x 10GE / GE RJ45 ports
- Power Consumption (Average / Maximum): 416 W / 510 W
Upgrade Your Network Security
Implement the FortiGate FG-2600F-DC-BDL-809-12 for robust, hyperscale protection in your DC-powered environment.
