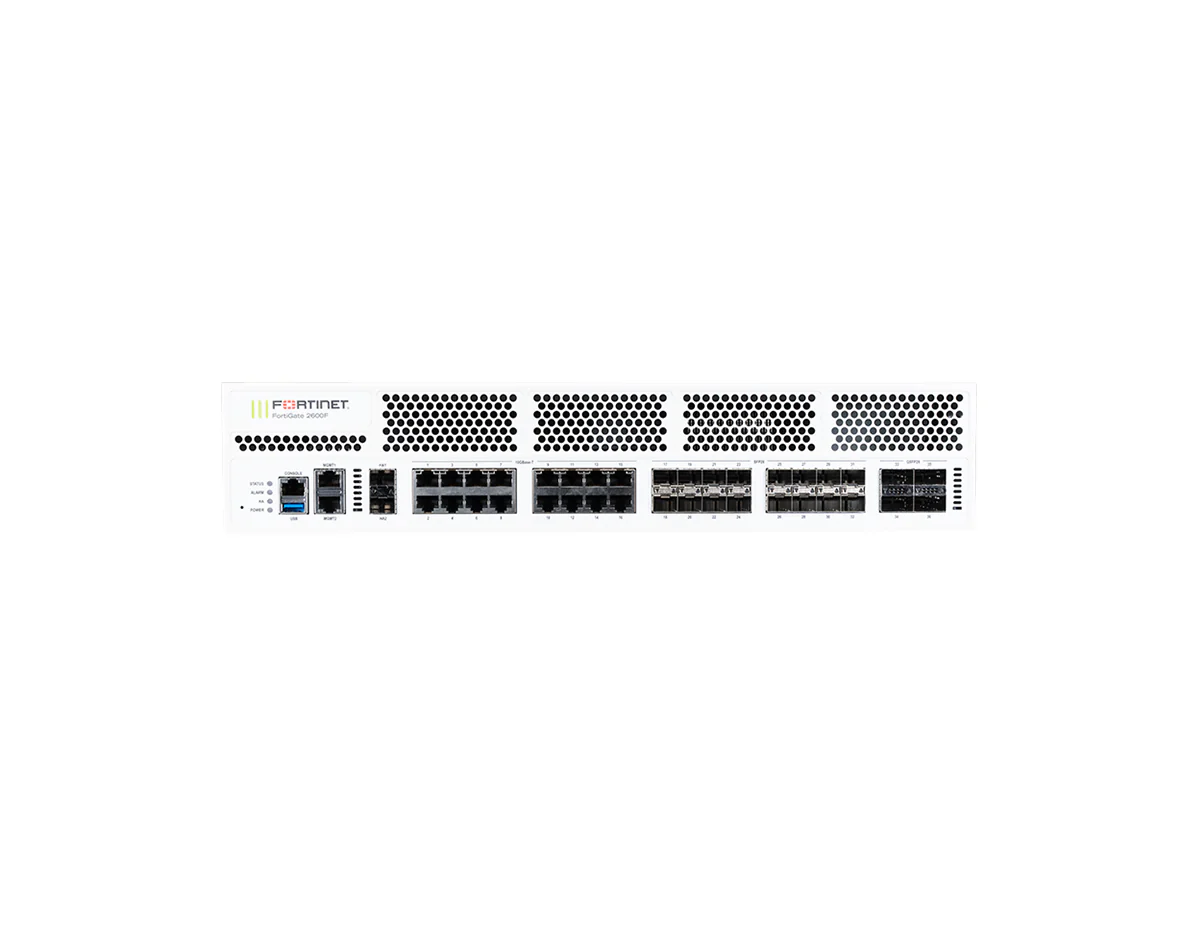

Fortinet FG-2600F-BDL-809-60 Network Security Firewall
[shortdesc]Fortinet FG-2600F-BDL-809-60 Firewall, 31 Gbps IPS, 4x 100GE, 2RU rack mount, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product SKU | FG-2600F-BDL-809-60 |
| Bundle / Subscription | FortiCare Premium + FortiGuard Enterprise Protection (5 Year) |
| Form Factor | Rack Mount, 2RU |
| IPS Throughput | 31 Gbps |
| NGFW Throughput | 27 Gbps |
| Threat Protection Throughput | 25 Gbps |
| Interfaces | 4x 100GE QSFP28, 16x 25GE SFP28, 16x 10GE RJ45, 2x 10GE SFP+ HA, 2x 1G MGMT |
| Dimensions (H x W x L) | 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm) |
| Weight | 30.6 lbs (13.9 kg) |
| Power Input | 100–240 VAC, 47/63 Hz |
[/properties]
[specifications]
| System Performance | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 198 / 196 / 140 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 198 / 196 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.41 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 16 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 20 Gbps |
| Application Control Throughput (HTTP 64K) | 64 Gbps |
| System Capacity | |
| Concurrent Sessions (TCP) | 24 Million / 40 Million* |
| New Sessions/Second (TCP) | 1 Million / 2 Million* |
| Firewall Policies | 100,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Hardware & Interfaces | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 |
| 10 GE / GE RJ45 Ports | 16 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Trusted Platform Module (TPM) | Included |
| Environment & Power | |
| Power Supply | AC 100–240VAC, 47/63 Hz (Default dual AC PSU for 1+1 Redundancy) |
| Power Consumption (Average / Maximum) | 416 W / 510 W |
| Current (Maximum) | 6A |
| Heat Dissipation | 1740 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 71.72 dBA |
| Operating Altitude | Up to 10,000 ft. (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL) AC Power Supply (SP-FG1800F-PS) DC Power Supply (SP-FG1800F-DC-PS) 1 GE SFP LX Transceiver (FN-TRAN-LX) 1 GE SFP RJ45 Transceiver (FN-TRAN-GC) 1 GE SFP SX Transceiver (FN-TRAN-SX) 10 GE SFP+ RJ45 Transceiver (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver SR (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver LR (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver ER (FN-TRAN-SFP+ER) 25 GE SFP28 Transceiver SR (FN-TRAN-SFP28-SR) 25 GE SFP28 Transceiver LR (FN-TRAN-SFP28-LR) 40 GE QSFP+ Transceiver SR (FN-TRAN-QSFP+SR) 40 GE QSFP+ Transceiver LR (FN-TRAN-QSFP+LR) 100 GE QSFP28 Transceiver SR (FN-TRAN-QSFP28-SR) 100 GE QSFP28 Transceiver LR (FN-TRAN-QSFP28-LR) 100 GE QSFP28 BIDI Transceiver (FN-TRAN-QSFP28-BIDI) |
[/accesories]
The FortiGate 2600F Series enables organizations to build security-driven networks, forming the foundation of a robust Hybrid Mesh Firewall architecture. It weaves security deep into datacenters and across hybrid IT environments, protecting any edge at any scale. This FG-2600F-BDL-809-60 bundle includes FortiCare Premium + FortiGuard Enterprise Protection (5 Year).
Designed for hyperscale security, the FortiGate 2600F offers industry-leading throughput and connectivity options, including multiple 100 GE QSFP28 and 25 GE SFP28 slots. This allows enterprises to consolidate networking and security functions, reducing complexity while ensuring business-critical applications are safeguarded against known and unknown threats. With integrated Zero Trust Network Access (ZTNA) enforcement and the ability to manage unified policies via FortiOS, the 2600F ensures consistent convergence and a seamless user experience across distributed networks.
Secure any edge at any scale with hyperscale performance and integrated AI-powered threat protection.
- Unparalleled Performance: Features Fortinet’s patented SPU NP7 and CP9 processors to deliver up to 198 Gbps IPv4 firewall throughput (1518 byte, UDP) and 31 Gbps IPS throughput, preventing network bottlenecks.
- High-Speed Connectivity: Equipped with 4x 100 GE QSFP28 and 16x 25 GE SFP28 slots to support high-bandwidth architectures and simplify network designs without additional bridging devices.
- Integrated ZTNA: The industry's first NGFW with integrated Zero Trust Network Access enforcement automatically controls and verifies user access to applications for a seamless and secure experience.
- AI/ML-Powered Security: Delivers coordinated, automated, end-to-end threat protection against ransomware, malware, and zero-day attacks when paired with FortiGuard AI-Powered Security Services.
- Hardware-Assisted VXLAN: Supports ultra-scalable, low-latency VXLAN segmentation to bridge physical and virtual domains with Layer 4 firewall rules.
- Energy Efficient: Fortinet ASICs are designed for energy efficiency, leading to lower power consumption (average 416 W) and improved Total Cost of Ownership (TCO).
- Enterprise Data Centers: Ideal for high-speed segmentation and core network security with 100 GE connectivity.
- Hybrid Cloud Environments: Secures multi-cloud deployments with dynamic segmentation and consistent policy enforcement.
- Secure SD-WAN: Transforms and secures WANs with a unified security and management framework for hybrid working models.
- Hyperscale Security: supports massive connection counts (up to 24 Million / 40 Million* concurrent sessions) for large-scale enterprise needs.
- Mobile Security (4G/5G): Offers SPU-accelerated CGNAT and IPv6 migration options for service provider deployments.
- Firewall Throughput: IPv4 (1518/512/64 byte, UDP) 198 / 196 / 140 Gbps
- Firewall Throughput: IPv6 (1518/512/86 byte, UDP) 198 / 196 / 140 Gbps
- IPS Throughput (Enterprise Traffic Mix): 31 Gbps
- NGFW / Threat Protection: 27 Gbps NGFW throughput; 25 Gbps threat protection throughput
- VPN Performance: IPsec VPN throughput (512 byte) 55 Gbps; SSL-VPN throughput 16 Gbps
- SSL Inspection (IPS, avg HTTPS): 20 Gbps throughput
- Application Control Throughput (HTTP 64K): 64 Gbps
- System Capacity: 24 Million / 40 Million* concurrent sessions (TCP); 1 Million / 2 Million* new sessions/second (TCP); 100,000 firewall policies
- Network Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x 10 GE / GE RJ45, 2x 10 GE SFP+ / GE SFP HA, 2x GE RJ45 MGMT
- Physical & Power: 2RU rack mount; 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm); 30.6 lbs (13.9 kg); AC 100–240VAC, 47/63 Hz; power consumption 416 W / 510 W; operating temperature 0°C to 40°C
Upgrade Your Network Security
Deploy the FortiGate FG-2600F-BDL-809-60 today for industry-leading hyperscale protection and 100G connectivity.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Fortinet FG-2600F-BDL-809-60 Network Security Firewall
Fortinet FG-2600F-BDL-809-60 Network Security Firewall
[shortdesc]Fortinet FG-2600F-BDL-809-60 Firewall, 31 Gbps IPS, 4x 100GE, 2RU rack mount, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product SKU | FG-2600F-BDL-809-60 |
| Bundle / Subscription | FortiCare Premium + FortiGuard Enterprise Protection (5 Year) |
| Form Factor | Rack Mount, 2RU |
| IPS Throughput | 31 Gbps |
| NGFW Throughput | 27 Gbps |
| Threat Protection Throughput | 25 Gbps |
| Interfaces | 4x 100GE QSFP28, 16x 25GE SFP28, 16x 10GE RJ45, 2x 10GE SFP+ HA, 2x 1G MGMT |
| Dimensions (H x W x L) | 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm) |
| Weight | 30.6 lbs (13.9 kg) |
| Power Input | 100–240 VAC, 47/63 Hz |
[/properties]
[specifications]
| System Performance | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 198 / 196 / 140 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 198 / 196 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.41 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 16 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 20 Gbps |
| Application Control Throughput (HTTP 64K) | 64 Gbps |
| System Capacity | |
| Concurrent Sessions (TCP) | 24 Million / 40 Million* |
| New Sessions/Second (TCP) | 1 Million / 2 Million* |
| Firewall Policies | 100,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Hardware & Interfaces | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 |
| 10 GE / GE RJ45 Ports | 16 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Trusted Platform Module (TPM) | Included |
| Environment & Power | |
| Power Supply | AC 100–240VAC, 47/63 Hz (Default dual AC PSU for 1+1 Redundancy) |
| Power Consumption (Average / Maximum) | 416 W / 510 W |
| Current (Maximum) | 6A |
| Heat Dissipation | 1740 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 71.72 dBA |
| Operating Altitude | Up to 10,000 ft. (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL) AC Power Supply (SP-FG1800F-PS) DC Power Supply (SP-FG1800F-DC-PS) 1 GE SFP LX Transceiver (FN-TRAN-LX) 1 GE SFP RJ45 Transceiver (FN-TRAN-GC) 1 GE SFP SX Transceiver (FN-TRAN-SX) 10 GE SFP+ RJ45 Transceiver (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver SR (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver LR (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver ER (FN-TRAN-SFP+ER) 25 GE SFP28 Transceiver SR (FN-TRAN-SFP28-SR) 25 GE SFP28 Transceiver LR (FN-TRAN-SFP28-LR) 40 GE QSFP+ Transceiver SR (FN-TRAN-QSFP+SR) 40 GE QSFP+ Transceiver LR (FN-TRAN-QSFP+LR) 100 GE QSFP28 Transceiver SR (FN-TRAN-QSFP28-SR) 100 GE QSFP28 Transceiver LR (FN-TRAN-QSFP28-LR) 100 GE QSFP28 BIDI Transceiver (FN-TRAN-QSFP28-BIDI) |
[/accesories]
The FortiGate 2600F Series enables organizations to build security-driven networks, forming the foundation of a robust Hybrid Mesh Firewall architecture. It weaves security deep into datacenters and across hybrid IT environments, protecting any edge at any scale. This FG-2600F-BDL-809-60 bundle includes FortiCare Premium + FortiGuard Enterprise Protection (5 Year).
Designed for hyperscale security, the FortiGate 2600F offers industry-leading throughput and connectivity options, including multiple 100 GE QSFP28 and 25 GE SFP28 slots. This allows enterprises to consolidate networking and security functions, reducing complexity while ensuring business-critical applications are safeguarded against known and unknown threats. With integrated Zero Trust Network Access (ZTNA) enforcement and the ability to manage unified policies via FortiOS, the 2600F ensures consistent convergence and a seamless user experience across distributed networks.
Secure any edge at any scale with hyperscale performance and integrated AI-powered threat protection.
- Unparalleled Performance: Features Fortinet’s patented SPU NP7 and CP9 processors to deliver up to 198 Gbps IPv4 firewall throughput (1518 byte, UDP) and 31 Gbps IPS throughput, preventing network bottlenecks.
- High-Speed Connectivity: Equipped with 4x 100 GE QSFP28 and 16x 25 GE SFP28 slots to support high-bandwidth architectures and simplify network designs without additional bridging devices.
- Integrated ZTNA: The industry's first NGFW with integrated Zero Trust Network Access enforcement automatically controls and verifies user access to applications for a seamless and secure experience.
- AI/ML-Powered Security: Delivers coordinated, automated, end-to-end threat protection against ransomware, malware, and zero-day attacks when paired with FortiGuard AI-Powered Security Services.
- Hardware-Assisted VXLAN: Supports ultra-scalable, low-latency VXLAN segmentation to bridge physical and virtual domains with Layer 4 firewall rules.
- Energy Efficient: Fortinet ASICs are designed for energy efficiency, leading to lower power consumption (average 416 W) and improved Total Cost of Ownership (TCO).
- Enterprise Data Centers: Ideal for high-speed segmentation and core network security with 100 GE connectivity.
- Hybrid Cloud Environments: Secures multi-cloud deployments with dynamic segmentation and consistent policy enforcement.
- Secure SD-WAN: Transforms and secures WANs with a unified security and management framework for hybrid working models.
- Hyperscale Security: supports massive connection counts (up to 24 Million / 40 Million* concurrent sessions) for large-scale enterprise needs.
- Mobile Security (4G/5G): Offers SPU-accelerated CGNAT and IPv6 migration options for service provider deployments.
- Firewall Throughput: IPv4 (1518/512/64 byte, UDP) 198 / 196 / 140 Gbps
- Firewall Throughput: IPv6 (1518/512/86 byte, UDP) 198 / 196 / 140 Gbps
- IPS Throughput (Enterprise Traffic Mix): 31 Gbps
- NGFW / Threat Protection: 27 Gbps NGFW throughput; 25 Gbps threat protection throughput
- VPN Performance: IPsec VPN throughput (512 byte) 55 Gbps; SSL-VPN throughput 16 Gbps
- SSL Inspection (IPS, avg HTTPS): 20 Gbps throughput
- Application Control Throughput (HTTP 64K): 64 Gbps
- System Capacity: 24 Million / 40 Million* concurrent sessions (TCP); 1 Million / 2 Million* new sessions/second (TCP); 100,000 firewall policies
- Network Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x 10 GE / GE RJ45, 2x 10 GE SFP+ / GE SFP HA, 2x GE RJ45 MGMT
- Physical & Power: 2RU rack mount; 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm); 30.6 lbs (13.9 kg); AC 100–240VAC, 47/63 Hz; power consumption 416 W / 510 W; operating temperature 0°C to 40°C
Upgrade Your Network Security
Deploy the FortiGate FG-2600F-BDL-809-60 today for industry-leading hyperscale protection and 100G connectivity.
$93,490.25
Original: $267,115.00
-65%Fortinet FG-2600F-BDL-809-60 Network Security Firewall—
$267,115.00
$93,490.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
[shortdesc]Fortinet FG-2600F-BDL-809-60 Firewall, 31 Gbps IPS, 4x 100GE, 2RU rack mount, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]
[properties]
| Product SKU | FG-2600F-BDL-809-60 |
| Bundle / Subscription | FortiCare Premium + FortiGuard Enterprise Protection (5 Year) |
| Form Factor | Rack Mount, 2RU |
| IPS Throughput | 31 Gbps |
| NGFW Throughput | 27 Gbps |
| Threat Protection Throughput | 25 Gbps |
| Interfaces | 4x 100GE QSFP28, 16x 25GE SFP28, 16x 10GE RJ45, 2x 10GE SFP+ HA, 2x 1G MGMT |
| Dimensions (H x W x L) | 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm) |
| Weight | 30.6 lbs (13.9 kg) |
| Power Input | 100–240 VAC, 47/63 Hz |
[/properties]
[specifications]
| System Performance | |
| IPv4 Firewall Throughput (1518/512/64 byte, UDP) | 198 / 196 / 140 Gbps |
| IPv6 Firewall Throughput (1518/512/86 byte, UDP) | 198 / 196 / 140 Gbps |
| Firewall Latency (64 byte, UDP) | 3.41 μs |
| Firewall Throughput (Packet per Second) | 210 Mpps |
| IPsec VPN Throughput (512 byte) | 55 Gbps |
| SSL-VPN Throughput | 16 Gbps |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 20 Gbps |
| Application Control Throughput (HTTP 64K) | 64 Gbps |
| System Capacity | |
| Concurrent Sessions (TCP) | 24 Million / 40 Million* |
| New Sessions/Second (TCP) | 1 Million / 2 Million* |
| Firewall Policies | 100,000 |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 |
| Virtual Domains (Default / Maximum) | 10 / 500 |
| Hardware & Interfaces | |
| 100 GE QSFP28 / 40 GE QSFP+ Slots | 4 |
| 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 |
| 10 GE / GE RJ45 Ports | 16 |
| 10 GE SFP+ / GE SFP HA Slots | 2 |
| GE RJ45 Management Ports | 2 |
| USB 3.0 Port | 1 |
| Console RJ45 Port | 1 |
| Trusted Platform Module (TPM) | Included |
| Environment & Power | |
| Power Supply | AC 100–240VAC, 47/63 Hz (Default dual AC PSU for 1+1 Redundancy) |
| Power Consumption (Average / Maximum) | 416 W / 510 W |
| Current (Maximum) | 6A |
| Heat Dissipation | 1740 BTU/h |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise Level | 71.72 dBA |
| Operating Altitude | Up to 10,000 ft. (3048 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | USGv6/IPv6 |
[/specifications]
[accesories]
| Optional Accessories | Rack Mount Sliding Rails (SP-FG3040B-RAIL) AC Power Supply (SP-FG1800F-PS) DC Power Supply (SP-FG1800F-DC-PS) 1 GE SFP LX Transceiver (FN-TRAN-LX) 1 GE SFP RJ45 Transceiver (FN-TRAN-GC) 1 GE SFP SX Transceiver (FN-TRAN-SX) 10 GE SFP+ RJ45 Transceiver (FN-TRAN-SFP+GC) 10 GE SFP+ Transceiver SR (FN-TRAN-SFP+SR) 10 GE SFP+ Transceiver LR (FN-TRAN-SFP+LR) 10 GE SFP+ Transceiver ER (FN-TRAN-SFP+ER) 25 GE SFP28 Transceiver SR (FN-TRAN-SFP28-SR) 25 GE SFP28 Transceiver LR (FN-TRAN-SFP28-LR) 40 GE QSFP+ Transceiver SR (FN-TRAN-QSFP+SR) 40 GE QSFP+ Transceiver LR (FN-TRAN-QSFP+LR) 100 GE QSFP28 Transceiver SR (FN-TRAN-QSFP28-SR) 100 GE QSFP28 Transceiver LR (FN-TRAN-QSFP28-LR) 100 GE QSFP28 BIDI Transceiver (FN-TRAN-QSFP28-BIDI) |
[/accesories]
The FortiGate 2600F Series enables organizations to build security-driven networks, forming the foundation of a robust Hybrid Mesh Firewall architecture. It weaves security deep into datacenters and across hybrid IT environments, protecting any edge at any scale. This FG-2600F-BDL-809-60 bundle includes FortiCare Premium + FortiGuard Enterprise Protection (5 Year).
Designed for hyperscale security, the FortiGate 2600F offers industry-leading throughput and connectivity options, including multiple 100 GE QSFP28 and 25 GE SFP28 slots. This allows enterprises to consolidate networking and security functions, reducing complexity while ensuring business-critical applications are safeguarded against known and unknown threats. With integrated Zero Trust Network Access (ZTNA) enforcement and the ability to manage unified policies via FortiOS, the 2600F ensures consistent convergence and a seamless user experience across distributed networks.
Secure any edge at any scale with hyperscale performance and integrated AI-powered threat protection.
- Unparalleled Performance: Features Fortinet’s patented SPU NP7 and CP9 processors to deliver up to 198 Gbps IPv4 firewall throughput (1518 byte, UDP) and 31 Gbps IPS throughput, preventing network bottlenecks.
- High-Speed Connectivity: Equipped with 4x 100 GE QSFP28 and 16x 25 GE SFP28 slots to support high-bandwidth architectures and simplify network designs without additional bridging devices.
- Integrated ZTNA: The industry's first NGFW with integrated Zero Trust Network Access enforcement automatically controls and verifies user access to applications for a seamless and secure experience.
- AI/ML-Powered Security: Delivers coordinated, automated, end-to-end threat protection against ransomware, malware, and zero-day attacks when paired with FortiGuard AI-Powered Security Services.
- Hardware-Assisted VXLAN: Supports ultra-scalable, low-latency VXLAN segmentation to bridge physical and virtual domains with Layer 4 firewall rules.
- Energy Efficient: Fortinet ASICs are designed for energy efficiency, leading to lower power consumption (average 416 W) and improved Total Cost of Ownership (TCO).
- Enterprise Data Centers: Ideal for high-speed segmentation and core network security with 100 GE connectivity.
- Hybrid Cloud Environments: Secures multi-cloud deployments with dynamic segmentation and consistent policy enforcement.
- Secure SD-WAN: Transforms and secures WANs with a unified security and management framework for hybrid working models.
- Hyperscale Security: supports massive connection counts (up to 24 Million / 40 Million* concurrent sessions) for large-scale enterprise needs.
- Mobile Security (4G/5G): Offers SPU-accelerated CGNAT and IPv6 migration options for service provider deployments.
- Firewall Throughput: IPv4 (1518/512/64 byte, UDP) 198 / 196 / 140 Gbps
- Firewall Throughput: IPv6 (1518/512/86 byte, UDP) 198 / 196 / 140 Gbps
- IPS Throughput (Enterprise Traffic Mix): 31 Gbps
- NGFW / Threat Protection: 27 Gbps NGFW throughput; 25 Gbps threat protection throughput
- VPN Performance: IPsec VPN throughput (512 byte) 55 Gbps; SSL-VPN throughput 16 Gbps
- SSL Inspection (IPS, avg HTTPS): 20 Gbps throughput
- Application Control Throughput (HTTP 64K): 64 Gbps
- System Capacity: 24 Million / 40 Million* concurrent sessions (TCP); 1 Million / 2 Million* new sessions/second (TCP); 100,000 firewall policies
- Network Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x 10 GE / GE RJ45, 2x 10 GE SFP+ / GE SFP HA, 2x GE RJ45 MGMT

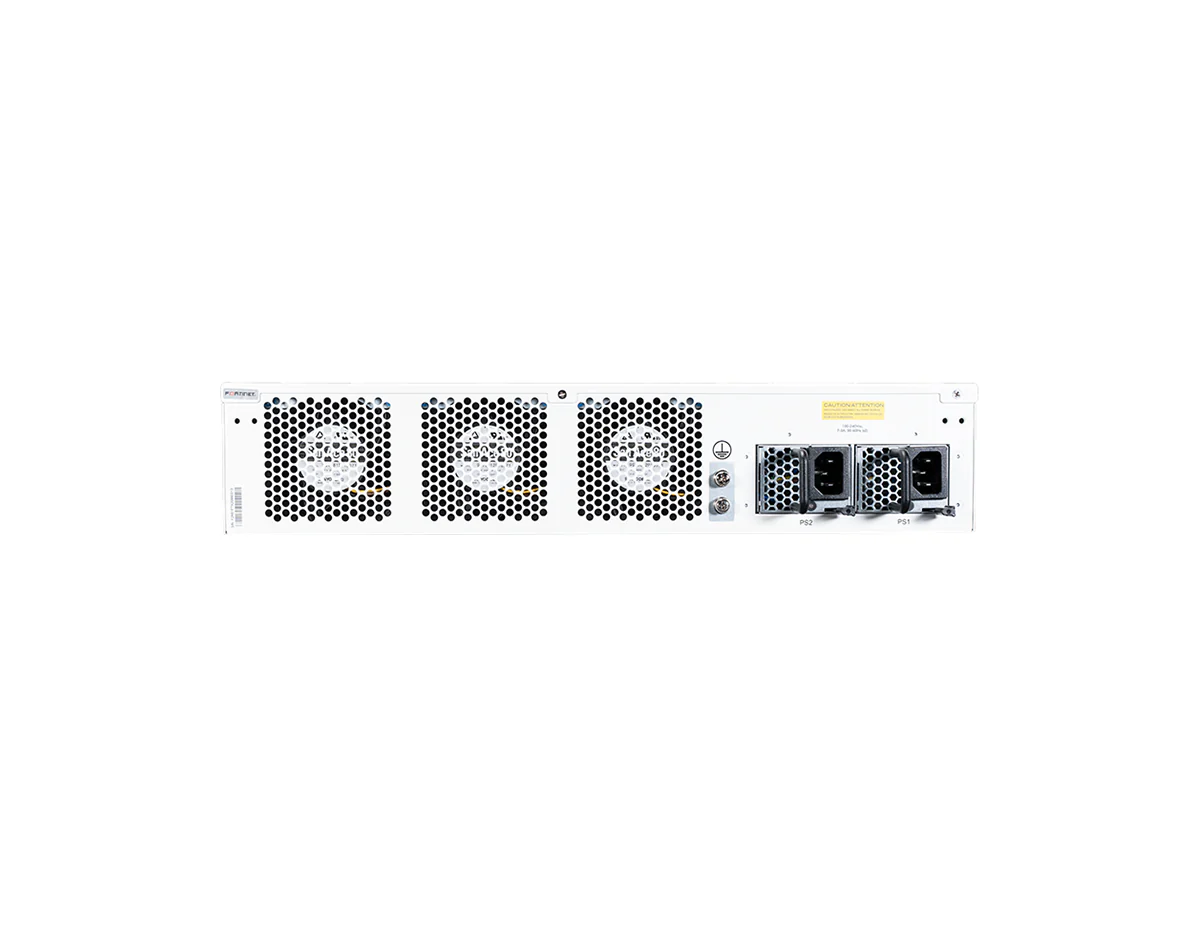

- Physical & Power: 2RU rack mount; 3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm); 30.6 lbs (13.9 kg); AC 100–240VAC, 47/63 Hz; power consumption 416 W / 510 W; operating temperature 0°C to 40°C
Upgrade Your Network Security
Deploy the FortiGate FG-2600F-BDL-809-60 today for industry-leading hyperscale protection and 100G connectivity.
