[shortdesc] Firewall, 1RU rack mount, 480GB SSD, 8x 10GE SFP+, 8x 5GE RJ45, 39 / 39 / 26.5 Gbps, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Product SKU	FG-201G-BDL-950-12
Bundle / Subscription	Firewall appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 1 Year
Form Factor	Rack Mount, 1 RU
Firewall Throughput	IPv4: 39 / 39 / 26.5 Gbps; IPv6: 39 / 39 / 26.5 Gbps (1518 / 512 / 64 byte, UDP)
IPS Throughput	9 Gbps
Interfaces	10x GE RJ45, 8x 5GE RJ45, 8x 10GE SFP+, 4x GE SFP
Internal Storage	1x 480 GB SSD
Power Input	100–240V AC, 50/60Hz
Dimensions (H x W x L)	1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	14.33 lbs (6.5 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB, USGv6/IPv6

[/properties]

[specifications]

System Performance
NGFW Throughput	7 Gbps
Threat Protection Throughput	6 Gbps
Firewall Latency (64 byte, UDP)	4.36 μs
Firewall Throughput (Packet per Second)	39.75 Mpps
IPsec VPN Throughput (512 byte)	36 Gbps
SSL-VPN Throughput	3 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	7 Gbps
Application Control Throughput (HTTP 64K)	27.8 Gbps
CAPWAP Throughput (HTTP 64K)	37.5 Gbps
System Capacity
Concurrent Sessions (TCP)	11 Million
New Sessions/Second (TCP)	400,000
Firewall Policies	10,000
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
Concurrent SSL-VPN Users (Recommended Max)	500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	900,000
Virtual Domains (Default/Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total/Tunnel)	256 / 128
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
GE RJ45 Ports	8
GE RJ45 Management / HA Ports	1 / 1
5/2.5/GE RJ45 Ports	8
10/GE SFP+/SFP Slots	8
GE SFP Slots	4
USB Port	1
Console Port	1
Trusted Platform Module (TPM)	Yes
Included Transceivers	0
Dimensions & Environment
Power Supply	Dual built-in non-hot swappable AC PSU
AC Current (Maximum)	2A @ 100VAC, 1.2A @ 240VAC
Power Consumption (Average / Maximum)	145 W / 176 W
Heat Dissipation	600.54 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Optional Accessories (Sold Separately)
Transceivers	GE SFP SX/LX, 10GE SFP+ RJ45/SR/LR/ER/ZR, 10GE SFP+ 30km BiDi (BD27/BD33), 25GE SFP28 SR
Cables	10 GE SFP+ Passive Direct Attach Cable (1m, 3m, 5m)

[/accesories]

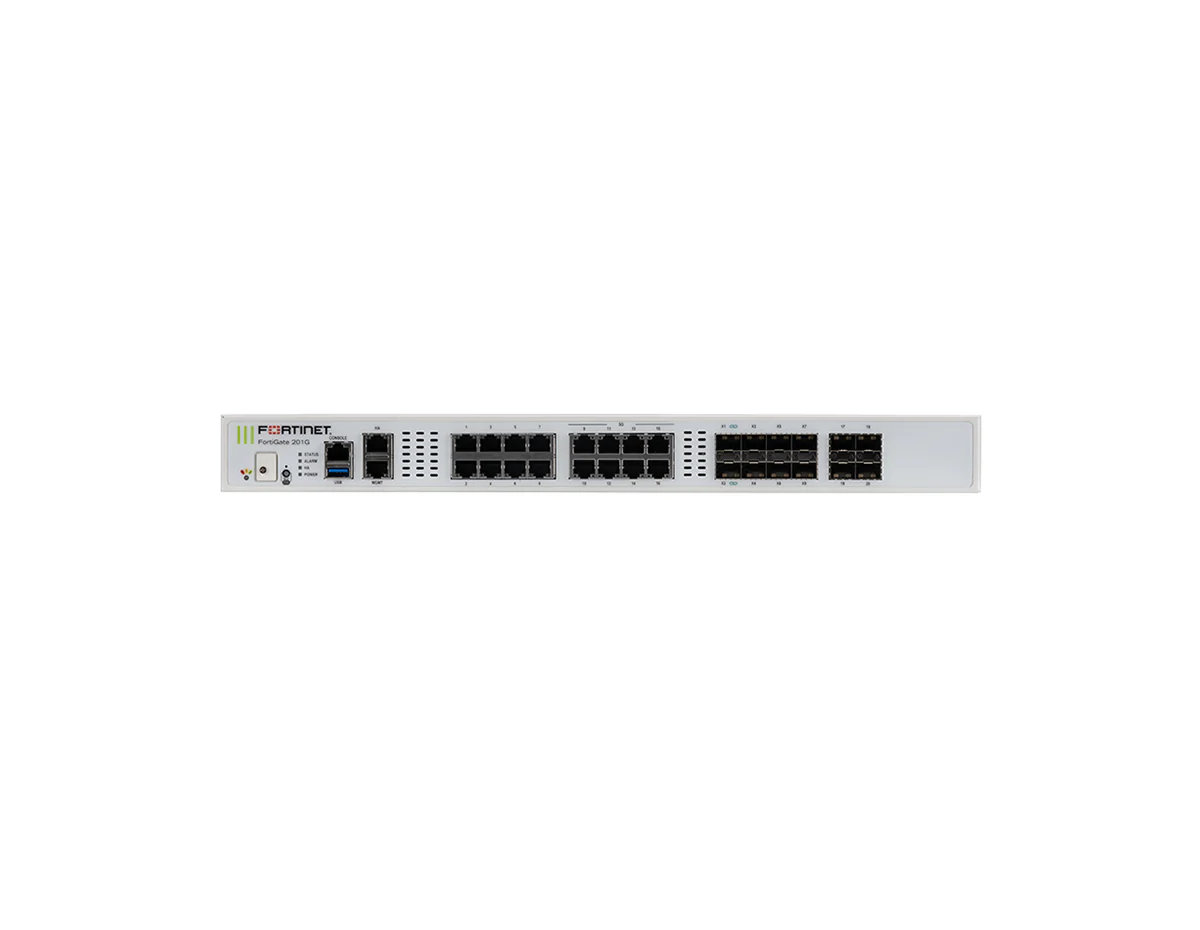

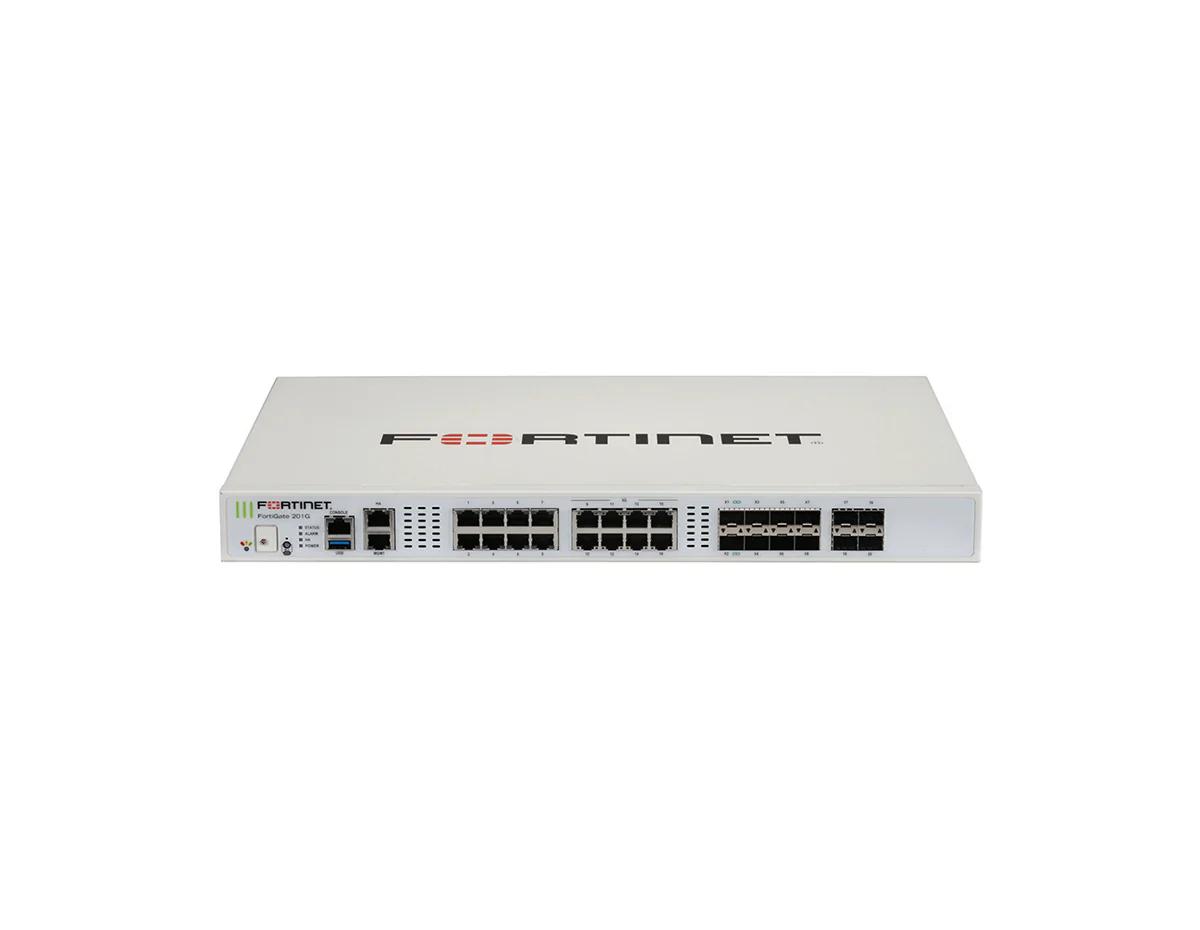

The Fortinet FG-201G-BDL-950-12 bundle includes the FortiGate firewall appliance plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 Year.

The Fortinet FortiGate 200G Series next-generation firewall (NGFW) combines artificial intelligence (AI)-powered security and machine learning (ML) to deliver threat protection at any scale. Get deeper visibility into your network and see applications, users, and devices before they become threats. A key differentiator of the FortiGate 201G is its integrated 480GB onboard SSD storage. Powered by FortiOS, the FortiGate 200G Series helps consolidate security functions into a single platform for secure networking that is broad, deep, and automated.

At the core of the FortiGate 200G Series are Fortinet’s patented SPU processors, including the NP7Lite network processor and CP10 content processor. These dedicated ASICs offload resource-intensive tasks to deliver industry-leading performance, including 9 Gbps of IPS throughput and 6 Gbps of Threat Protection throughput. With integrated capabilities for Universal ZTNA and Secure SD-WAN, the FortiGate 200G Series helps reduce complexity and risk in hybrid IT networks while maintaining ultra-low latency for critical applications.

Secure Networking with Integrated Storage and AI Protection

• Integrated Onboard Storage: Includes 1x 480 GB SSD onboard storage.
• High-Performance Security: Delivers up to 39 / 39 / 26.5 Gbps IPv4 and IPv6 firewall throughput and 9 Gbps IPS throughput with NP7Lite and CP10 hardware acceleration.
• AI/ML-Powered Protection: Consolidated AI/ML-powered FortiGuard services help defend against modern threats, including zero-day attacks.
• Deep Visibility: Real-time SSL inspection (including TLS 1.3) provides visibility into users, devices, and applications.
• Integrated SD-WAN: Unifies networking and security to help transform and secure WAN edges.
• Scalable Segmentation: Supports dynamic segmentation and VXLAN segmentation to help reduce lateral movement across the network.
• Universal ZTNA: Controls and verifies access to applications no matter where the user is and no matter where the application is hosted.

• Enterprises Needing On-Device Storage: Designed for deployments that require integrated SSD storage on the firewall appliance.
• Hybrid Mesh Firewall Architecture: Helps enforce consistent policy and threat protection across network segments.
• Secure SD-WAN Deployments: Ideal for securing and optimizing WAN connectivity for distributed environments.
• Segmentation Across Hybrid Environments: Supports end-to-end segmentation from branch to data center and across multi-cloud environments.
• Encrypted Traffic Inspection: Ultra-fast threat protection and SSL inspection provide security at the edge without impacting performance.

• Firewall Throughput: IPv4 39 / 39 / 26.5 Gbps; IPv6 39 / 39 / 26.5 Gbps (1518 / 512 / 64 byte, UDP)
• IPS Throughput: 9 Gbps
• NGFW Throughput: 7 Gbps
• Threat Protection Throughput: 6 Gbps
• IPsec VPN Throughput: 36 Gbps (512 byte)
• SSL Inspection Throughput: 7 Gbps (IPS, avg. HTTPS)
• Concurrent Sessions: 11 Million (TCP)
• Network Interfaces: 10x GE RJ45, 8x 5GE RJ45, 8x 10GE SFP+, 4x GE SFP
• Power Supply: Dual built-in non-hot swappable AC PSU

Upgrade Your Network Security

Equip your enterprise with the AI-driven performance and integrated storage of the FortiGate FG-201G-BDL-950-12 today.
