[shortdesc] Firewall, 39/39/26.5 Gbps throughput, 9 Gbps IPS, 480GB SSD, 8x 10GE SFP+, 8x 5/2.5GE RJ45, 1RU [/shortdesc]

[properties]

Product SKU	FG-201G
Form Factor	Rack Mount, 1 RU
Firewall Throughput	39 Gbps (IPv4) / 39 Gbps (IPv6)
IPS Throughput	9 Gbps
Interfaces	10x GE RJ45 (1x MGMT, 1x HA, 8x switch), 8x 5/2.5/GE RJ45, 8x 10GE SFP+/SFP FortiLink slots, 4x GE SFP
Internal Storage	1x 480 GB SSD
Power Input	100–240V AC, 50/60Hz
Dimensions (H x W x L)	1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	14.33 lbs (6.5 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6

[/properties]

[specifications]

System Performance
NGFW Throughput	7 Gbps
Threat Protection Throughput	6 Gbps
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	39 / 39 / 26.5 Gbps
IPv6 Firewall Throughput (1518/512/64 byte, UDP)	39 / 39 / 26.5 Gbps
Firewall Latency (64 byte, UDP)	4.36 μs
Firewall Throughput (Packet per Second)	39.75 Mpps
IPsec VPN Throughput (512 byte)	36 Gbps
SSL-VPN Throughput	3 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	7 Gbps
Application Control Throughput (HTTP 64K)	27.8 Gbps
CAPWAP Throughput (HTTP 64K)	37.5 Gbps
System Capacity
Concurrent Sessions (TCP)	11 Million
New Sessions/Second (TCP)	400,000
Firewall Policies	10,000
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
Concurrent SSL-VPN Users (Recommended Max)	500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	900,000
Virtual Domains (Default/Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total/Tunnel)	256 / 128
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
GE RJ45 Ports	8
GE RJ45 Management / HA Ports	1 / 1
5/2.5/GE RJ45 Ports	8
10/GE SFP+/SFP Slots	8
GE SFP Slots	4
USB Port	1
Console Port	1
Trusted Platform Module (TPM)	Yes
Included Transceivers	0
Dimensions & Environment
Power Supply	Dual built-in non-hot swappable AC PSU
AC Current (Maximum)	2A @ 100VAC, 1.2A @ 240VAC
Power Consumption (Average / Maximum)	145 W / 176 W
Heat Dissipation	600.54 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Optional Accessories (Sold Separately)
Transceivers	GE SFP SX/LX, 10GE SFP+ RJ45/SR/LR/ER/ZR, 10GE SFP+ 30km BiDi (BD27/BD33), 25GE SFP28 SR
Cables	10 GE SFP+ Passive Direct Attach Cable (1m, 3m, 5m)

[/accesories]

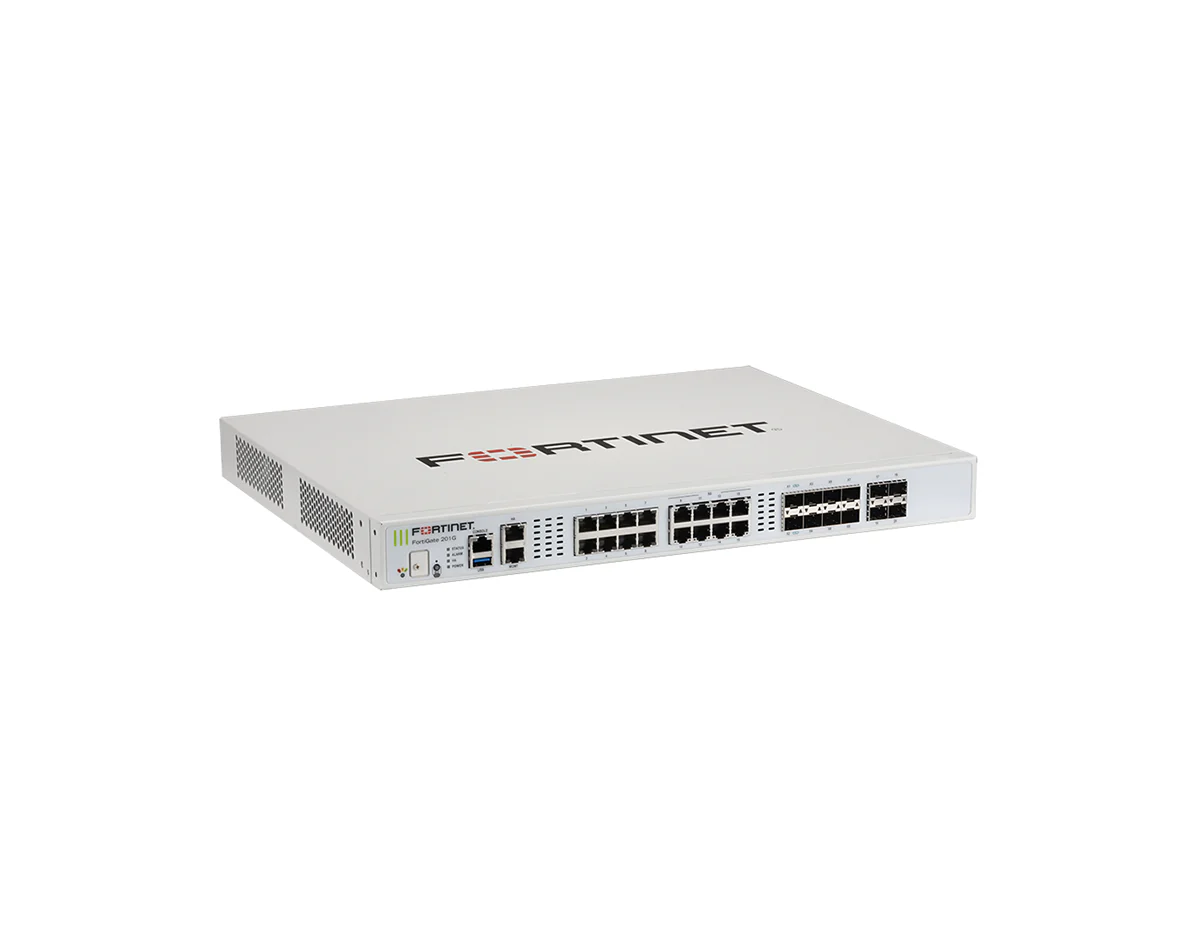

The Fortinet FortiGate 201G Series next-generation firewall (NGFW) combines AI-powered security and machine learning to deliver scalable threat protection for modern enterprises. A key differentiator for the FortiGate 201G is its integrated 480GB onboard SSD storage. By consolidating security functions into a single platform powered by FortiOS, the FortiGate 201G simplifies management while providing deep visibility into applications, users, and devices.

At the core of the FortiGate 201G are Fortinet’s SPU processors, including the NP7Lite network processor and CP10 content processor. These dedicated processors offload resource-intensive tasks to deliver strong performance, including 9 Gbps of IPS throughput and 6 Gbps of Threat Protection throughput. With integrated capabilities for Universal ZTNA and Secure SD-WAN, the FortiGate 201G reduces complexity and risk in hybrid IT networks while maintaining ultra-low latency for critical applications.

Secure Networking with Integrated Storage and AI Protection

• Integrated Onboard Storage: 1x 480 GB SSD
• Enterprise Firewall Performance: IPv4/IPv6 1518/512/64 byte (UDP) 39 / 39 / 26.5 Gbps
• IPS Throughput: 9 Gbps
• NGFW / Threat Protection: 7 Gbps NGFW throughput, 6 Gbps Threat Protection throughput
• VPN Performance: 36 Gbps IPsec VPN throughput (512 byte), 3 Gbps SSL-VPN throughput
• Network Interfaces: 8x GE RJ45 ports, 8x 5/2.5/GE RJ45 ports, 8x 10/GE SFP+/SFP slots, 4x GE SFP slots
• System Scale: 11 Million concurrent sessions (TCP), 400,000 new sessions/second (TCP)
• Power and Cooling: Dual built-in non-hot swappable AC PSU, 145 W / 176 W (avg/max), 600.54 BTU/h heat dissipation
• Form Factor and Physical: Rack Mount 1 RU, 1.75 x 17.0 x 15.0 in (44.45 x 432 x 380 mm), 14.33 lbs (6.5 kg)
• Operating Environment: 32°F to 104°F (0°C to 40°C), 5% to 90% non-condensing humidity, up to 10,000 ft (3048 m)

• Enterprises Requiring Onboard Storage: Suitable for deployments needing integrated SSD storage on the firewall.
• Hybrid Mesh Firewalls: Deploy consistent security across distributed networks, ensuring seamless policy enforcement.
• Secure SD-WAN: Perfect for connecting branch offices and remote locations with secure, high-performance wide area networking.
• Campus Edge Protection: Secures user access and IoT devices with deep visibility and automated control.
• Encrypted Traffic Inspection: Suitable for environments requiring real-time SSL inspection including TLS 1.3 support.

• IPv4 Firewall Throughput (1518/512/64 byte, UDP): 39 / 39 / 26.5 Gbps
• IPS Throughput: 9 Gbps
• Onboard Storage: 1x 480 GB SSD
• Interfaces: 8x GE RJ45, 1 / 1 GE RJ45 MGMT/HA, 8x 5/2.5/GE RJ45, 8x 10/GE SFP+/SFP, 4x GE SFP
• Threat Protection Throughput: 6 Gbps
• IPsec VPN Throughput (512 byte): 36 Gbps
• Concurrent Sessions (TCP): 11 Million
• Power Consumption (Average / Maximum): 145 W / 176 W

Upgrade Your Network Security

Equip your enterprise with the AI-driven performance and integrated storage of the FortiGate 201G today.
