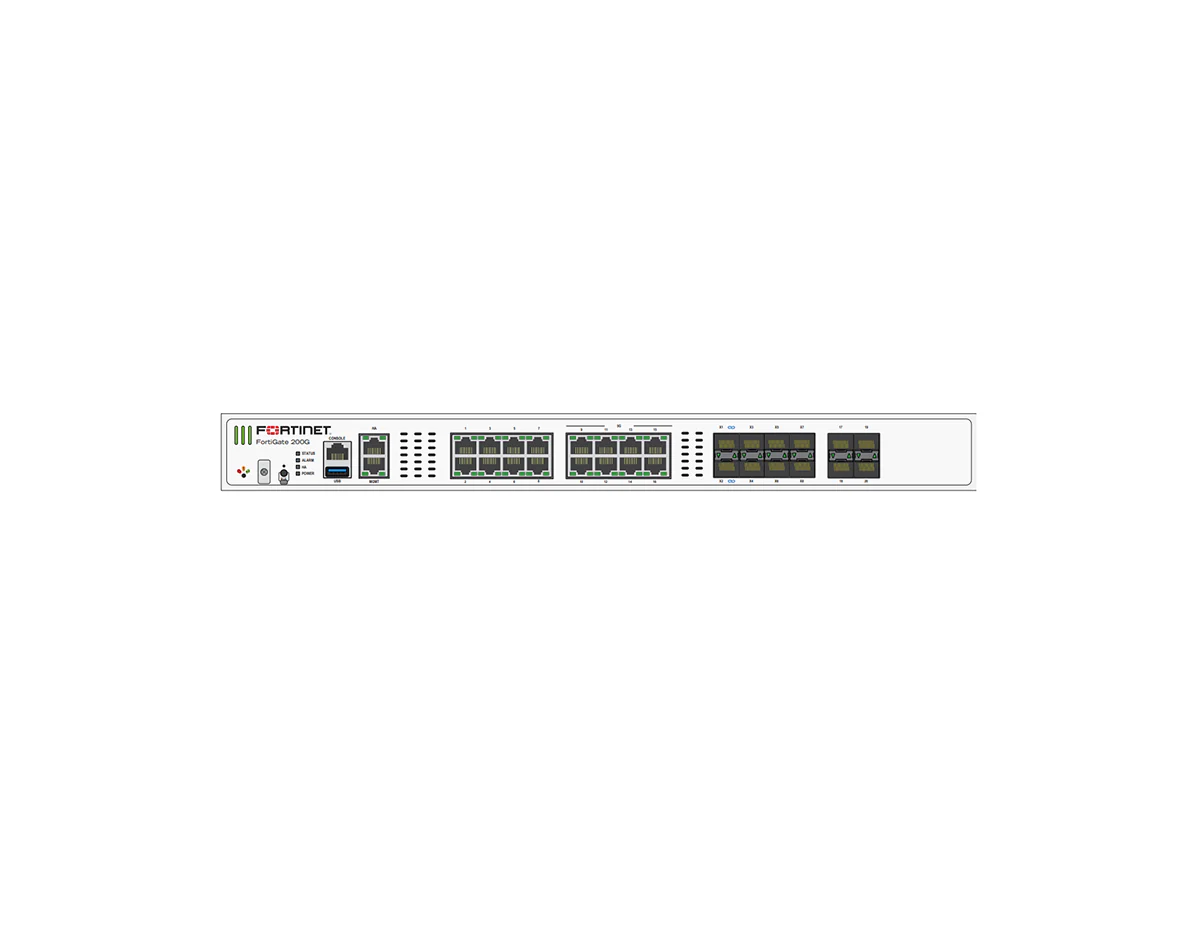

[shortdesc] Firewall, 1RU rack mount, 39 Gbps, 10x GE + 8x 5GE + 8x 10GE SFP+, including 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP) [/shortdesc]

[properties]

Product SKU	FG-200G-BDL-950-12
Bundle / Subscription	Firewall appliance + FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 1 Year
Form Factor	Rack Mount, 1 RU
Firewall Throughput	39 / 39 / 26.5 Gbps (IPv4, 1518/512/64 byte UDP); 39 / 39 / 26.5 Gbps (IPv6, 1518/512/64 byte UDP)
IPS Throughput	9 Gbps
Interfaces	10x GE RJ45 (including 1x MGMT, 1x HA, 8x switch), 8x 5/2.5/GE RJ45, 8x 10GE SFP+/SFP FortiLink Slots (default), 4x GE SFP
Power Input	100–240V AC, 50/60Hz
Dimensions (H x W x L)	1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	14.11 lbs (6.4 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Certifications	Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; Certification: USGv6/IPv6

[/properties]

[specifications]

System Performance
NGFW Throughput	7 Gbps
Threat Protection Throughput	6 Gbps
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	39 / 39 / 26.5 Gbps
IPv6 Firewall Throughput (1518/512/64 byte, UDP)	39 / 39 / 26.5 Gbps
Firewall Latency (64 byte, UDP)	4.36 μs
Firewall Throughput (Packet per Second)	39.75 Mpps
IPsec VPN Throughput (512 byte)	36 Gbps
SSL-VPN Throughput	3 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	7 Gbps
Application Control Throughput (HTTP 64K)	27.8 Gbps
CAPWAP Throughput (HTTP 64K)	37.5 Gbps
System Capacity
Concurrent Sessions (TCP)	11 Million
New Sessions/Second (TCP)	400,000
Firewall Policies	10,000
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
Concurrent SSL-VPN Users (Recommended Max)	500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	900,000
Virtual Domains (Default/Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total/Tunnel)	256 / 128
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
GE RJ45 Ports	8
GE RJ45 Management / HA Ports	1 / 1
5/2.5/GE RJ45 Ports	8
10GE SFP+/SFP FortiLink Slots (default)	8
GE SFP Slots	4
USB Port	1
Console Port	1
Trusted Platform Module (TPM)	Yes
Included Transceivers	0
Dimensions & Environment
Power Supply	Dual built-in non-hot swappable AC PSU
AC Current (Maximum)	2A @ 100VAC, 1.2A @ 240VAC
Power Consumption (Average / Maximum)	145 W / 175 W
Heat Dissipation	597.12 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Optional Accessories (Sold Separately)
Transceivers	1 GE SFP SX (FN-TRAN-SX), 1 GE SFP LX (FN-TRAN-LX), 10 GE SFP+ RJ45 (FN-TRAN-SFP+GC), 10 GE SFP+ SR (FN-TRAN-SFP+SR), 10 GE SFP+ LR (FN-TRAN-SFP+LR), 10 GE SFP+ ER (FN-TRAN-SFP+ER), 10 GE SFP+ ZR 80km (FN-TRAN-SFP+ZR), 10 GE SFP+ BiDi 30km (FN-TRAN-SFP+BD27 and FN-TRAN-SFP+BD33), 25 GE SFP28 SR (FN-TRAN-SFP28-SR)
Cables	10 GE SFP+ Passive Direct Attach Cable 1m (FN-CABLE-SFP+1), 3m (FN-CABLE-SFP+3), 5m (FN-CABLE-SFP+5)

[/accesories]

The Fortinet FortiGate 200G Series next-generation firewall (NGFW) combines AI-powered security and machine learning to deliver scalable threat protection for modern enterprises. By consolidating security functions into a single platform powered by FortiOS, the FortiGate 200G simplifies management while providing deep visibility into applications, users, and devices. This solution integrates seamlessly with the Fortinet Security Fabric, ensuring consistent policy enforcement across hybrid environments, from the campus edge to the data center. The FG-200G-BDL-950-12 bundle includes FortiCare Premium and FortiGuard Unified Threat Protection (UTP) for 1 year.

At the core of the FortiGate 200G are Fortinet’s patented SPU processors, including the NP7Lite network processor and CP10 content processor. These dedicated ASICs offload resource-intensive tasks to deliver industry-leading performance, including 9 Gbps of IPS throughput and 6 Gbps of Threat Protection throughput. With integrated capabilities for Zero-Trust Network Access (ZTNA) and Secure SD-WAN, the FortiGate 200G reduces complexity and risk in hybrid IT networks while maintaining ultra-low latency for critical applications.

Secure Networking with AI-Powered Threat Protection

• High-Performance Security: Delivers up to 39 / 39 / 26.5 Gbps IPv4/IPv6 firewall throughput (1518/512/64 byte UDP) with ultra-low latency (4.36 μs) powered by NP7Lite and CP10 acceleration.
• AI-Powered Protection: Utilizes AI-powered security services to protect against modern attack vectors, including zero-day and sophisticated AI-powered attacks.
• Deep Visibility: Provides granular insight into users, devices, and applications, including real-time SSL inspection (including TLS 1.3) for visibility across the attack surface.
• Integrated SD-WAN: Unifies security and networking to transform WAN edges, ensuring superior quality of experience for hybrid work models.
• Scalable Segmentation: Supports dynamic and VXLAN segmentation to help prevent lateral movement and bridge physical and virtual domains.
• Universal ZTNA: Enforces consistent access policies and verifies users automatically, regardless of location or application hosting.
• Hardware-Backed Security: Includes a Trusted Platform Module (TPM) and dedicated hardware protections designed to harden the appliance against compromise.

• Mid-Sized to Large Enterprises: Ideal for organizations requiring high-speed threat protection and consolidated security at the edge.
• Hybrid Mesh Firewalls: Deploy consistent security across distributed networks, ensuring seamless policy enforcement.
• Secure SD-WAN: Perfect for connecting branch offices and remote locations with secure, high-performance wide area networking.
• Campus Edge Protection: Secures user access and IoT devices with deep visibility and automated control.
• Encrypted Traffic Inspection: Suitable for environments requiring real-time SSL inspection with full visibility across encrypted traffic.

• Firewall Performance: IPv4/IPv6 throughput (1518/512/64 byte UDP) 39 / 39 / 26.5 Gbps; latency (64 byte UDP) 4.36 μs; 39.75 Mpps.
• Security Throughput: IPS (Enterprise Mix) 9 Gbps; NGFW 7 Gbps; Threat Protection 6 Gbps.
• VPN & SSL: IPsec VPN (512 byte) 36 Gbps with 2,000 site-to-site and 16,000 client tunnels; SSL-VPN 3 Gbps with 500 recommended concurrent users; SSL inspection (IPS, avg. HTTPS) 7 Gbps.
• Interfaces: 10x GE RJ45 (incl. 1x MGMT, 1x HA, 8x switch), 8x 5/2.5/GE RJ45, 8x 10GE SFP+/SFP FortiLink (default), 4x GE SFP, plus USB and console.
• Capacity: 11 million concurrent sessions; 400,000 new sessions/second; 10,000 firewall policies; VDOMs 10 (default) / 25 (max).
• Power & Thermal: 100–240V AC input; 145 W average / 175 W max; heat dissipation 597.12 BTU/h; dual built-in non-hot swappable AC PSU (default 1+1 redundancy).
• Physical/Environment/Certs: 1 RU (1.75 x 17.0 x 15.0 in / 44.45 x 432 x 380 mm), 14.11 lbs (6.4 kg); operating 0°C to 40°C; humidity 5%–90% non-condensing; compliance includes FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; certification USGv6/IPv6.
