[shortdesc] Firewall, rackmount 1RU, NP7Lite/CP10 acceleration, 39 Gbps firewall, 9 Gbps IPS, including 3 Year FortiCare Premium and FortiGuard Enterprise Protection [/shortdesc]

[properties]

Product SKU	FG-200G-BDL-809-36
Bundle / Subscription	Firewall + FortiCare Premium + FortiGuard Enterprise Protection, 3 Year
Form Factor	Rack Mount, 1 RU
Firewall Throughput	39 / 39 / 26.5 Gbps (IPv4, 1518/512/64 byte UDP) / 39 / 39 / 26.5 Gbps (IPv6, 1518/512/64 byte UDP)
IPS Throughput	9 Gbps
Interfaces	10x GE RJ45 (including 1x MGMT port, 1x HA port, 8x switch ports), 8x 5/2.5/GE RJ45, 8x 10 GE SFP+/SFP FortiLink slots (default), 4x GE SFP
Power Input	100–240V AC, 50/60Hz
Dimensions (H x W x L)	1.75 x 17.0 x 15.0 inches (44.45 x 432 x 380 mm)
Weight	14.11 lbs (6.4 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Certifications	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6

[/properties]

[specifications]

System Performance
NGFW Throughput	7 Gbps
Threat Protection Throughput	6 Gbps
IPv4 Firewall Throughput (1518/512/64 byte, UDP)	39 / 39 / 26.5 Gbps
IPv6 Firewall Throughput (1518/512/64 byte, UDP)	39 / 39 / 26.5 Gbps
Firewall Latency (64 byte, UDP)	4.36 μs
Firewall Throughput (Packet per Second)	39.75 Mpps
IPsec VPN Throughput (512 byte)	36 Gbps
SSL-VPN Throughput	3 Gbps
SSL Inspection Throughput (IPS, avg. HTTPS)	7 Gbps
Application Control Throughput (HTTP 64K)	27.8 Gbps
CAPWAP Throughput (HTTP 64K)	37.5 Gbps
System Capacity
Concurrent Sessions (TCP)	11 Million
New Sessions/Second (TCP)	400,000
Firewall Policies	10,000
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
Concurrent SSL-VPN Users (Recommended Max)	500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	900,000
Virtual Domains (Default/Maximum)	10 / 25
Maximum Number of FortiSwitches Supported	64
Maximum Number of FortiAPs (Total/Tunnel)	256 / 128
Maximum Number of FortiTokens	5,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Hardware & Interfaces
GE RJ45 Ports	8
GE RJ45 Management / HA Ports	1 / 1
5/2.5/GE RJ45 Ports	8
10GE SFP+/SFP FortiLink Slots (default)	8
GE SFP Slots	4
USB Port	1
Console Port	1
Trusted Platform Module (TPM)	Yes
Included Transceivers	0
Dimensions & Environment

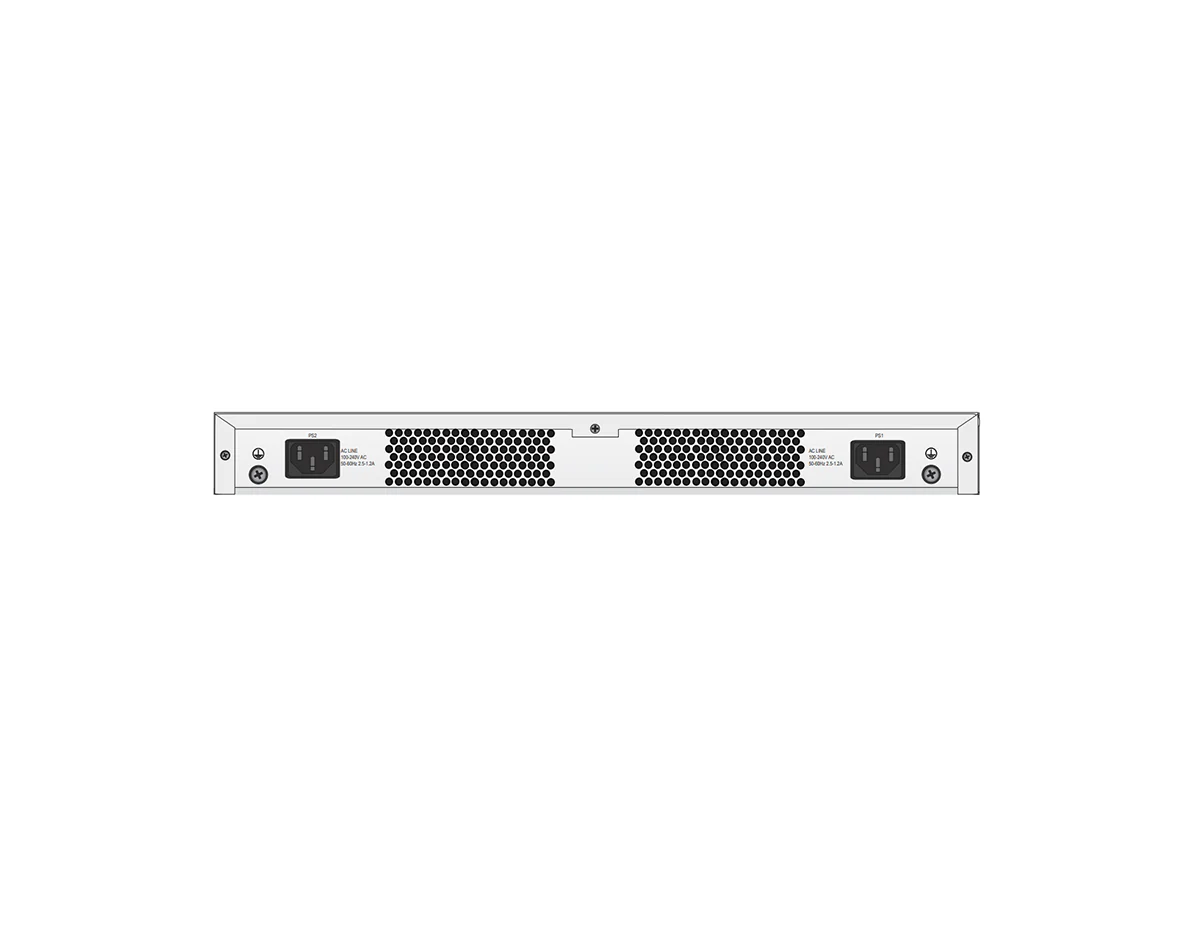

Power Supply	Dual built-in non-hot swappable AC PSUs
AC Current (Maximum)	2A @ 100VAC, 1.2A @ 240VAC
Power Consumption (Average / Maximum)	145 W / 175 W
Heat Dissipation	597.12 BTU/h
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	5% to 90% non-condensing
Noise Level	LPA 48 dBA / LWA 55 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 10,000 ft (3048 m)

[/specifications]

[accesories]

Optional Accessories (Sold Separately)
Transceivers	1 GE SFP SX (FN-TRAN-SX), 1 GE SFP LX (FN-TRAN-LX), 10 GE SFP+ RJ45 (FN-TRAN-SFP+GC), 10 GE SFP+ SR (FN-TRAN-SFP+SR), 10 GE SFP+ LR (FN-TRAN-SFP+LR), 10 GE SFP+ ER (FN-TRAN-SFP+ER), 10 GE SFP+ ZR 80km (FN-TRAN-SFP+ZR), 10 GE SFP+ BiDi 30km (FN-TRAN-SFP+BD27 and FN-TRAN-SFP+BD33), 25 GE SFP28 SR (FN-TRAN-SFP28-SR)
Cables	10 GE SFP+ Passive Direct Attach Cable 1m (FN-CABLE-SFP+1), 3m (FN-CABLE-SFP+3), 5m (FN-CABLE-SFP+5)

[/accesories]

The Fortinet FortiGate 200G Series next-generation firewall (NGFW) combines AI-powered security and machine learning to deliver scalable threat protection for modern enterprises. By consolidating security functions into a single platform powered by FortiOS, the FortiGate 200G simplifies management while providing deep visibility into applications, users, and devices. This solution integrates seamlessly with the Fortinet Security Fabric, ensuring consistent policy enforcement across hybrid environments, from the campus edge to the data center. The FG-200G-BDL-809-36 bundle includes FortiCare Premium and FortiGuard Enterprise Protection for 3 years.

At the core of the FortiGate 200G are Fortinet’s patented SPU processors, including the NP7Lite network processor and CP10 content processor. These dedicated ASICs offload resource-intensive tasks to deliver high-performance security, including 9 Gbps of IPS throughput and 6 Gbps of Threat Protection throughput. With integrated capabilities for Zero-Trust Network Access (ZTNA) and Secure SD-WAN, the FortiGate 200G reduces complexity and risk in hybrid IT networks while maintaining ultra-low latency for critical applications.

Secure Networking with AI-Powered Threat Protection

• High-Performance Security: Delivers up to 39 Gbps firewall throughput with ultra-low latency (4.36 μs) powered by NP7Lite and CP10 acceleration.
• AI-Powered Protection: Uses FortiGuard AI-Powered Security Services infused with threat intelligence to protect against modern attack vectors, including zero-day and AI-powered attacks.
• Deep Visibility: Provides visibility into users, devices, and applications with real-time SSL inspection (including TLS 1.3).
• Integrated SD-WAN: Unifies security and networking to transform WAN edges, ensuring superior quality of experience for hybrid work models.
• Scalable Segmentation: Supports dynamic segmentation and VXLAN segmentation to reduce lateral movement and bridge physical and virtual domains.
• Universal ZTNA: Automatically controls, verifies, and facilitates user access to applications, granting access only to validated users.
• Hardware-Backed Security: Includes a Trusted Platform Module (TPM) and dedicated hardware protections designed to harden the appliance against compromise.

• Mid-Sized to Large Enterprises: Ideal for organizations requiring high-speed threat protection and consolidated security at the edge.
• Hybrid Mesh Firewalls: Deploy consistent security across distributed networks, ensuring seamless policy enforcement.
• Secure SD-WAN: Perfect for connecting branch offices and remote locations with secure, high-performance wide area networking.
• Campus Edge Protection: Secures user access and IoT devices with deep visibility and automated control.
• Encrypted Traffic Inspection: Suitable for environments requiring real-time SSL inspection with defined performance metrics.

• Firewall Performance: IPv4/IPv6 throughput (1518/512/64 byte UDP) 39 / 39 / 26.5 Gbps; latency (64 byte UDP) 4.36 μs; 39.75 Mpps.
• Security Throughput: IPS 9 Gbps (Enterprise Mix); NGFW 7 Gbps; Threat Protection 6 Gbps.
• VPN Capacity & Performance: IPsec VPN (512 byte) 36 Gbps with 2,000 gateway-to-gateway and 16,000 client-to-gateway tunnels.
• SSL Performance: SSL-VPN 3 Gbps with 500 recommended concurrent users; SSL inspection (IPS, avg. HTTPS) 7 Gbps with 900,000 concurrent sessions.

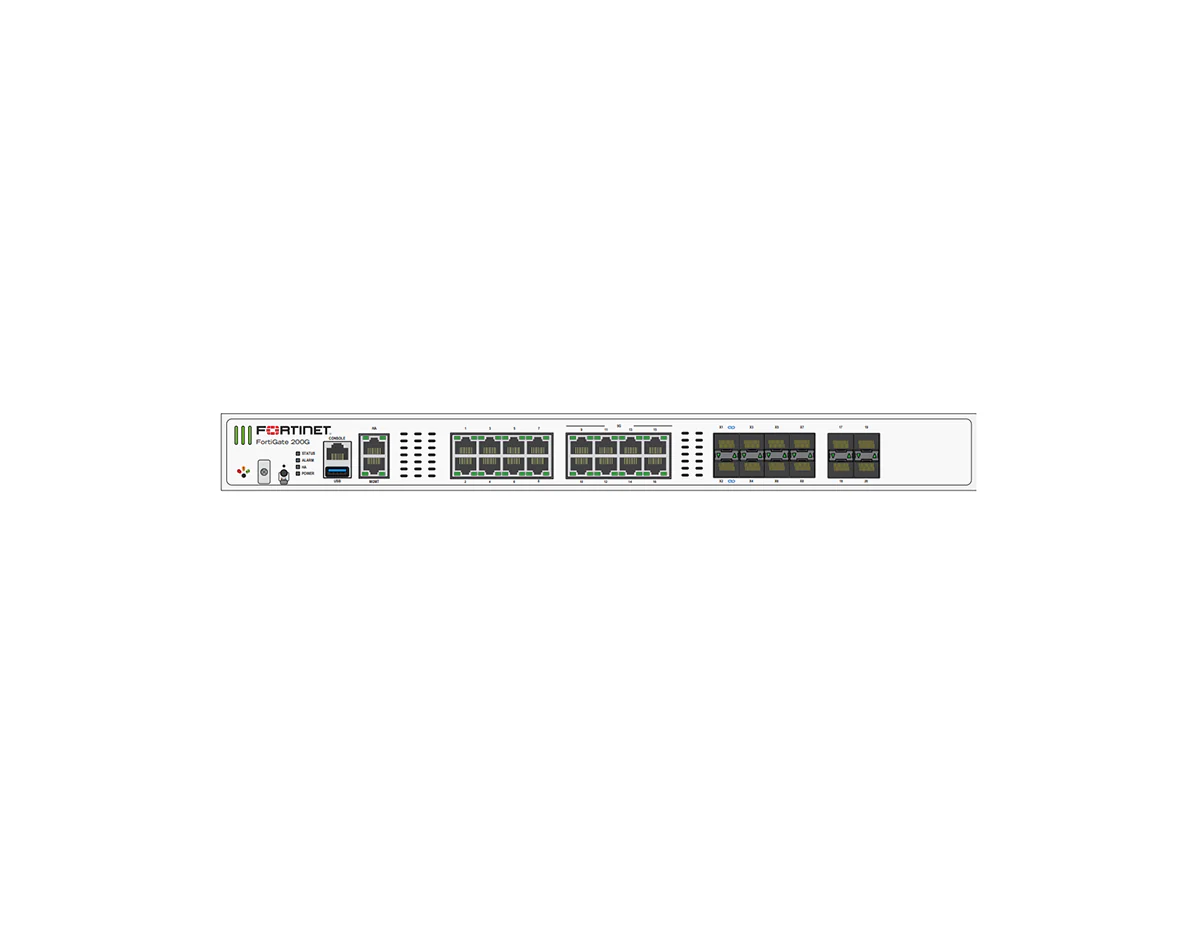

• Interfaces: 10x GE RJ45 (including 1x MGMT, 1x HA, 8x switch ports), 8x 5/2.5/GE RJ45, 8x 10GE SFP+/SFP FortiLink (default), 4x GE SFP, plus USB and console.
• System Capacity: 11 million concurrent sessions; 400,000 new sessions/second; 10,000 firewall policies; VDOMs 10 (default) / 25 (max); supports up to 64 FortiSwitches, 256 FortiAPs (128 tunnel), and 5,000 FortiTokens.
• Power/Physical/Environment: 100–240V AC input; 145 W average / 175 W max; AC current 2A @ 100VAC, 1.2A @ 240VAC; heat dissipation 597.12 BTU/h; dual built-in non-hot swappable AC PSUs; 1 RU (1.75 x 17.0 x 15.0 in / 44.45 x 432 x 380 mm), 14.11 lbs (6.4 kg); operating 0°C to 40°C; storage -35°C to 70°C; humidity 5%–90% non-condensing; noise LPA 48 dBA / LWA 55 dBA; airflow side and front to back; altitude up to 10,000 ft (3048 m).
