[shortdesc]Firewall, dual DC PSU, 2x 960GB NVMe, 198 Gbps FW, 22 Gbps IPS, including 5 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]

[properties]

Product Series	FortiGate 1800F Series
Model / SKU	FG-1801F-DC-BDL-809-60
Bundle / Subscription	Appliance + FortiCare Premium + FortiGuard Enterprise Protection (5 Year)
Form Factor	Rack Mount, 2RU
Firewall Throughput (IPv4)	198 / 197 / 140 Gbps (1518 / 512 / 64 byte, UDP)
Threat Protection Throughput	15 Gbps
Internal Storage	2x 960GB NVMe SSD
Network Interfaces	Multiple GE RJ45, 25 GE SFP28 / 10 GE SFP+ / GE SFP, and 100 GE QSFP28 / 40 GE QSFP+ slots (plus dedicated MGMT and HA ports)
Power Input	Dual DC Power Supplies (-48V to -60V DC)
Dimensions (H x W x L)	3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm)
Weight	30.4 lbs (13.8 kg)

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	22 Gbps
NGFW Throughput	17 Gbps
System Performance and Capacity
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	198 / 197 / 140 Gbps
Firewall Latency (64 byte, UDP)	3.22 μs
Firewall Throughput (Packet per Second)	210 Mpps
Concurrent Sessions (TCP)	12 Million / 40 Million (Requires Hyperscale Firewall License for 40 Million)
New Sessions/Second (TCP)	750,000 / 2 Million (Requires Hyperscale Firewall License for 2 Million)
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	11 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	10,000
SSL Inspection Throughput (IPS, avg. HTTPS)	12 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	9,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	1.3 Million
Application Control Throughput (HTTP 64K)	34 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
Virtual Domains (Default/Maximum)	10 / 250
Maximum Number of FortiSwitches Supported	196
Maximum Number of FortiAPs (Total/Tunnel)	4096 / 2048
Maximum Number of FortiTokens	20,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Interfaces and Modules
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	4
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	12
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Ports	16
GE RJ45 Management Ports	2
10 GE SFP+ / GE SFP HA Slots	2
USB 3.0 Port	1
Console RJ45 Port	1
Dimensions and Power
DC Current (Maximum)	20A
Power Consumption (Average / Maximum)	414.9 W / 463.1 W
Heat Dissipation	1579.2 BTU/h
Redundant Power Supplies	Hot Swappable
Operating Environment and Certifications
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	62.74 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 7400 ft (2250 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Included Transceivers	2x SFP+ (SR 10 GE)
Optional Power Supplies	DC Power Supply (SP-FG1800F-DC-PS)
Optional Mounting Hardware	Rack Mount Sliding Rails (SP-FG3040B-RAIL)
Optional Transceivers	100 GE QSFP28, 40 GE QSFP+, 25 GE SFP28, 10 GE SFP+ (Various ranges: SR, LR, ER, ZR, BiDi)
Optional Cables	40 GE QSFP+ Passive Direct Attach Cables (1m, 3m, 5m), 100 GE QSFP28 Breakout Cables

[/accesories]

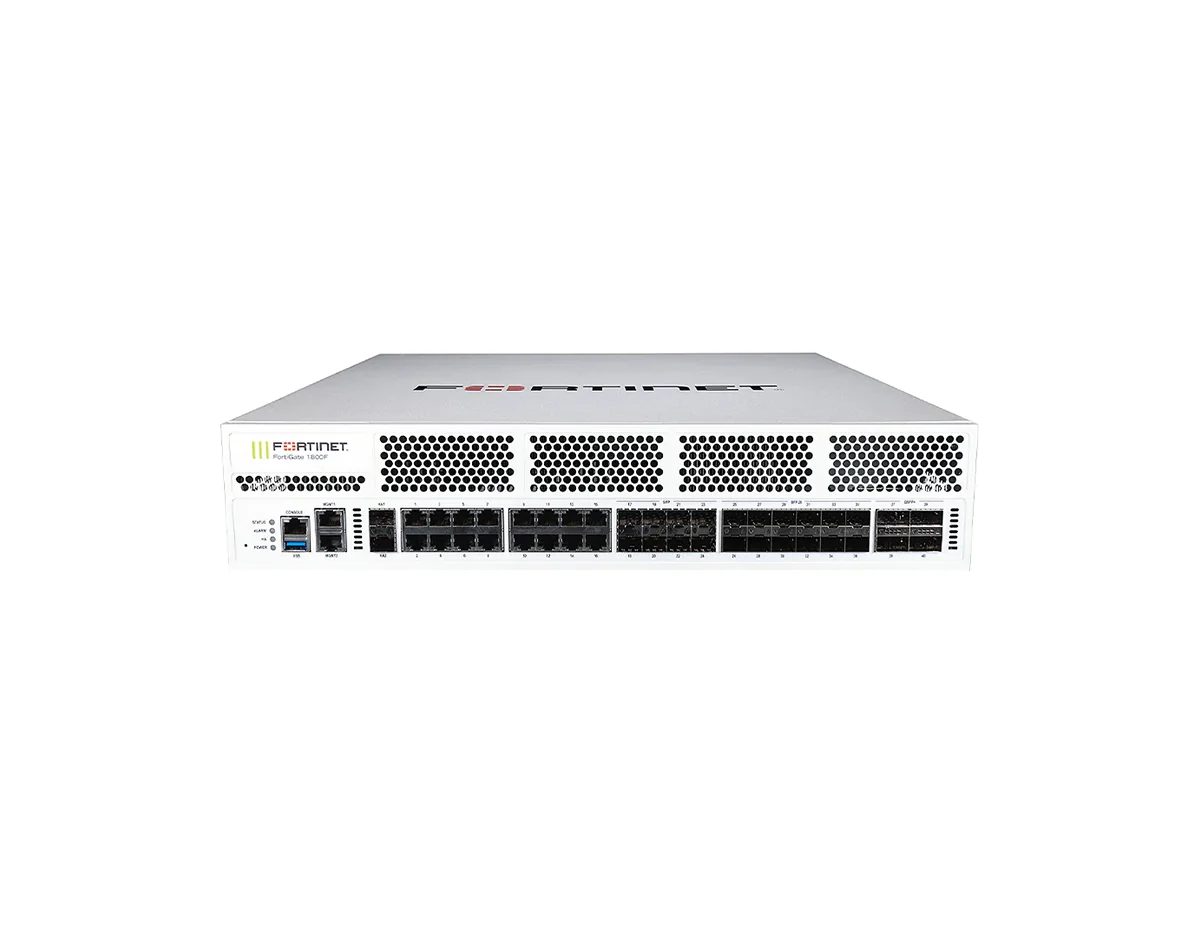

The Fortinet FortiGate 1801F-DC delivers hyperscale security performance and secure networking with FortiOS for converged networking and security across distributed environments. Built on Fortinet’s purpose-built NP7 and CP9 security processing units, it provides up to 198 / 197 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP) and 22 Gbps IPS throughput to help keep security from becoming a bottleneck in high-speed networks.

This bundle (FG-1801F-DC-BDL-809-60) includes Appliance + FortiCare Premium + FortiGuard Enterprise Protection (5 Year).

Equipped with 2x 960GB NVMe SSDs, the FG-1801F-DC offers onboard storage for local logging and operational visibility. The appliance provides flexible high-speed connectivity, including four 100GE QSFP28 slots and twelve 25GE SFP28 slots, and integrates Zero Trust Network Access (ZTNA) enforcement with secure SD-WAN capabilities through the FortiOS unified platform.

Hyperscale Security with DC Power Reliability

• DC Power Ready: Designed with dual -48V to -60V DC power supplies to integrate into DC power environments.
• Onboard NVMe Storage: Includes 2x 960GB NVMe SSDs for onboard storage.
• High-Performance Acceleration: Powered by NP7 and CP9 processors to deliver ultra-low latency and up to 198 / 197 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP).
• 100GE Connectivity: Features 4x 100 GE QSFP28 / 40 GE QSFP+ slots for high-capacity uplinks.
• Dynamic Segmentation: Supports ultra-scalable, low latency VXLAN segmentation to bridge physical and virtual domains.
• Integrated ZTNA: Automatically controls, verifies, and facilitates user access to applications for consistent user experience across distributed networks.
• AI/ML-Powered Defense: Powered by AI/ML-based FortiGuard Services to deliver coordinated threat protection across use cases.

Ideal Use Cases

• Next Generation Firewall (NGFW): Protect web, content, devices, and users with integrated security services and real-time SSL inspection (including TLS 1.3).
• Secure SD-WAN: FortiGate WAN Edge powered by one OS and unified security and management framework.
• Segmentation: Dynamic segmentation and VXLAN support to help prevent lateral movement across the network.
• Hyperscale and Mobile Security: Ultra-scalable secure networking for high connection and connections-per-second demands, including 4G/5G and IoT connectivity and security use cases.

Technical Specifications Summary

• Firewall Throughput (IPv4/IPv6): 198 / 197 / 140 Gbps (IPv4 1518 / 512 / 64 byte UDP; IPv6 1518 / 512 / 86 byte UDP)
• Firewall Latency (64 byte, UDP): 3.22 μs
• IPS / NGFW / Threat Protection Throughput: 22 Gbps / 17 Gbps / 15 Gbps
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL-VPN Throughput / Recommended Max Users (Tunnel Mode): 11 Gbps / 10,000
• SSL Inspection (IPS, avg. HTTPS): 12 Gbps throughput, 9,500 CPS, 1.3 Million concurrent sessions
• Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 12x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x GE RJ45, 8x GE SFP, 2x GE RJ45 MGMT, 2x 10 GE SFP+ / GE SFP HA
• Included Transceivers: 2x SFP+ (SR 10 GE)
• Onboard Storage: 2x 960GB NVMe SSD
• Power (DC model): -48V to -60V DC, 20A max; 414.9 W (Avg) / 463.1 W (Max), 1579.2 BTU/h
• Physical: Rack Mount, 2RU; 3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm), 30.4 lbs (13.8 kg)
• Environment / Compliance: 32°F to 104°F (0°C to 40°C), FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB; USGv6/IPv6

Upgrade Your Network Security

Implement the FG-1801F-DC-BDL-809-60 for robust, DC-powered security and hyperscale performance across distributed network environments.
