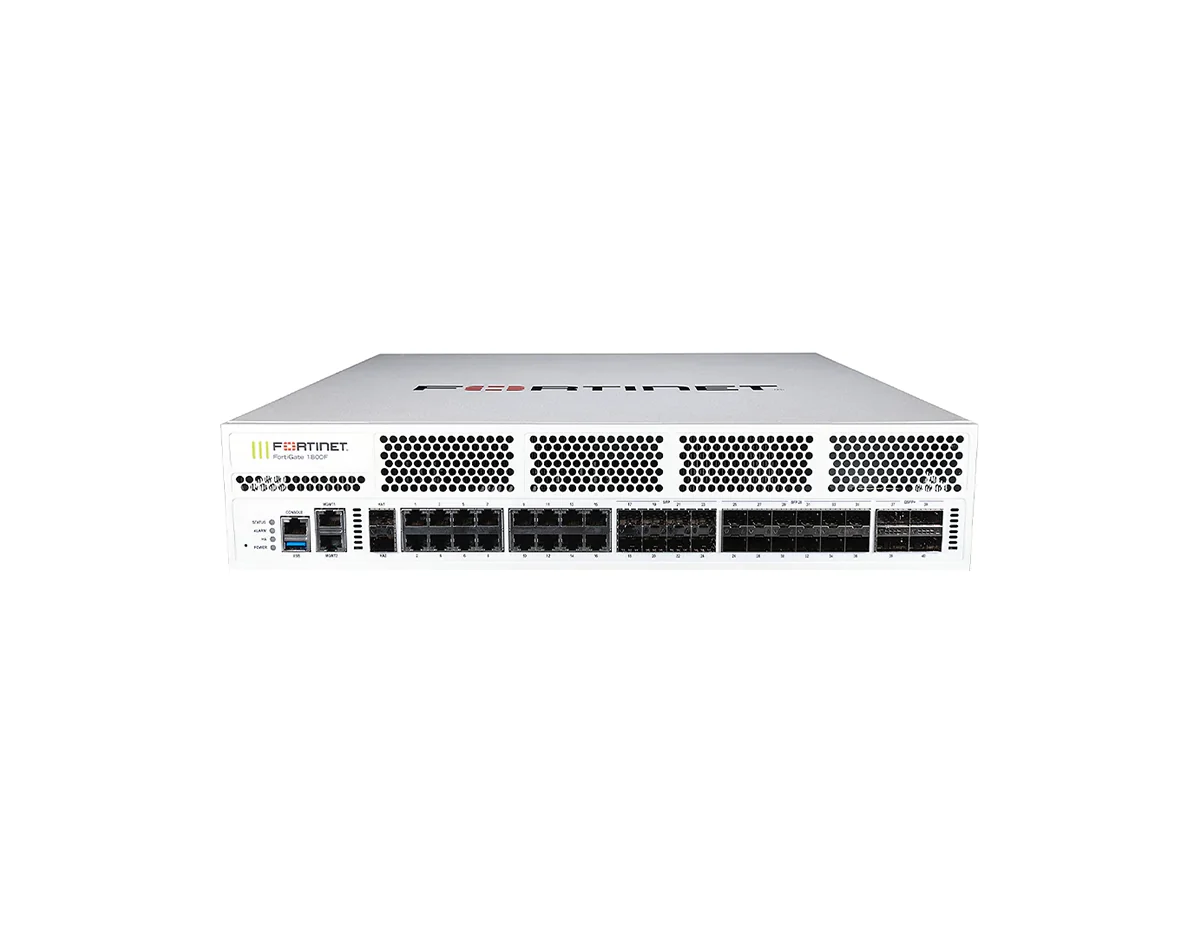

[shortdesc]Fortinet FG-1801F-DC Firewall, dual -48V to -60V DC PSUs, 2x 960GB NVMe SSD, 198/197/140 Gbps, including 3 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]

[properties]

Product Series	FortiGate 1800F Series
Model / SKU	FG-1801F-DC-BDL-809-36
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Enterprise Protection (3 Year)
Form Factor	Rack Mount, 2RU
Firewall Throughput (IPv4)	198 / 197 / 140 Gbps (1518 / 512 / 64 byte, UDP)
Threat Protection Throughput	15 Gbps
Internal Storage	2x 960GB NVMe SSD
Network Interfaces	16x GE RJ45, 2x GE RJ45 MGMT, 2x 10 GE SFP+ / GE SFP HA, 8x GE SFP, 12x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 4x 100 GE QSFP28 / 40 GE QSFP+
Power Input	Dual DC Power Supplies (-48V to -60V DC)
Dimensions (H x W x L)	3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm)
Weight	30.4 lbs (13.8 kg)

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	22 Gbps
NGFW Throughput	17 Gbps
System Performance and Capacity
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)	198 / 197 / 140 Gbps
Firewall Latency (64 byte, UDP)	3.22 μs
Firewall Throughput (Packet per Second)	210 Mpps
Concurrent Sessions (TCP)	12 Million / 40 Million (Requires Hyperscale Firewall License for 40 Million)
New Sessions/Second (TCP)	750,000 / 2 Million (Requires Hyperscale Firewall License for 2 Million)
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	11 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	10,000
SSL Inspection Throughput (IPS, avg. HTTPS)	12 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	9,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	1.3 Million
Application Control Throughput (HTTP 64K)	34 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
Virtual Domains (Default/Maximum)	10 / 250
Maximum Number of FortiSwitches Supported	196
Maximum Number of FortiAPs (Total/Tunnel)	4096 / 2048
Maximum Number of FortiTokens	20,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Interfaces and Modules
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	4
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	12
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Ports	16
GE RJ45 Management Ports	2
10 GE SFP+ / GE SFP HA Slots	2
USB 3.0 Port	1
Console RJ45 Port	1
Dimensions and Power
DC Current (Maximum)	20A
Power Consumption (Average / Maximum)	414.9 W / 463.1 W
Heat Dissipation	1579.2 BTU/h
Redundant Power Supplies	Hot Swappable
Operating Environment and Certifications
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	62.74 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 7400 ft (2250 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Included Transceivers	2x SFP+ (SR 10 GE)
Optional Power Supplies	DC Power Supply (SP-FG1800F-DC-PS)
Optional Mounting Hardware	Rack Mount Sliding Rails (SP-FG3040B-RAIL)
Optional Transceivers	100 GE QSFP28, 40 GE QSFP+, 25 GE SFP28, 10 GE SFP+ (Various ranges: SR, LR, ER, ZR, BiDi)
Optional Cables	40 GE QSFP+ Passive Direct Attach Cables (1m, 3m, 5m), 100 GE QSFP28 Breakout Cables

[/accesories]

The Fortinet FortiGate 1801F-DC delivers high-performance firewall capabilities and secure networking with FortiOS, helping organizations build security-driven networks across data center and hybrid IT environments. Powered by Fortinet SPUs and integrated AI/ML-based FortiGuard Services, it supports coordinated threat protection and integrated Zero Trust Network Access (ZTNA) enforcement while maintaining strong performance.

This bundle (FG-1801F-DC-BDL-809-36) includes 3 Year FortiCare Premium and FortiGuard Enterprise Protection.

Equipped with 2x 960GB NVMe SSDs, the FG-1801F-DC provides onboard storage for local use cases. It offers a versatile set of high-speed interfaces including four 100 GE QSFP28 / 40 GE QSFP+ slots and twelve 25 GE SFP28 / 10 GE SFP+ / GE SFP slots, along with dedicated management and HA connectivity for deployment flexibility. Built on FortiOS, it converges networking and security to support use cases such as next-generation firewalling, segmentation, and secure SD-WAN.

Hyperscale Security with DC Power Reliability

• DC Power Ready: Dual -48V to -60V DC power supplies for environments requiring DC input.
• Onboard NVMe Storage: Includes 2x 960GB NVMe SSDs for onboard storage.
• High-Performance Acceleration: Delivers up to 198 / 197 / 140 Gbps IPv4 firewall throughput (1518 / 512 / 64 byte, UDP) with 3.22 μs firewall latency (64 byte, UDP).
• 100GE Connectivity: 4x 100 GE QSFP28 / 40 GE QSFP+ slots for high-capacity uplinks.
• Dynamic Segmentation: Supports ultra-scalable, low latency VXLAN segmentation across physical and virtual domains.
• Integrated ZTNA: Integrated ZTNA enforcement to control, verify, and facilitate user access to applications.
• AI/ML-Powered Defense: AI/ML-based FortiGuard Services help protect against modern threats including zero-day and AI-powered attacks.

Ideal Use Cases

• Next Generation Firewall (NGFW): Consolidated security with integrated FortiGuard Services and real-time SSL inspection.
• Segmentation: Security-driven segmentation from branch to data center and across multi-cloud environments.
• Secure SD-WAN: WAN edge convergence powered by one OS and a unified security and management framework.
• Hyperscale Networks: Ultra-scalable secure networking with high connections and connections-per-second capacity.

Technical Specifications Summary

• IPS / NGFW Throughput (Enterprise Traffic Mix): 22 Gbps / 17 Gbps
• Threat Protection Throughput: 15 Gbps
• IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 198 / 197 / 140 Gbps
• IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP): 198 / 197 / 140 Gbps
• Firewall Performance: 210 Mpps, 3.22 μs latency (64 byte, UDP)
• VPN Capacity: IPsec VPN 55 Gbps (512 byte), 20,000 gateway-to-gateway tunnels, 100,000 client-to-gateway tunnels
• SSL-VPN: 11 Gbps throughput, 10,000 recommended concurrent users (tunnel mode)
• SSL Inspection (IPS, avg. HTTPS): 12 Gbps, 9,500 CPS, 1.3 Million concurrent sessions
• Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 12x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x GE RJ45, 8x GE SFP, 2x GE RJ45 MGMT, 2x 10 GE SFP+ / GE SFP HA
• Power and Thermal: -48V to -60V DC, 20A max; 414.9 W (avg) / 463.1 W (max); 1579.2 BTU/h
• Environment and Compliance: 0°C to 40°C operating, 62.74 dBA noise, FCC Part 15 Class A, CE, UL/cUL, CB; USGv6/IPv6

Upgrade Your Network Security

Implement the FG-1801F-DC-BDL-809-36 for high-performance, DC-powered firewall capabilities with integrated FortiOS networking and security.
