[shortdesc]Firewall, dual DC PSU, 198/197/140 Gbps, 2x 960GB NVMe, including 1 Year FortiCare Premium and FortiGuard Enterprise Protection[/shortdesc]

[properties]

Product Series	FortiGate 1800F Series
Model / SKU	FG-1801F-DC-BDL-809-12
Bundle / Subscription	FortiGate appliance + FortiCare Premium + FortiGuard Enterprise Protection (1 Year)
Form Factor	Rack Mount, 2RU
Firewall Throughput (IPv4)	198 / 197 / 140 Gbps (1518 / 512 / 64 byte, UDP)
Threat Protection Throughput	15 Gbps
Internal Storage	2x 960GB NVMe SSD
Network Interfaces	Multiple GE RJ45, 25 GE SFP28 / 10 GE SFP+ / GE SFP, and 100 GE QSFP28 / 40 GE QSFP+ slots (plus dedicated MGMT and HA ports)
Power Input	Dual DC Power Supplies (-48V to -60V DC)
Dimensions (H x W x L)	3.5 x 17.25 x 21.1 inches (88.4 x 438 x 536 mm)
Weight	30.4 lbs (13.8 kg)

[/properties]

[specifications]

System Performance - Enterprise Traffic Mix
IPS Throughput	22 Gbps
NGFW Throughput	17 Gbps
System Performance and Capacity
IPv6 Firewall Throughput (1518/512/86 byte, UDP)	198 / 197 / 140 Gbps
Firewall Latency (64 byte, UDP)	3.22 μs
Firewall Throughput (Packet per Second)	210 Mpps
Concurrent Sessions (TCP)	12 Million / 40 Million (Requires Hyperscale Firewall License for 40 Million)
New Sessions/Second (TCP)	750,000 / 2 Million (Requires Hyperscale Firewall License for 2 Million)
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	11 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	10,000
SSL Inspection Throughput (IPS, avg. HTTPS)	12 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	9,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	1.3 Million
Application Control Throughput (HTTP 64K)	34 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
Virtual Domains (Default/Maximum)	10 / 250
Maximum Number of FortiSwitches Supported	196
Maximum Number of FortiAPs (Total/Tunnel)	4096 / 2048
Maximum Number of FortiTokens	20,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Interfaces and Modules
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	4
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	12
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Ports	16
GE RJ45 Management Ports	2
10 GE SFP+ / GE SFP HA Slots	2
USB 3.0 Port	1
Console RJ45 Port	1
Dimensions and Power
DC Current (Maximum)	20A
Power Consumption (Average / Maximum)	414.9 W / 463.1 W
Heat Dissipation	1579.2 BTU/h
Redundant Power Supplies	Hot Swappable
Operating Environment and Certifications
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	62.74 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 7400 ft (2250 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

[/specifications]

[accesories]

Included Transceivers	2x SFP+ (SR 10 GE)
Optional Power Supplies	DC Power Supply (SP-FG1800F-DC-PS)
Optional Mounting Hardware	Rack Mount Sliding Rails (SP-FG3040B-RAIL)
Optional Transceivers	100 GE QSFP28, 40 GE QSFP+, 25 GE SFP28, 10 GE SFP+ (Various ranges: SR, LR, ER, ZR, BiDi)
Optional Cables	40 GE QSFP+ Passive Direct Attach Cables (1m, 3m, 5m), 100 GE QSFP28 Breakout Cables

[/accesories]

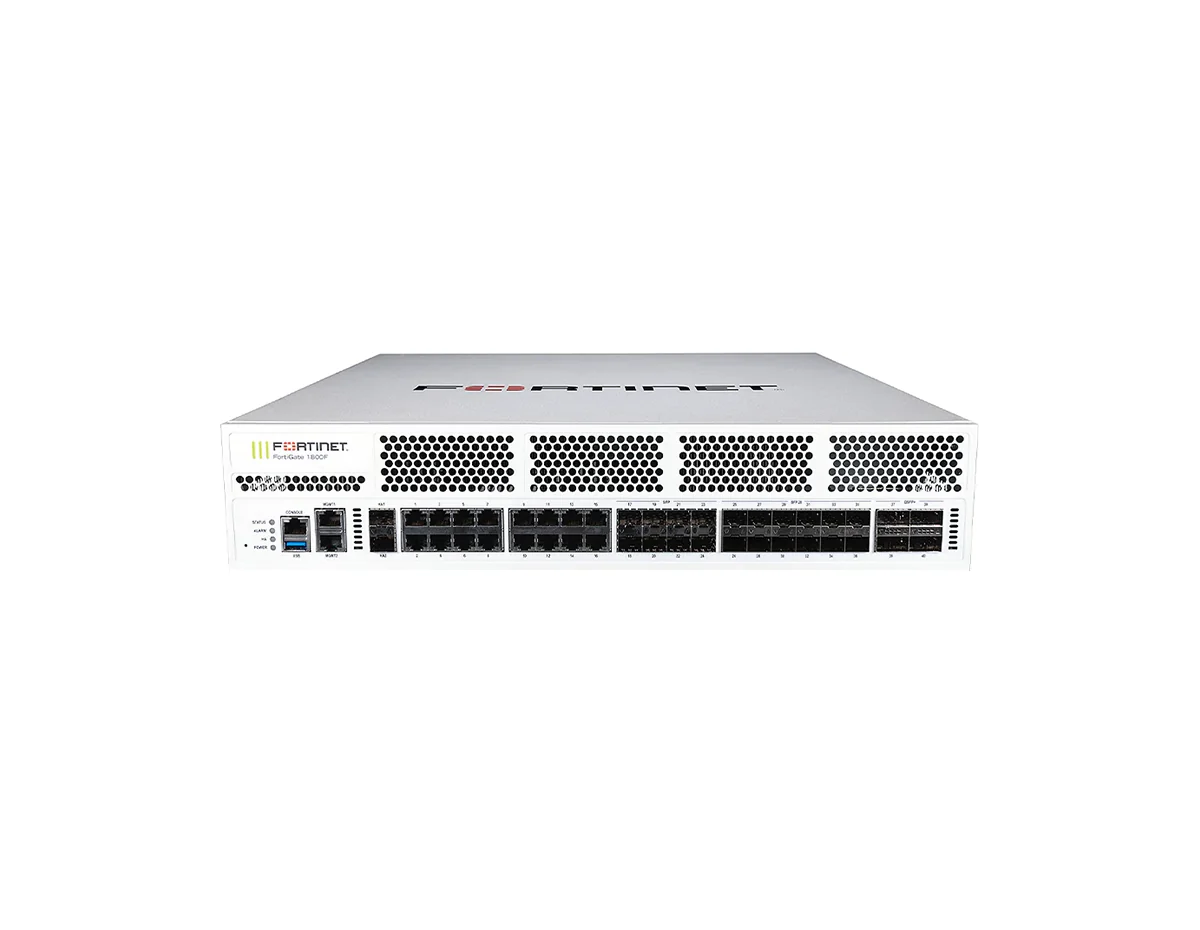

The Fortinet FortiGate 1801F-DC combines hyperscale security performance with the reliability of DC power, making it the ideal choice for service providers, telecommunications hubs, and data centers with DC power infrastructure. This high-end Next-Generation Firewall is built on Fortinet’s purpose-built NP7 and CP9 security processing units, delivering up to 198 / 197 / 140 Gbps IPv4 firewall throughput (1518/512/64 byte, UDP) and 22 Gbps IPS throughput. It ensures that security never becomes a bottleneck in high-speed networks, providing advanced threat protection without compromising performance.

This bundle (FG-1801F-DC-BDL-809-12) includes FortiGate appliance + FortiCare Premium + FortiGuard Enterprise Protection (1 Year).

Equipped with 2x 960GB NVMe SSDs, the FG-1801F-DC offers significant onboard storage for local logging and operational visibility. The appliance features a versatile range of high-speed interfaces, including four 100GE QSFP28 slots and twelve 25GE SFP28 slots, allowing for flexible connectivity and segmentation. With its integrated Zero Trust Network Access (ZTNA) enforcement and robust SD-WAN capabilities, the FortiGate 1801F-DC secures the network edge at scale while simplifying management through the FortiOS unified platform.

Hyperscale Security with DC Power Reliability

• DC Power Ready: Specifically designed with dual -48V to -60V DC power supplies to integrate seamlessly into telecom and industrial data center power grids.
• Onboard NVMe Storage: Includes 2x 960GB NVMe SSDs for onboard storage.
• High-Performance Acceleration: Powered by NP7 Network Processors and CP9 Content Processors to deliver ultra-low latency and up to 198 Gbps IPv4 firewall throughput (1518-byte UDP).
• 100GE Connectivity: Features 4x 100GE QSFP28 / 40GE QSFP+ slots for high-capacity uplinks.
• Dynamic Segmentation: Supports VXLAN segmentation to bridge physical and virtual domains, helping prevent lateral movement of threats.
• Integrated ZTNA: Automatically controls, verifies, and facilitates user access to applications, reducing the attack surface with built-in access control.
• AI/ML-Powered Defense: Natively integrates with FortiGuard Services to help block unknown and zero-day threats in real time.

Ideal Use Cases

• Telecom & Service Providers: Core security infrastructure requiring native DC power input and high availability.
• Enterprise Data Centers: High-speed segmentation and threat protection for critical assets with local logging requirements.
• High-Speed WAN Edge: Secure connectivity for distributed enterprises needing robust SD-WAN and encrypted traffic inspection.
• Internal Segmentation Firewall (ISFW): Isolating network segments to contain threats within physical and virtual environments.

Technical Specifications Summary

• IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 198 / 197 / 140 Gbps
• IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP): 198 / 197 / 140 Gbps
• Firewall Latency (64 byte, UDP): 3.22 μs
• IPS / NGFW / Threat Protection Throughput: 22 Gbps / 17 Gbps / 15 Gbps
• IPsec VPN Throughput (512 byte): 55 Gbps
• SSL-VPN Throughput / Recommended Max Users (Tunnel Mode): 11 Gbps / 10,000
• SSL Inspection (IPS, avg. HTTPS): 12 Gbps throughput, 9,500 CPS, 1.3 Million concurrent sessions
• Interfaces: 4x 100 GE QSFP28 / 40 GE QSFP+, 12x 25 GE SFP28 / 10 GE SFP+ / GE SFP, 16x GE RJ45, 8x GE SFP, 2x GE RJ45 MGMT, 2x 10 GE SFP+ / GE SFP HA
• Onboard Storage: 2x 960GB NVMe SSD
• Power (DC model): -48V to -60V DC, 20A max; 414.9 W (Avg) / 463.1 W (Max)
• Dimensions / Weight: 3.5 x 17.25 x 21.1 in (88.4 x 438 x 536 mm) / 30.4 lbs (13.8 kg)
• Operating Environment / Compliance: 32°F to 104°F (0°C to 40°C), 10% to 90% non-condensing, FCC Part 15 Class A, CE, UL/cUL, CB, USGv6/IPv6

Upgrade Your Network Security

Implement the FG-1801F-DC-BDL-809-12 for robust, DC-powered security and hyperscale performance in your critical infrastructure.
