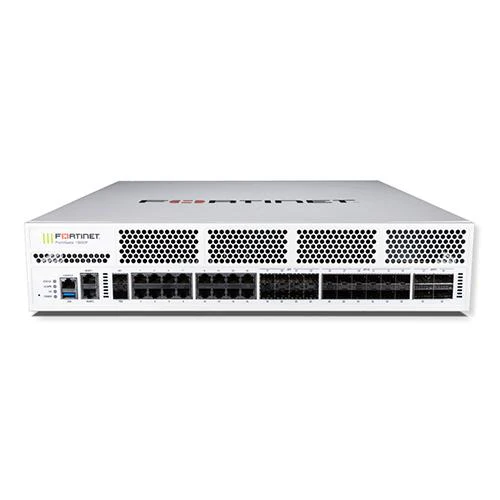

Fortinet FG-1800F-BDL-950-12 Firewall

Product image 1

Fortinet FG-1800F-BDL-950-12 Firewall

Fortinet FG-1800F-BDL-950-12 Firewall

[shortdesc]
  • Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 1Yr Bundle
[/shortdesc]
[properties]
Properties FG-1800F-BDL-950-12
Description
4 x 40GE QSFP+ slots, 12 x 25GE SFP28 /10GE SFP+ slots, 2x10GE SFP+ HA slots, 8 x GE SFP slots, 18 x GE RJ45 ports. SPU NP7 and CP9 accelerated, dual AC power supplies
Product Family High End Firewalls
Product Type Firewall
GE RJ45 Ports 16
GE RJ45 Management/DMZ/HA Ports 2
40 GE SFP+ Slots 4
25 GE SFP+ Slots -
10 GE SFP+ Slots 8
GE SFP Slots 8
GE RJ45 WAN Port -
USB Port 1 (3.0)
Console (RJ45) 1
Internal Storage -
Included Transceivers 2x SFP+ (SR 10GE)
Bundle
24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Bundle Duration 1 Years
[/properties][specifications]
Firewall Throughput (1518 / 512 / 64 byte, UDP) 198 / 197 / 140 Gbps
Firewall Latency (64 byte UDP packets) 3.22 μs
Firewall Throughput (Packets Per Second) 210 Mpps
Concurrent Sessions (TCP) 12 Million / 40 Million
New Sessions/Second (TCP) 750 000 / 2 Million*
Firewall Policies 100.000
IPsec VPN Throughput (512 byte packets) 55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 20000
Client-to-Gateway IPsec VPN Tunnels 100000
SSL-VPN Throughput 11 Gbps
Concurrent SSL-VPN Users (Recommended Maximum) 10000
SSL Inspection Throughput 12 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 9500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 1.3 Million
Application Control Throughput 34 Gbps
IPS Throughput 22 Gbps
NGFW Throughput 17 Gbps
Threat Protection Throughput 15 Gbps
CAPWAP Throughput 65 Gbps
Virtual Domains (Default / Maximum) 10 / 250
Maximum Number of FortiSwitches Supported 196
Maximum Number of FortiAPs (Total / Tunnel Mode) 4096 / 2048
Maximum Number of FortiTokens 20000
Maximum Number of Registered FortiClients -
High Availability Configurations Active/Active, Active/Passive, Clustering
Dimensions in. 3.5 x 17.25 x 21.1
Form Factor Rack Mount, 2 RU
Power Required 100240V AC, 5060 Hz
Maximum Current 7A@100VAC, 3A@240VAC
Power Consumption (Average / Maximum) 410.9 W / 459.1 W
Operating Temperature 32104°F (040°C)
Regulatory Compliance
FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications USGv6/IPv6
[/specifications][accesories]
FN-TRAN-GC
1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
FN-TRAN-SX
1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
FN-TRAN-LX
1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
FN-TRAN-SFP+SR
10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-SFP+LR
10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
FN-TRAN-SFP+GC
10 GE SFP+ RJ45 transceiver module
FN-TRAN-SFP+ER
10 GE SFP+ transceiver module, extended range
SP-CABLE-ADASFP+
10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots
FN-TRAN-SFP+BD27
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD33, ordered separately)
FN-TRAN-SFP+BD33
10GE SFP+ transceiver module, 30km long range single BiDi for systems with SFP+ and SFP/SFP+ slots (connects to FN-TRAN-SFP+BD27, ordered separately)
FN-TRAN-QSFP28-BIDI
100 GE QSFP28 BIDI transceiver module, 100m MMF LC connector, for systems with QSFP28 slots
FN-TRAN-SFP28-LR
25 GE SFP28 transceiver module, long range for all systems with SFP28 slots
FN-TRAN-SFP28-SR
25 GE/10 GE dual rate SFP28 transceiver module, short range for all systems with SFP28/SFP+ slots.
FN-TRAN-QSFP+SR
40 GE QSFP+ transceivers, short range for all systems with QSFP+ slots.
FG-TRAN-QSFP+SR-BIDI
40 GE QSFP+ transceivers, short range BiDi for systems with QSFP+ slots.
FN-TRAN-QSFP+LR
40 GE QSFP+ transceivers, long range for all systems with QSFP+ slots.
FG-TRAN-QSFP-4XSFP
40 GE QSFP+ parallel breakout MPO to 4x LC connectors, 1 m reach, transceivers not included
SP-FG3040B-RAIL
Rack mount sliding rails for FG-1000C/-DC, FG-1100/1101E, FG-1200D, FG-1500D/-DC, FG-1800F, FG-2000E, FG-2500E, FG-3040B/-DC, FG-3140B/-DC, FG-3240C/-DC, FG-3000D/- DC, FG-3100D/-DC, FG-3200D/-DC, FG-3400/3401E, FG-3600/3601E, FG-3700D/-DC, FG-3700DX, FG-3810D/-DC and FG-3950B/-DC.
SP-FG1800F-PS
AC power supply for FG-1800/1801F
SP-FG1800F-DC-PS
DC power supply for FG-1800/1801F and FG-2600/2601.
FN-CABLE-SFP28-1
25 GE SFP28 passive direct attach cable 1m for systems with SFP28 slots
FN-CABLE-SFP28-3
25 GE SFP28 passive direct attach cable 3m for systems with SFP28 slots
FN-CABLE-SFP28-5
25 GE SFP28 passive direct attach cable 5m for systems with SFP28 slots
FN-CABLE-QSFP28-4SFP28-1
100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 1m
FN-CABLE-QSFP28-4SFP28-3
100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 3m
FN-CABLE-QSFP28-4SFP28-5
100 GE QSFP28 breakout to 4x 25 GE SFP28 passive direct attach cable, 5m
[/accesories]

4 x 40GE QSFP+ slots, 12 x 25GE SFP28 /10GE SFP+ slots, 2x10GE SFP+ HA slots, 8 x GE SFP slots, 18 x GE RJ45 ports. SPU NP7 and CP9 accelerated, dual AC power supplies, Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP), 1Yr Bundle, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web Filtering and Antispam Service) plus term of contract

$22,424.15

Original: $64,069.00

-65%
Fortinet FG-1800F-BDL-950-12 Firewall

$64,069.00

$22,424.15
