[shortdesc]1RU firewall, SP5 ASIC, 39 Gbps, 18x GE RJ45, 8x GE SFP, 4x 10GE SFP+, 480 GB SSD, including 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)[/shortdesc]

[properties]

Product Series	FortiGate 120G Series
SKU	FG-121G-BDL-950-60
Bundle / Subscription	Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP), 5 Year
Form Factor	Rack Mount, 1 RU
Internal Storage	1x 480 GB SSD
Firewall Throughput	39 Gbps
IPS Throughput	5.3 Gbps
Network Interfaces	18x GE RJ45 (including 1x MGMT, 1x HA, 16x switch), 8x GE SFP, 4x 10GE SFP+
Power Supply	Dual Non-Swappable AC (1+1 Redundancy)
Dimensions (H x W x L)	1.73 x 17 x 10 inches (44 x 432 x 254 mm)
Weight	12.17 lbs (5.52 kg)

[/properties]

[specifications]

System Performance
NGFW Throughput	3.1 Gbps
Threat Protection Throughput	2.8 Gbps
Firewall Throughput (UDP)	39 / 39 / 28 Gbps (1518 / 512 / 64 byte packets)
Firewall Latency	3.17 μs
Firewall Throughput (Packets Per Second)	42 Mpps
Application Control Throughput	6.7 Gbps
SSL Inspection Throughput	3 Gbps
System Capacity
Concurrent Sessions (TCP)	3 Million
New Sessions/Second (TCP)	140,000
Firewall Policies	10,000
VPN Performance
IPsec VPN Throughput (512 byte)	35 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	16,000
SSL-VPN Throughput	1.5 Gbps
Concurrent SSL-VPN Users (Recommended Max)	500
Interfaces & Connectivity
GE RJ45 Ports	16x Hardware Accelerated Ports
GE RJ45 Management / HA Ports	1 / 1
GE SFP Slots	8x Hardware Accelerated Slots
10 GE SFP+ Slots	4x Hardware Accelerated FortiLink Slots (default)
USB Ports	1
Console Port	1x RJ45
Power & Environment
Power Input	100–240V AC, 50–60 Hz
Power Consumption (Average / Max)	43 W / 47 W
Heat Dissipation	159 BTU/h
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-31°F to 158°F (-35°C to 70°C)
Humidity	10% to 90% non-condensing
Noise Level	49 dBA
Compliance & Certifications	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI, USGv6/IPv6

[/specifications]

[accesories]

Optional Accessories

1 GE SFP SX/LX/RJ45 Transceivers (FN-TRAN-SX, FN-TRAN-LX, FN-TRAN-GC), 10 GE SFP+ RJ45/LR/ER/SR Transceivers (FN-TRAN-SFP+GC, FN-TRAN-SFP+LR, FN-TRAN-SFP+ER, FN-TRAN-SFP+SR), 10 GE SFP+ Passive Direct Attach Cables (FN-CABLE-SFP+1, FN-CABLE-SFP+3, FN-CABLE-SFP+5)

[/accesories]

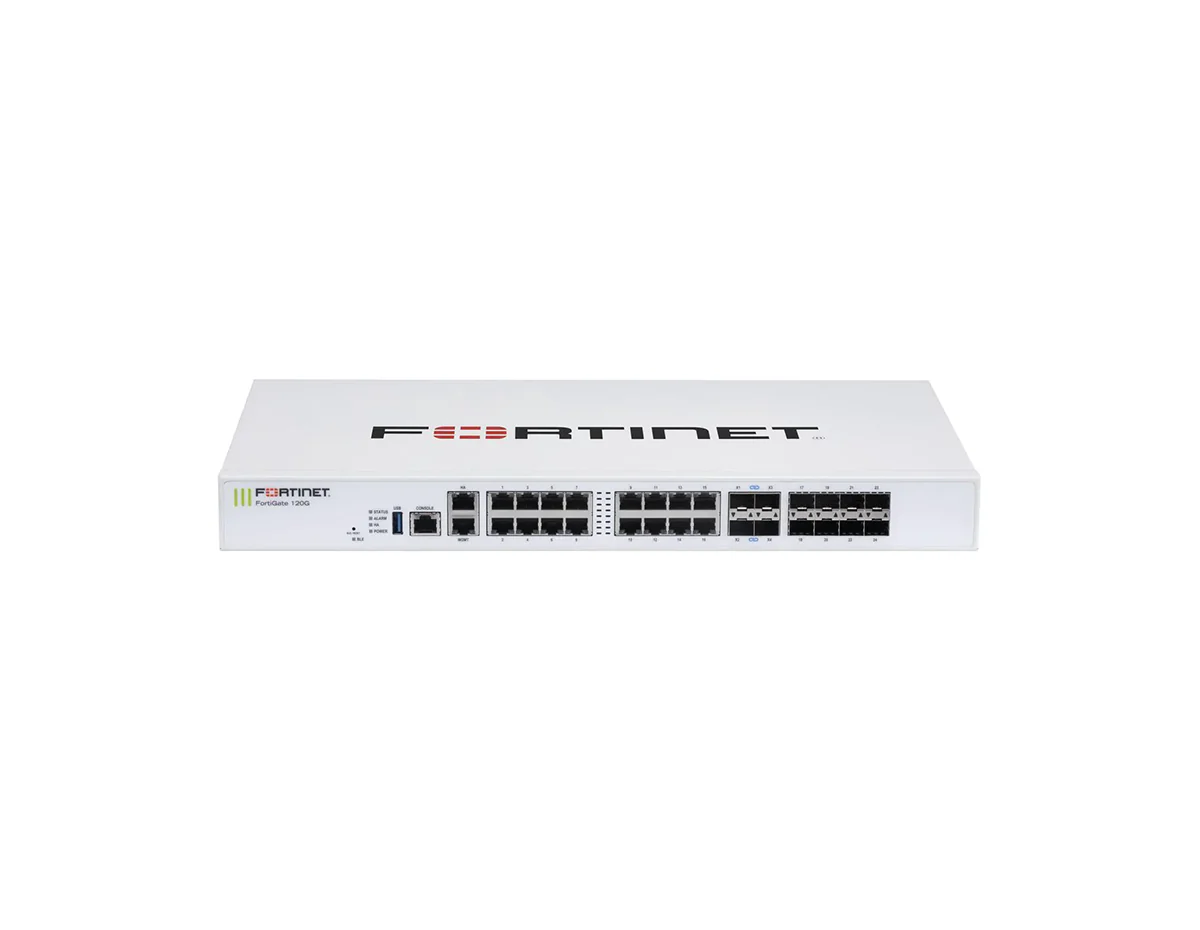

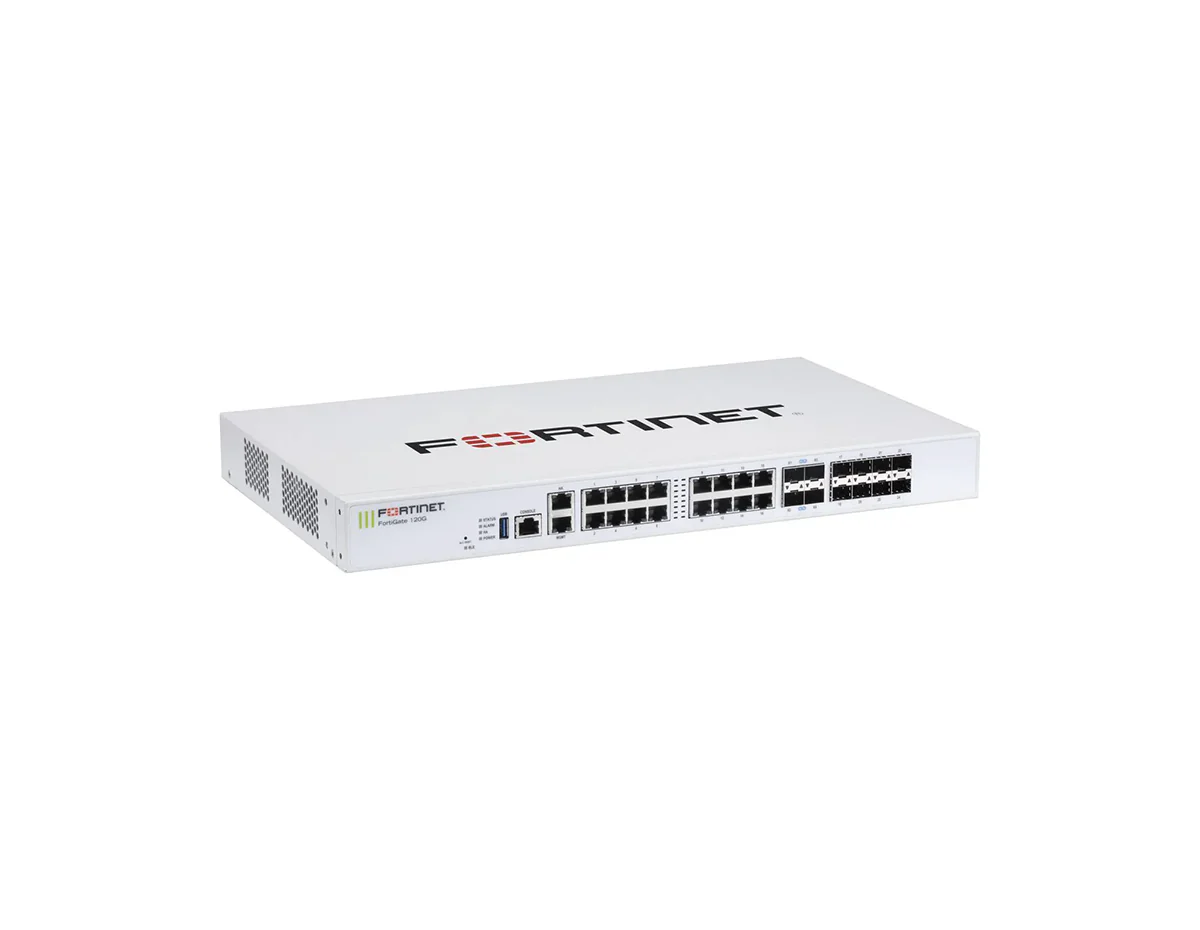

The Fortinet FortiGate 121G next-generation firewall combines advanced AI-powered security with 480 GB of onboard SSD storage for comprehensive logging and reporting capabilities. Powered by Fortinet’s proprietary SP5 Security Processing Unit (SPU), this appliance enables high-speed networking and threat protection without compromising performance. It is designed to deliver deep visibility into users, devices, and applications while automatically blocking sophisticated threats such as ransomware and zero-day attacks.

Built for resilience and scalability, the FortiGate 121G features dual non-swappable AC power supplies and a diverse set of connectivity options, including 10 GE SFP+ FortiLink slots and multiple GE RJ45 and SFP ports. This configuration supports secure SD-WAN deployments and network segmentation, making it an ideal solution for distributed enterprises and branch offices that require robust security, integrated storage, and high availability.

This FG-121G-BDL-950-60 bundle includes Hardware + FortiCare Premium + FortiGuard Unified Threat Protection (UTP) for a 5 Year term.

Integrated storage and SP5 ASIC performance for secure, data-rich networking.

• Onboard Storage: Includes a 480 GB SSD for local logging and reporting, supporting visibility and compliance needs.
• Unparalleled Performance: Leverages the SP5 SPU to deliver 39 Gbps firewall throughput and ultra-low 3.17 μs latency.
• Advanced Threat Protection: Provides 5.3 Gbps IPS and 2.8 Gbps Threat Protection throughput to defend against complex network attacks.
• Redundant Power: Features dual built-in AC power supplies (1+1 redundancy) to ensure continuous operation in mission-critical environments.
• Flexible Connectivity: Equipped with 18x GE RJ45 ports, 8x GE SFP slots, and 4x 10GE SFP+ slots for high-speed uplink and switching.
• Secure SD-WAN: Unified operating system and security fabric support scalable SD-WAN with accelerated application steering.

Ideal Use Cases

• Distributed Enterprises: Branch locations requiring local logging and high-speed secure connectivity.
• Compliance-Heavy Sectors: Deployments where on-device data retention and reporting are mandatory.
• Secure SD-WAN: WAN edge transformation with integrated security and performance monitoring.
• Hybrid Network Security: Consistent policy enforcement across on-premise and cloud-connected segments.

Technical Specifications Summary

• Firewall Throughput (1518 / 512 / 64 byte UDP): 39 / 39 / 28 Gbps
• Enterprise Traffic Mix Throughput: IPS 5.3 Gbps; NGFW 3.1 Gbps; Threat Protection 2.8 Gbps
• Firewall Performance: 42 Mpps; 3.17 μs latency (64 byte UDP packets)
• Session Capacity: 3 million concurrent sessions (TCP); 140,000 new sessions/second (TCP); 10,000 firewall policies
• VPN Performance: IPsec VPN 35 Gbps (512 byte); 2,000 gateway-to-gateway tunnels; 16,000 client-to-gateway tunnels
• SSL: SSL-VPN 1.5 Gbps; up to 500 concurrent SSL-VPN users (recommended max); SSL Inspection 3 Gbps (IPS, avg. HTTPS)
• Interfaces: 16x GE RJ45 + 1x GE RJ45 MGMT + 1x GE RJ45 HA; 8x GE SFP; 4x 10GE SFP+ FortiLink (default); 1x RJ45 console; 1x USB
• Power: Dual non-swappable AC (1+1 redundancy), 100–240V AC 50–60 Hz; 43 W average / 47 W maximum; 159 BTU/h heat dissipation
• Physical & Environment: Rack mount 1RU; 1.73 x 17 x 10 inches (44 x 432 x 254 mm); 12.17 lbs (5.52 kg); 0°C to 40°C operating; 10% to 90% non-condensing; 49 dBA
• Compliance & Certifications: FCC Part 15B, Class A; CE; RCM; VCCI; UL/cUL; CB; BSMI; USGv6/IPv6

Upgrade Your Network Security

Deploy the FortiGate 121G (FG-121G-BDL-950-60) today for integrated storage and enterprise-grade protection with 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP).
